0A-4 GENERAL INFORMATION

LIFTING INSTRUCTION

Lifting Instruction

If it is necessary to use a lifting device other than the
original equipment jack, see illustration for acceptable
lifting points.
Lifting should only be done at the positions indicated to
prevent possible damage to the vehicle.

Caution:
Failure to observe the acceptable lift points may result in
unsatisfactory vehicle performance or a durability failure
which may result in loss of control of the vehicle.

Garage Jack and Safety Stand

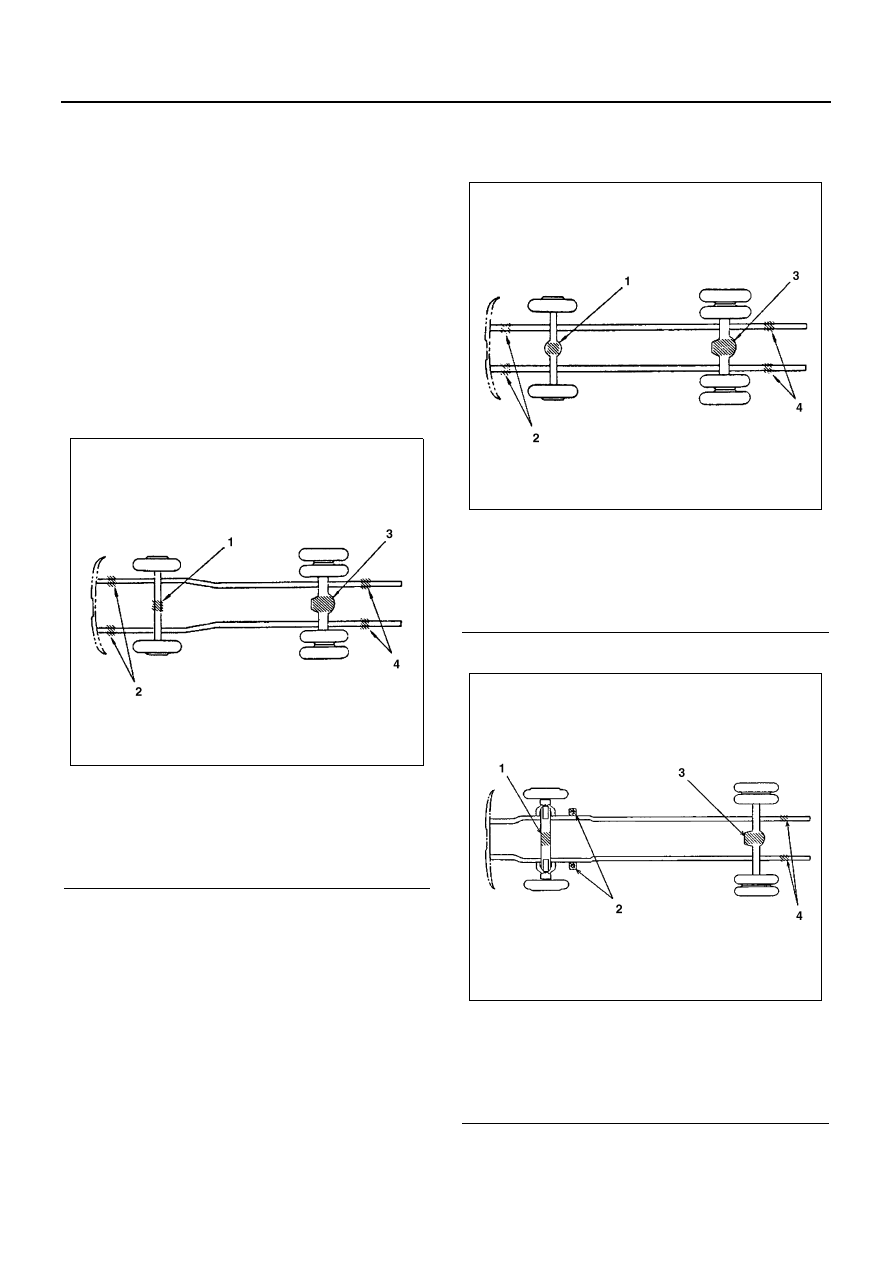

Lifting Point and Supportable Point Location
NHR, NKR, NPR, NQR

NPS

NKR (Front independent suspension)

Legend

1. Front axle
2. Side frame front side
3. Rear axle center
4. Side frame rear side

N0A0005E

Legend

1. Front axle
2. Side frame front side
3. Rear axle center
4. Side frame rear side

Legend

1. Suspension cross member
2. Jack up bracket
3. Rear axle center
4. Side frame rear side

N0A0006E

N0A0007E

GENERAL INFORMATION 0A-5

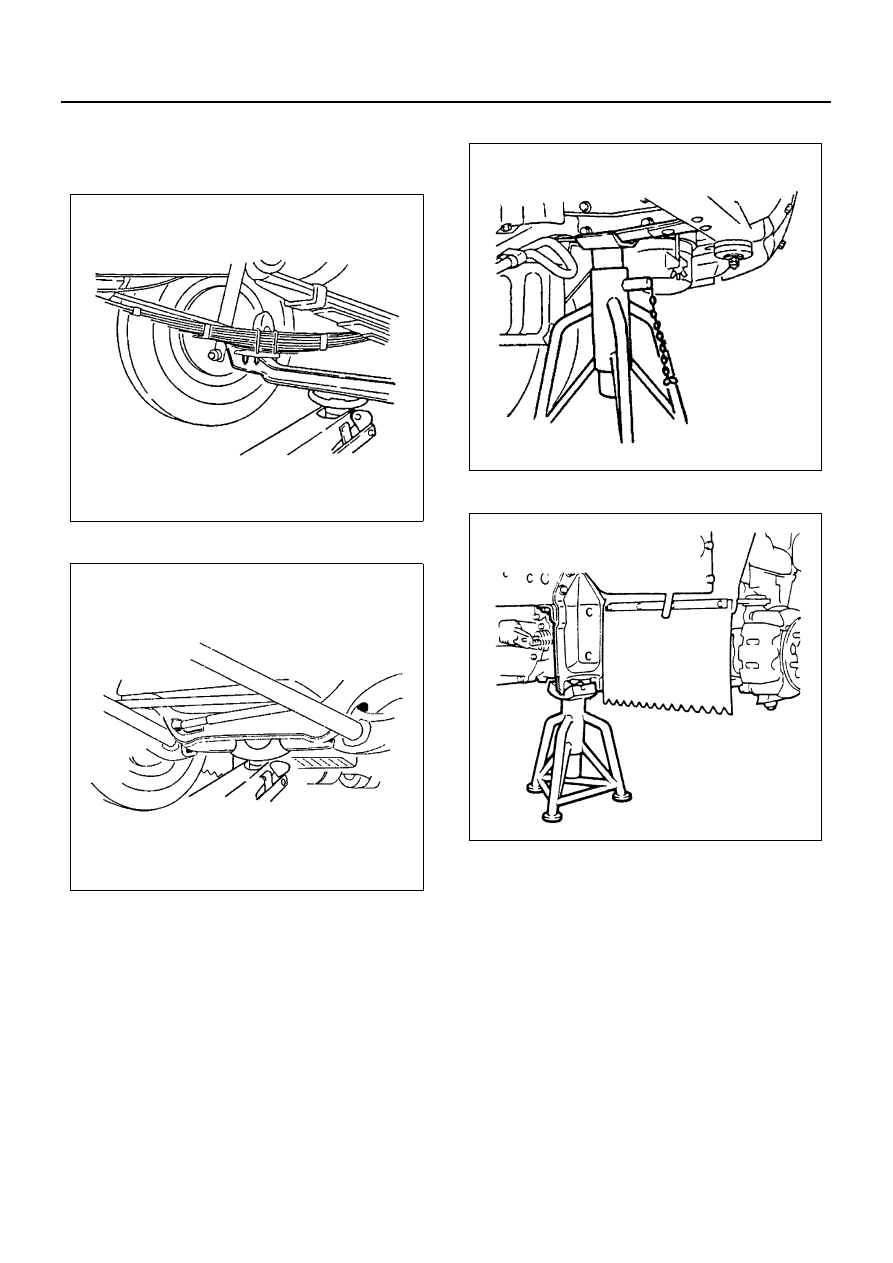

Front Side Lifting Point

Notice:
Do not lift or support on engine oil pan.

NKR (Front independent suspension)

Front Side Supportable Point

NKR (Front independent suspension)

N0A0008E

N0A0009E

N0A0010E

N0A0011E

0A-6 GENERAL INFORMATION

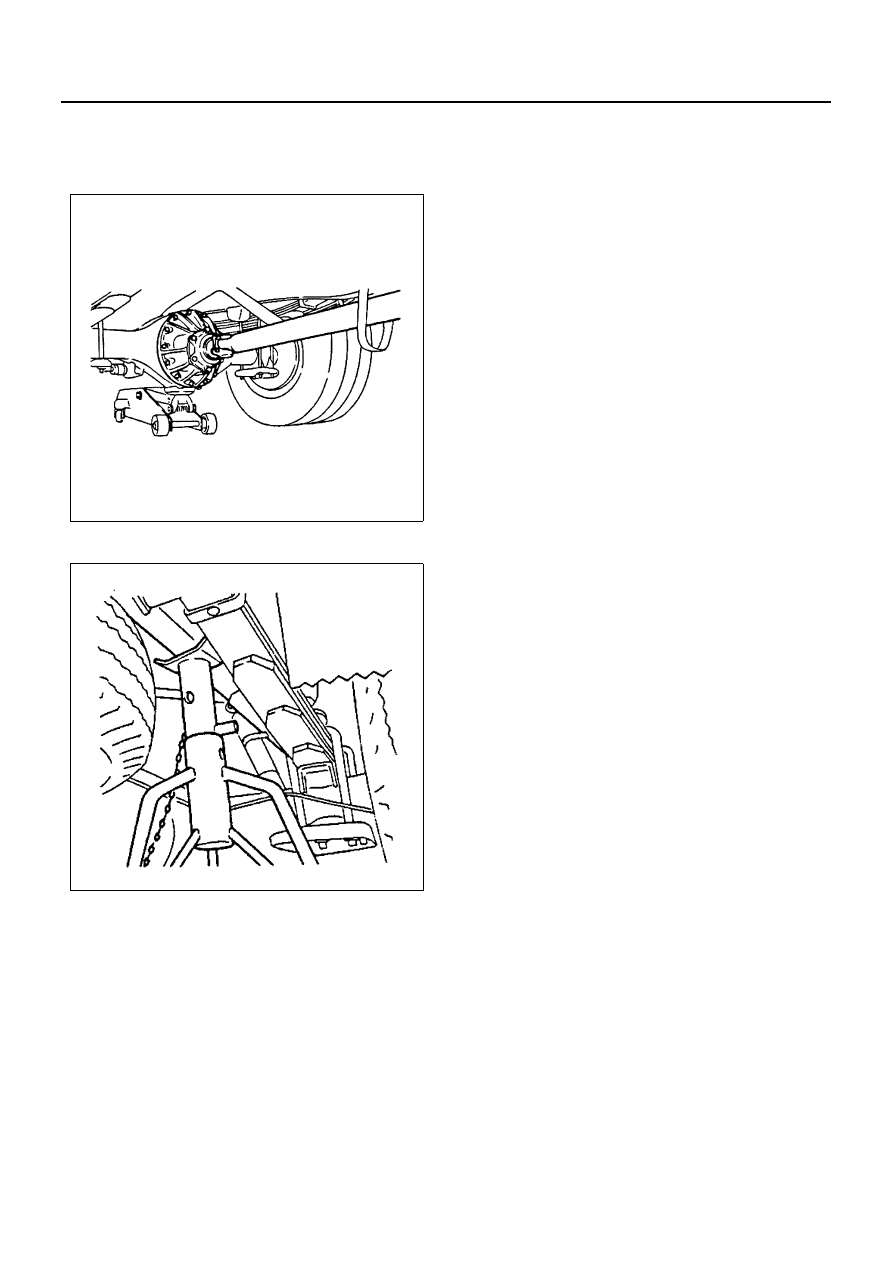

Rear Side Lifting Point

Notice:
Do not lift or support on rear axle tube.

Rear Side Supportable Point

N0A0012E

N0A0013E

GENERAL INFORMATION 0A-7

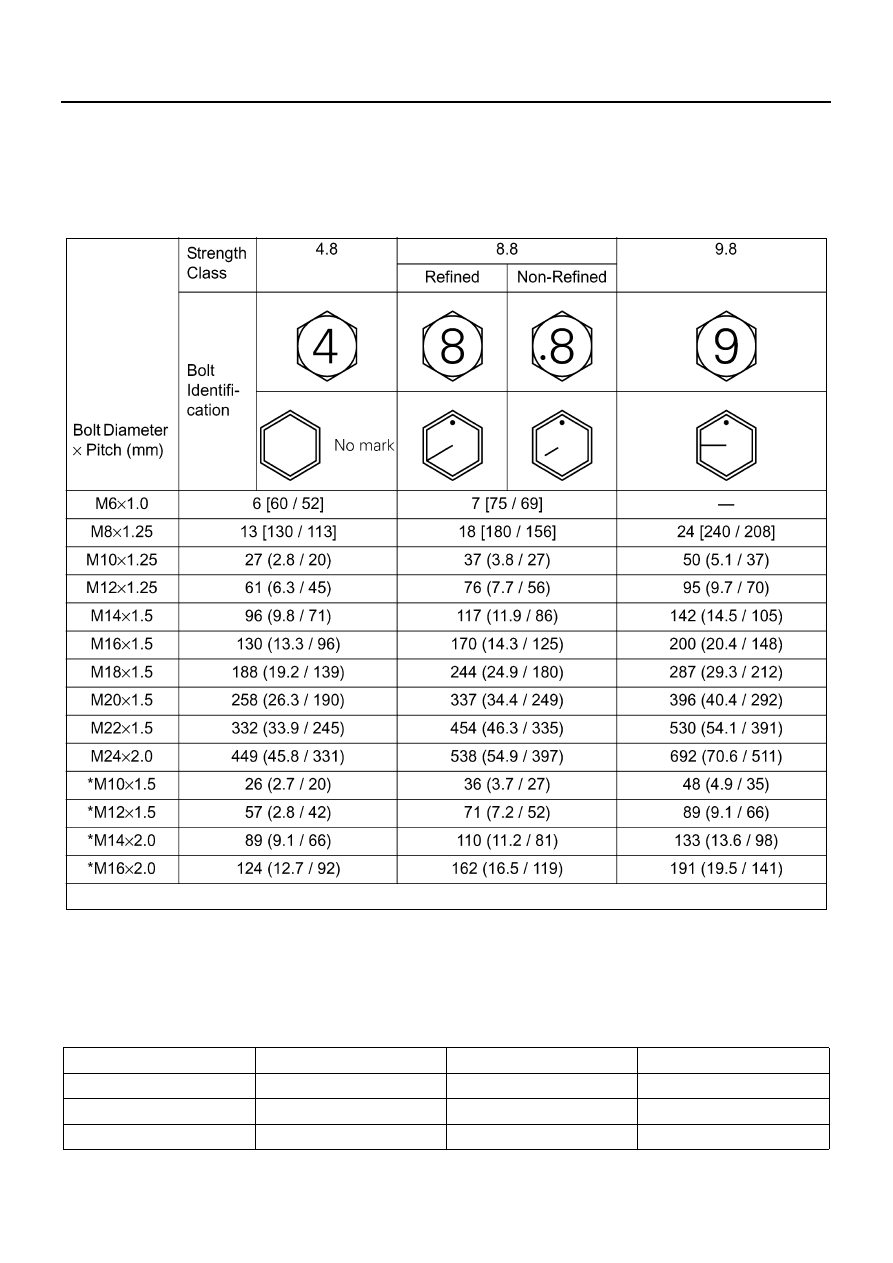

TORQUE SPECIFICATIONS

Standard Bolts

The torque values given in the following table should be applied where a particular torque is not specified.

N

⋅m (kg⋅m / lb⋅ft)

N

⋅m [kg⋅cm / lb⋅in]

The asterisk * indicates that the bolts are used for female-threaded parts that are made of soft materials such as cast-
ing, etc.

Flare Nuts

N

⋅m (kg⋅m / lb⋅ft)

Pipe diameter mm (in)

Torque

Pipe diameter mm (in)

Torque

4.76 (0.187)

16 (1.6 / 12)

10.00 (0.94)

54 (5.5 / 40)

6.35 (0.250)

26 (2.7 / 20)

12.00 (0.472)

88 (9.0 / 65)

8.00 (0.315)

44 (4.5 / 33)

15.00 (0.591)

106 (10.8 / 78)

N0A0023E
