0B-16 MAINTENANCE AND LUBRICATION

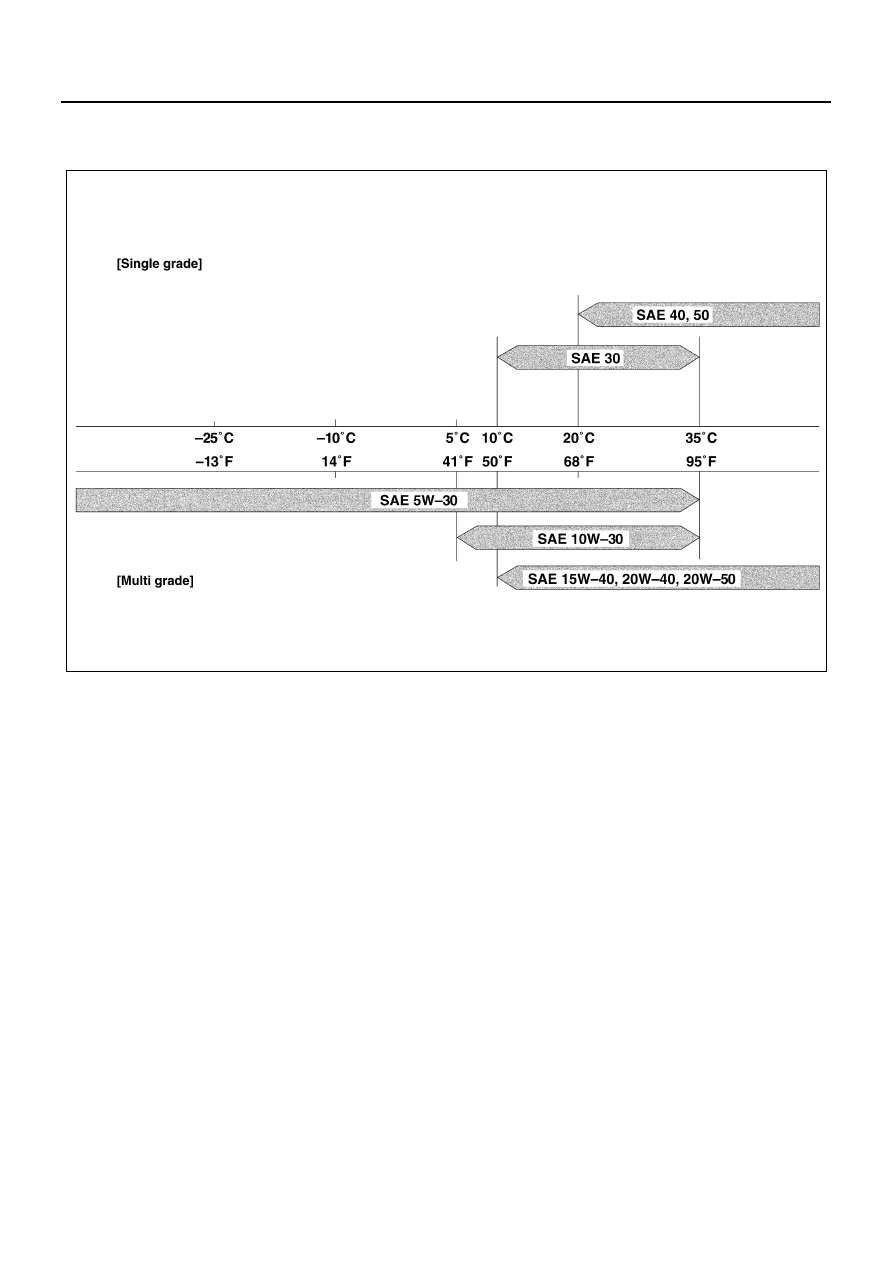

Manual Transmission and Transfer Case Oil (Engine Oil)

Viscosity Grade - Ambient Temperature

N0A0017E

MAINTENANCE AND LUBRICATION 0B-17

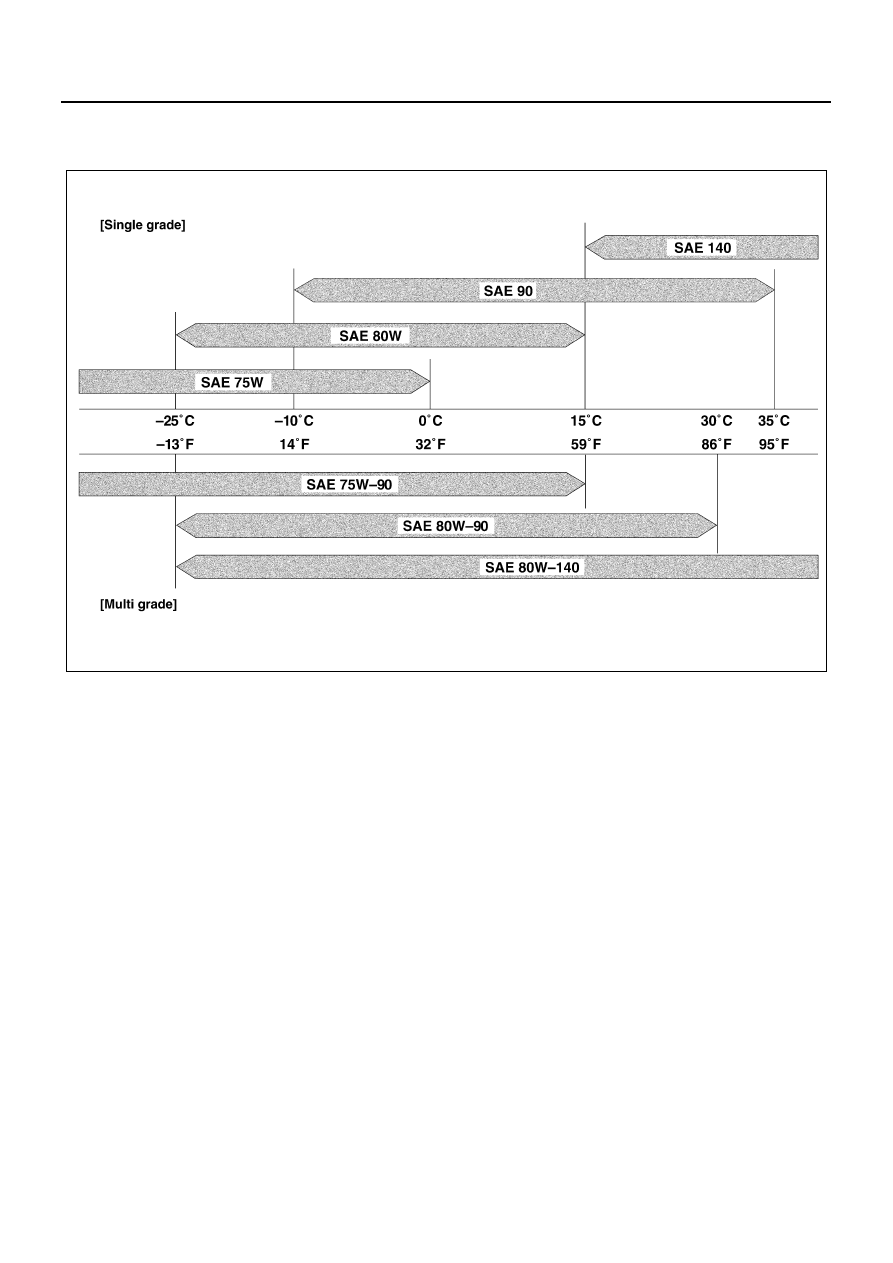

Front Axle and Rear Axle Oil

Gear Oil Viscosity Grade - Ambient Temperature

N0A0018E

0B-18 MAINTENANCE AND LUBRICATION

LUBRICATION CHART

NPR75 and NQR75 Models

A

W

W

W

W

B

G

C

C

M

M

M

M

M

King pin

King pin

Front hub bearing

Transmission

Rear hub bearing

Prop. shaft universal joint

Power steering fluid

Smoother clutch fluid SA

Prop. shaft universal joint

Prop. shaft universal joint

Prop. shaft sliding sleeve

Brake and clutch fluid

A

Hydro booster fluid

Differential gear

W : Wheel bearing grease

C : Multipurpose type grease

M : MoS

2

 contained type grease

B : Brake fluid

A : Automatic transmission fluid

E : Engine oil

G : Gear oil

     : Change

     : Check and Replenish or Lubricate

Engine

Rear hub bearing

Front hub bearing

Prop. shaft center bearing

Every 7 months or 11,250 km (7,000 miles)

Every 12 months or 20,000 km (12,000 miles)

Every 14 months or 22,500 km (14,000 miles)

Every 28 months or 45,000 km (28,000 miles)

E

A

E

N0A0024E

MAINTENANCE AND LUBRICATION 0B-19

NKR77 and NPR77 (Front Rigid Suspension) Models

W : Wheel bearing grease

C : Multipurpose type grease

M : MoS

2

 contained type grease

B : Brake fluid

A : Automatic transmission fluid

E : Engine oil

G : Gear oil

     : Change

     : Check and Replenish or Lubricate

W

B

E

E

G

C

M

C

M

Differential gear

Rear hub bearing

Engine [B3]

Engine [B2]

W

Prop. shaft center bearing [B3]

Prop. shaft center bearing [B2]

Every 9 months or 15,000 km (9,000 miles)

Every 12 months or 20,000 km (12,000 miles)

Every 18 months or 30,000 km (18,000 miles)

Every 3 years or 60,000km (36,000 miles)

W

W

C

M

M

M

M

M

M

M

M

King pin [B3]

C

King pin [B2]

Prop. shaft universal joint [B3]

Front hub bearing

Prop. shaft sliding sleeve [B2]

Transmission

Rear hub bearing

Prop. shaft universal joint [B2]

Prop. shaft universal joint [B3]

Power steering fluid

Prop. shaft universal joint [B2]

Prop. shaft universal joint [B2]

Prop. shaft sliding sleeve [B3]

Prop. shaft universal joint [B3]

E

King pin [B3]

King pin [B2]

Brake and clutch fluid

Front hub bearing

[B2]: ACEA B2 spec.
        engine oil model
[B3]: ACEA B3 or more spec.
        engine oil model

A

N0A0025E
