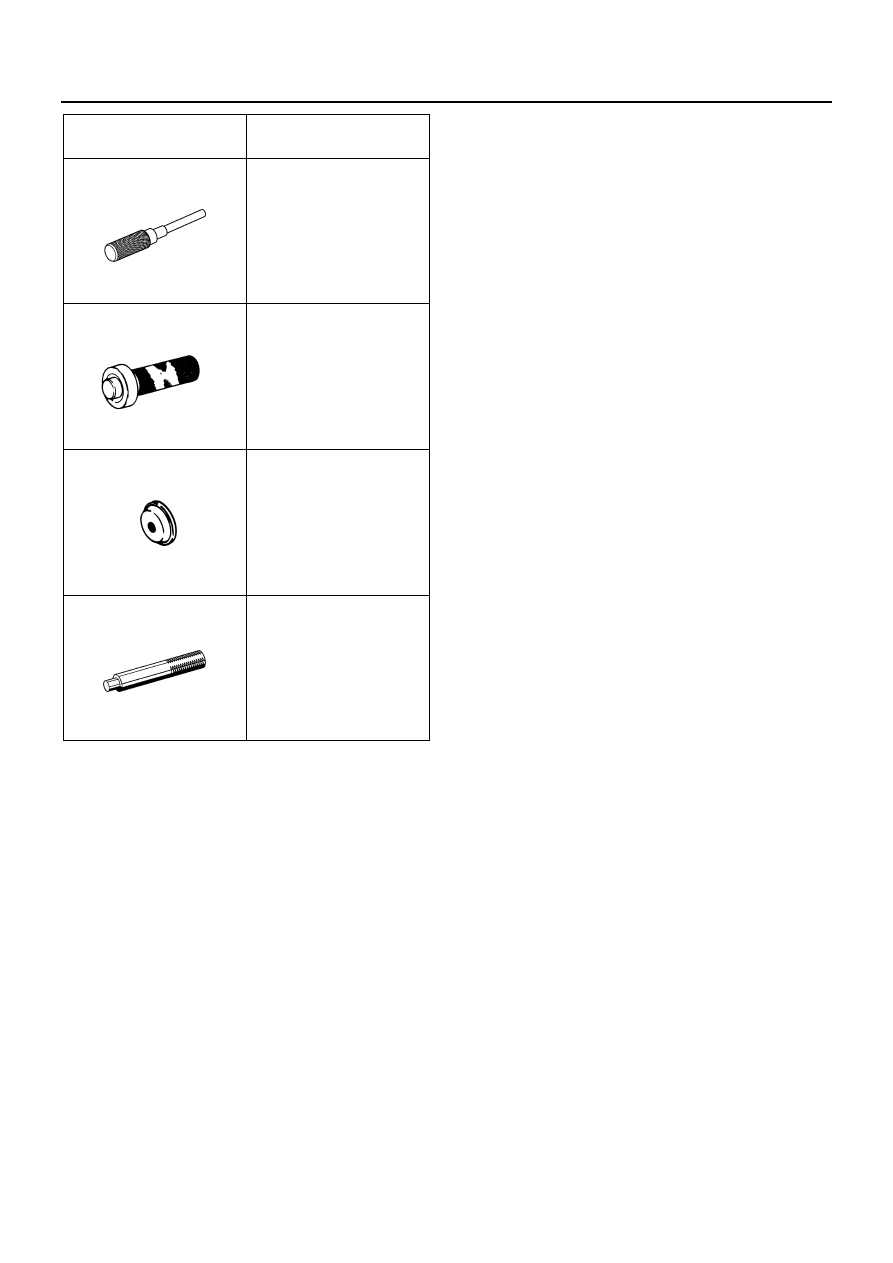

POWER TAKE OFF 00-71

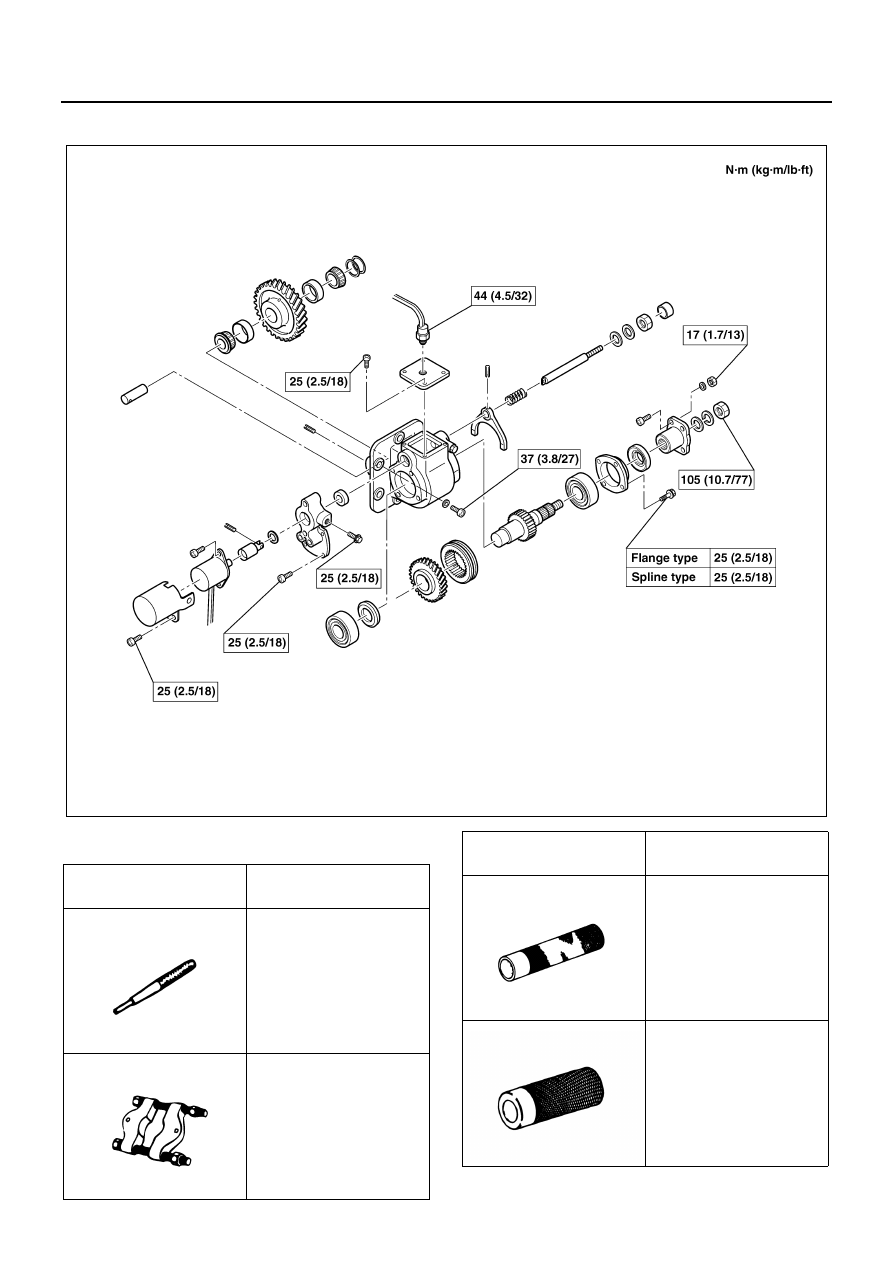

14. PTO Switch
• Apply LOCTITE 242 to the threads and assem-
ble it.
Tighten:
PTO switch to 44 N
⋅m (4.5 kg⋅m / 32 lb⋅ft)
15. Solenoid Assembly
• Apply LOCTITE 242 to the bolt threads and as-
semble it.
Tighten:
Bolt to 25 N
⋅m (2.5 kg⋅m / 18 lb⋅ft)
16. Cover Solenoid Plug
• Apply LOCTITE 242 to the bolt threads of cover
and solenoid and assemble them.
Tighten:
Bolt to 25 N
⋅m (2.5 kg⋅m / 18 lb⋅ft)

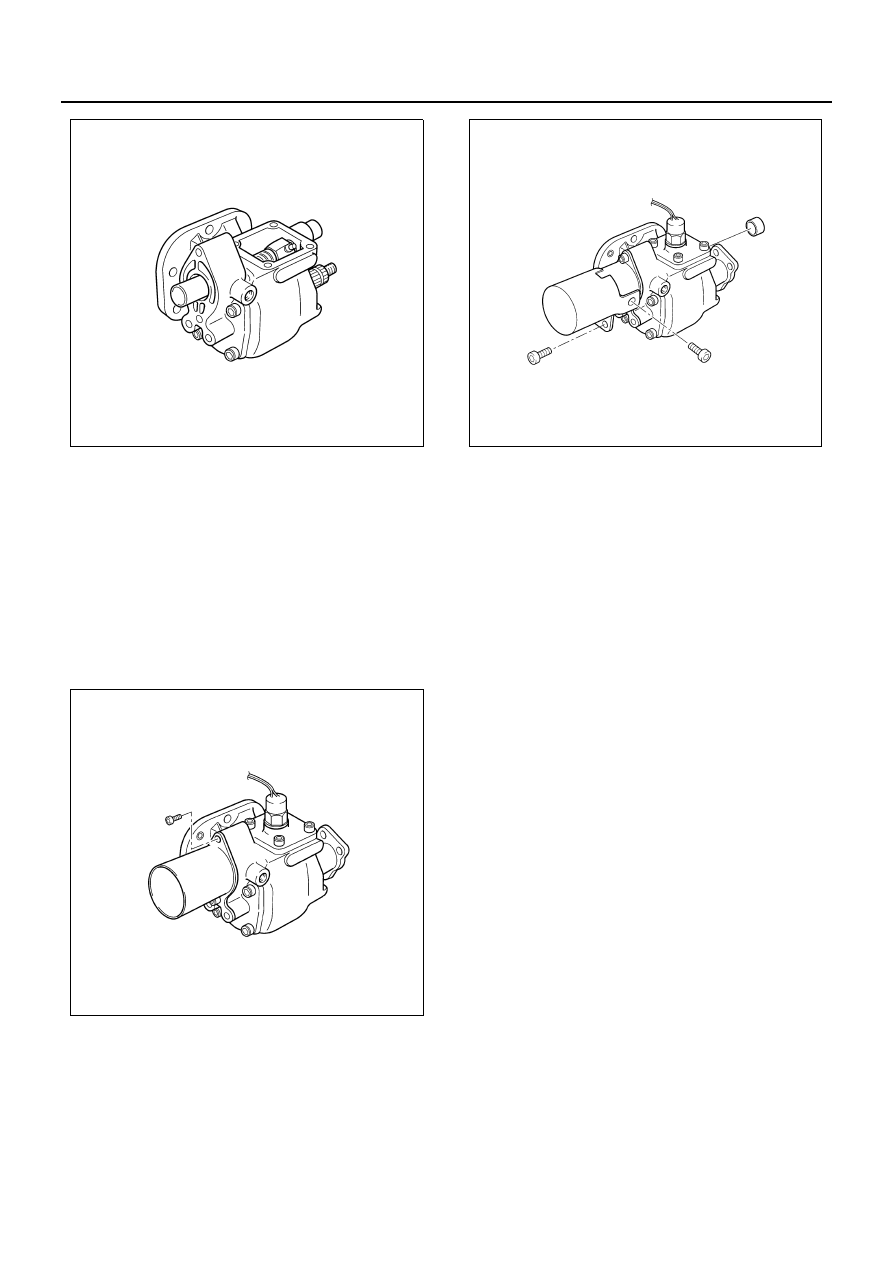

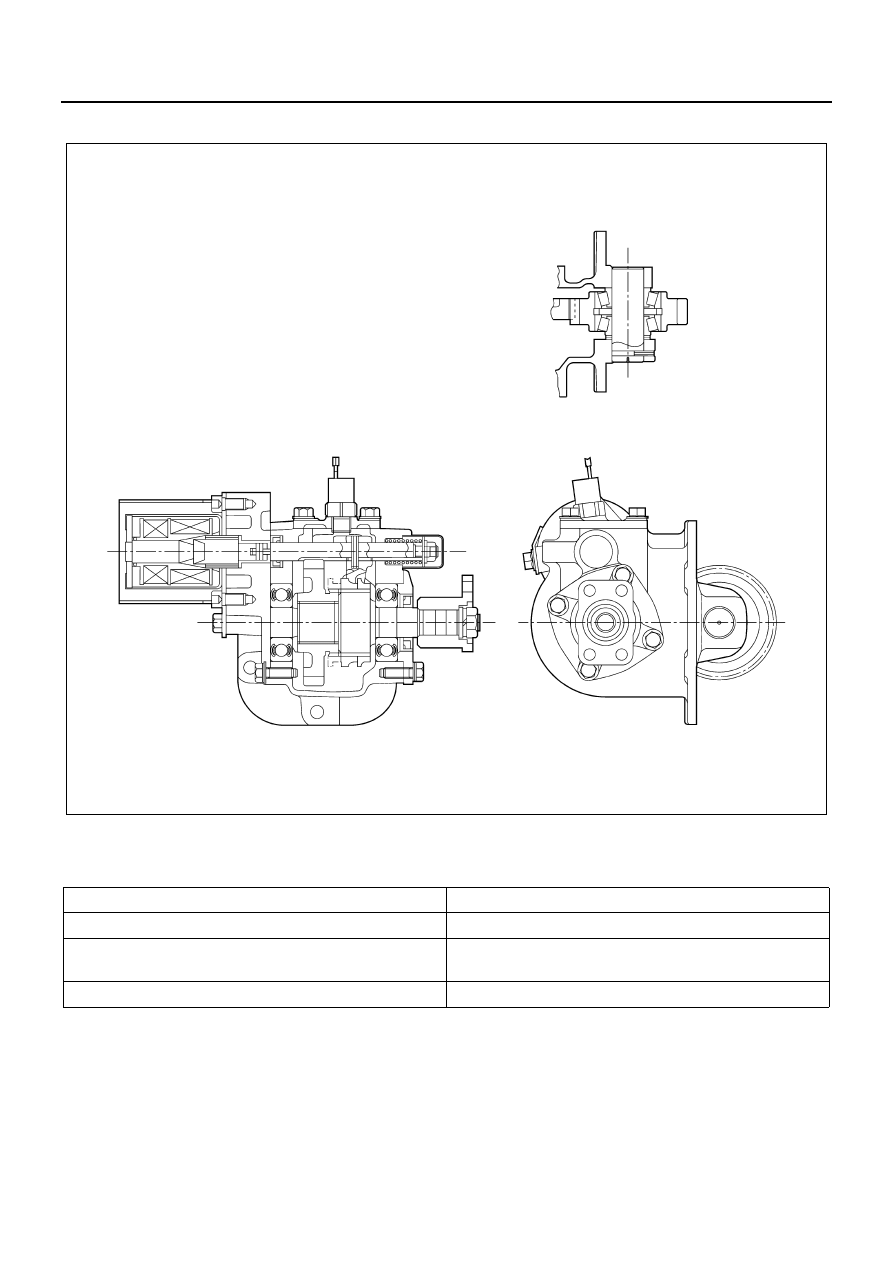

Description of function and operation
The electronic control type side PTO of MYY transmis-
sion is installed on the left side of transmission.
The gear of PTO is engaged at all times. The solenoid
shifts the sleeve on output axis by the shift rod and shift
arm to transmit or cut the power to the gear. The gear is
the helical type as well as transmission and has a silent
effect.
To maintain durability, the idle gear bearing uses the
taper roller bearing, and the output axis uses the ball
bearing.
