Isuzu N-Series. Manual - part 10

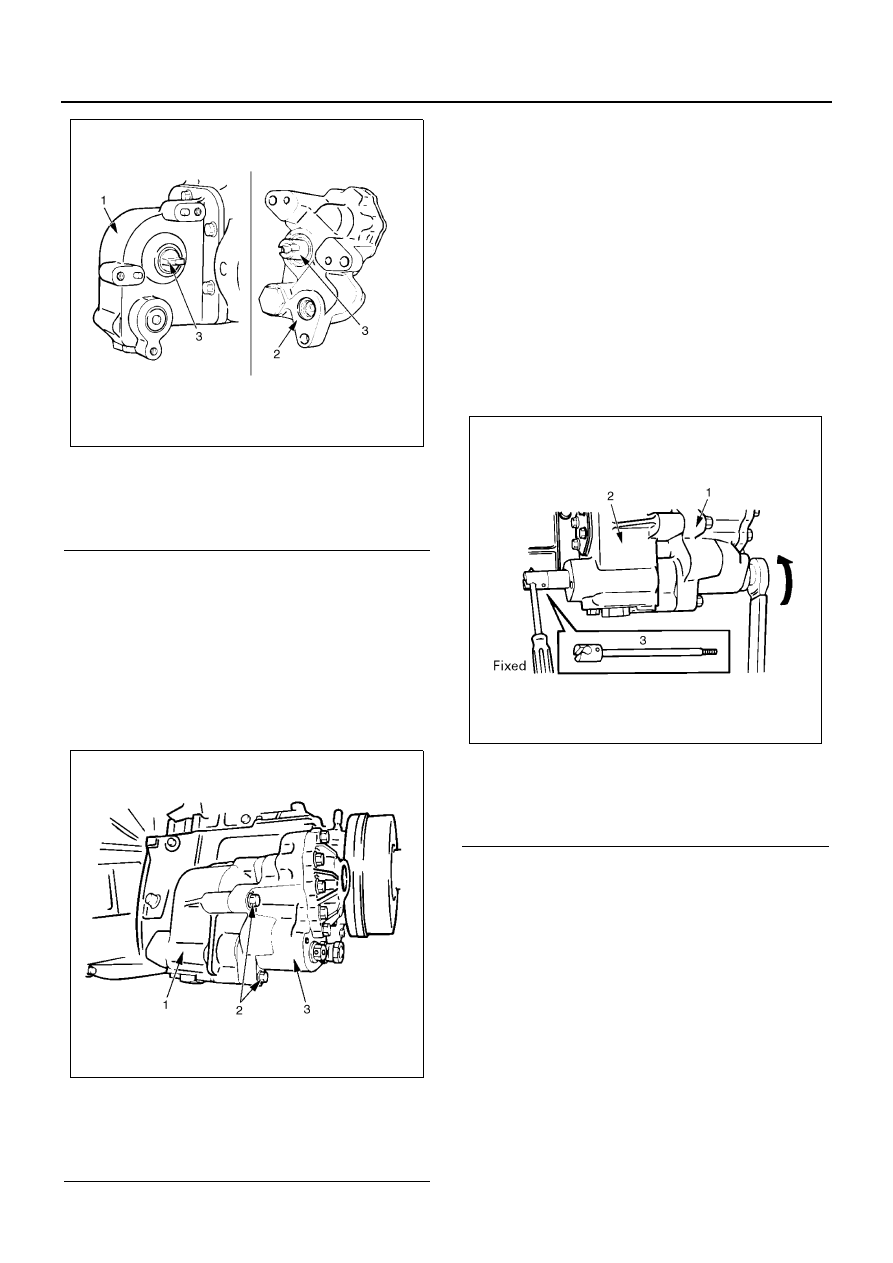

POWER TAKE OFF 00-35

• Align and install the oil pump groove and the

shaft width across flats of the PTO and tighten
the bolt at a specified torque.

Tighten:

PTO bolt to 53 N

⋅m (5.4 kg⋅m / 39 lb⋅ft)

Notice:

Be fully careful so that dust or foreign matter will not be
mixed in from the hose installation port of the oil pump.

3. Inner Rod Assembly

• Coat the threaded portion of the inner rod as-

sembly tip with liquid gasket (LOCTITE 242 or
equivalent) and insert and screw the tip from
the front side of the PTO, then tighten it at a
specified torque.

• When tightening the inner rod assembly, insert

a Phillips screwdriver (large) in the control ca-
ble connector groove, press it so that the spool
valve will not rotate, then apply a wrench to the
stopper adapter on the oil pump side to tighten
it. (Besides, the three-rotation dump truck is in
contrast with this.)

Tighten:

Inner rod to19 N

⋅m (1.9 kg⋅m / 14 lb⋅ft)

4. High-Pressure Hose

• Install the high-pressure hose in the oil pump

and firmly tighten the joint.

Notice:

If the oil pump is rotated and installed in the high-pres-
sure hose in Item 10 described previously, firmly tighten
the joint.

5. Low-Pressure Hose

• Install the hose and firmly tighten the hose

band.

Notice:

When installing both the high-pressure and low-pres-
sure hoses, be fully careful so that dust or foreign matter
will not be mixed in the hose port and oil pump.

Legend

1. PTO
2. Oil pump
3. Coat shaft tip portion with grease

Legend

1. PTO
2. Bolt
3. Oil pump

NPA0077E

NPA0078E

Legend

1. Oil pump
2. PTO
3. Inner rod assembly

NPA0079E

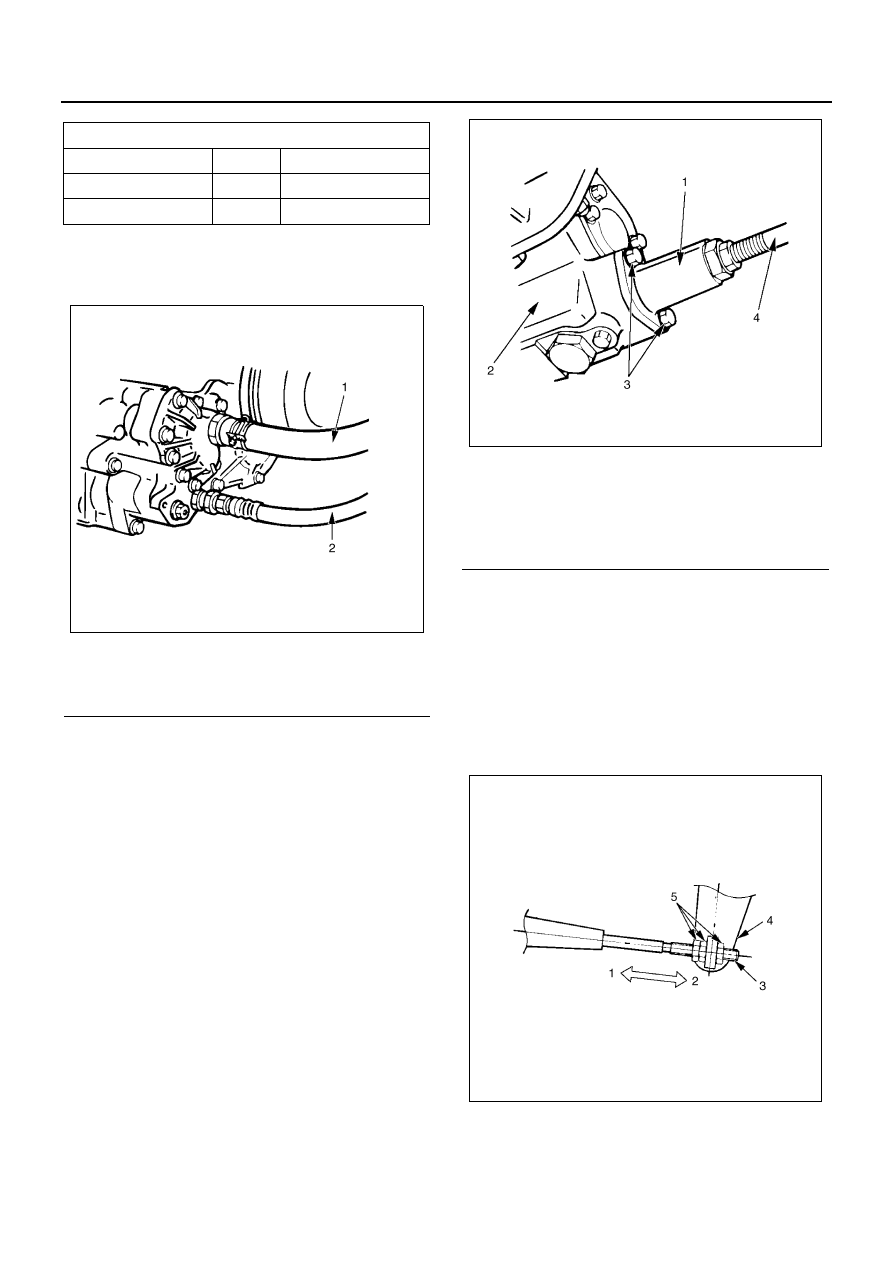

00-36 POWER TAKE OFF

* After having tightened the joint using a recom-
mended value, additionally tighten it if there is
a leak of oil.

6. Control Cable
7. Cable Holder
8. Bolt (Cable Holder)

Notice:

Install the control cable and cable holder in the PTO in
accordance with Items 1 to 4 of “Installation” of Removal
and Installation of Control Cable for Rear Dump Truck,
and after installation, inspect and adjust the spool
amount in accordance with the “Amount of Spool Extru-
sion” described previously.

• After having adjusted the control cable and

having inspected or adjusted the amount of
spool extrusion, tighten the bolt and the special
nut and lock nut of the control cable at a speci-
fied torque.

Tighten:

• Bolt to 24 N

⋅m (2.4 kg⋅m / 17 lb⋅ft)

• Special nut to 206 N

⋅m (21 kg⋅m / 152 lb⋅ft)

• Lock nut to 21 N

⋅m (2.1 kg⋅m / 15 lb⋅ft)

Joint Torque

N

⋅m (kg⋅m / lb⋅ft)

Item

Size

Torque

High-pressure side

PF1/2

103 (10.5 / 76)

Low-pressure side

PF3/4

147 (15 / 108)

Legend

1. Low-pressure hose
2. High-pressure hose

NPA0080E

Legend

1. Cable holder
2. PTO
3. Bolt
4. Control cable

NPA0081E

NPA0082E

POWER TAKE OFF 00-37

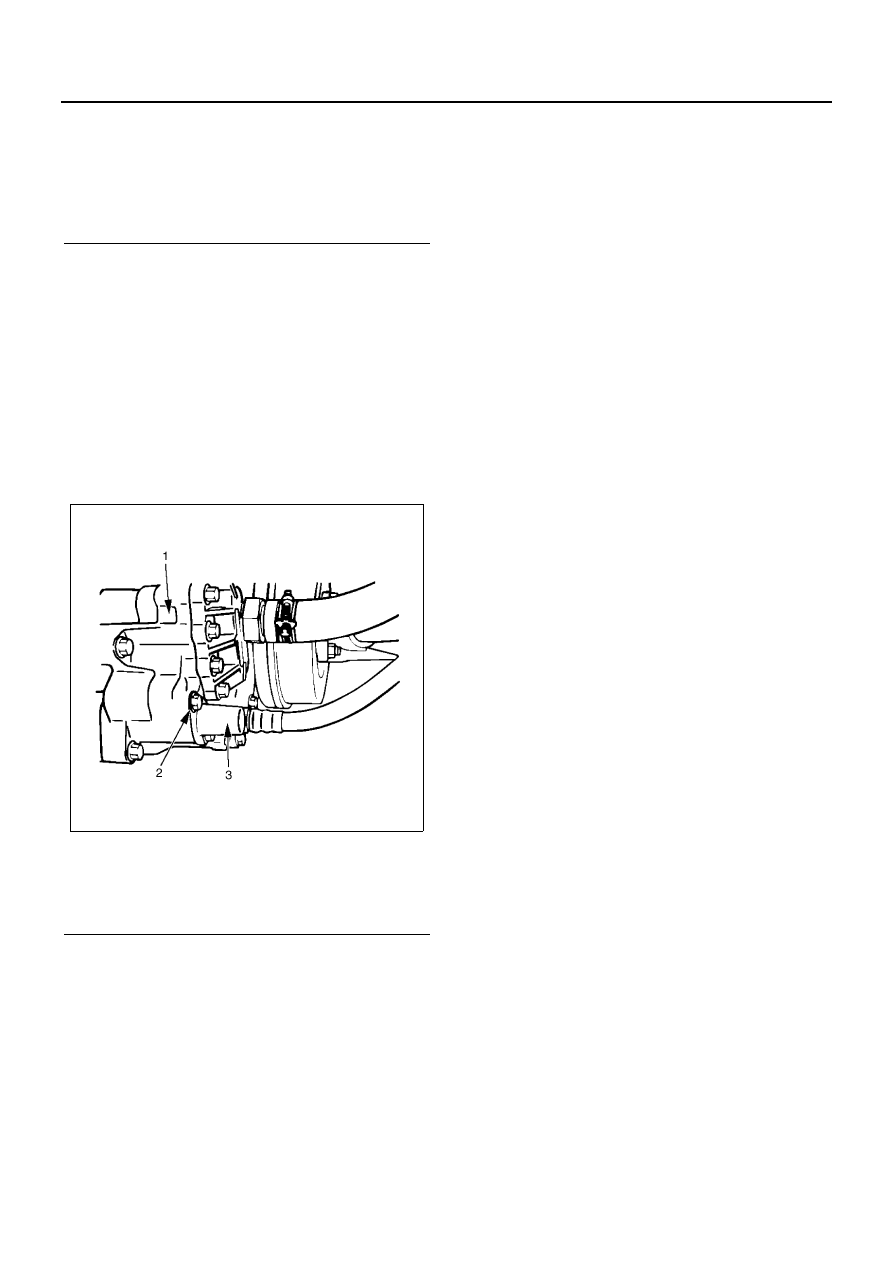

9. Shift Cap

10. Bolt (Shift Cap)

• Install the shift cap in the oil pump making its

grooved side face upward and tighten the bolt
at a specified torque.

Tighten:

Shift cap bolt to 24 N

⋅m (2.4 kg⋅m / 17 lb⋅ft)

Notice:

If the groove is not installed facing downward, the water
intruded in the shift cap is not ejected but collected.
Rusting and freezing will cause an incorrect actuation.

Supply and Air Bleeding of Hydraulic Operating
Fluid

After having installed the oil pump, supply hydraulic op-
erating fluid and release air as requested. Supply the hy-
draulic operating fluid and release air in accordance with
the “Inspection and Supply of The Hydraulic Operating
Fluid” and the “Air Bleeding Procedure of Hydraulic Op-
erating Fluid” described previously.

Legend

1. Push in
2. Pull out
3. Dump cable
4. Dump lever
5. Loosen

Legend

1. Oil pump
2. Bolt
3. Shift cap

NPA0071E

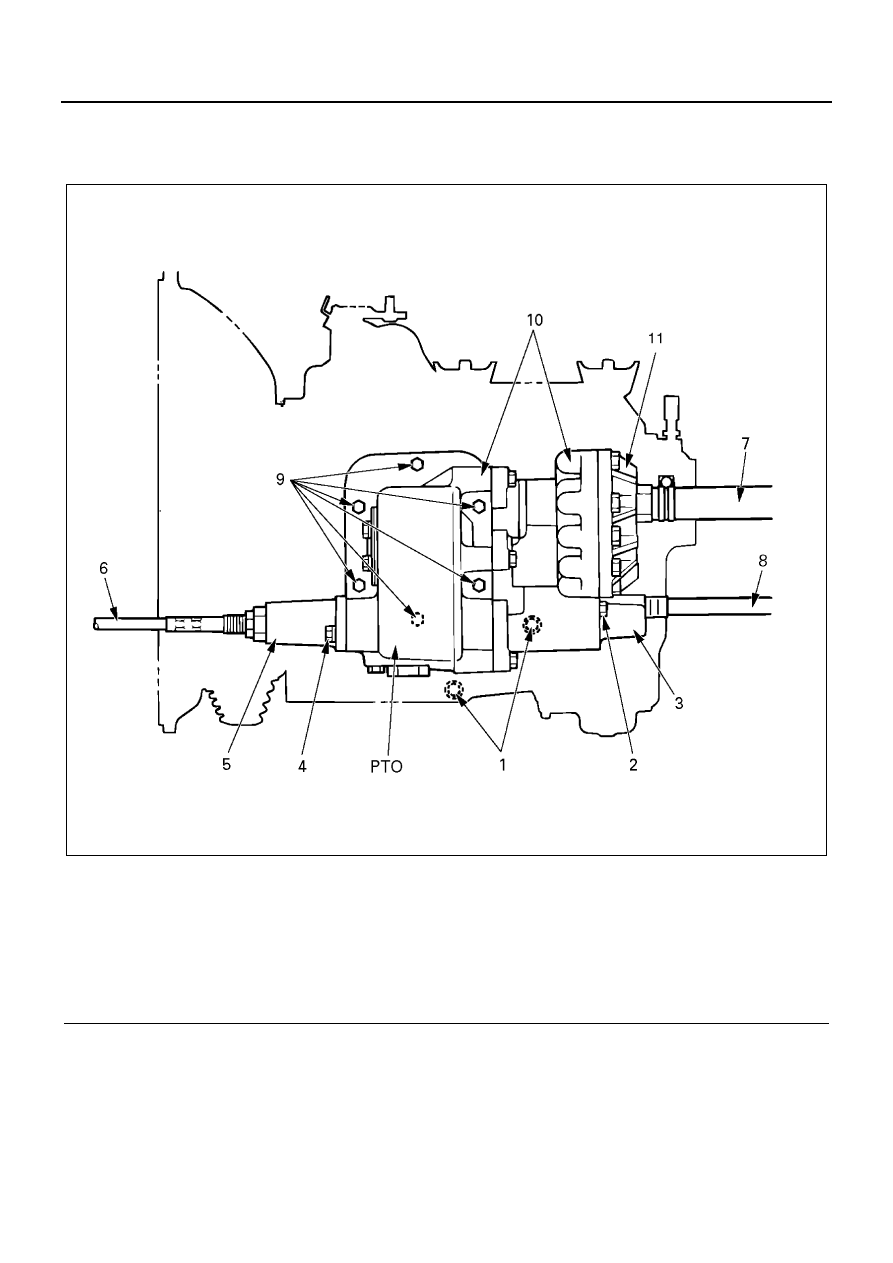

00-38 POWER TAKE OFF

PTO (WITH OIL PUMP) ASSEMBLY

Removal and Installation

Removal Steps

Notice:

Set the dump lever inside the cab to the “Down” position
and check the lever lock.

1. Drain Plug, Filler Plug

• Remove the drain plug and filler plug of the

transmission and remove the transmission oil.

2. Bolt (Shift Cap)
3. Shift Cap

• Remove the bolt and remove the shift cap from

the oil pump.

Legend

1. Drain plug, filler plug

7. Low-pressure hose

2. Bolt (shift cap)

8. High-pressure hose

3. Shift cap

9. Bolt (PTO)

4. Bolt (cable holder)

10. PTO (with oil pump)

5. Cable holder

11. Oil pump

6. Control cable

NPA0084E
