9A–4

SEAT BELT SYSTEM

f

Disconnect the luggage room light connector.

825RW100

5. Remove the rear roof trim cover.

f

Pry the trim cover clips free from the body panel.

6. Remove the rear sill plate.
7. Remove the rear seat belt lower anchor bolt cover

and the lower anchor bolt (5).

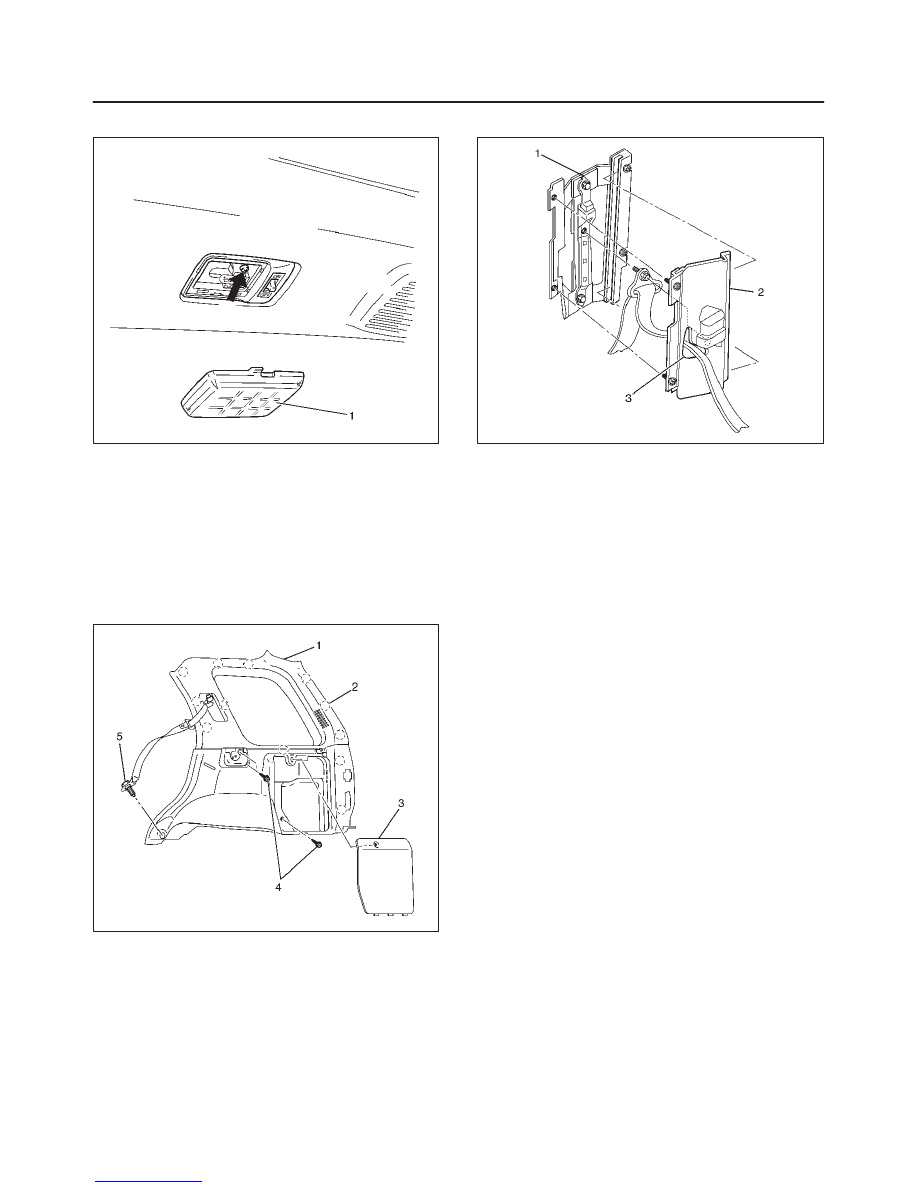

8. Remove the quarter trim cover (1).

f

Remove the tool box lid (3) and 3 fixing screws (4).
Pry the quarter trim cover retainers (2) free from the
body panel.

643RW011

9. Remove the slider plate trim assembly (2).

f

Remove the two fixing screws from the adjustable
shoulder anchor (1).

f

Pull out the seat belt through the slider plate trim (3).

755RW069

10. Remove the seat belt upper anchor bolt.

11. Remove the retractor.

12. Remove the rear seat belt assembly.
13. Remove the adjustable shoulder anchor assembly.

f

Remove the two fixing bolts.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the adjustable shoulder anchor assembly

fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the seat belt anchor bolts (Upper & Lower)

and the retractor fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

SEAT BELT SYSTEM

9A–5

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.
2. Disconnect the seat belt warning connector (driver’s

side) and remove a clip.

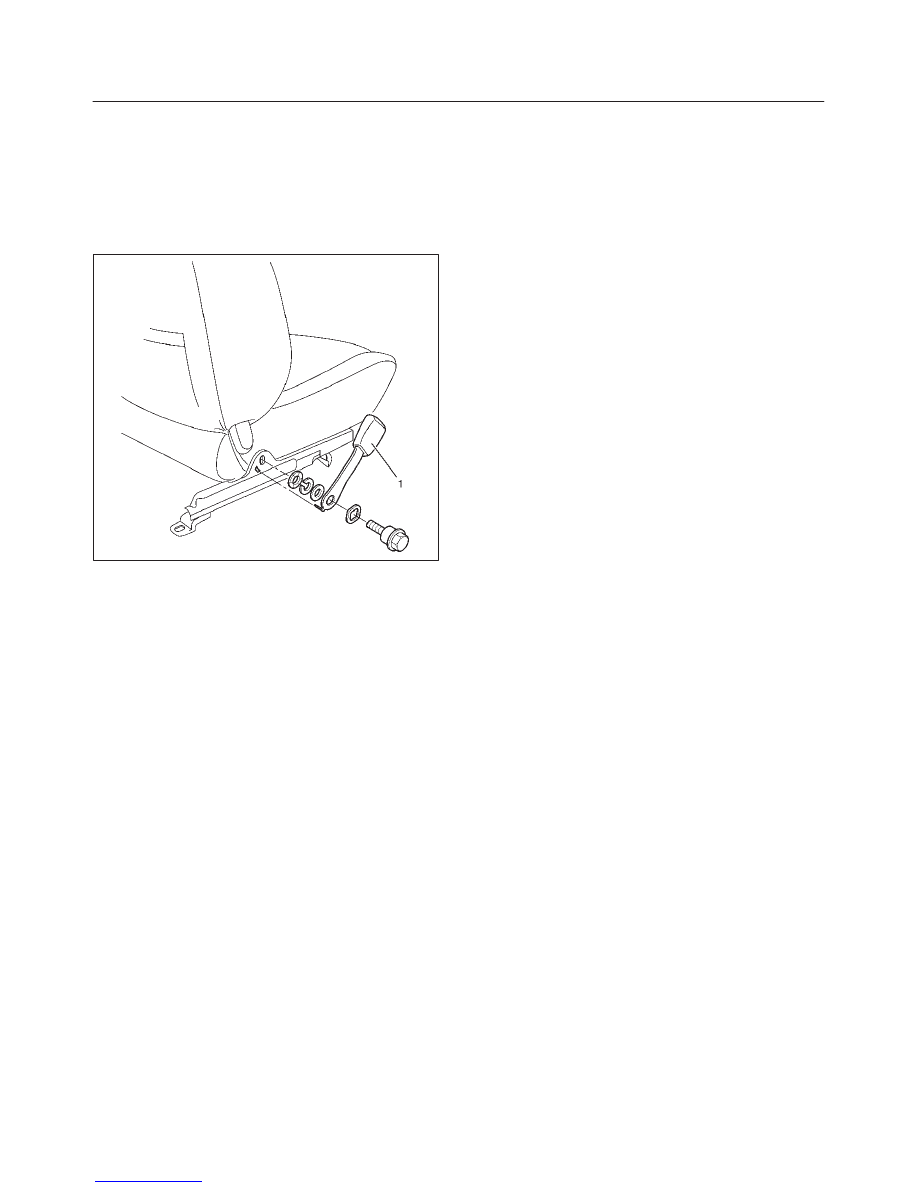

3. Remove the front seat buckle assembly (1).

760RW043

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the buckle anchor bolt to the specified torque.

Torque: 39 N·m (29 lb ft)

9A–6

SEAT BELT SYSTEM

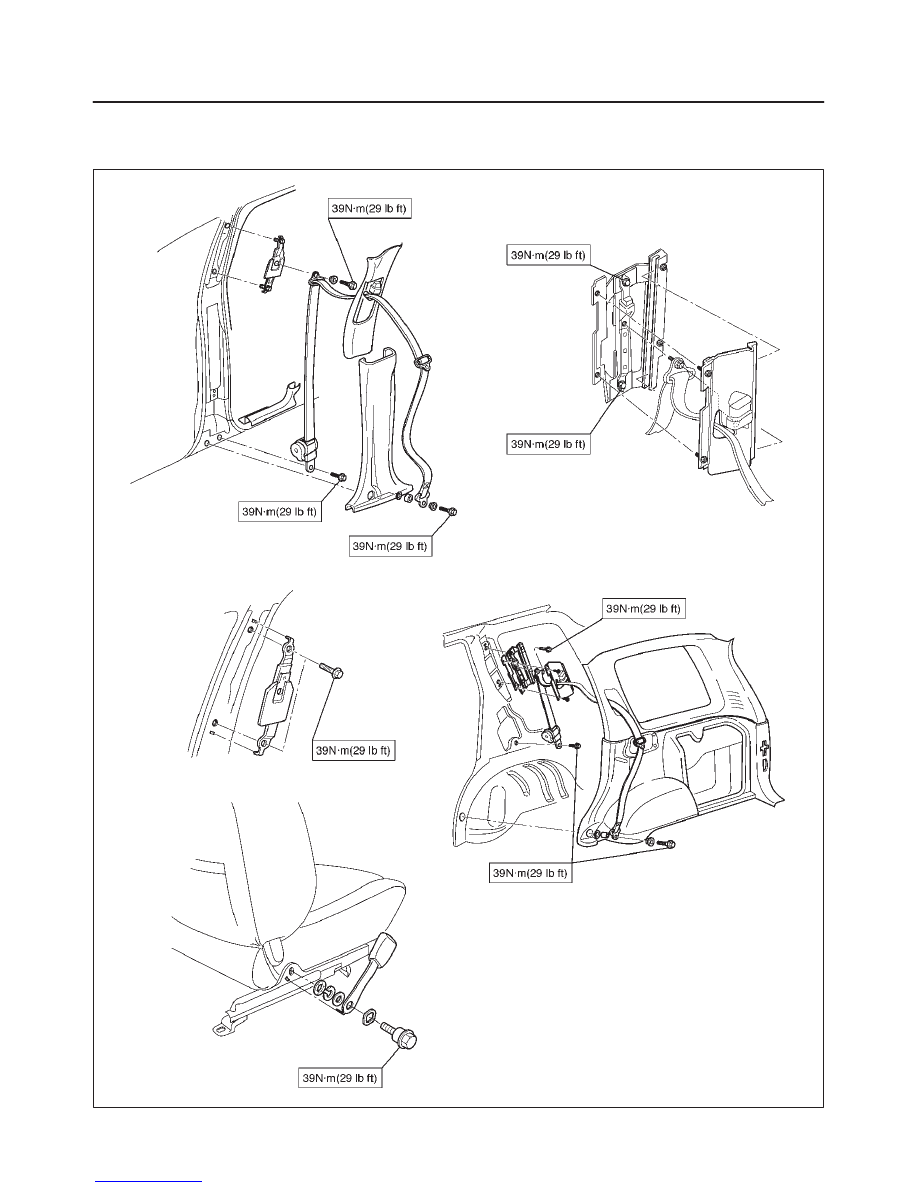

Main Data and Specifications
