8F–5

BODY STRUCTURE

Removal

1. Disconnect front fog light connector.
2. Remove front bumper fixing bolts.

f

Remove the two bolts from both sides of the front
bumper.

601RW004

3. Remove front bumper assembly.
4. Remove the four bolts at each backbar and remove

backbars.

5. Remove front fog light assembly.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the front bumper assembly fixing bolts to the

specified torque.

Torque : 147 N·m (108 lb ft)

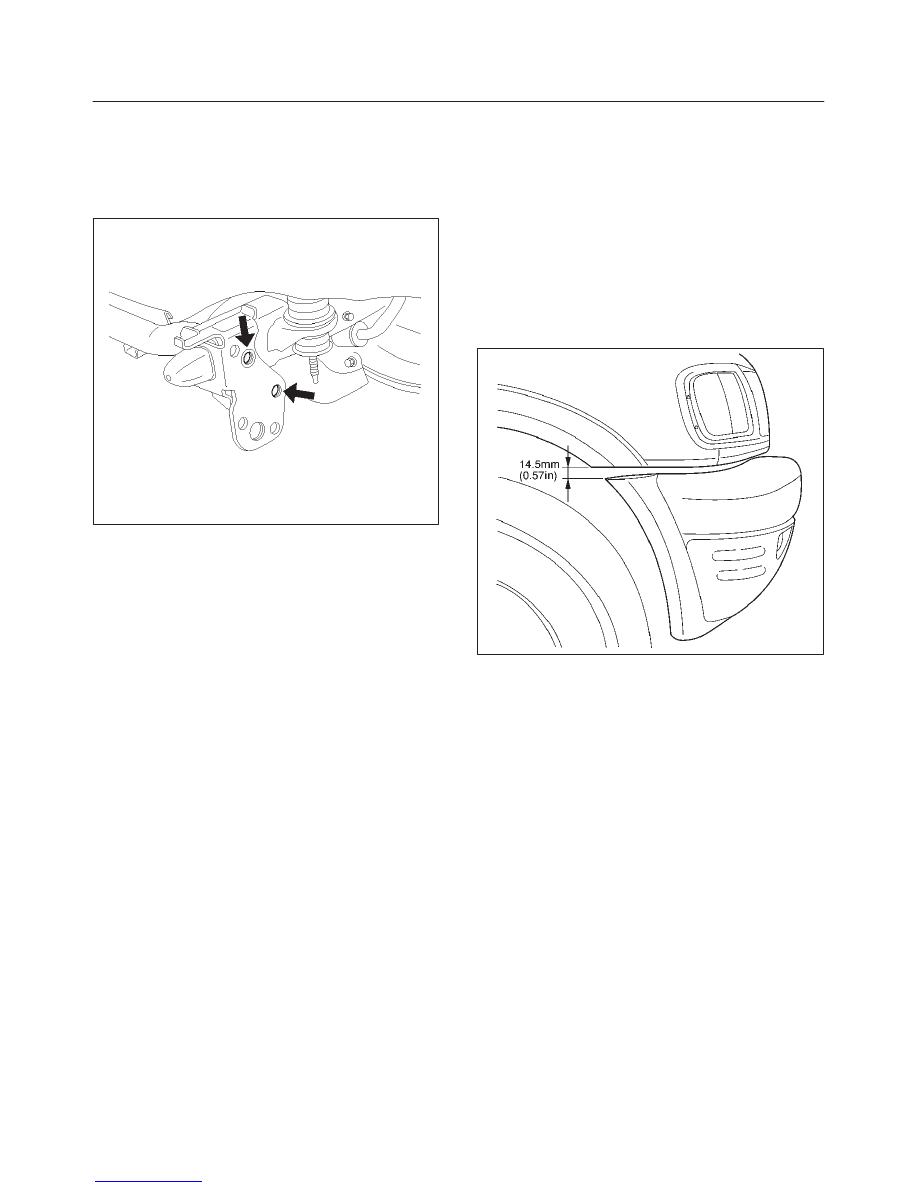

2. Front bumper adjustment

f

When the bolts fixing front bumper assembly are
tightened, adjustment should be made between the
back bar and front side bumper so that a clearance
of 14.5 mm (0.57 in) is provided between the lower
side of the fender and the upper side of the front
bumper.

614RX002

8F–6

BODY STRUCTURE

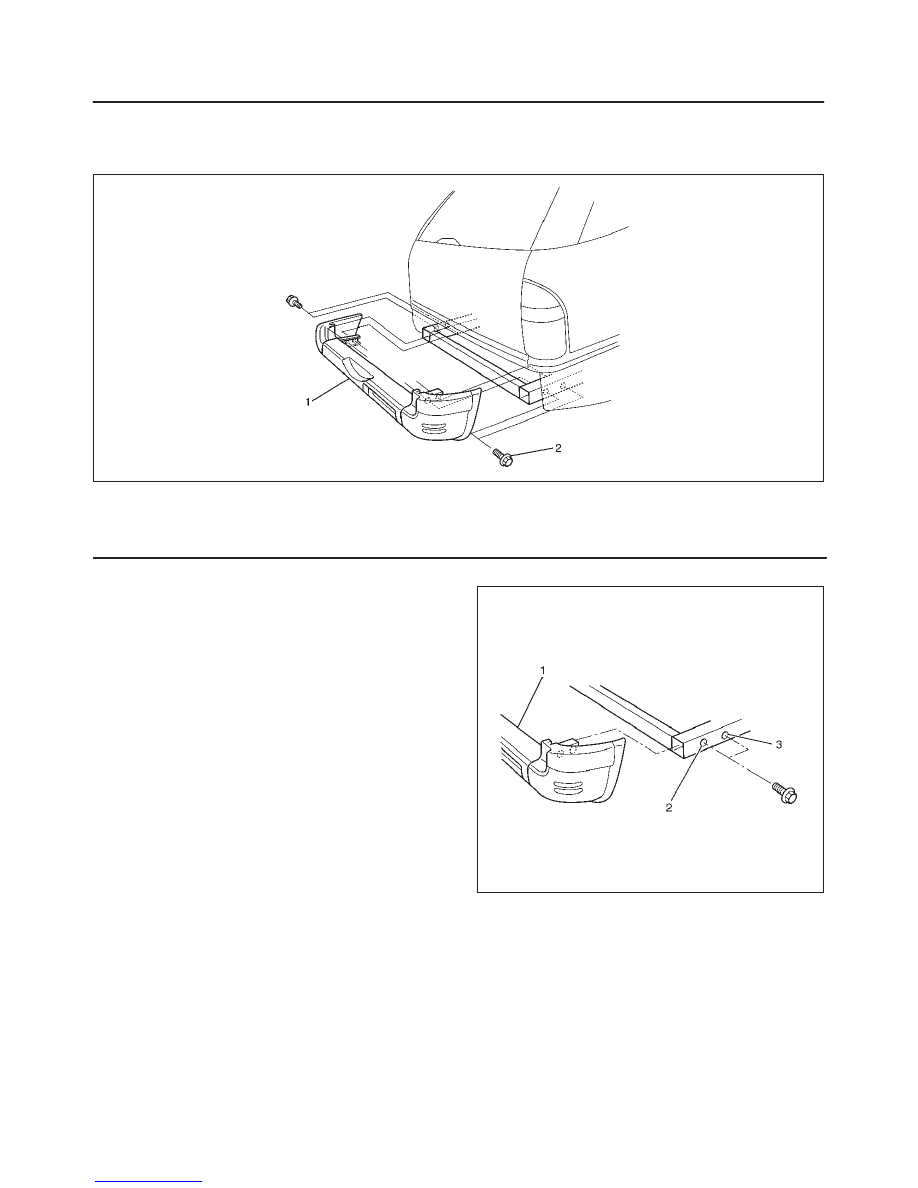

Rear Bumper

Parts Location

690RW007

Legend

(1) Rear Bumper Assembly
(2) Rear Bumper Fixing Bolts

Removal

1. Remove rear bumper fixing bolts.

f

Remove two bolts from each side.

2. Remove rear bumper assembly.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Partially tighten the rear bumper bolts (2) (3) and

adjust the clearance between the body (tailgate) and
the rear bumper (1).
Then fully tighten the rear bumper bolts (2) (3).

Torque : 147 N·m (108 lb ft)

690RW008

8F–7

BODY STRUCTURE

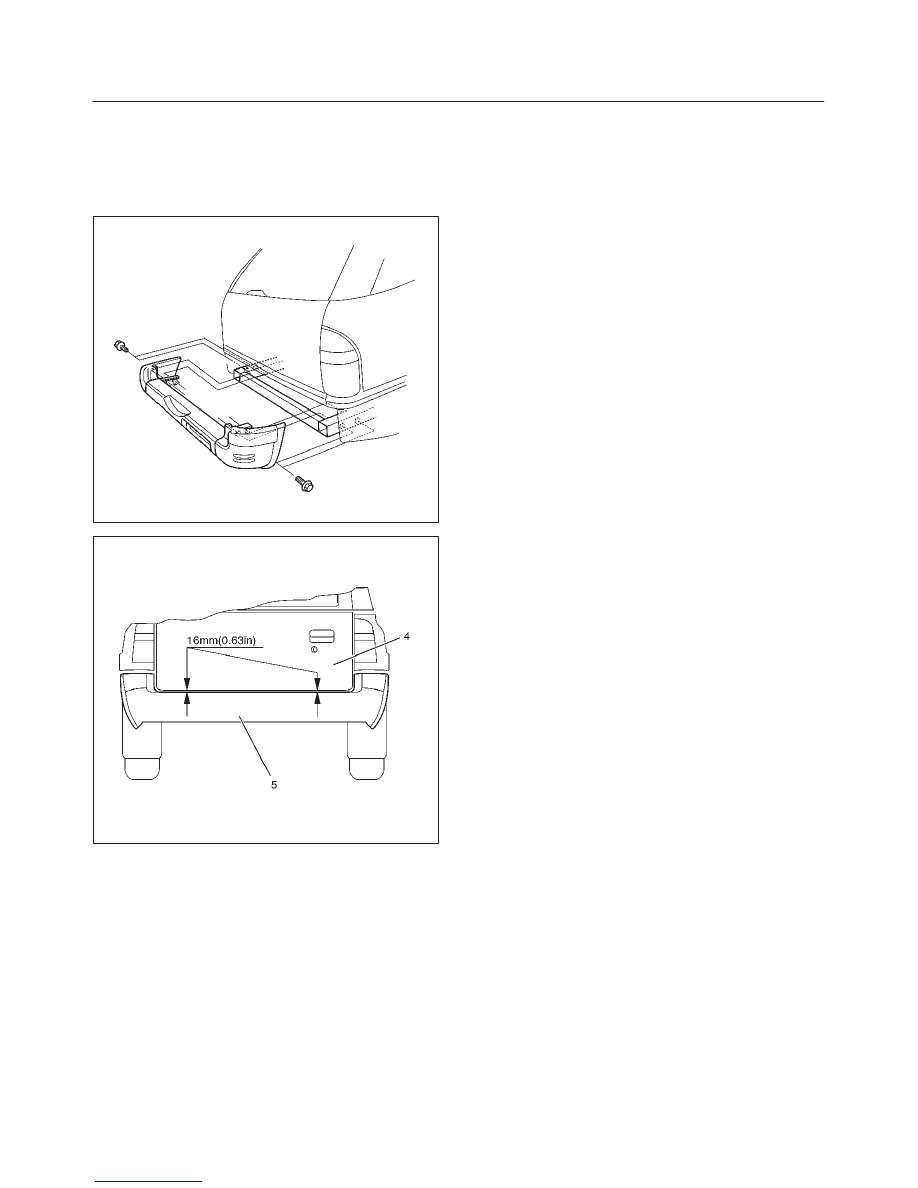

2. Rear bumper adjustment

f

When the bolts fixing rear bumper assembly are
tightened, adjustment should be made with shims
so that a clearances shown in the figure below are
provided between the body (tailgate) (4) and the rear
bumper (5).

690RW005

690RW009

8F–8

BODY STRUCTURE

General Description (Sheet Metal)

This section includes items of front end sheet metal that
are attached by bolts, screws or clips and related
accessory components.

Anticorrosion materials have been applied to the interior
surfaces of some metal panels to provide rust resistance.
When servicing these panels, areas on which this
material has been disturbed should be properly recoated
with service–type anticorrosion material.

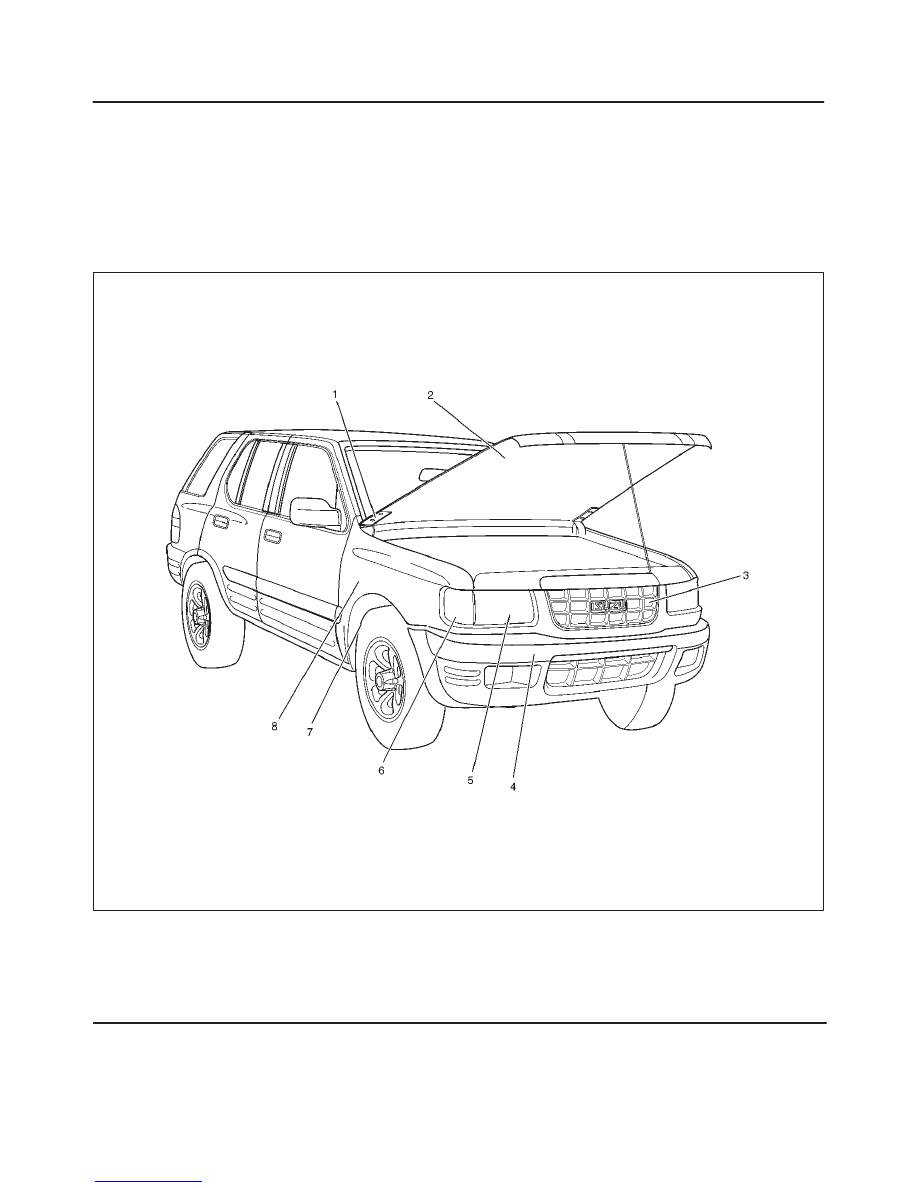

Engine Hood and Fender

Parts Location

610RW006

Legend

(1) Hood Hinge
(2) Engine Hood Assembly
(3) Radiator Grille
(4) Front Bumper Assembly

(5) Headlight
(6) Combination Light
(7) Inner Liner
(8) Fender
