METER AND GAUGE

8E–9

Meter Assembly W/A/T

Connector No. I–10

Terminal

Function

1

L position (A/T)

2

2 position (A/T)

3

3 position (A/T)

4

D position (A/T)

5

N position (A/T)

6

R position (A/T)

7

P position (A/T)

8

A/T shift indicator control unit

9

High–beam indicator light (–)

10

High–beam indicator light (+)

Connector No. I–9

Terminal

Function

1

Illumination (–)

2

Illumination (+)

3

—

4

—

5

—

6

Winter drive indicator light

7

Power drive indicator light

8

Cruise set indicator light

9

Fuel warning light

10

—

11

Battery (+)

12

—

Connector No. I–2

Terminal

Function

1

Turn signal indicator light (Left)

2

Turn signal indicator light (Right)

3

Ground

4

—

5

Illumination (–)

6

Tachometer

7

—

8

—

9

ABS indicator light

10

4WD indicator light

11

—

12

Speedometer

13

P.C.M (Fuel)

14

Gnd

Connector No. I–1

Terminal

Function

1

—

2

—

3

—

4

Oil pressure warning light

5

Check engine warning light

6

Check trans warning light

7

Engine coolant temperature gauge

8

Brake warning light

9

Ground (Gauge)

10

Charge warning light

11

—

12

Starter switch

13

Air bag warning light

14

A/T oil temp warning light

15

Seat belt warning light

16

Illumination (+)

8E–10 METER AND GAUGE

Removal

1. Disconnect the battery ground cable.
2. Remove the Dash Side Trim Panel –LH.

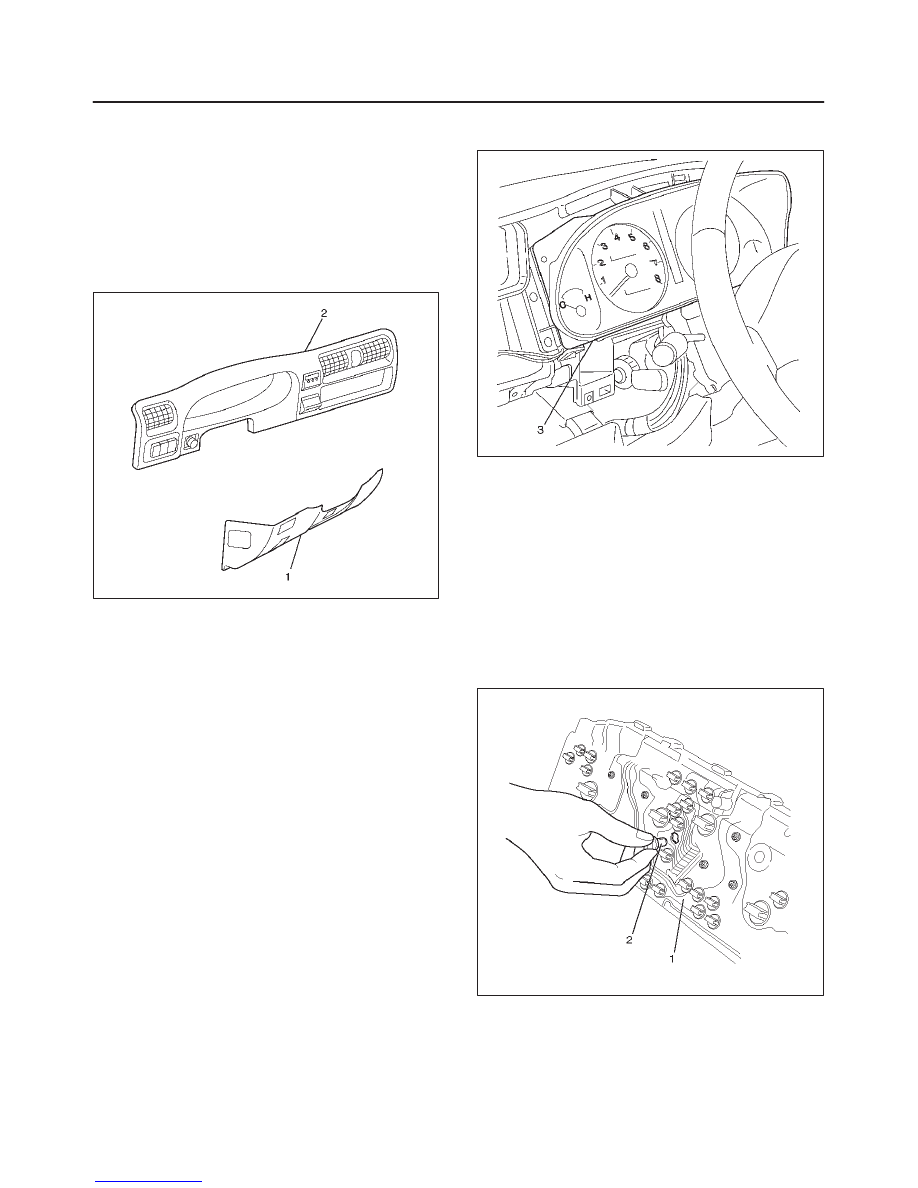

3. Remove the lower cover Assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the meter cluster Assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

821RW253

5. Remove four fixing screws and disconnect the meter

connectors to remove the meter assembly(3).

825RW197

CAUTION: The removed meter assembly should be
placed upright or with its face side up.

Installation

To install, follow the removal steps in the reverse order.

Warning Light Bulb, Indicator Light Bulb, Illumination Light Bulb,

A/T Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter assembly(1).

Refer to the Meter Assembly removal steps in Meter
and Gauge section.

3. Hold the bulb socket by hand and rotate it

counterclockwise to remove the socket & bulb(2)
from the meter body.

825RW059

Installation

To install, follow the removal steps in the reverse order.

METER AND GAUGE

8E–11

Vehicle Speed Sensor

Removal

1. Disconnect the battery ground cable.

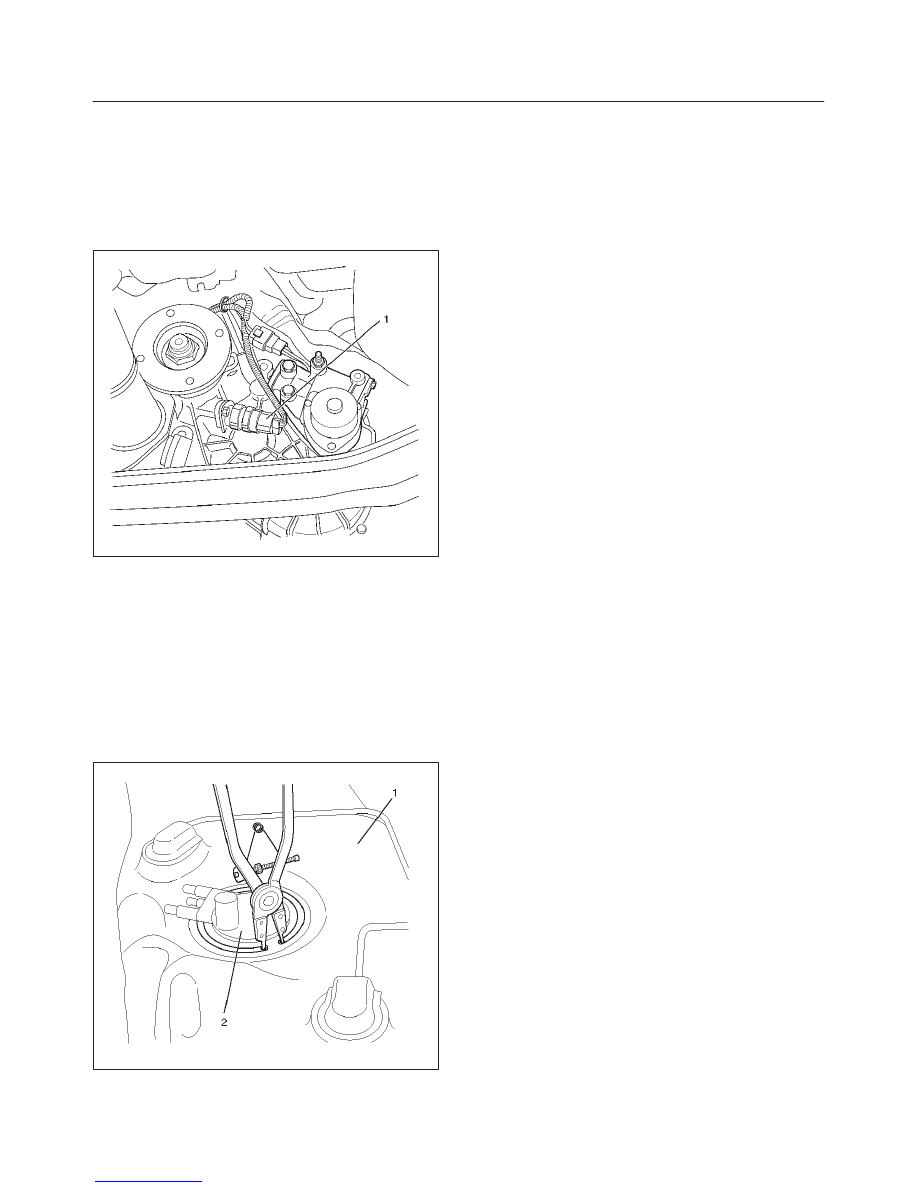

2. Disconnect the connector, remove the vehicle speed

sensor body by rotating it and then remove the vehicle
speed sensor(1).

220RX003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the vehicle speed sensor to the specified

torque.

Torque: 27 N·m (20 lb ft)

Fuel Tank Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the fuel tank(1).

Refer to the Fuel Tank removal steps in Engine
section

3. Disconnect the connectors, remove five screws and

then remove the fuel tank unit(2).

825RW060

Installation

To install, follow the removal steps in the reverse order.

8E–12 METER AND GAUGE

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Vehicle Speed Sensor Fixing

27

20

—
