METER AND GAUGE

8E–5

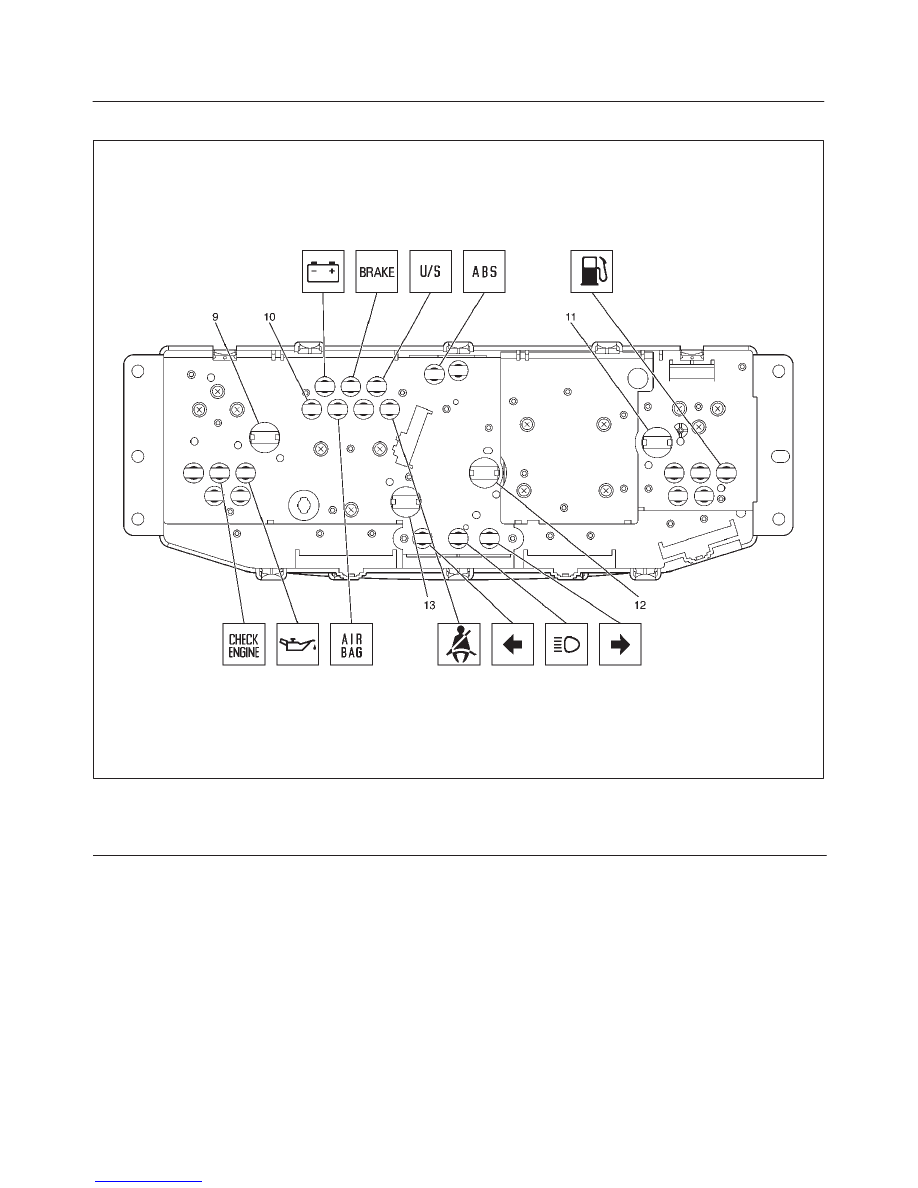

Meter Assembly W/M/T (Rear View)

825RX016

Legend

(9) Illumination Light

(10) LCD Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light

8E–6

METER AND GAUGE

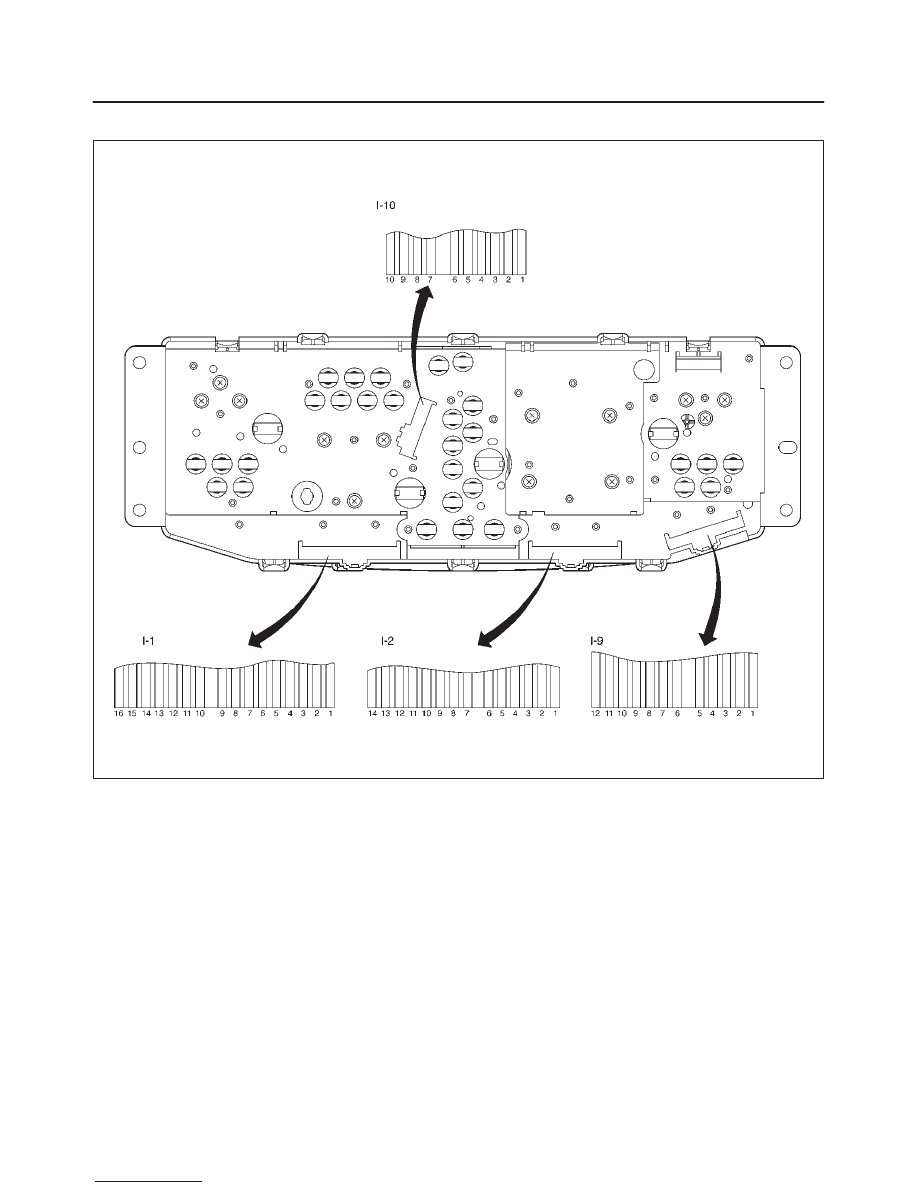

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly W/M/T

825RX014

METER AND GAUGE

8E–7

Meter Assembly W/M/T

Connector No. I–10

Terminal

Function

1

—

2

—

3

—

4

—

5

—

6

—

7

—

8

—

9

High–beam indicator light (–)

10

High–beam indicator light (+)

Connector No. I–9

Terminal

Function

1

Illumination (–)

2

Illumination (+)

3

—

4

—

5

—

6

—

7

—

8

—

9

Fuel warning light

10

—

11

Battery (+)

12

—

Connector No. I–2

Terminal

Function

1

Turn signal indicator light (Left)

2

Turn signal indicator light (Right)

3

Ground

4

—

5

Illumination (–)

6

Tachometer

7

Up shift indicator light (–)

8

Up shift indicator light (+)

9

ABS indicator light

10

—

11

—

12

Speedometer

13

PCM (Fuel)

14

Gnd

Connector No. I–1

Terminal

Function

1

—

2

—

3

—

4

Oil pressure warning light

5

Check engine warning light

6

Check trans warning light

7

Engine coolant temperature gauge

8

Brake warning light

9

Ground (Gauge)

10

Charge warning light

11

—

12

Starter switch

13

Air bag warning light

14

—

15

Seat belt warning light

16

Illumination (+)

8E–8

METER AND GAUGE

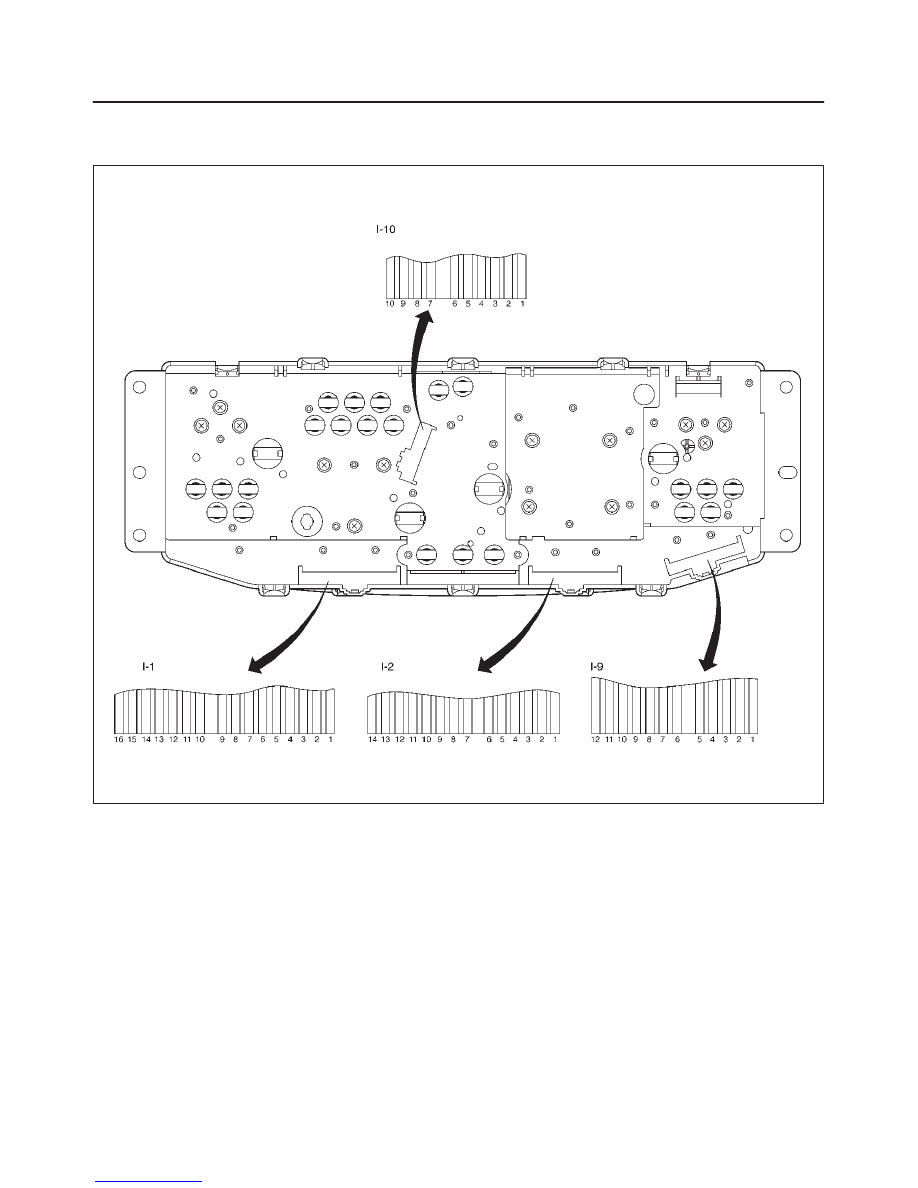

Meter Assembly W/A/T

825RX013
