8D–244

WIRING SYSTEM

Shift on the Fly System

General Description

The circuit consists of the starter switch, 4WD control
unit, actuator (transfer), 4WD switch, front axle vacuum
switching valve relay, front axle vacuum switching valve,
front axle switch and 4WD indicator (meter).
Refer to Driveline Control System Section.

8D–245

WIRING SYSTEM

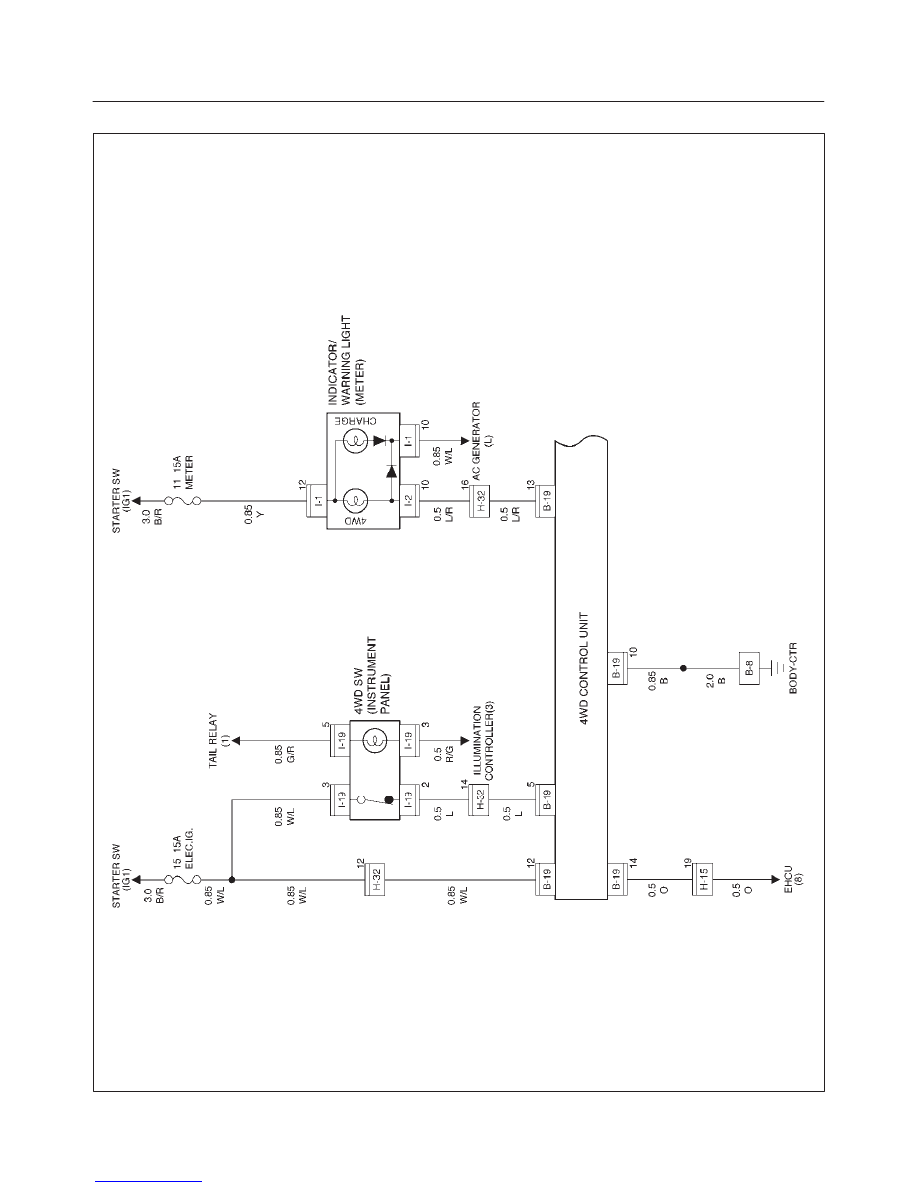

Circuit Diagram–1

D08RW214–1

8D–246

WIRING SYSTEM

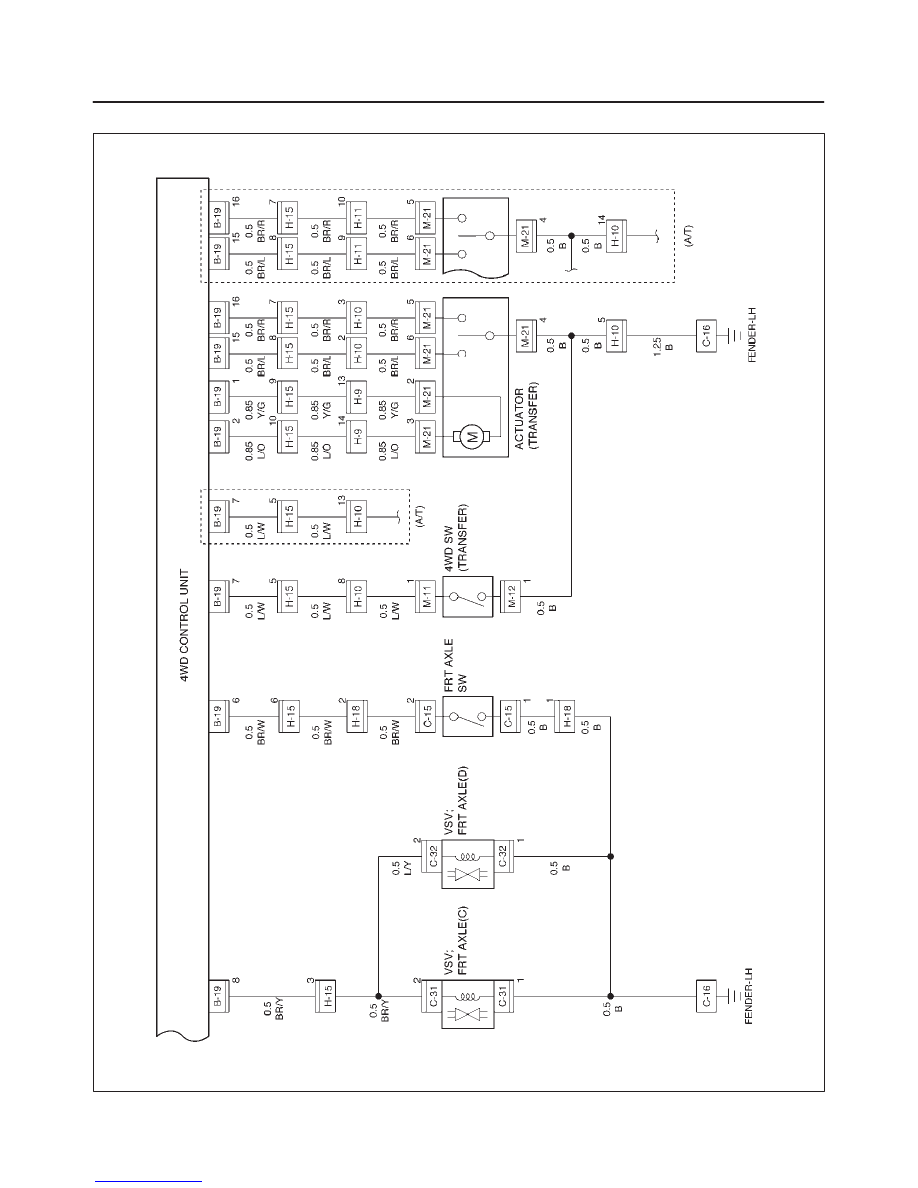

Circuit Diagram–2

D08RX119

8D–247

WIRING SYSTEM

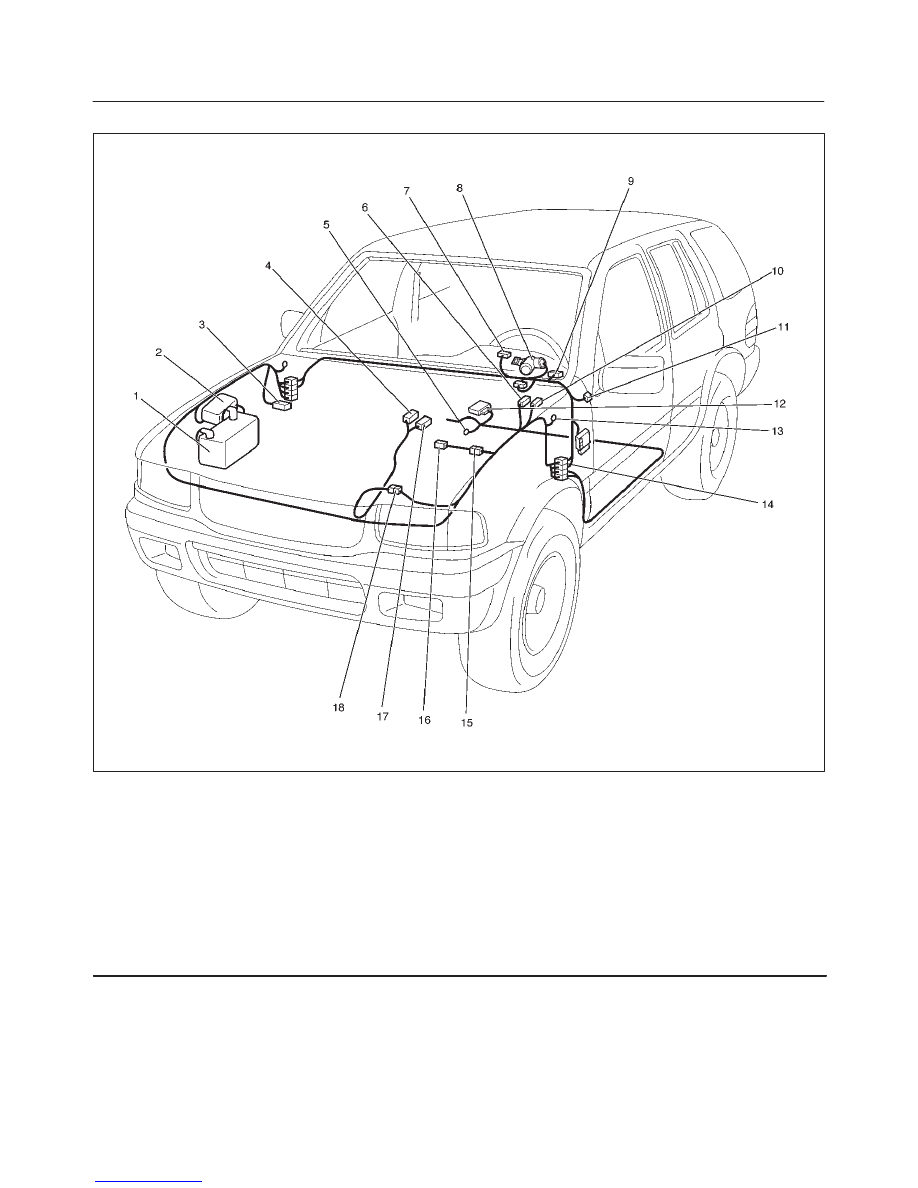

Parts Location

D08RX118

Legend

(1) Battery
(2) Relay & Fuse Box
(3) C–4
(4) M–11
(5) B–8
(6) C–31
(7) I–1
(8) Starter Switch
(9) I–2

(10) C–32

(11) I–19

(12) B–19
(13) C–16
(14) H–15, H–32
(15) H–18
(16) C–15
(17) M–12
(18) H–9, H–10, H–11
