8D–236

WIRING SYSTEM

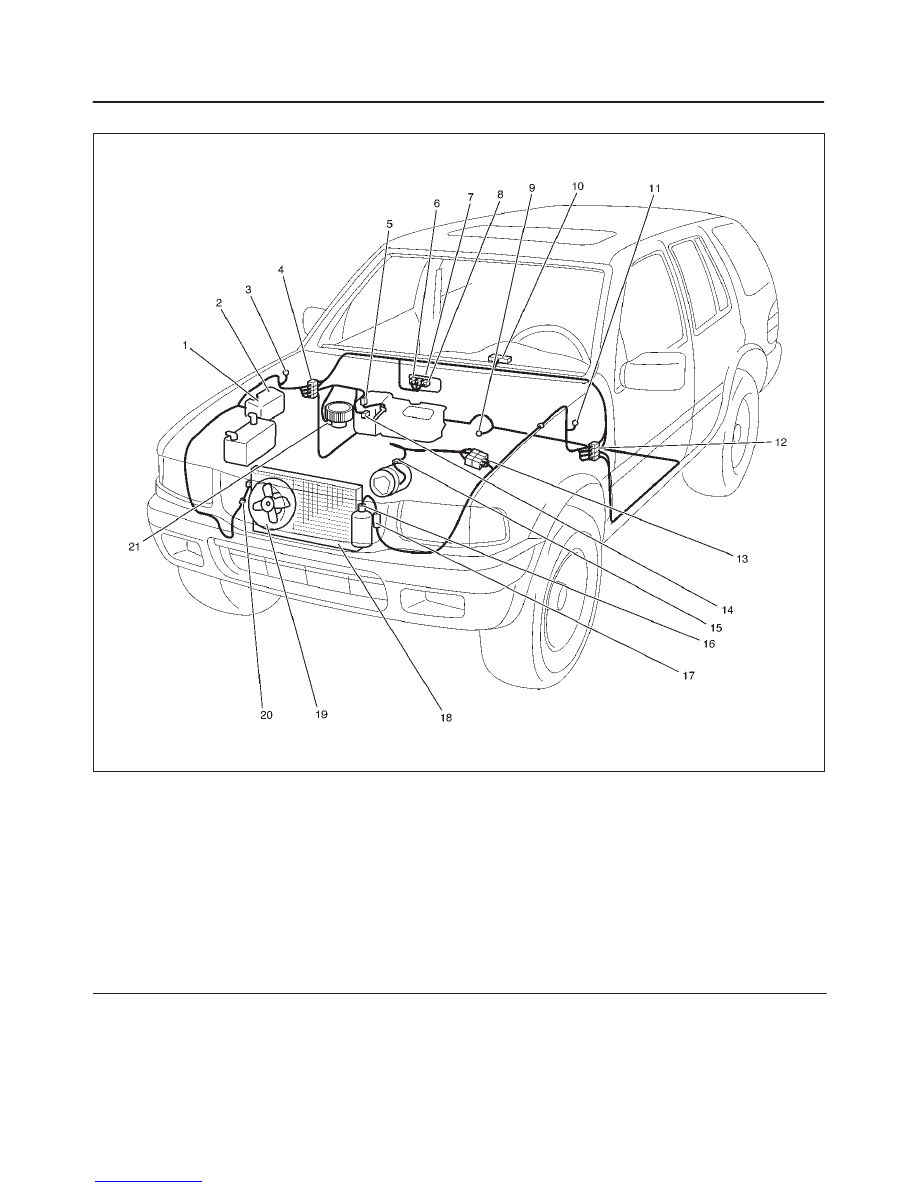

Parts Location

D08RX112

Legend

(1) Relay & Fuse Box
(2) X–4, X–5, X–6, X–9
(3) C–36
(4) H–12, H–19
(5) B–4
(6) I–23
(7) Air Conditioning Bezel
(8) I–24
(9) B–8

(10) I–1

(11) C–16

(12) H–17, H–32
(13) H–5
(14) B–3
(15) E–3
(16) C–11 (6VD1 M/T)
(17) C–9 (6VD1 A/T)
(18) Condenser
(19) Condenser Fan (6VD1 A/T)
(20) C–24 (6VD1 A/T)
(21) B–5

8D–237

WIRING SYSTEM

Sun Roof

General Description

The circuit consists of the starter switch, sun roof switch,
sun roof control unit, safety stop switch, limit switch, and
sun roof motor.
When the sun roof switch is turned on, the battery voltage
is applied to the sun roof control unit through the circuit
breaker and the power window relay on the circuit.
Accordingly, when the sun roof switch is set to “Open” or
“Close” position, the open or close relay incorporated into
the control unit is activated to change the rotational
direction of the sun roof motor to open or close the sun
roof.
Also, the operational process (full close

→

 limit stop

→

 full

open

→

 safety stop

→

 full close) of the sun roof is

controlled by the control unit in accordance with signals
received from the safety stop switch and limit switch.

8D–238

WIRING SYSTEM

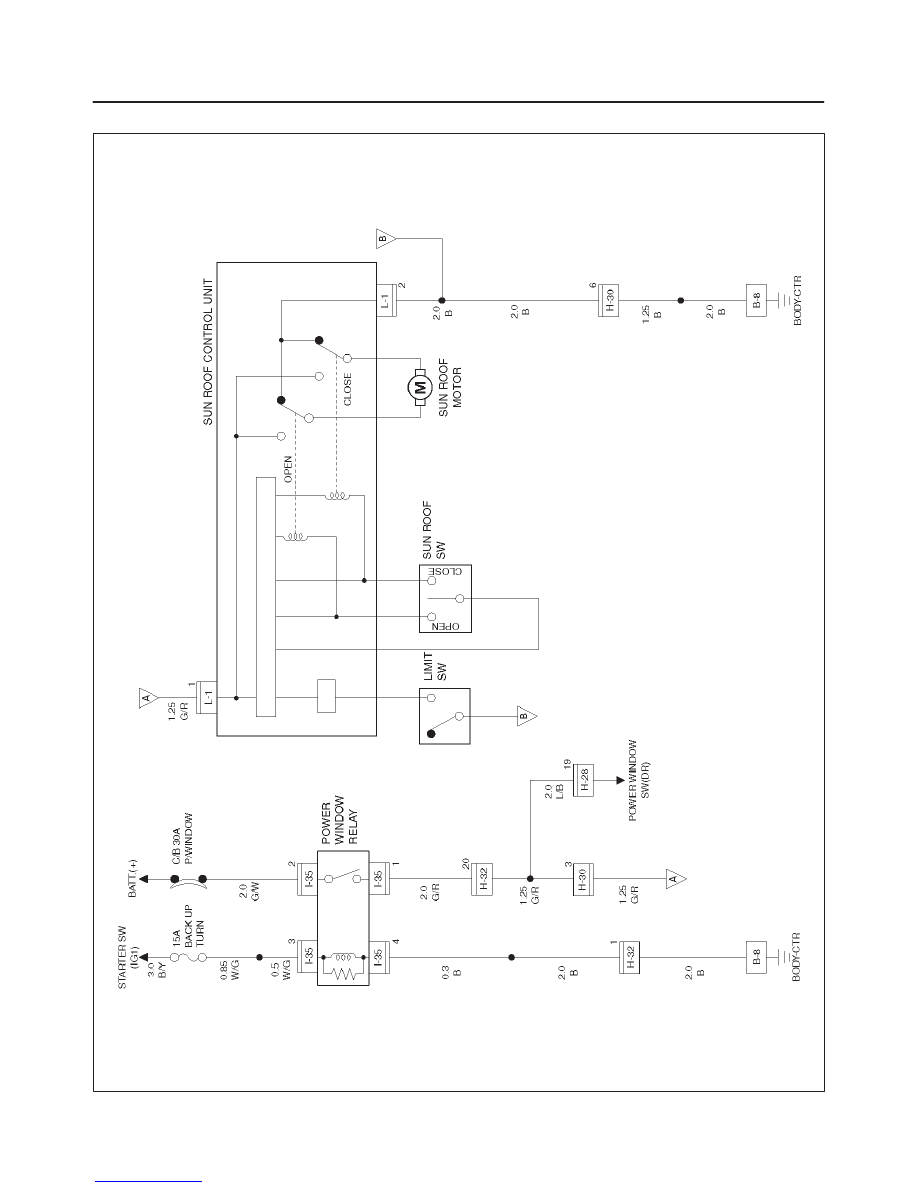

Circuit Diagram–1

D08RW275

8D–239

WIRING SYSTEM

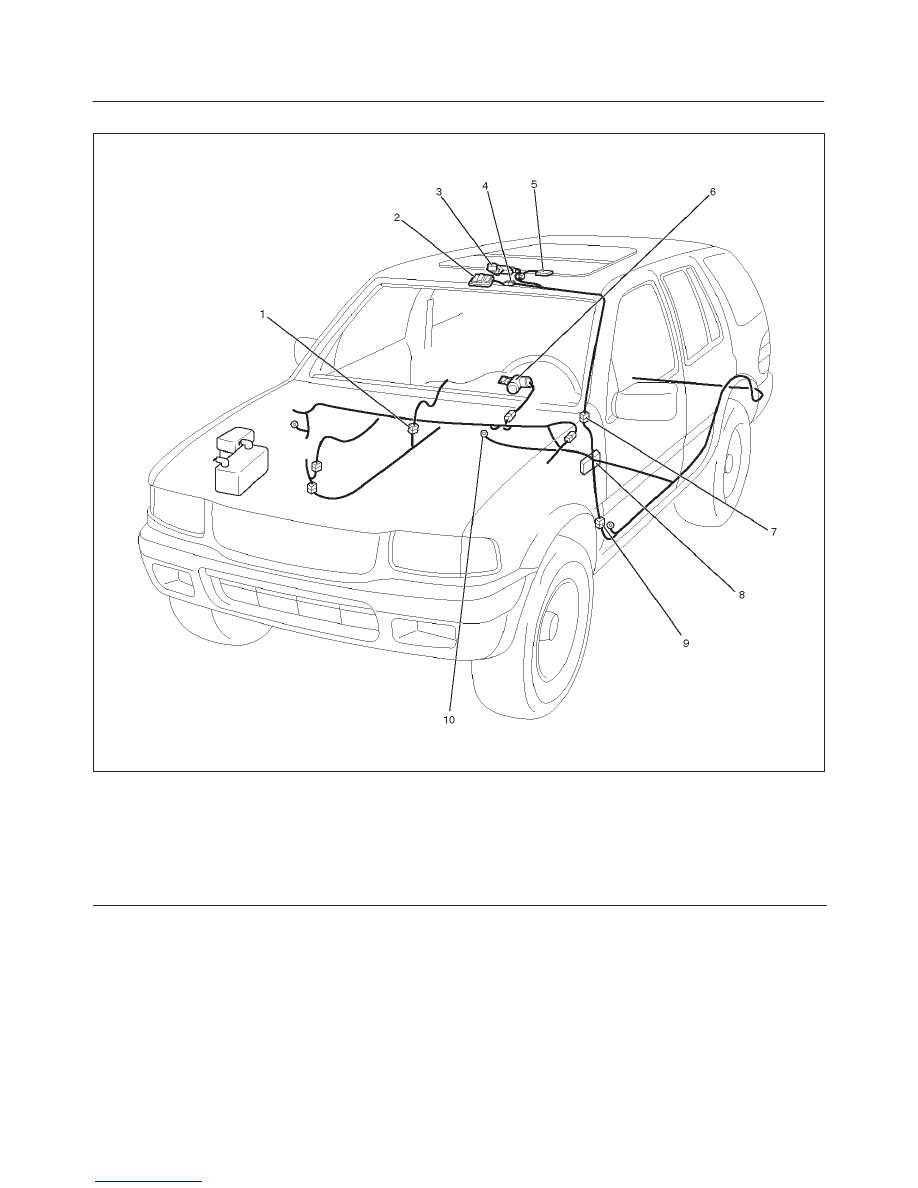

Parts Location

D08RW095

Legend

(1) H–29
(2) Sun Roof SW
(3) Sun Roof Motor
(4) L–1
(5) Sun Roof Control Unit

(6) Starter SW
(7) H–30
(8) I–35
(9) H–32

(10) B–8
