8D–228

WIRING SYSTEM

A/T Shift Indicator

General Description

The circuit consists of the starter switch, lighting switch,
mode switch, A/T shift indicator control unit and A/T shift
indicator (meter).

8D–229

WIRING SYSTEM

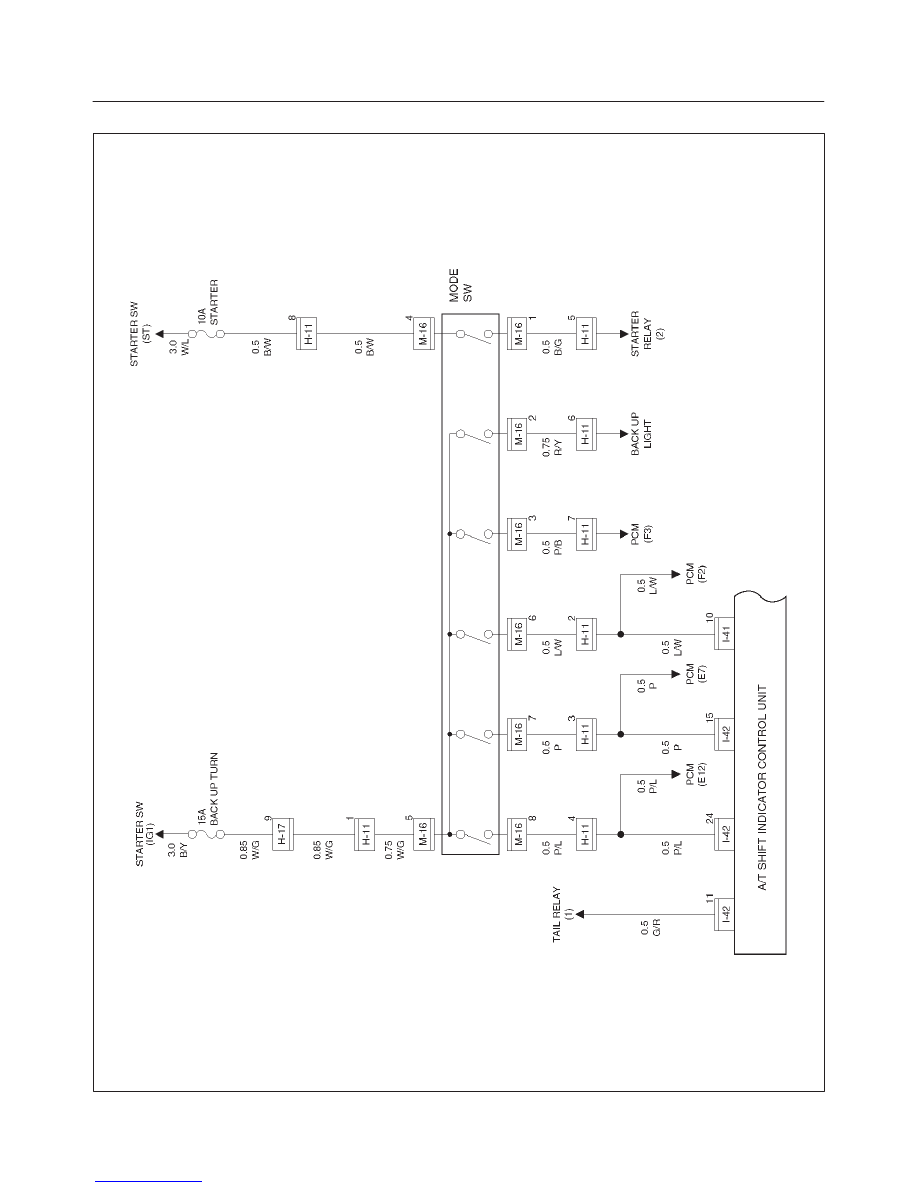

Circuit Diagram–1

D08RW225

8D–230

WIRING SYSTEM

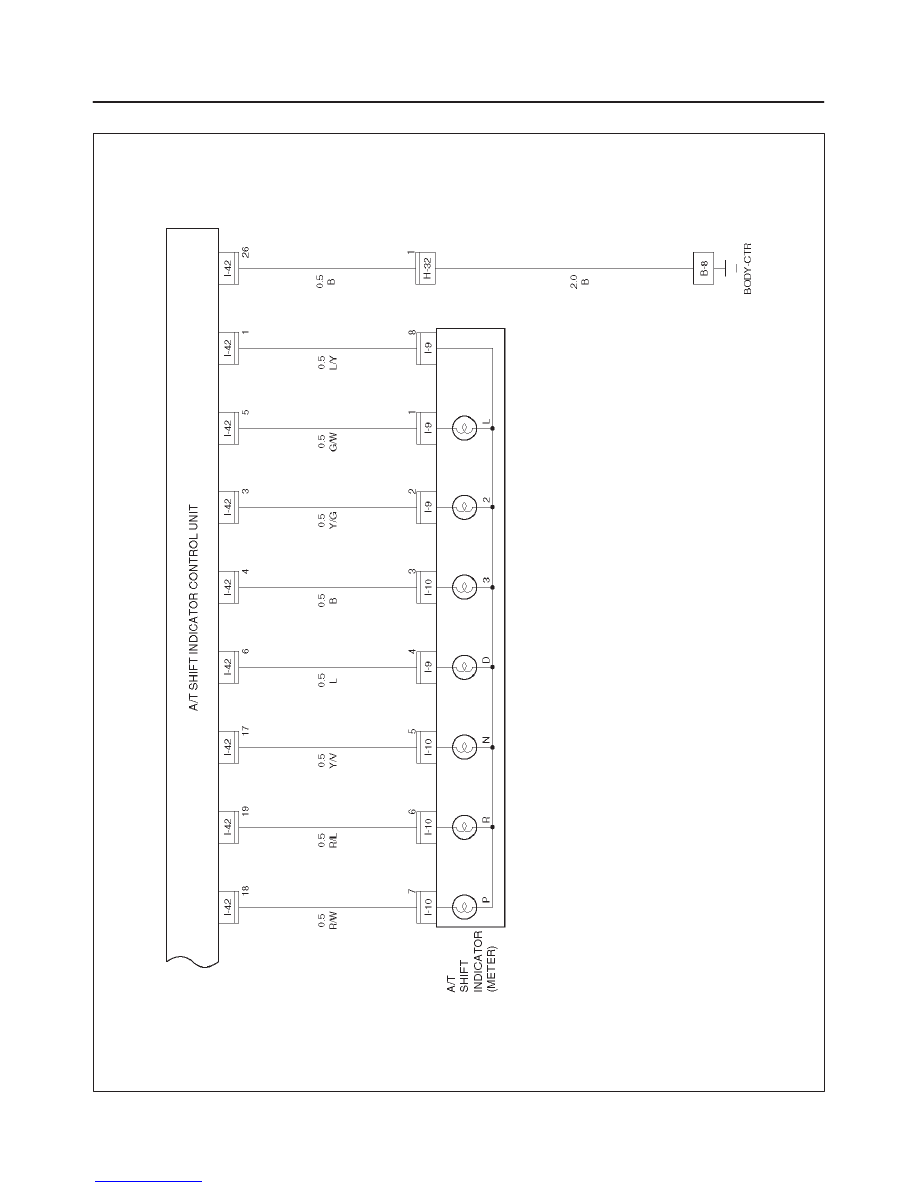

Circuit Diagram–2

D08RW226

8D–231

WIRING SYSTEM

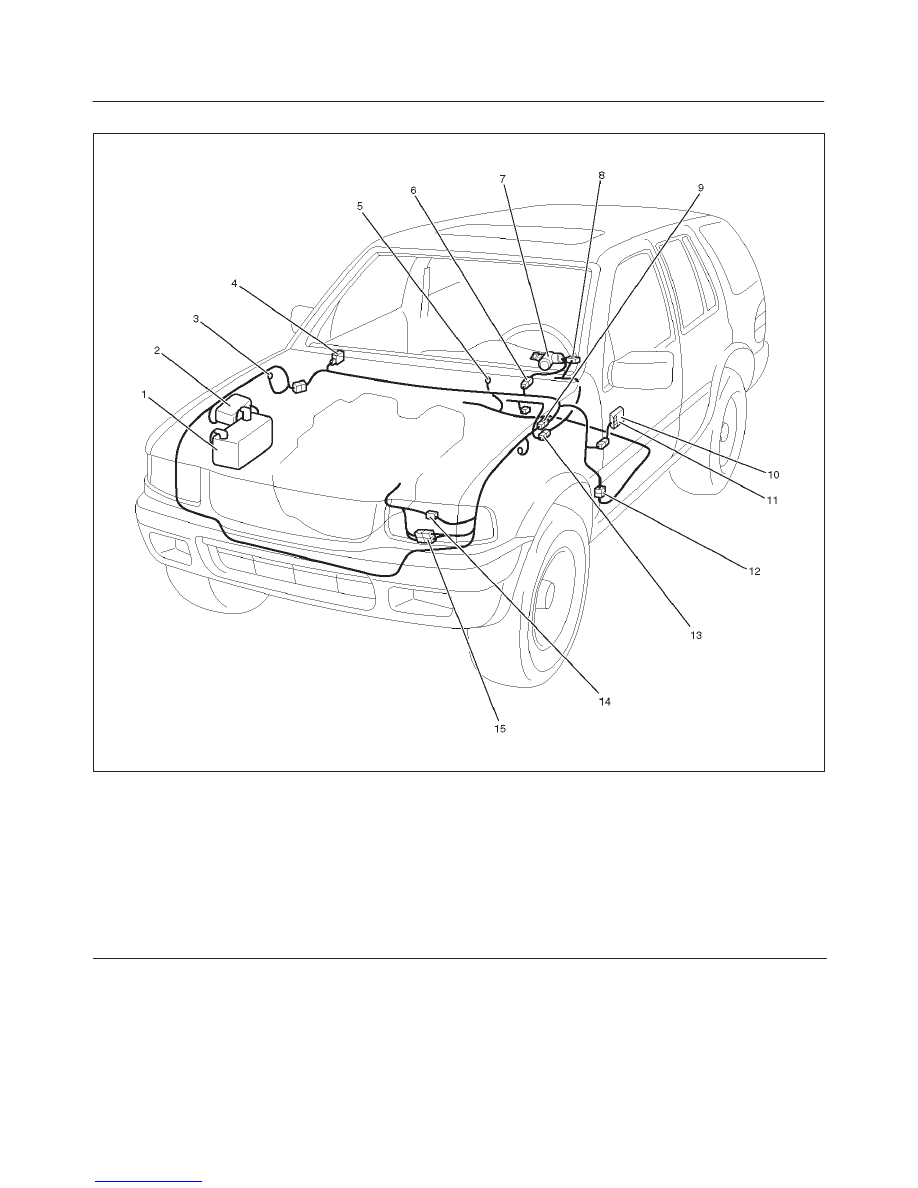

Parts Location

D08RW086

Legend

(1) Battery
(2) X–3
(3) C–36
(4) I–42
(5) B–8
(6) I–46
(7) Starter SW
(8) I–10

(9) H–15

(10) I–34

(11) Relay Box

(12) H–32
(13) H–17
(14) M–16
(15) H–11
(16) H–19
