8D–192

WIRING SYSTEM

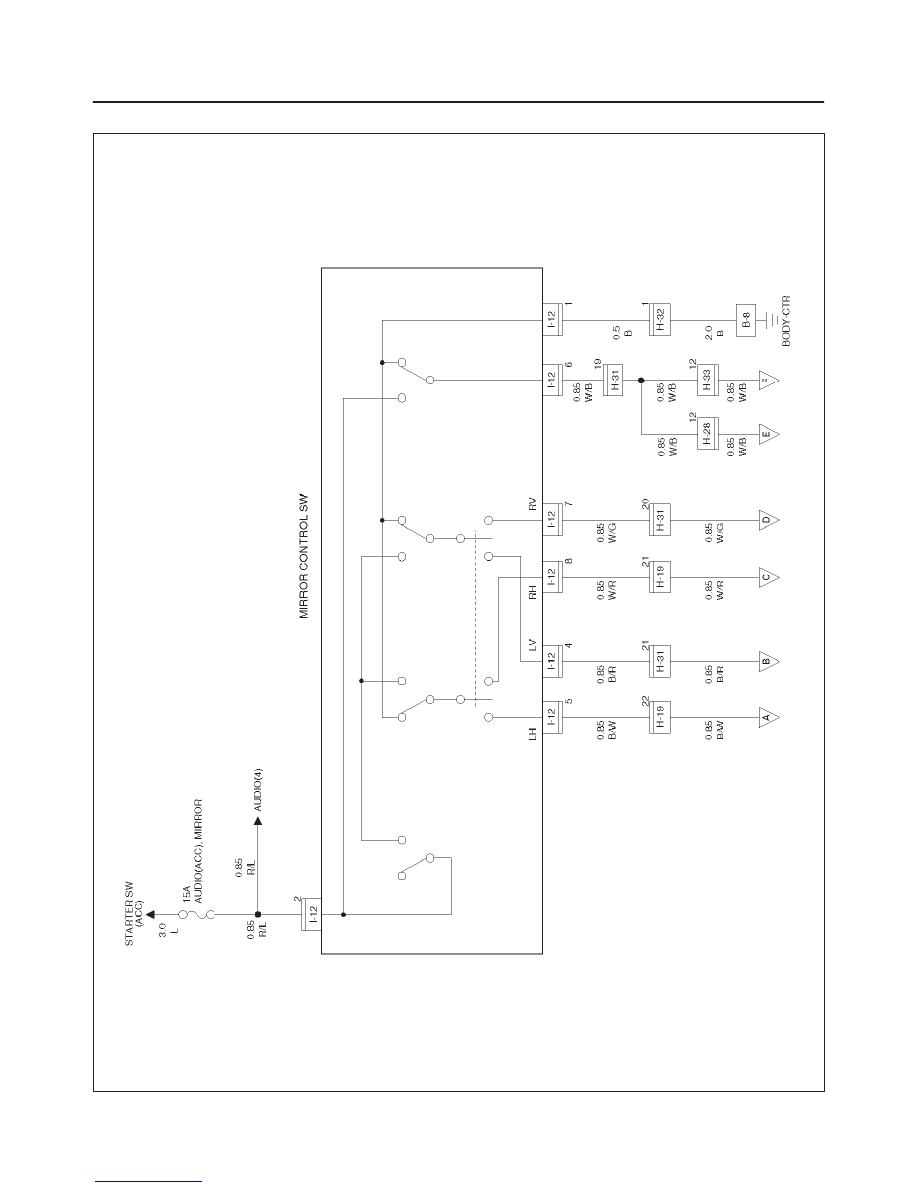

Circuit Diagram–1

D08RW228

8D–193

WIRING SYSTEM

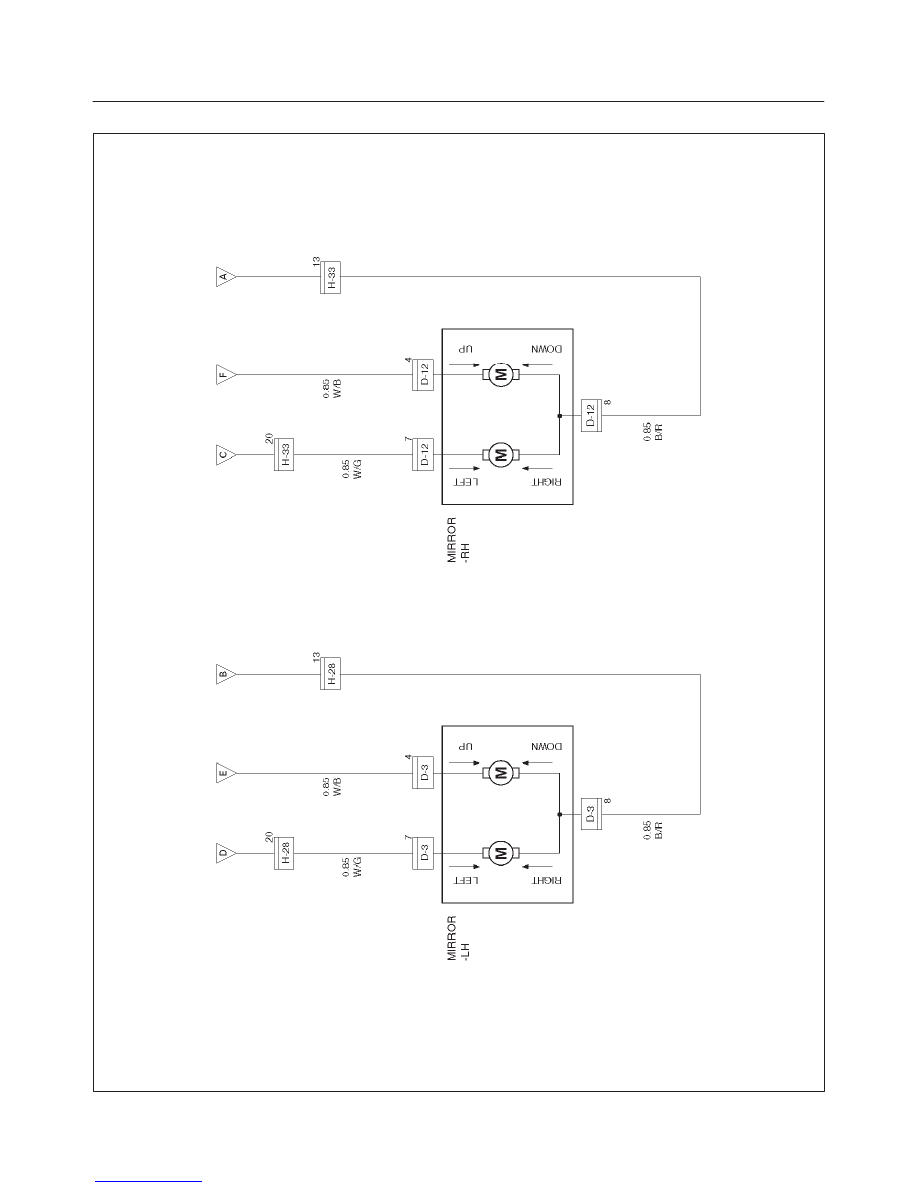

Circuit Diagram–2

D08RW227

8D–194

WIRING SYSTEM

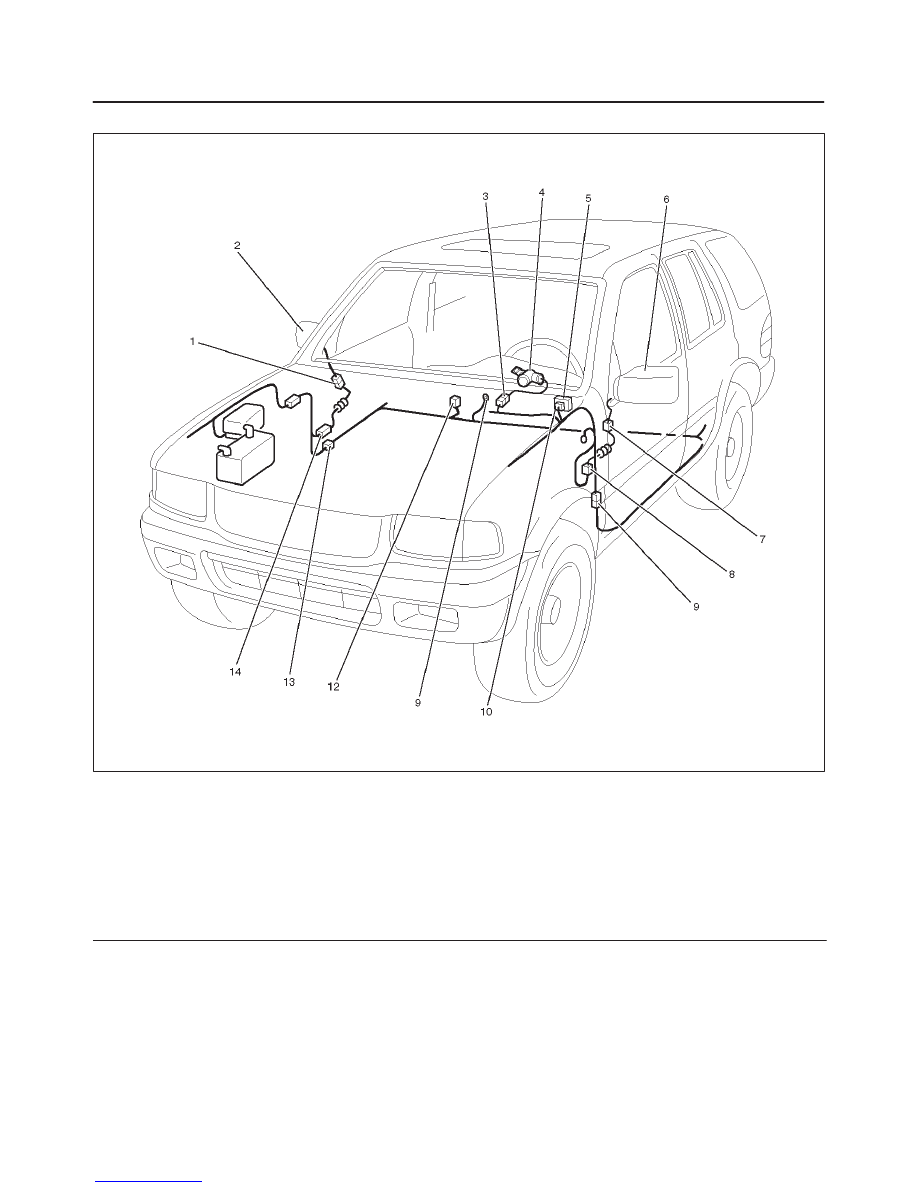

Parts Location

D08RW078

Legend

(1) D–12
(2) Door Mirror (RH)
(3) I–46
(4) Starter SW
(5) Door Mirror SW
(6) Door Mirror (LH)
(7) D–3

(8) H–28
(9) H–31

(10) I–12

(11) B–8

(12) I–15
(13) H–33
(14) H–19

8D–195

WIRING SYSTEM

Diagnosis

Mirrors On Both Sides Operate Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Repair or replace the door mirror control sw.

Is the action complete?

—

Verify repair

–

Mirror On Left Sides Operate Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Is the continuity in the door mirror control switch
normal?

—

Go to Step 2

Repair or

replace the
door mirror

control switch

2

Is the door mirror normal?

—

Go to Step 3

Repair or

replace the
door mirror

3

Repair a poor connection of connectors or an open
circuit between connector I-12 terminal 6 and D-3
terminal 4 (or connector I-12 terminal 8 and D-3
terminal 7)

Is the action complete?

—

Verify repair

NOTE: Connectors shown in the parenthesis “( )”
indicate a check point of the mirror that does not operate
in the horizontal direction.

Mirror On The Right Side Operates Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Is the continuity in the door mirror control switch
normal?

—

Go to Step 2

Repair or

replace the
door mirror

control switch

2

Is the door mirror normal?

—

Go to Step 3

Repair or

replace the
door mirror

3

Repair a poor connection of connectors or an open
circuit between connector I-12 terminal 6 and D-12
terminal 4 (or connector I-12 terminal 8 and D-12
terminal 7)

Is the action complete?

—

Verify repair

NOTE: Connectors shown in the parenthesis “( )”
indicate a check point of the mirror that does not operate
in the horizontal direction.
