8D–184

WIRING SYSTEM

Audio

General Description

The audio circuit is designed for the current to flow
through the receiver circuit when the radio switch is
turned on with the starter switch in “ACC” or “ON”.
Current runs through the memory circuit of the audio
regardless of the position of the starter switch.

8D–185

WIRING SYSTEM

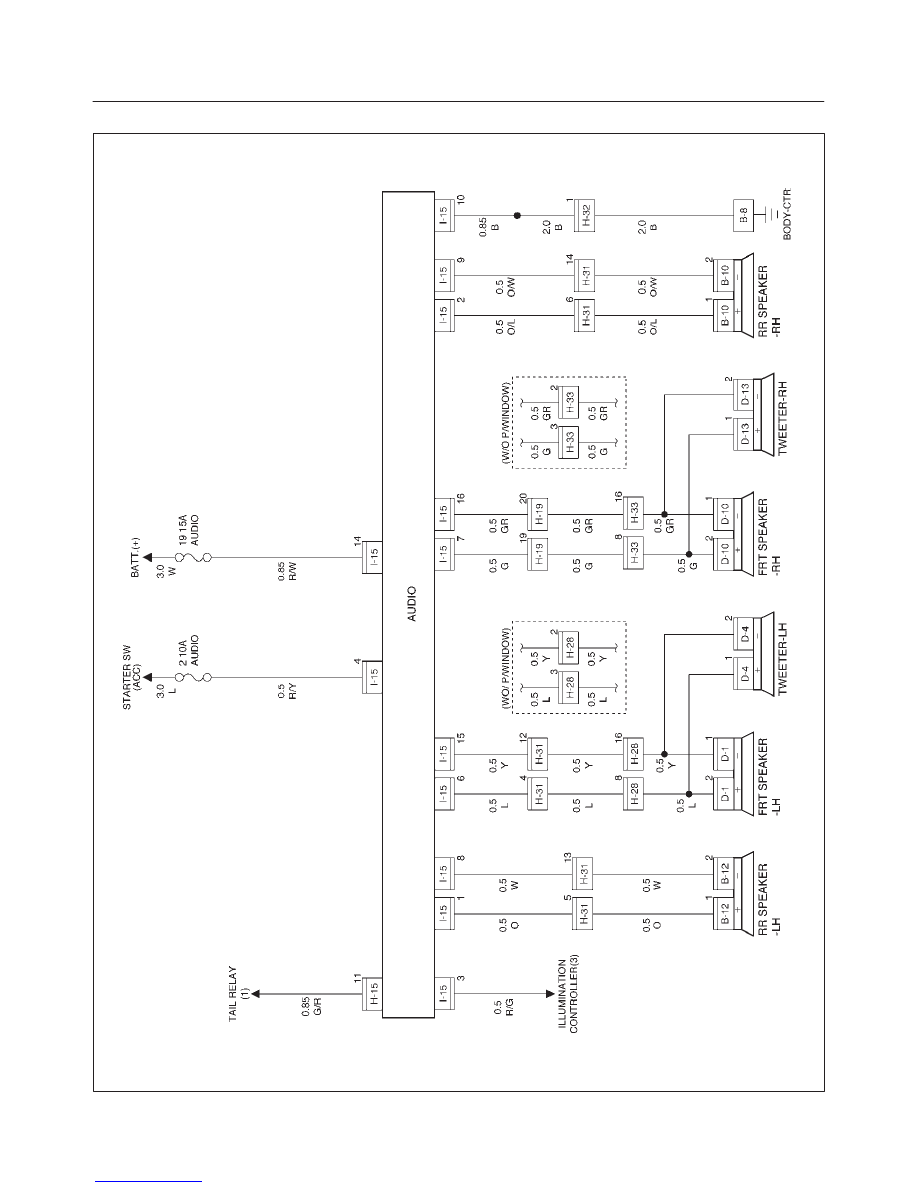

Circuit Diagram–1

D08RX099

8D–186

WIRING SYSTEM

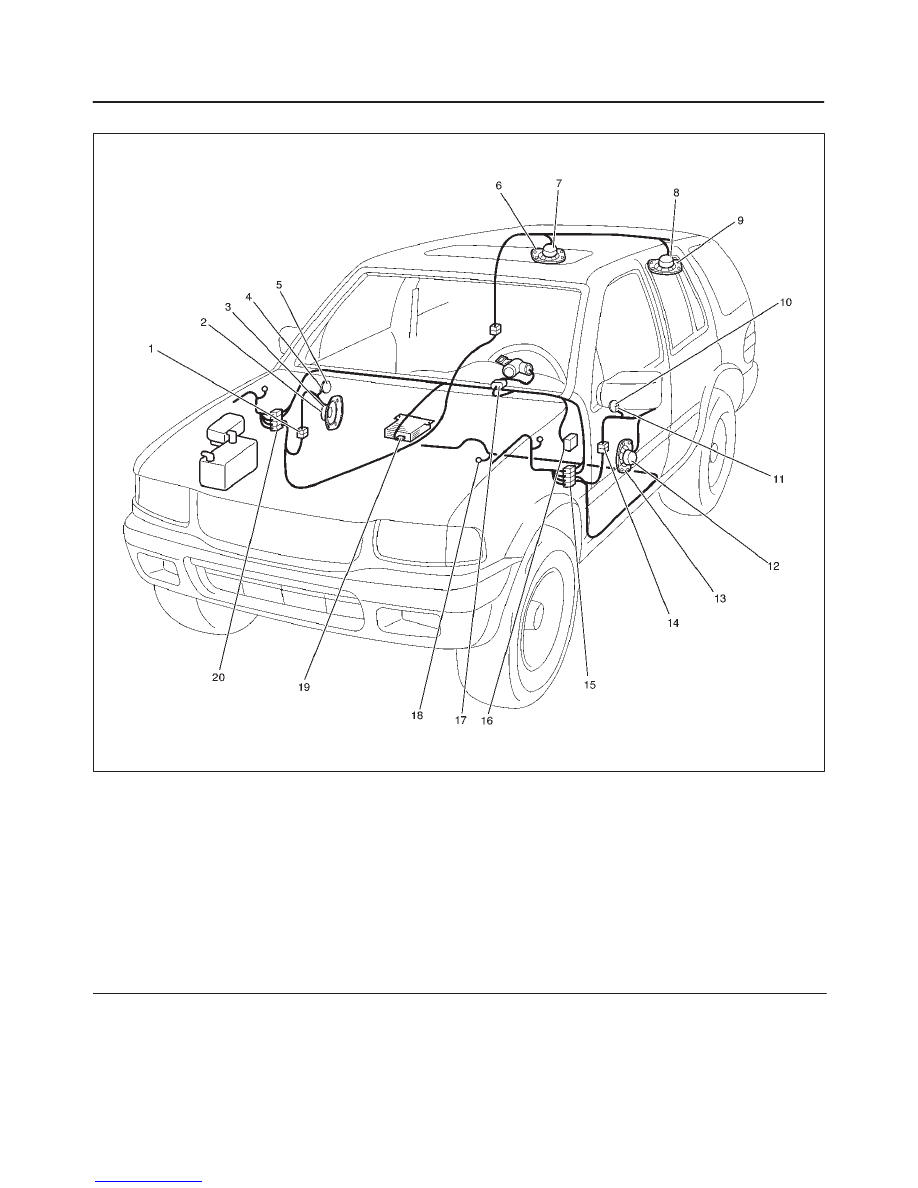

Parts Location

D08RX100

Legend

(1) H–33
(2) D–10
(3) FRT Speaker (RH)
(4) D–13
(5) Tweeter (RH)
(6) RR Speaker (RH)
(7) B–10
(8) RR Speaker (LH)
(9) B–12

(10) Tweeter (LH)

(11) D–4

(12) D–10
(13) FRT Speaker (LH)
(14) H–28
(15) H–31
(16) Relay & Fuse Box
(17) I–46
(18) B–8
(19) I–15
(20) H–19

8D–187

WIRING SYSTEM

Cigarette Lighter, Digital Clock and Accessory Socket

General Description

When the cigarette lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is formed
in the cigarette lighter case to heat the lighter coil.
The cigarette lighter is sprung back to its original position
after the lighter coil is heated.
