Isuzu Rodeo UE. Manual - part 582





8D–176

WIRING SYSTEM

Rear Washer Motor Does Not Operate

Step

Action

Value(s)

Yes

No

1

Does the rear wiper motor operate?

Go to Step 6

Go to Step 2

2

Is the fuse 17 normal?

Go to Step 3

Replace the

fuse

3

1. Disconnect the rear wiper/washer switch connector

I–16.

2. Turn the switch to the rear washer position.

Is there continuity between the switch side connector
I–16 terminal 8 and 4?

Go to Step 4

Replace the

switch

4

Turn the starter switch on.

Is the battery voltage applied between harness side
connector I–16 terminal 8 and the ground?

Approx. 12V

Go to Step 6

Go to Step 5

5

Repair an open circuit between the fuse 17 and
connector I–16 terminal 8.

Is the action complete?

Go to Step 4

6

1. Disconnect the rear wiper motor connector C–30.
2. Connect the battery positive terminal with the motor

side connector C–30 terminal 1 and the battery
negative terminal with terminal 2.

Does the motor operate?

Go to Step 7

Repair or

replace the

motor

7

Reconnect the rear wiper/washer switch connector
I–16.

Is the battery voltage applied between harness side
connector C–30 terminal 1 and the ground?

Approx. 12V

Go to Step 9

Go to Step 8

8

Repair an open circuit between connector I–16
terminal 4 and connector C–30 terminal 1.

Is the action complete?

Verify repair

9

Repair an open circuit between connector C–30
terminal 2 and the ground C–36.

Is the action complete?

Verify repair

8D–177

WIRING SYSTEM

Rear Defogger/Mirror Defogger

General Description

The system consists of the rear defogger and mirror
defogger switch, the rear defogger, mirror defogger relay,
the rear defogger, mirror defogger and the Powertrain
Control Module (PCM).
When the rear defogger and mirror defogger switch is
turned on with the starter switch on, the rear defogger and
mirror defogger relay is activated and the battery voltage
is applied to the rear defogger and mirror defogger.
The PCM is provided with the timer. When the operation
time of the timer elapses which has been set in advance,
the rear defogger and mirror defogger relay is
automatically deactivated and the rear defogger and
mirror defogger is turned off.

8D–178

WIRING SYSTEM

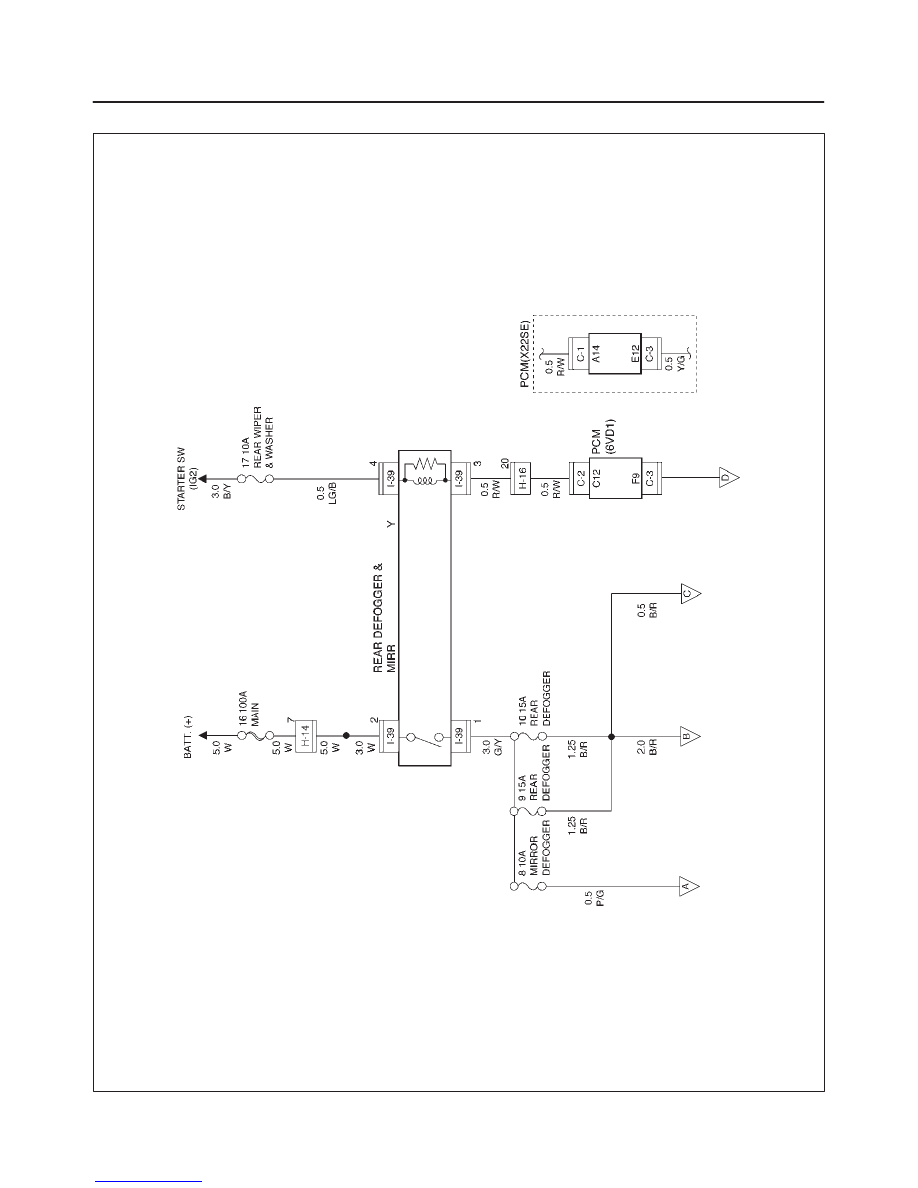

Circuit Diagram–1

D08RX079

8D–179

WIRING SYSTEM

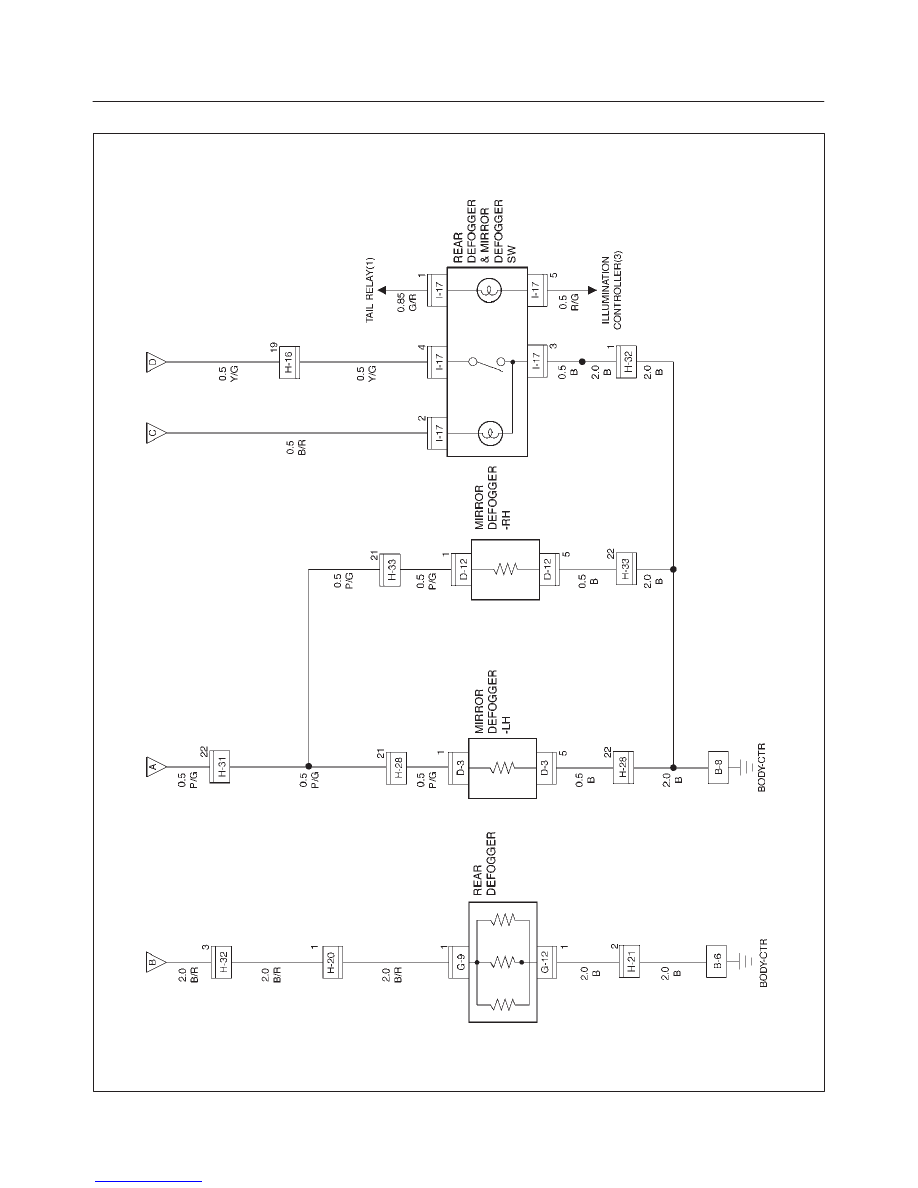

Circuit Diagram–2

D08RX078
