8D–168

WIRING SYSTEM

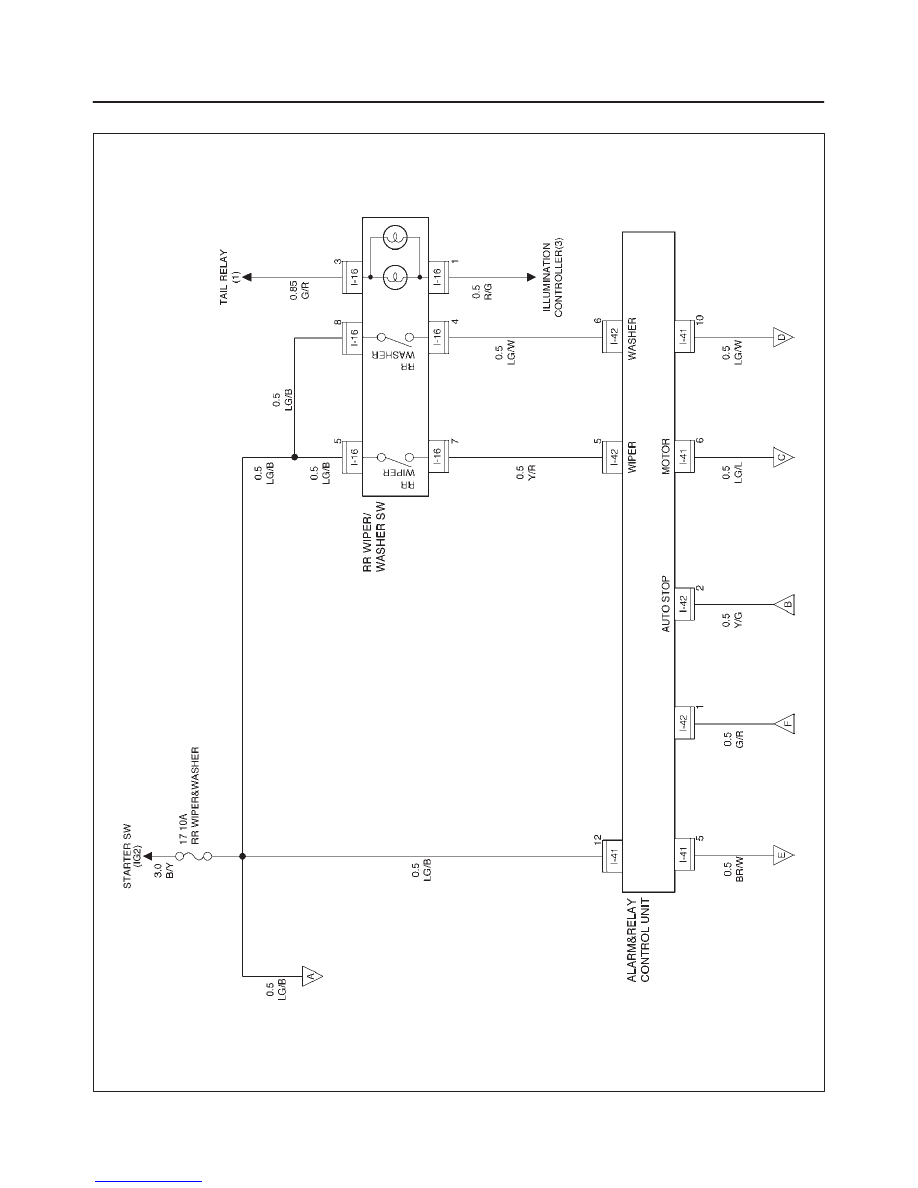

Circuit Diagram–1 (M/T)

D08RX081

8D–169

WIRING SYSTEM

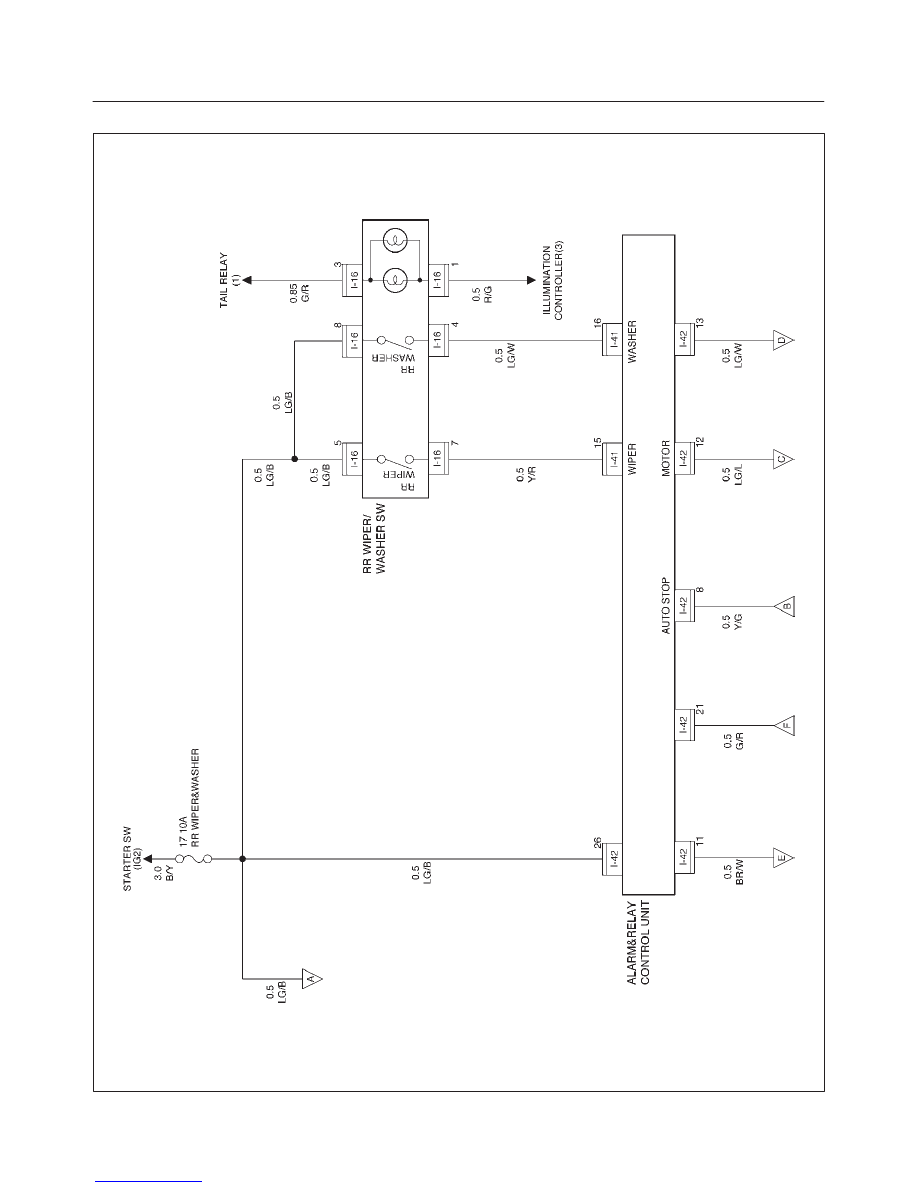

Circuit Diagram–1 (A/T)

D08RX082

8D–170

WIRING SYSTEM

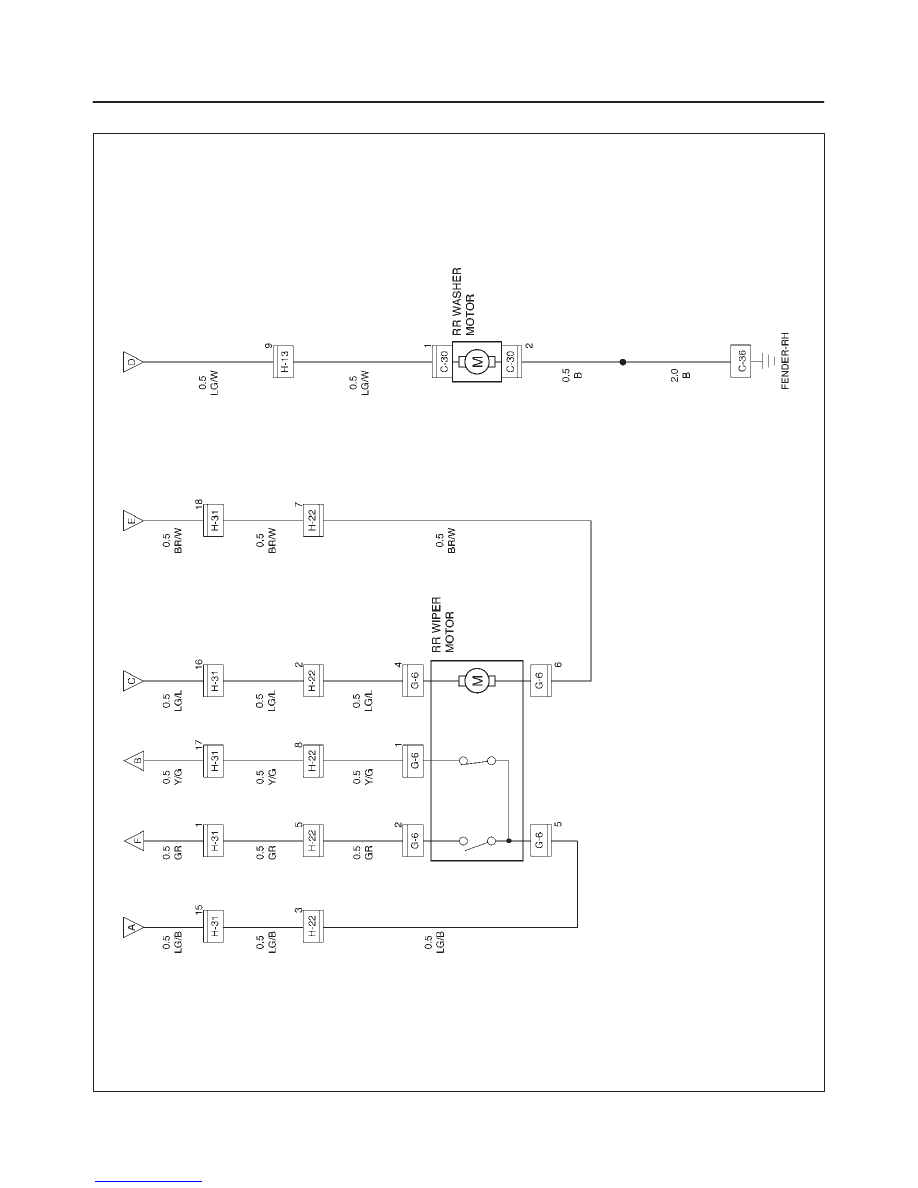

Circuit Diagram–2

D08RX083

8D–171

WIRING SYSTEM

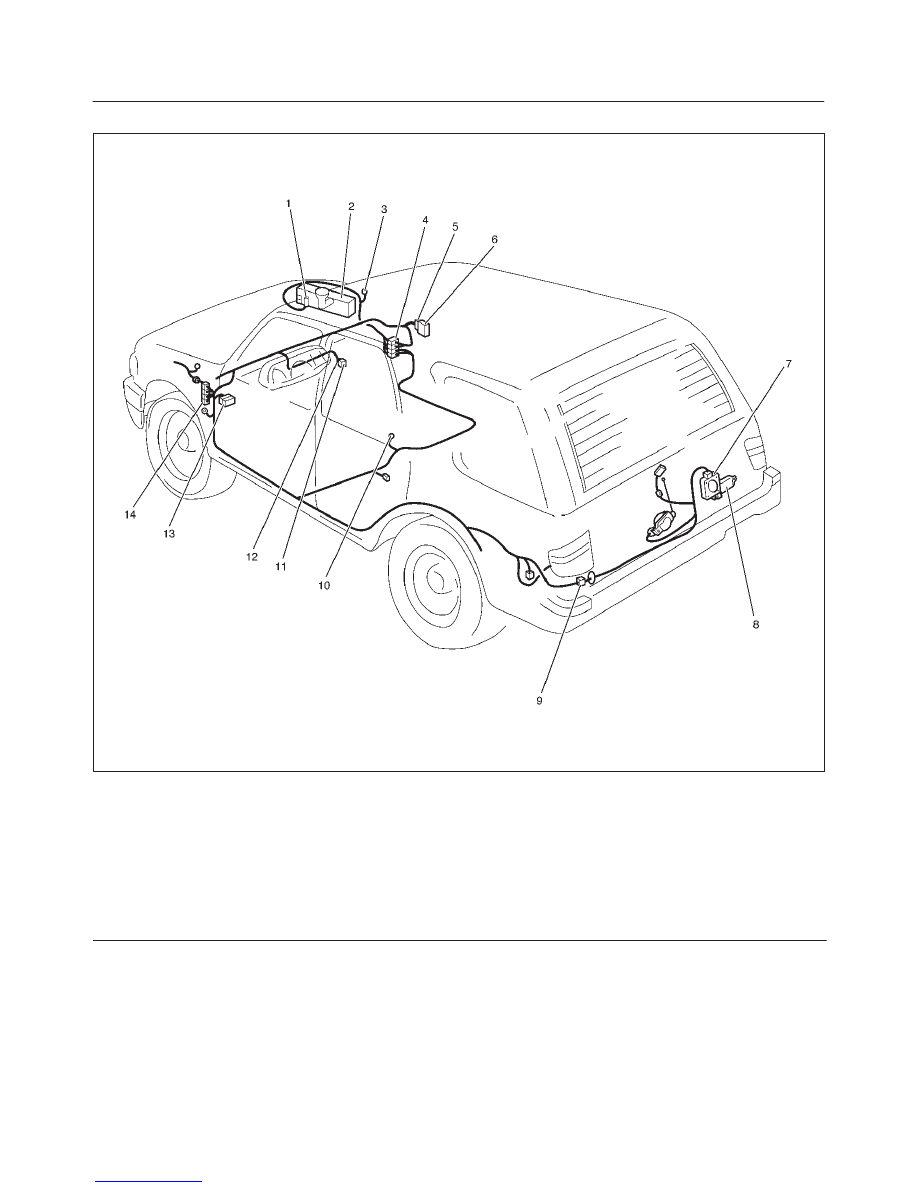

Parts Location

D08RX084

Legend

(1) C–30
(2) FRT & Rear Washer Tank
(3) C–36
(4) H–13
(5) I–41, 42
(6) Alarm & Relay Control Unit
(7) G–6

(8) Rear Wiper Moter
(9) H–22

(10) B–8

(11) Rear Wiper/Washer Switch

(12) I–16
(13) I–46
(14) H–31
