8D–100

WIRING SYSTEM

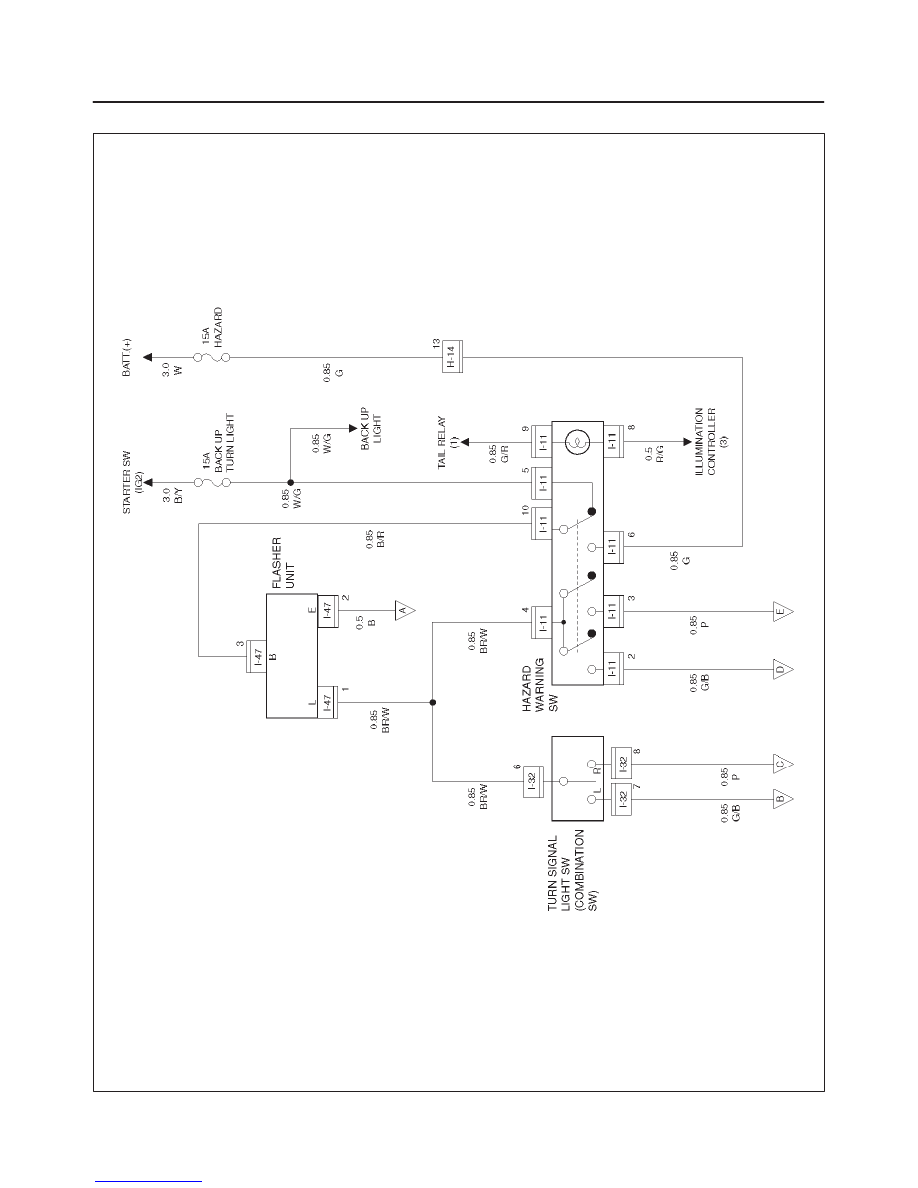

Circuit Diagram–1

D08RW043

8D–101

WIRING SYSTEM

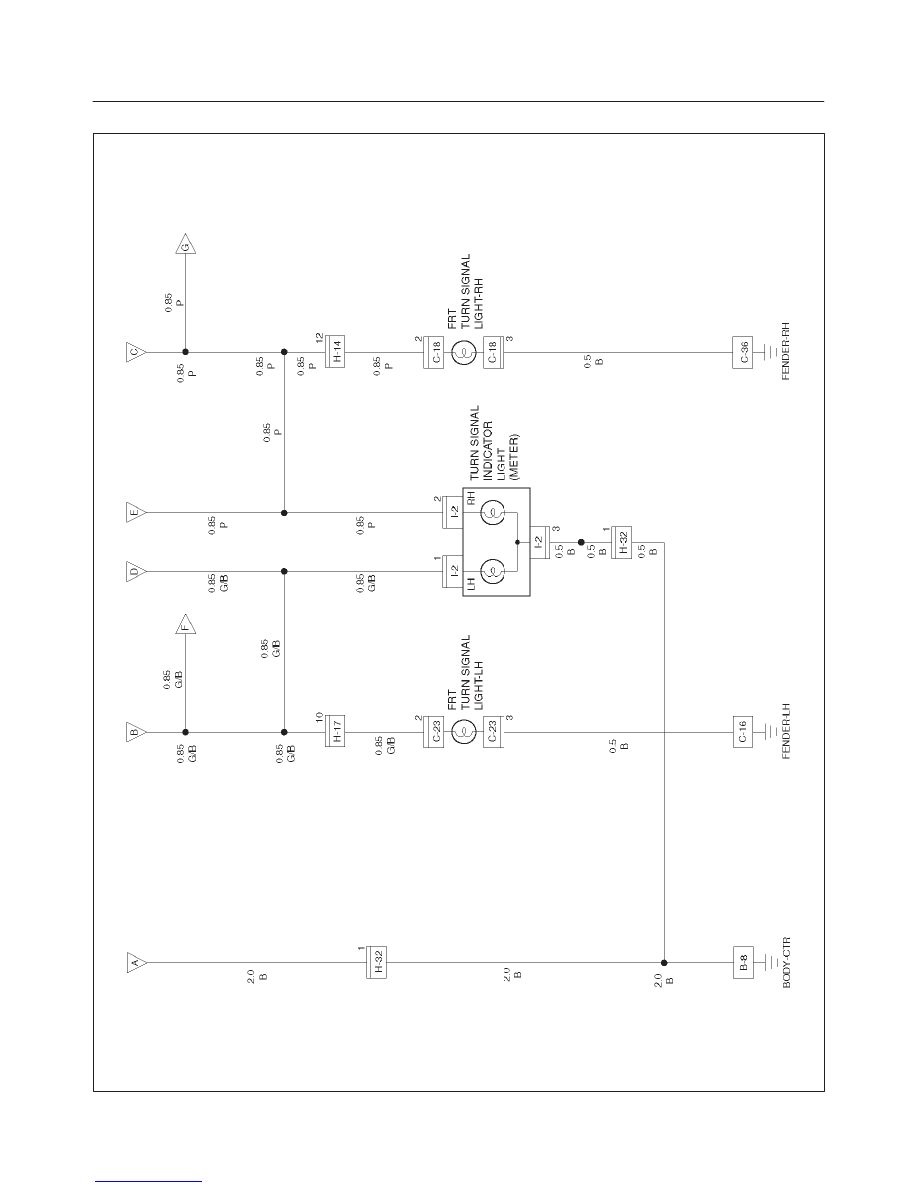

Circuit Diagram–2

D08RW044

8D–102

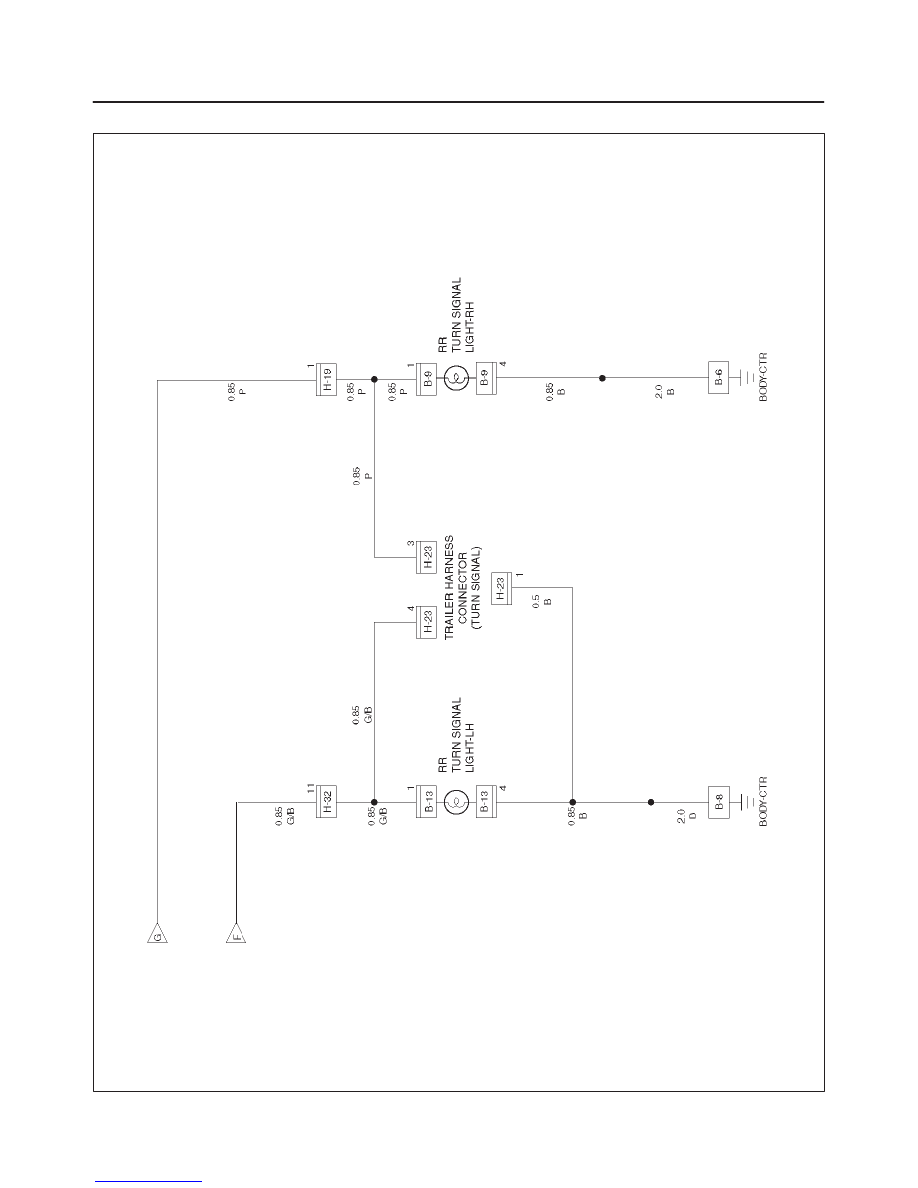

WIRING SYSTEM

Circuit Diagram–3

D08RW045

8D–103

WIRING SYSTEM

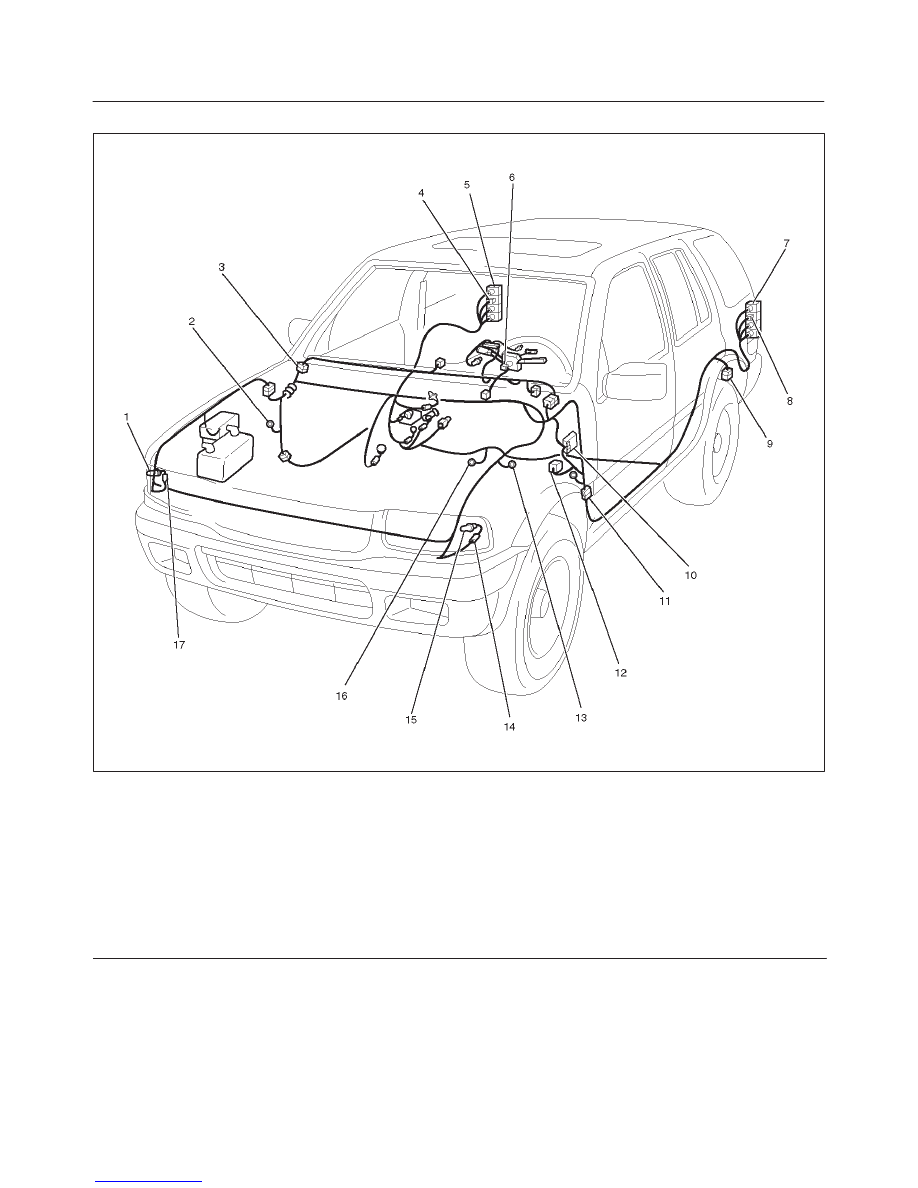

Parts Location

D08RW110

Legend

(1) FRT Turn Signal light – RH
(2) C–36
(3) H–14, H–19
(4) B–9
(5) RR Turn Signal light – RH
(6) I–2
(7) RR Turn Signal light – LH
(8) B–13

(9) H–23

(10) Relay & Fuse Box

(11) H–32

(12) I–32, I–47
(13) C–16
(14) C–23
(15) FRT Turn Signal light – LH
(16) B–8
(17) C–18
