8D–92

WIRING SYSTEM

License Plate Light Inoperative

Step

Action

Value(s)

Yes

No

1

Is the tail light normal?

—

Go to Step 2

Repair the

taillight (refer

to

diagnosis«bot

h taillights

inoperative”

in this

section)

2

Is the license plate light bulb normal?

—

Go to Step 3

Replace bulb

3

Is B–8 terminal?

—

Go to Step 4

Ground it

securely

4

Is the battery voltage applied between G–8 terminal 2
and the ground?

—

Go to Step 5

Repair a poor

connection at

the

connectors or

an open

circuit in the

circuit.

5

Repair a poor connection at the  connectors or an open
circuit between G–8 terminal 1 and B–8 terminal.

Is the action complete?

—

Verify repair

—

8D–93

WIRING SYSTEM

Interior Illumination Light

General Description

The circuit consists of lighting switch, tail relay,
illumination controller and illumination lights.
All these lights come on when lighting switch is turned on
with the switch to either parking or headlight position.
The brightness of illumination lights except the ones for
ashtray and glove box, can be adjusted by illumination
controller.

8D–94

WIRING SYSTEM

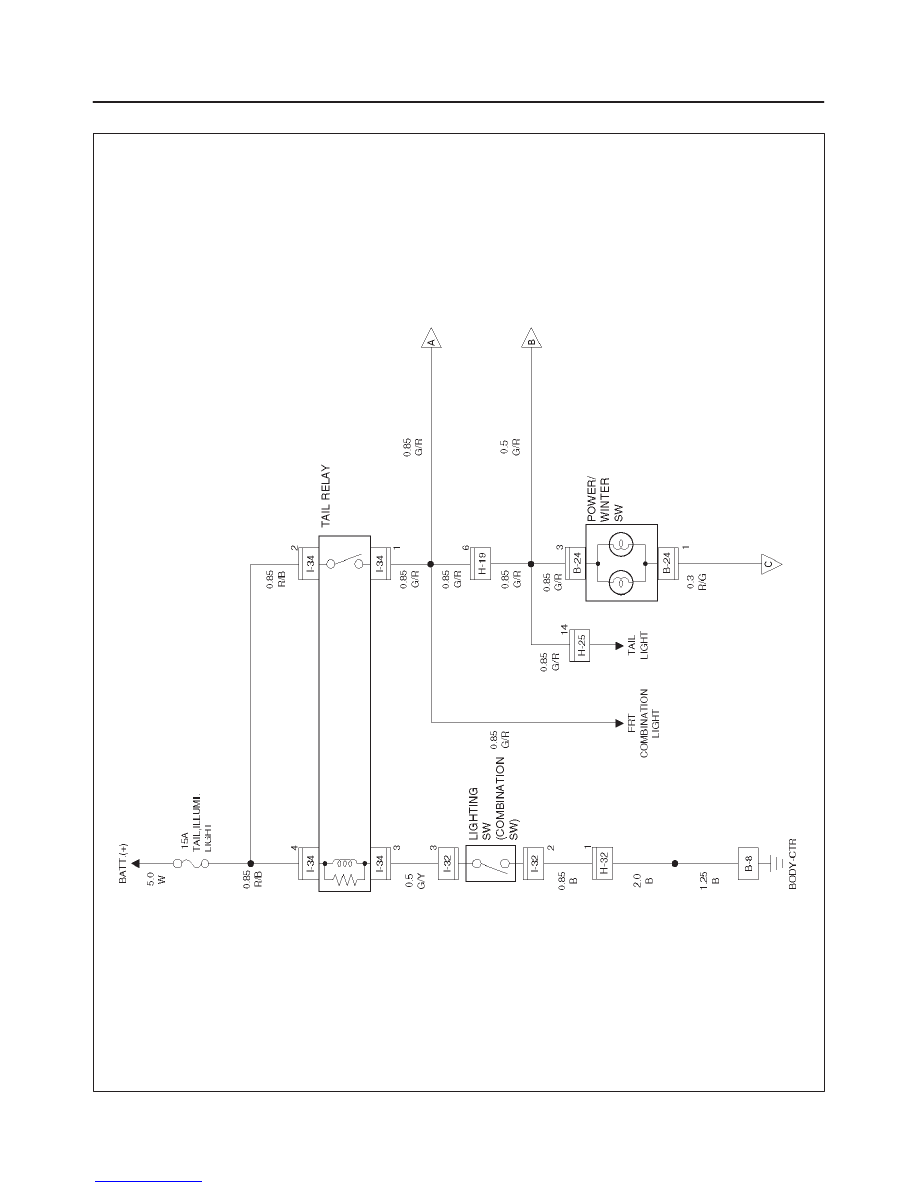

Circuit Diagram–1

D08RW039

8D–95

WIRING SYSTEM

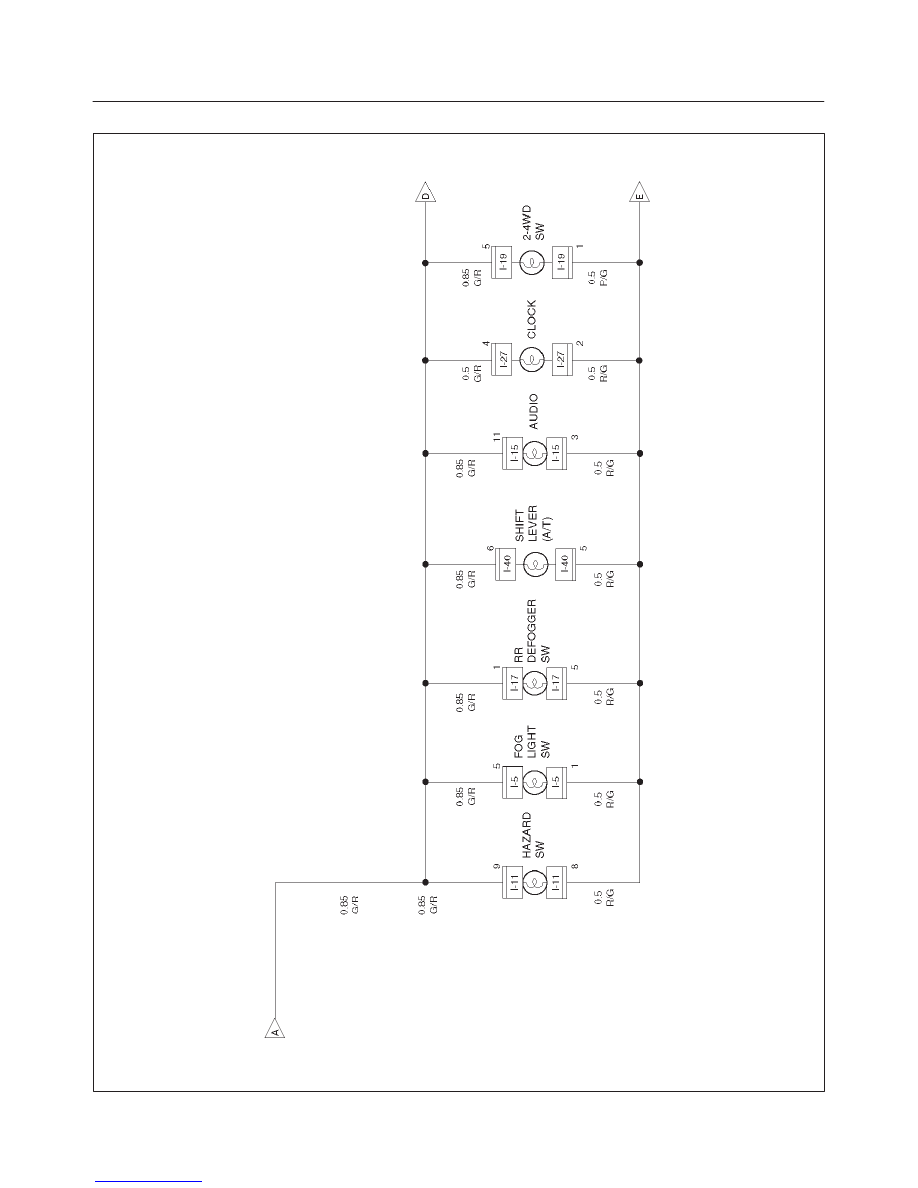

Circuit Diagram–2

D08RW040
