Isuzu Rodeo UE. Manual - part 554
8D–64
WIRING SYSTEM

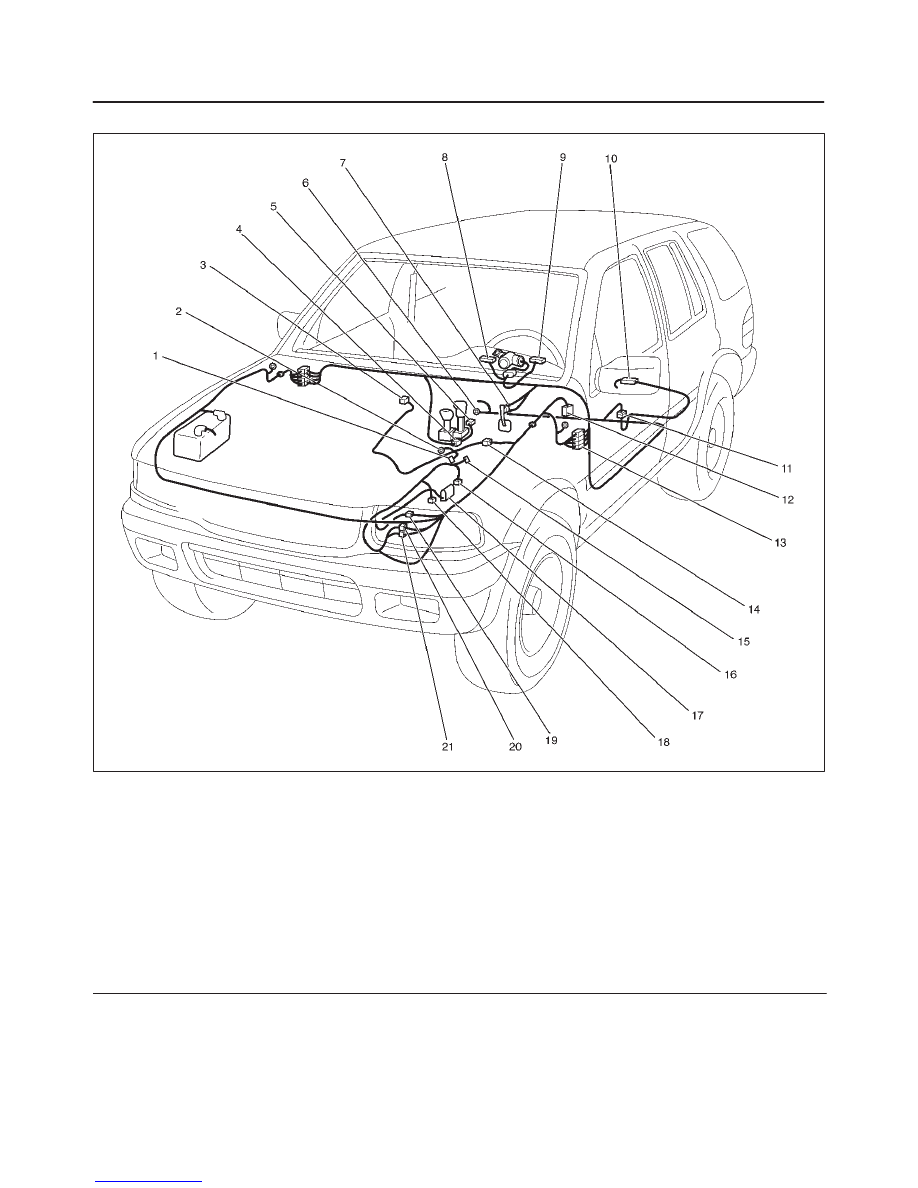

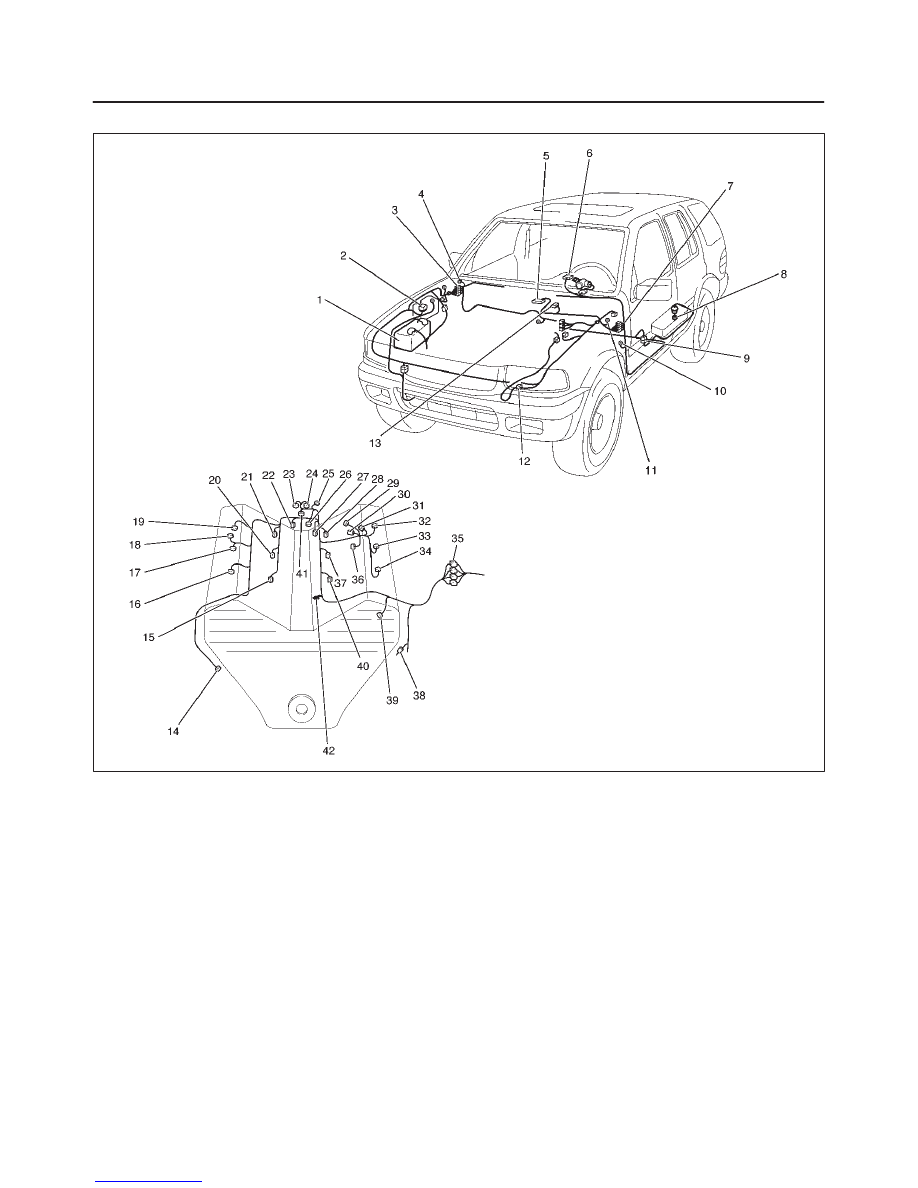

Parts Location – 1 (6VD1)
D08RX031
Legend
(1) Battery
(2) X–7, X–8
(3) H–12, H–13, H–14
(4) I–41, I–42
(5) PCM (C–1, C–2, C–3)
(6) I–2
(7) H–15, H–17, H–31, H–32
(8) F–1
(9) H–25
(10) I–43
(11) C–16
(12) H–9, H–10, H–11
(13) C–37
(14) E–27
(15) E–26
(16) E–37
(17) E–38
(18) E–7
(19) E–39
(20) E–25
(21) E–24
(22) E–20
(23) E–34
(24) E–35
(25) E–30
(26) E–8
(27) E–14
(28) E–13
(29) E–33
(30) E–5
(31) E–43
(32) E–42
(33) E–41
(34) E–40
(35) H–4, H–5, H–6
(36) E–6
(37) E–12
