Isuzu Rodeo UE. Manual - part 552





8D–56

WIRING SYSTEM

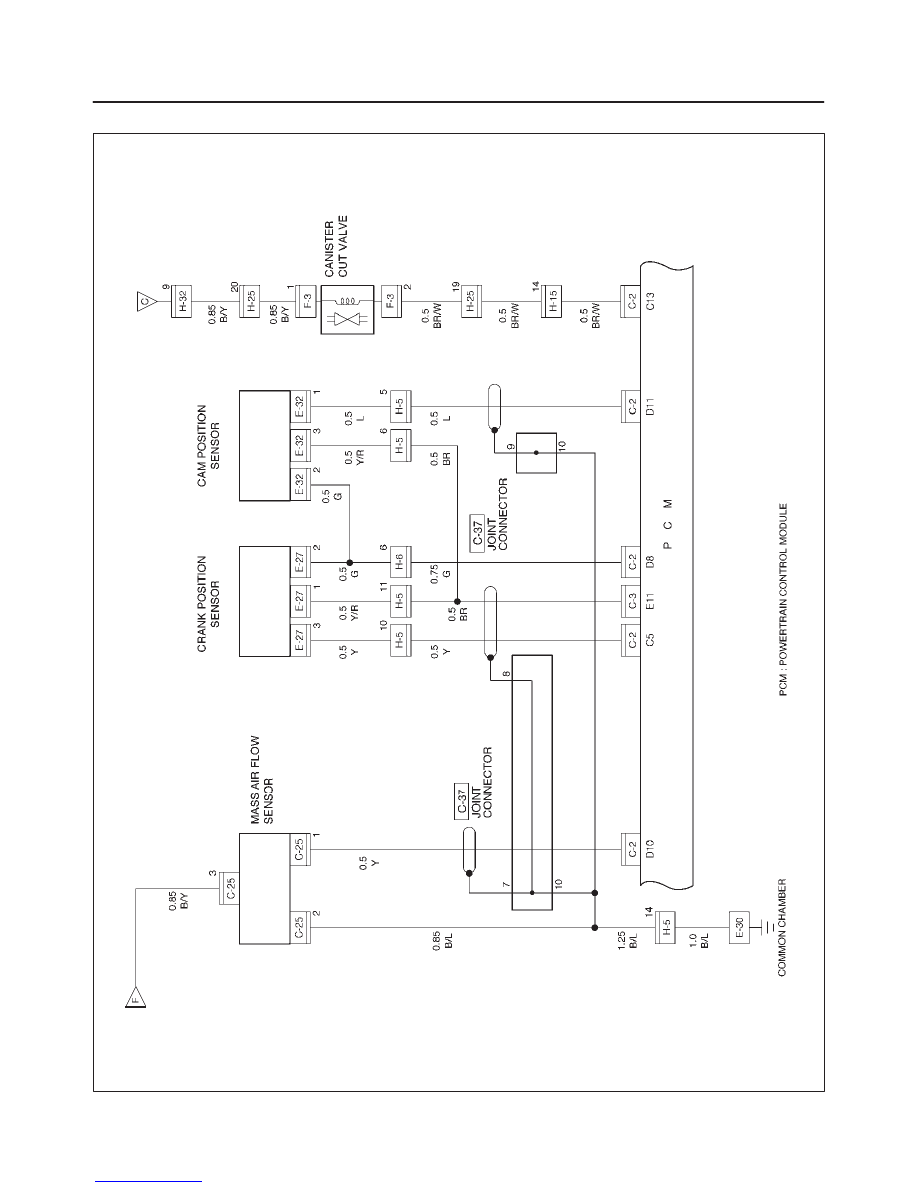

Circuit Diagram–6 (6VD1)

D08RX023

8D–57

WIRING SYSTEM

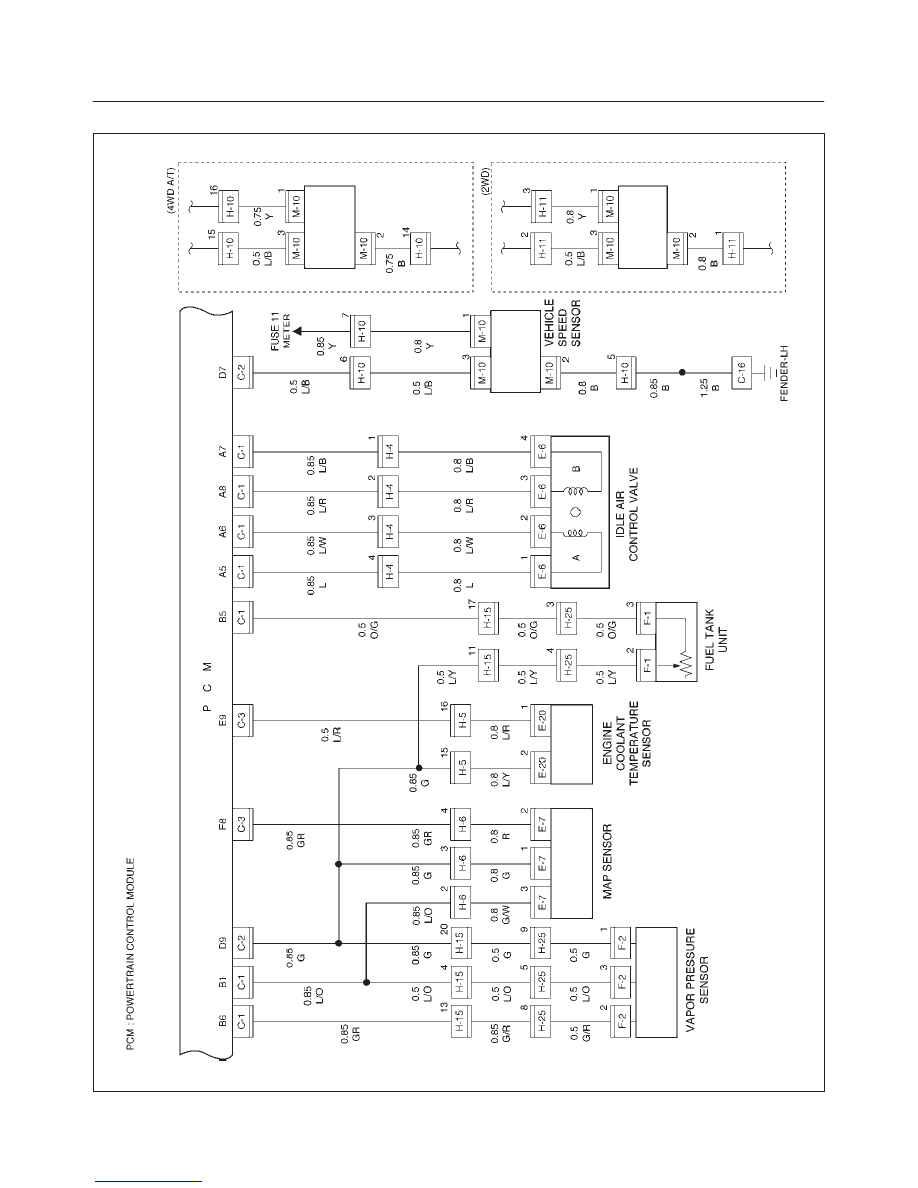

Circuit Diagram–7 (6VD1)

D08RX024

8D–58

WIRING SYSTEM

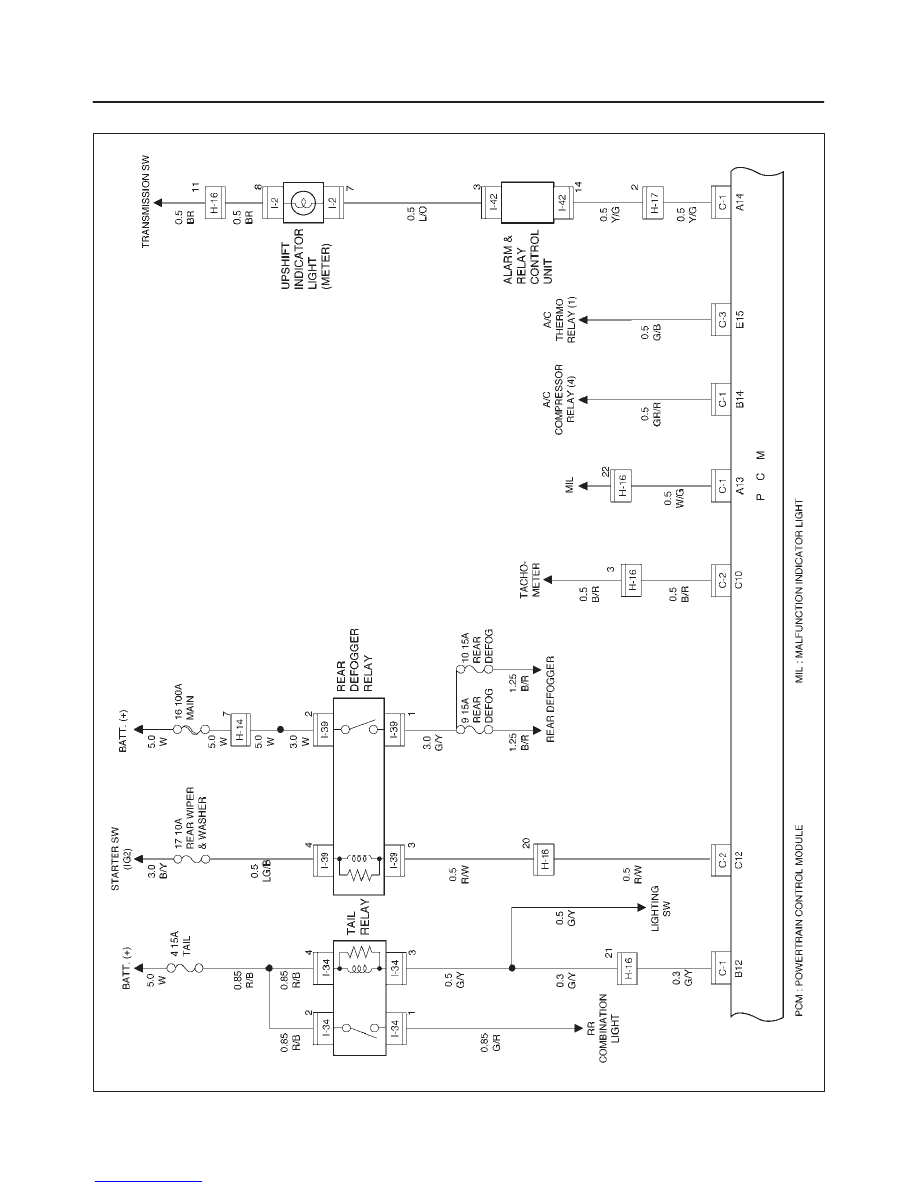

Circuit Diagram–8 (6VD1)

D08RX025

8D–59

WIRING SYSTEM

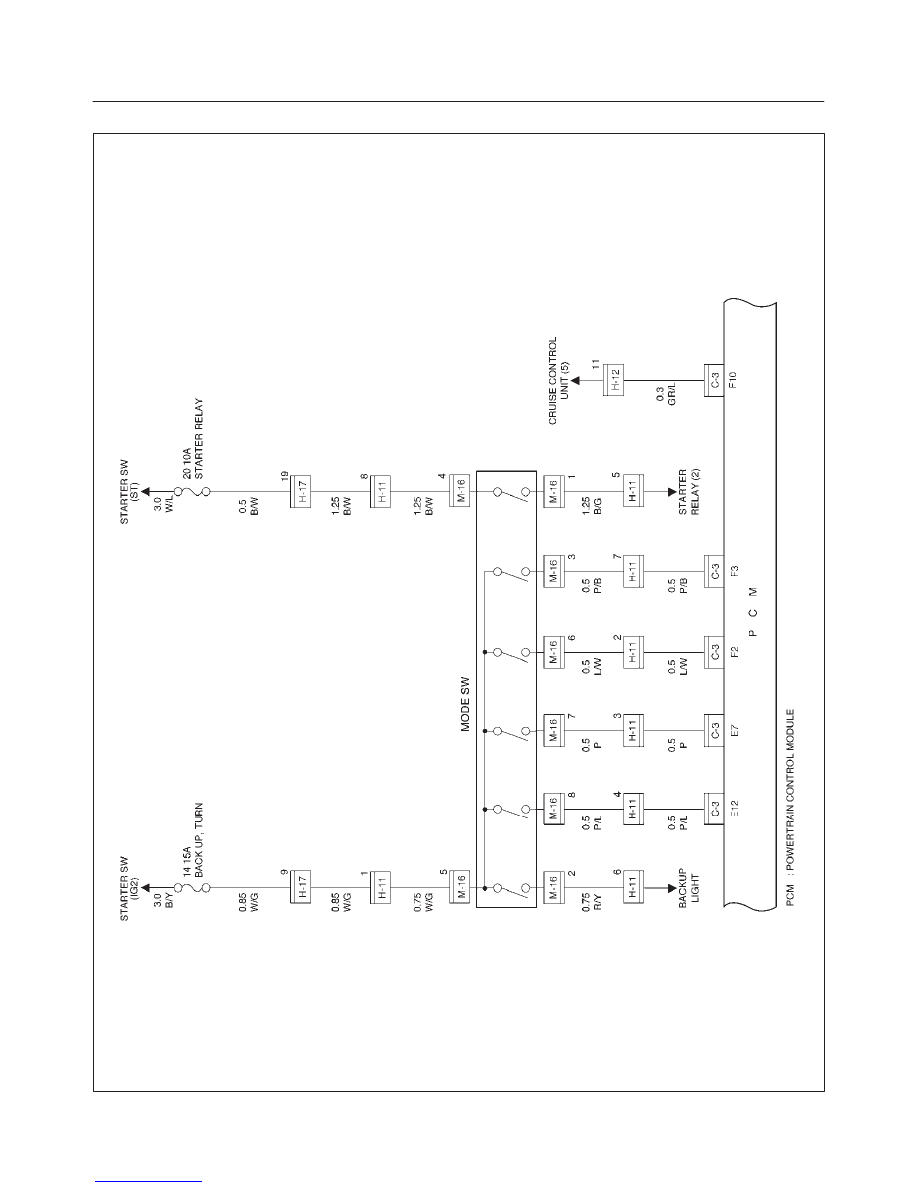

Circuit Diagram–9 (6VD1·4WD)

D08RX026
