Isuzu Rodeo UE. Manual - part 295

6A–93

ENGINE MECHANICAL (6VD1 3.2L)

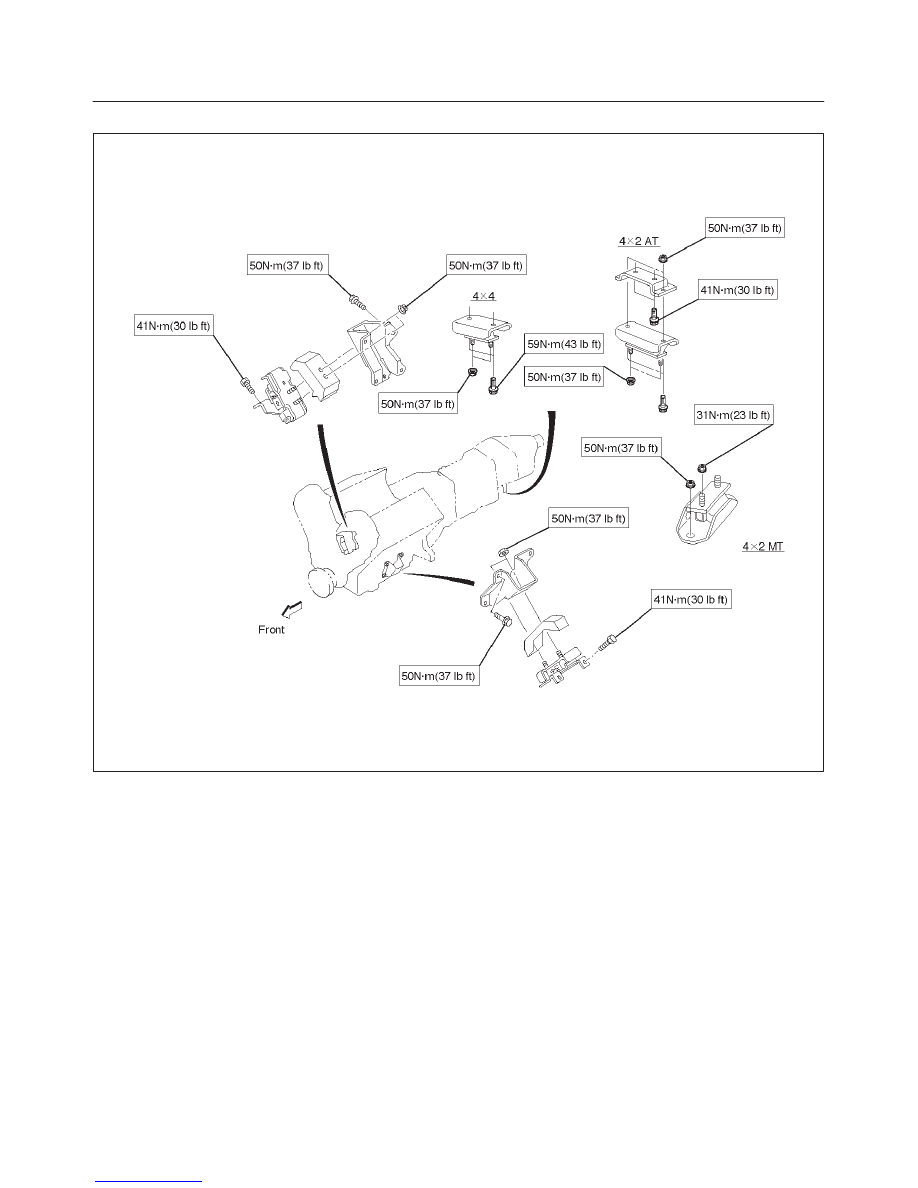

Engine mount

E06RW028

6A–94

ENGINE MECHANICAL (6VD1 3.2L)

Special Tool

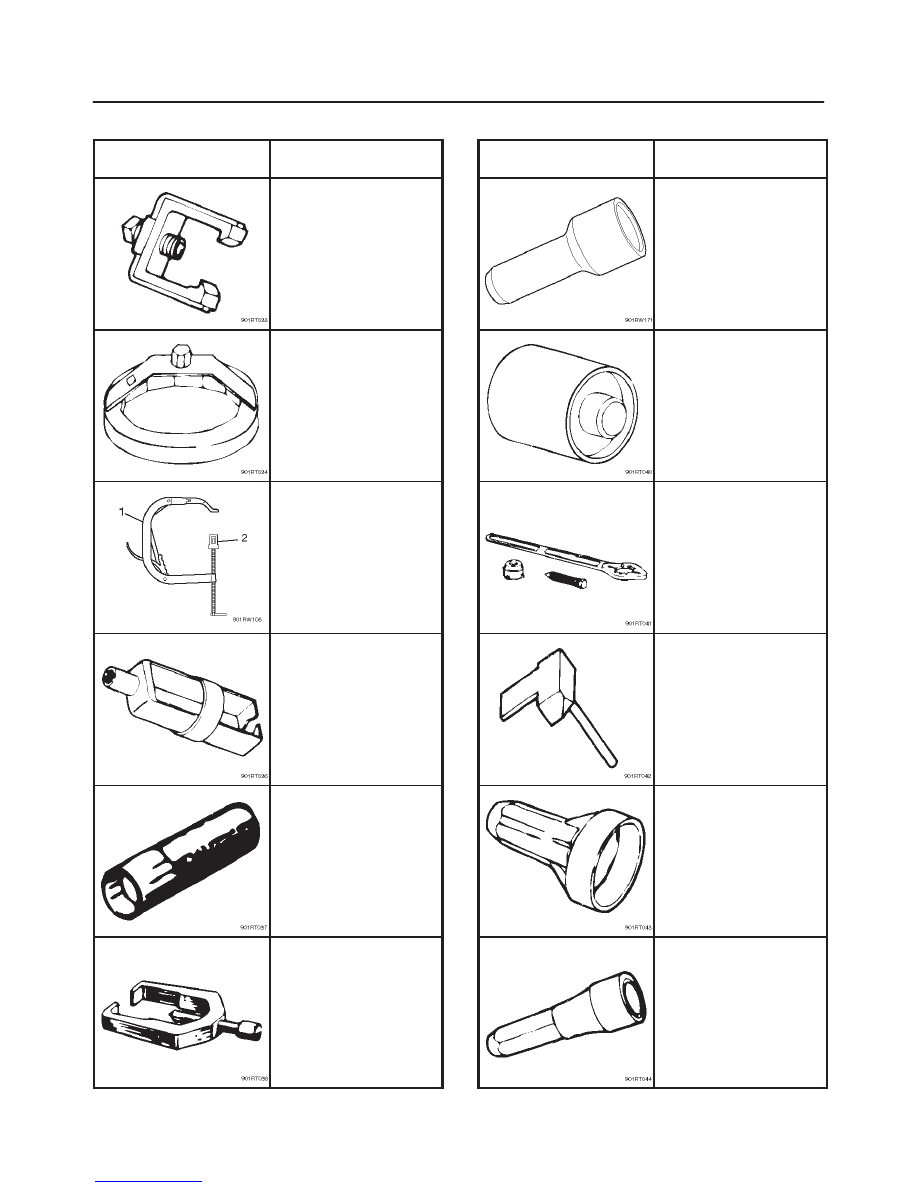

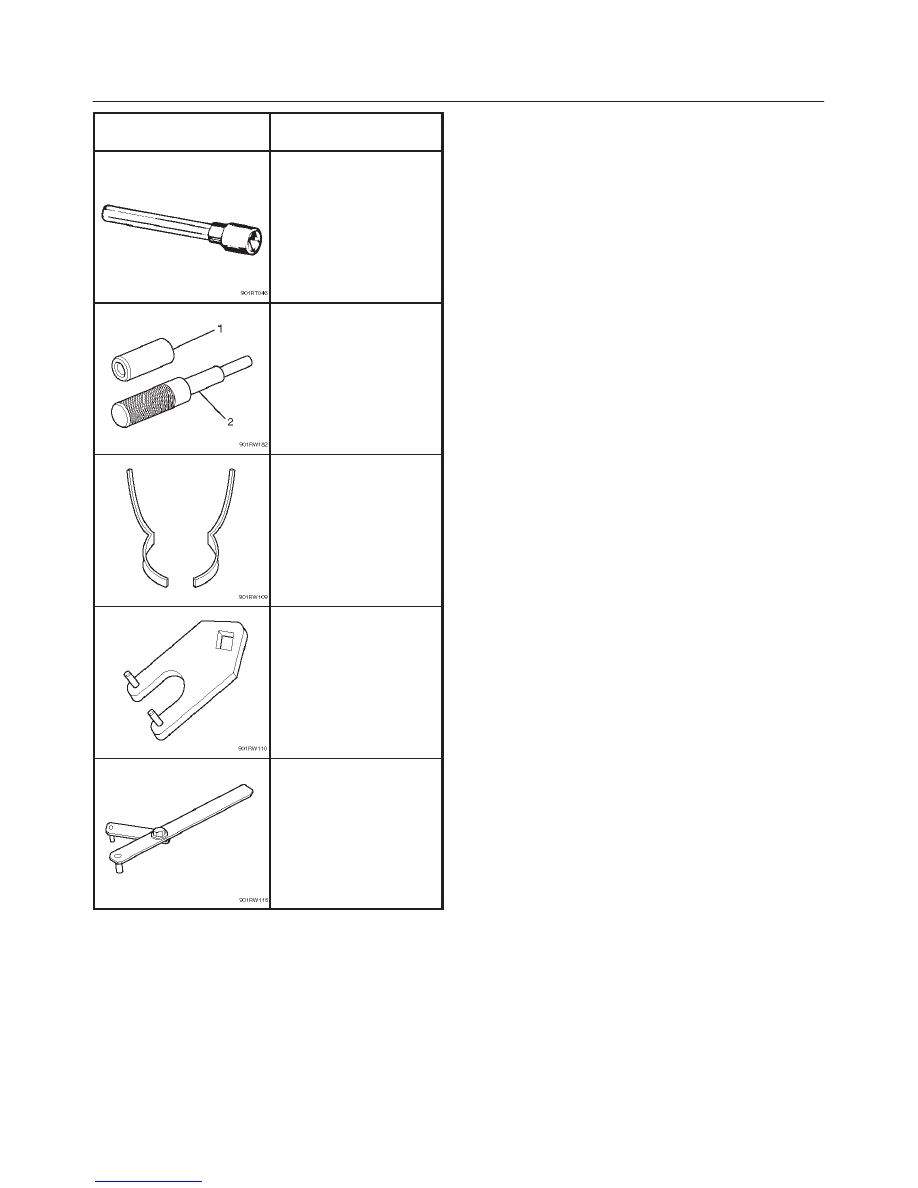

ILLUSTRATION

TOOL NO.

TOOL NAME

J–21687–02

Remover; tie rod end

J–36390

Wrench; Oil filter

J–8062

Compressor; Valve

spring (1)

J–42898

Adapter; Compressor,

Valve spring (2)

J–37281

Remover; Oil controller

J–38537

Installer; Oil controller

J–29107

Universal pitman arm

puller

ILLUSTRATION

TOOL NO.

TOOL NAME

J–42985

Installer; Camshaft oil

seal

J–39206

Installer; Pilot bearing

J–8614–01

Holder; Crankshaft

J–37228

Seal cutter

J–39201

Installer; Real oil seal

J–39202

Installer; Oil pump oil

seal

6A–95

ENGINE MECHANICAL (6VD1 3.2L)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–24239–1

Cylinder head bolt

wrench

J–42899

Replacer; Valve guide

(1,2)

J–42687

Installer; Valve guide (1)

J–37985–1

Remover; Valve guide

(2)

J–42689

Adjusting Tool; Valve

clearance

J–42686

Lever; Gear spring

J–43041

Holder; Universal

ENGINE COOLING (6VD1 3.2L)

6B–1

RODEO

ENGINE

ENGINE COOLING (6VD1 3.2L)

CONTENTS

Service Precaution

6B–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6B–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

6B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Draining and Refilling Cooling System

6B–5

. . . . .

Water Pump

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water Pump and Associated Parts

6B–6

. . . . . . .

Removal

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermostat

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thermostat and Associated Parts

6B–7

. . . . . . . .

Removal

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Radiator

6B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Radiator and Associated Parts

6B–8

. . . . . . . . . .

Removal

6B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drive Belt and Cooling Fan

6B–11

. . . . . . . . . . . . . . .

Drive Belt and Associated Parts

6B–11

. . . . . . . . .

Inspection

6B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6B–12

. . . . . . . . . . . . .

Special Tool

6B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
