6E1–391

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

9. Remove wheel blocks.

014RX014

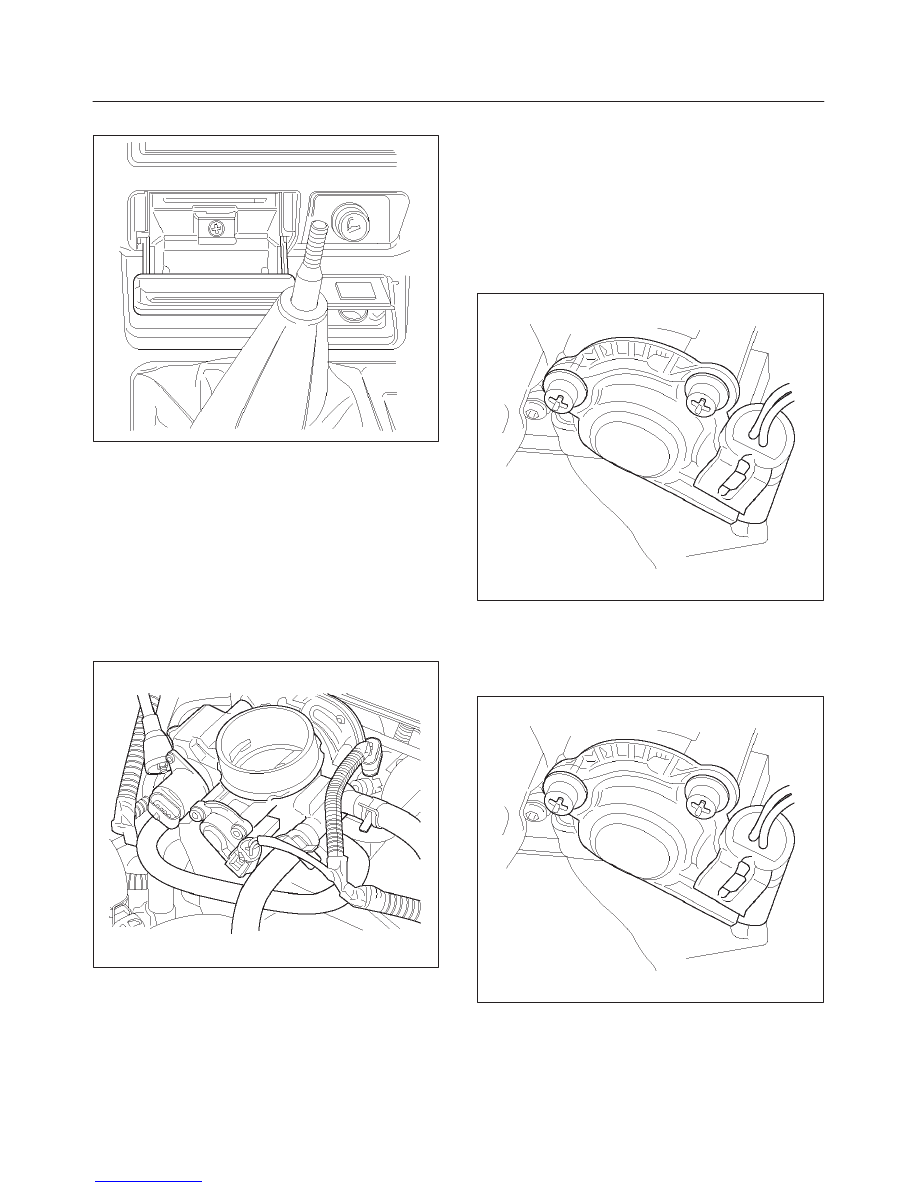

Throttle Position (TP) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the TPS electrical connector.
3. Remove the two screws and TP sensor from the

throttle body.

NOTE: Do not clean the TP sensor by soaking it in
solvent. The sensor will be damaged as a result.

101RX002

Function Check

Use a Tech 2 to check the TP sensor output voltage at
closed throttle.

f

The voltage should be under 0.25 volts.

f

If the reading is greater than 0.25 volts, check the
throttle shaft to see if it is binding. Check that the
throttle cable is properly adjusted, also. Refer to
Throttle Cable Adjustment.

f

If the throttle shaft is not binding and the throttle cable
is properly adjusted, install a new TP sensor.

101RX003

Installation Procedure

1. Install the TP sensor on the throttle body with two

screws.

101RX003

6E1–392

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

2. Connect the electrical connector.
3. Connect the negative battery cable.

101RX002

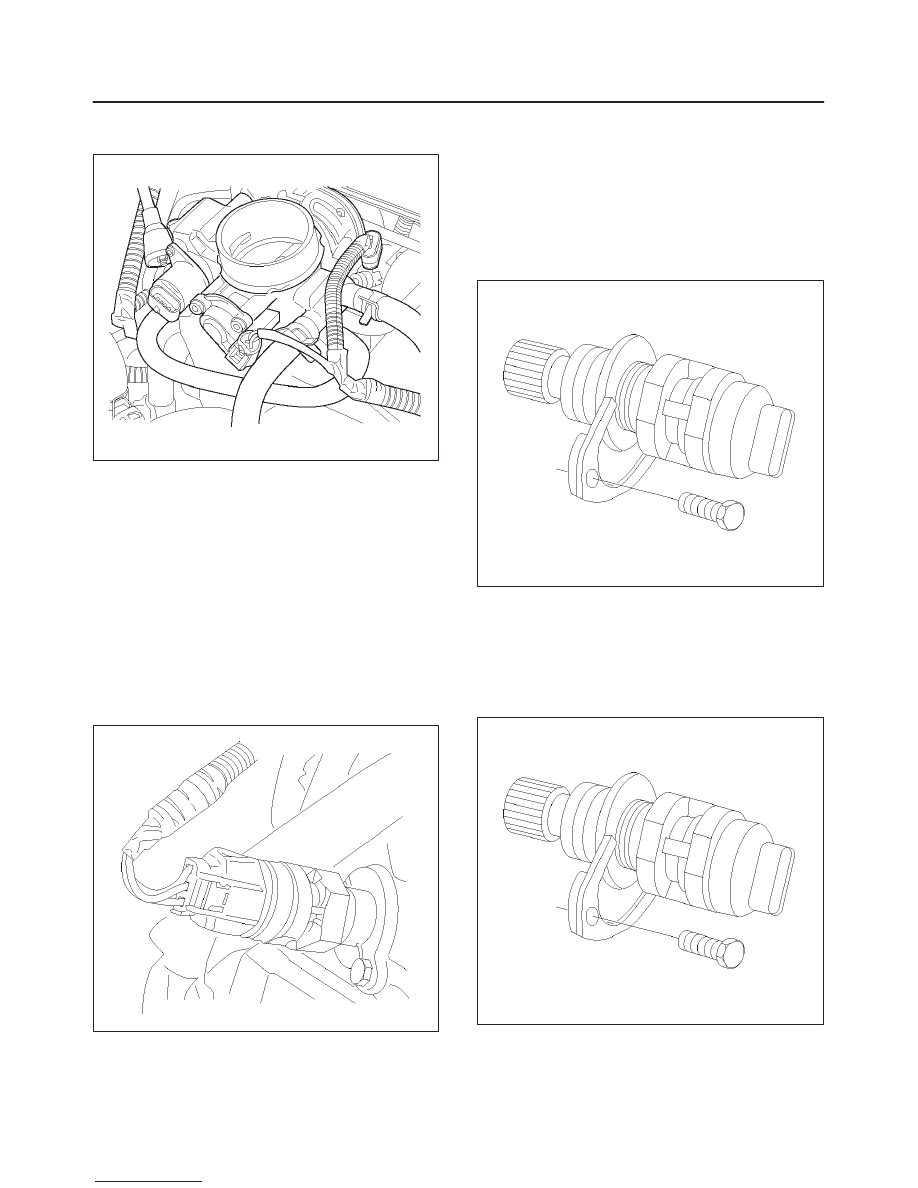

Vehicle Speed Sensor (VSS)

Removal Procedure

1. Disconnect the negative battery cable.
2. VSS is located on the right side of the transmission

case just ahead of the rear propeller shaft.
Disconnect the VSS electrical connector.

3. Remove the bolt and the VSS from the transmission

case by wiggling it slightly and pulling it straight out.

IMPORTANT:

Have a container ready to catch any fluid

that leaks out when the VSS is removed from the transfer
case.

014RX020

Inspection Procedure

1. Inspect the electrical connector for signs of corrosion

or warping. Replace the VSS if the electrical
connector is corroded or warped.

2. Inspect the VSS driven gear for chips, breaks, or worn

condition. Replace the VSS if the driven gear is
chipped, broken or worn.

3. Inspect the O–ring for wear, nicks, tears, or

looseness. Replace the O–ring if necessary.

014RX021

Installation Procedure

1. Install the VSS in the transmission case with the

notch for the connector facing the rear.

2. Secure the VSS with mounting bolt. Tighten the bolt to

16 Nm (12 lb ft).

014RX021

3. Connect electrical connector to the VSS.
4. Check the transmission oil level. Add oil if necessary.

6E1–393

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

5. Connect the negative battery cable.

014RX020

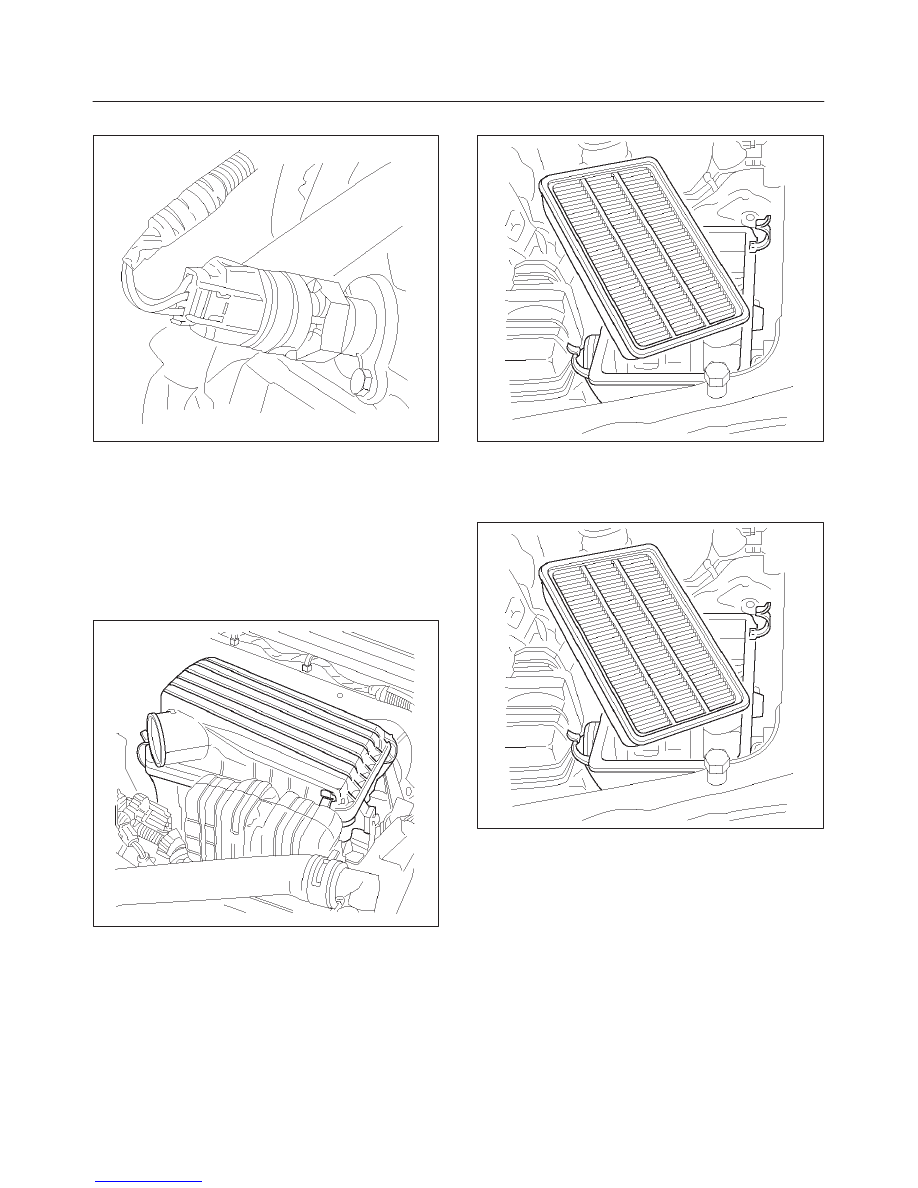

Air Filter

Removal Procedure

1. Disconnect electrical connector at the IAT sensor.
2. Release the four latches securing the lid to the air

cleaner housing.

3. Remove the air cleaner lid.

014RX019

4. Remove the air filter element.

014RX023

Installation Procedure

1. Install the air filter element in the air cleaner housing.

014RX023

2. Install the air cleaner lids.
3. Secure the three latches, holding the lid on the air

cleaner housing.

6E1–394

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

4. Connect the electrical connector to the IAT sensor.

014RX019

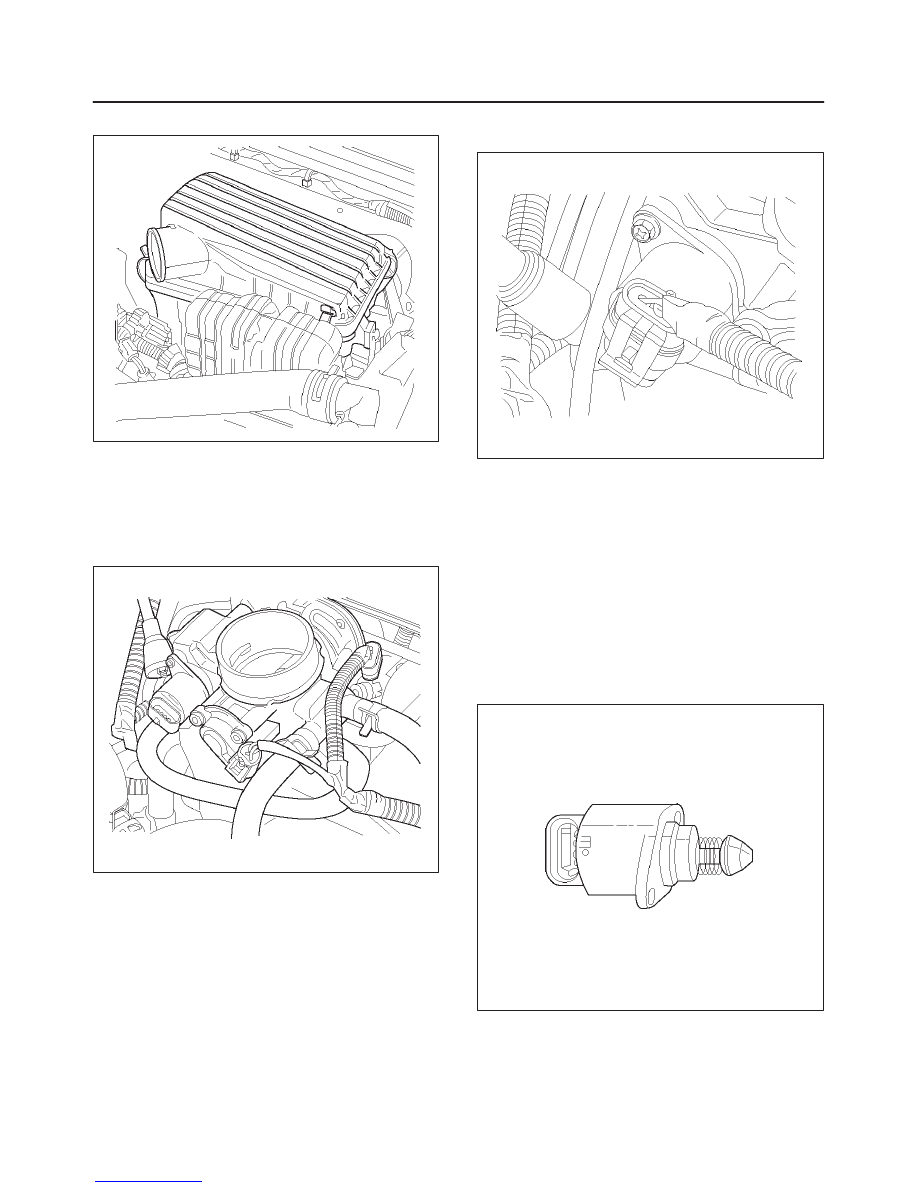

Idle Air Control (IAC) Valve

Removal Procedure

1. Disconnect the negative battery cable.

101RX002

2. Disconnect the IAC electrical connector.
3. Remove the two screws and IAC valve from the

throttle body.

NOTE: Do not clean the IAC valve by soaking it in
solvent. The valve will be damaged as a result.

014RX022

Cleaning and Inspection Procedure

f

Clean the IAC valve O–ring sealing surface, pintle
valve seat and air passage.

f

Use carburetor cleaner and a parts cleaning brush to
remove carbon deposit. Do not use a cleaner that
contain methyl ethyl ketone. This is an extremely
strong solvent and not necessary for this type of
deposit.

f

Shiny spots on the pintle are normal and do not
indicate misalignment or a bent pintle shaft.

f

Inspect the IAC valve O–ring for cuts, cracks or
distortion. Replace the O–ring if damaged.
