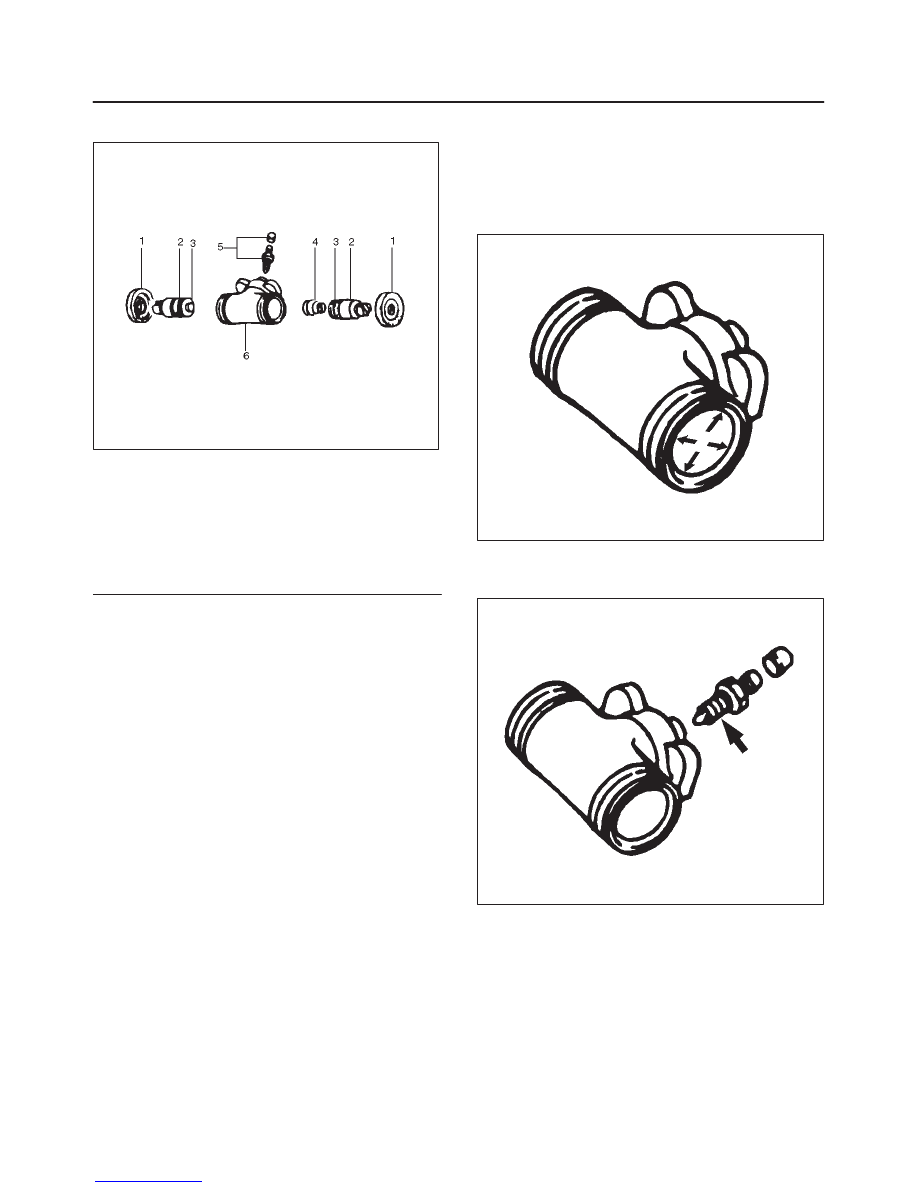

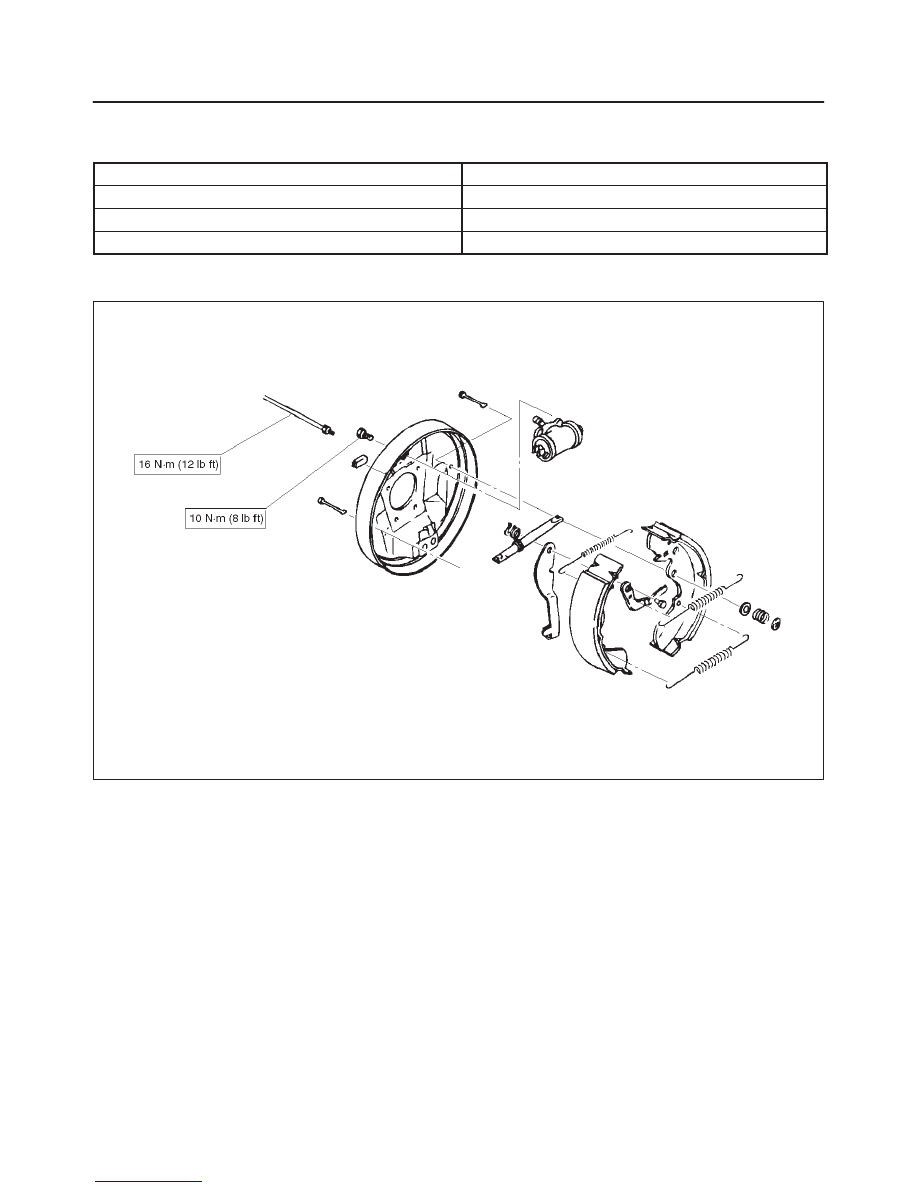

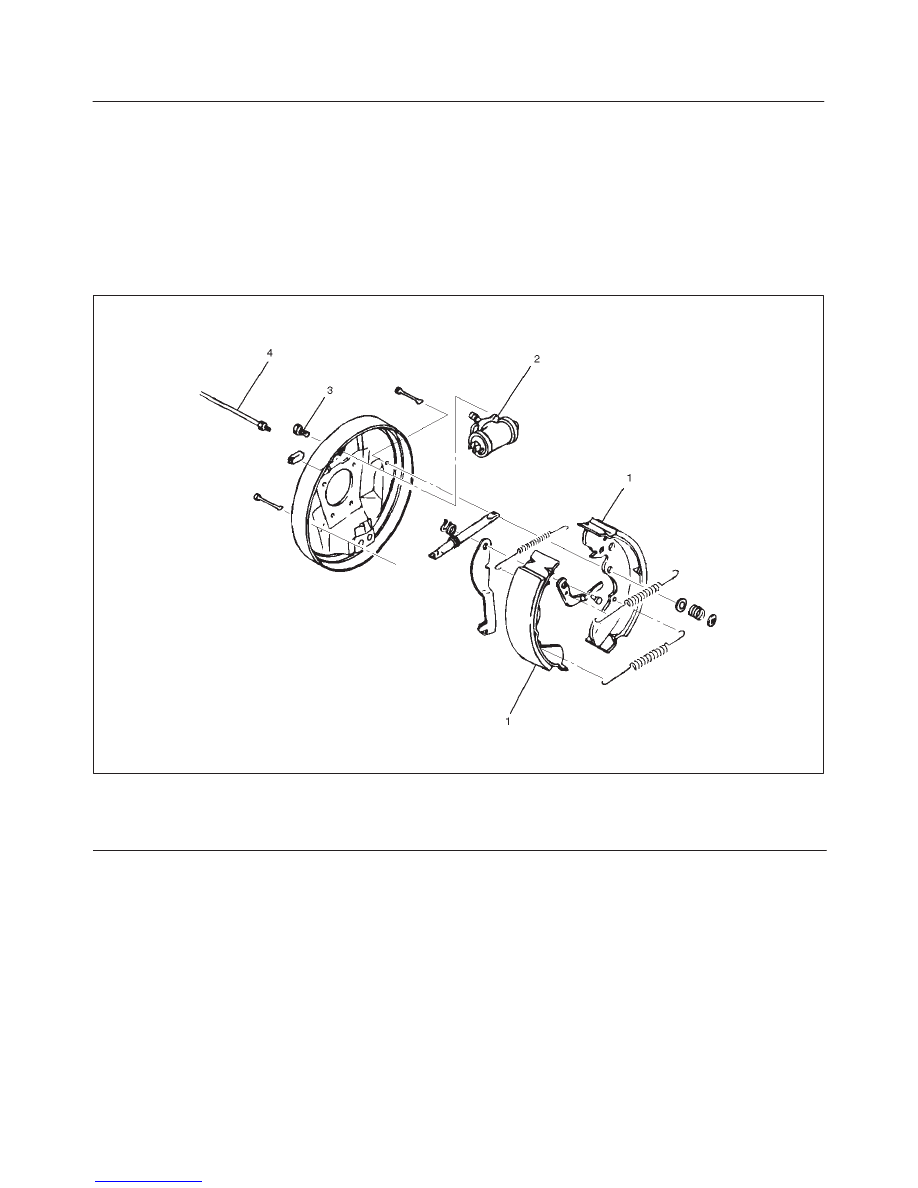

5C–57 POWER–ASSISTED BRAKE SYSTEM Machining The Drum If a drum is to be machined, only enough metal should be affect dissipation of heat and may cause distortion of the Maximum inside diameter: 296.5 mm (11.673 in) Wheel Cylinder Assembly (4 × 2 Model) Wheel Cylinder Assembly and Associated Parts 305RW003 Legend (1) Brake Linings (3) Bolts Removal 1. Remove brake linings (1). f Refer to “Brake Lining and Associated Parts ” in this 2. Remove brake pipe (4). f Plug the opening in the line to prevent fluid loss and 3. Remove bolts (3) and wheel cylinder (2). Installation 1. Install wheel cylinder (2) and tighten bolts (3) to the specified torque. Torque: 10 N·m (8 lb ft) 2. Install brake pipe (4) and tighten the nut to the specified torque. Torque: 16 N·m (12 lb ft) 3. Install brake linings (1). f Refer to “Brake Lining Replacement” in this section. f Bleed brake system. Refer to “Hydraulic Brake” in |
