DRIVELINE CONTROL SYSTEM
VSV Assembly
Inspect the vehicle side harness as follows:
412RW026
Legend
(1) Grey
(2) Blue
1. Remove connector.
2. Shift transfer lever to 2H and start the engine.
NOTE: The vehicle should not be started, with the engine
idling.
3. Make sure that there is continuity in the vehicle side of
harness. If there is no continuity, check transfer shift
switch and wiring.

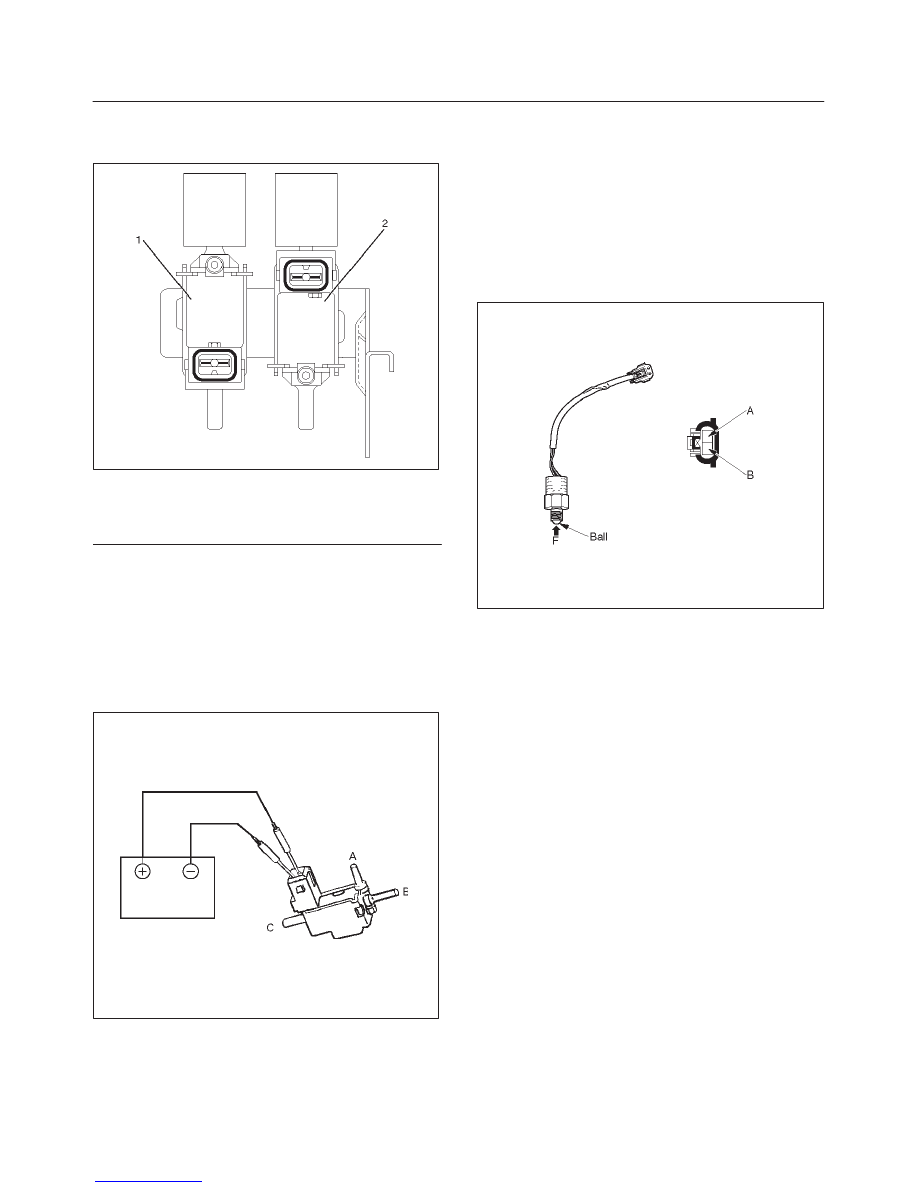

Inspect the both VSVs as follows
F04RS004
1. With battery not connected (Usual).
A–C:There is continuity
B:Closed
2. With battery connected
A – B:There is continuity
C:Closed
3. If 1) and 2) fail, replace with a new VSV.

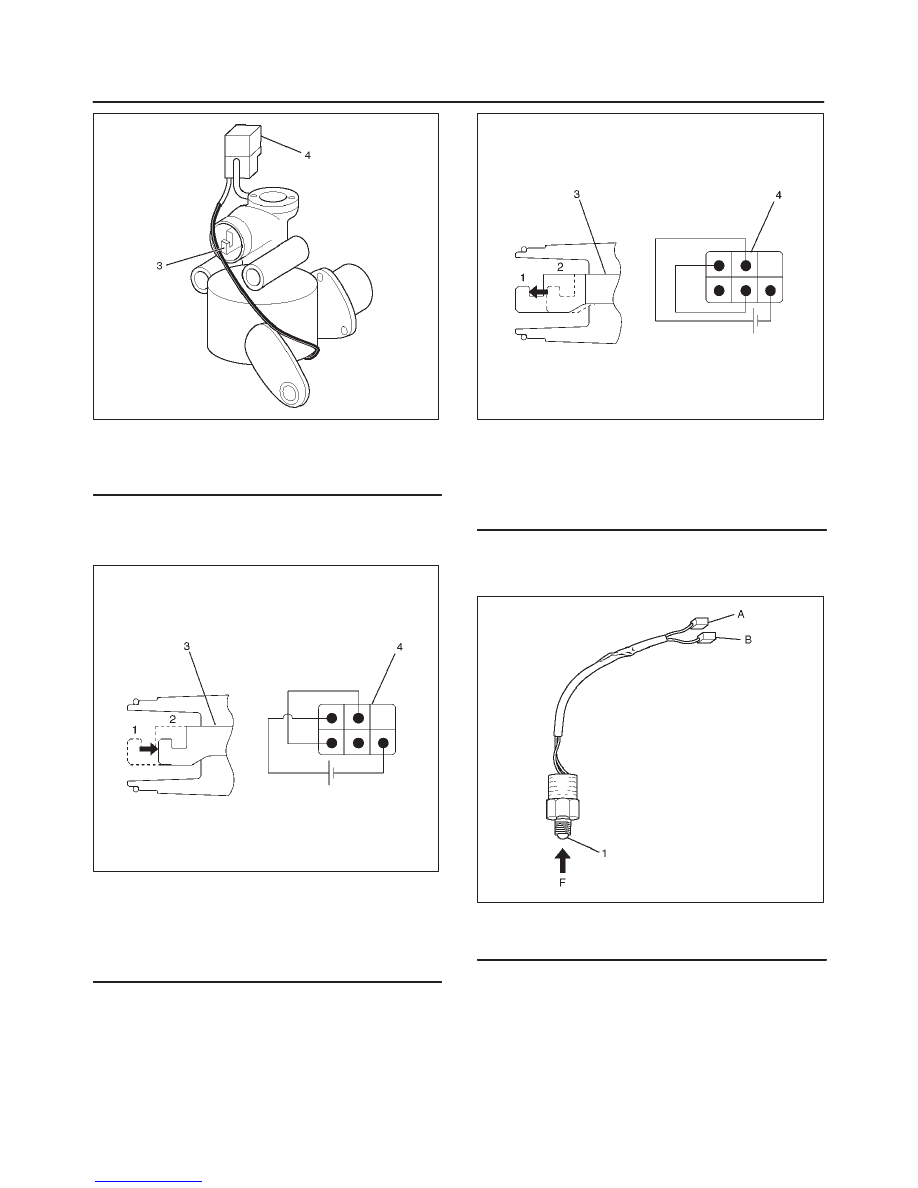

Functional Detective Switch
412RS048
1. With ball (1) being free
A–B:There is continuity
2. With ball forced into the switch
A–B:No continuity
3. If 1) and 2) fail, replace with a new switch.
Motor Actuator Assembly
Inspect the function of the motor actuator assembly as
follows:
1. Disassemble the motor actuator from transfer rear
case.
