Isuzu KB P190. Manual - part 901

Charging System – V6

Page 6D1-1-17



4.2

Generator Mounting Bracket

Remove

1

Remove the idler pulley bolt (7) then the idler pulley (6),  Refer to 4.1  Generator.

2

Remove the bolts (1, 2, 3 ,4); five places attaching the  generator mounting bracket (5) to the engine block.

3

Remove the generator mounting bracket from the vehicle.

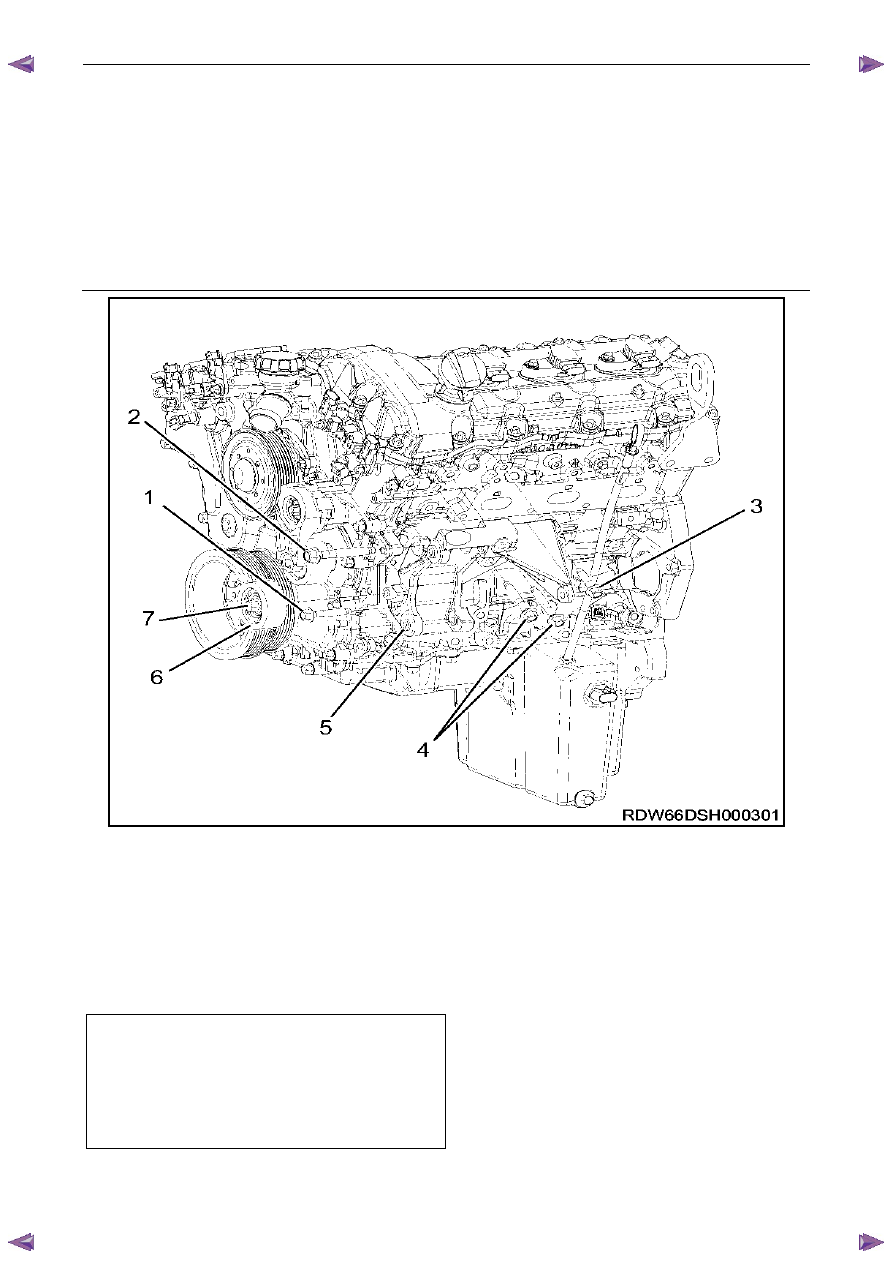

Figure 6D1-1 6

Reinstall

Reinstallation of the generator mounting bracket and generator is the reverse of the removal procedure, noting the
following:

1

Tighten all fasteners to the correct torque specification.

2

Reinstall the generator, refer to 4.1

Generator.

Generator mounting bracket bolts ... (1)  40.0 – 60.0 Nm

Generator mounting bracket bolts ... (2)           100.0 Nm

Generator mounting bracket bolts ... (3)  40.0 – 60.0 Nm

Generator mounting bracket bolts ... (4)  40.0 – 60.0 Nm

Idler pulley bolt................................. (7)             58.0 Nm

Charging System – V6

Page 6D1-1-18



4.3

Drive Belt Routing

Without Air Conditioning

Ensure the drive belt ribs are correctly positioned in all pulleys and the crankshaft balancer.

N O T E

For detailed information relating to drive belt
service procedure, refer to 6A1 Engine
Mechanical.

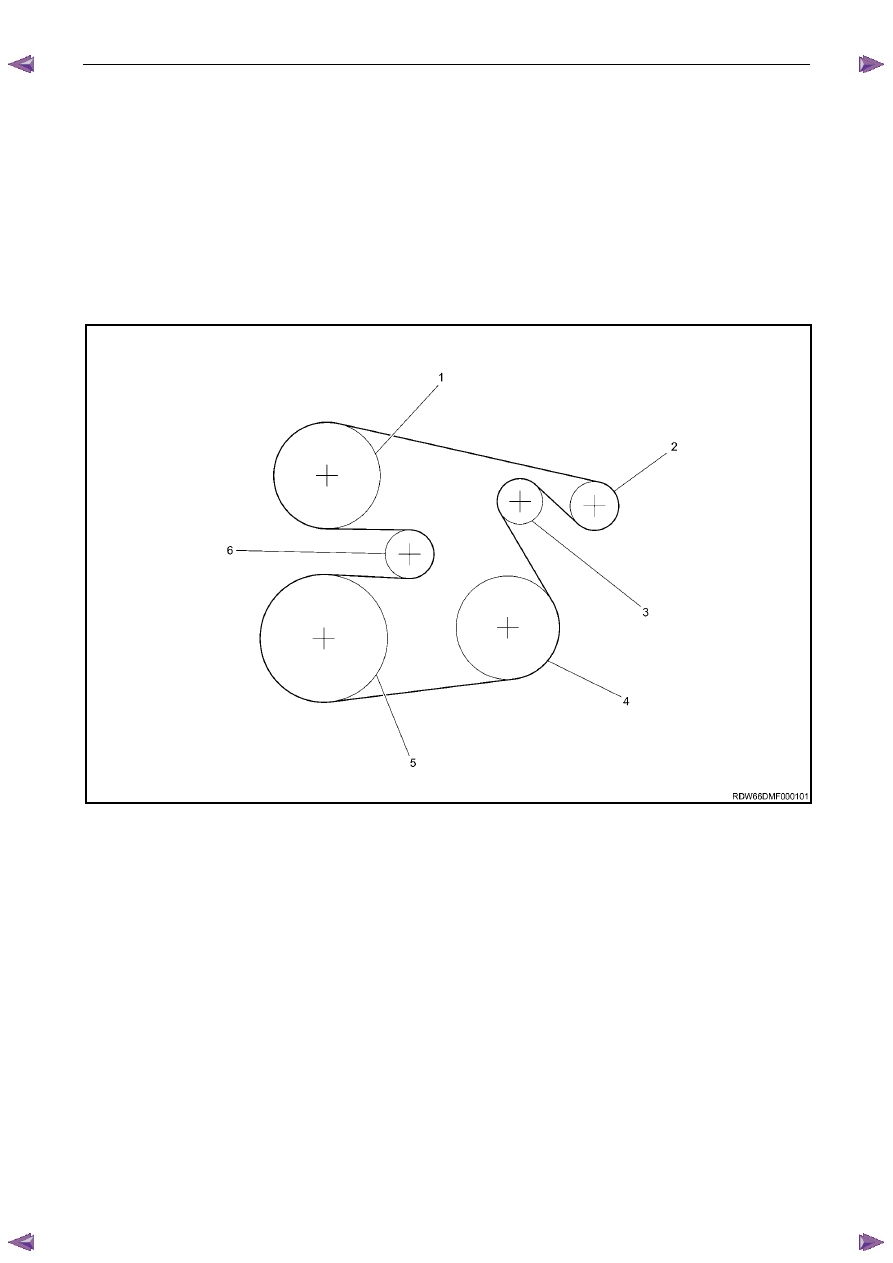

Figure 6D1-1 7 shows the drive belt routing for the HFV6 engine without air-conditioning.



Figure 6D1-1 7

Legend

1 Water

Pump

2 Generator

3 Idler

4 Power

Steering

5 Crankshaft

6 Tensioner

Charging System – V6

Page 6D1-1-19





6 Specifications

Ground Polarity...........................................................................................................Negative

Nominal Voltage ............................................................................................................... 12 V

Nominal Output............................................................................................................... 120 A

Stator Phases .........................................................................................................................3

Stator Winding Connections............................................................................................ Delta

Voltage Regulator Setting................................................................................... 14.2 – 14.8 V

Rotor Winding Resistance @ 20

°C ................................................................................. 2.1 V

Slip-ring Outer Diameter.............................................................................................22.7 mm

Slip-ring Service Limit.................................................................................................22.1 mm

Stator Winding Resistance @ 20

°C ............................................................................ 0.098 Ω

Brush Length New ......................................................................................................18.5 mm

Minimum Brush Length.................................................................................................5.0 mm

Direction of Rotation (viewed from pulley) ................................................................Clockwise



Charging System – V6

Page 6D1-1-20



7

Torque Wrench Specifications

..................................................................................................................... Nm

Generator Mounting Bolts (1, 2, 4) ..............................................................58.0

Generator Mounting Bracket Bolts (1, 3, 4)......................................40.0 – 60.0

Generator Mounting Bracket Bolts (2)...........................................................0.0

Battery Harness to G8 – X1 pin A Nut................................................5.0 – 12.0
