Piston Ring

N O T E

The ends of the expander must be facing
toward the top of the piston.

1

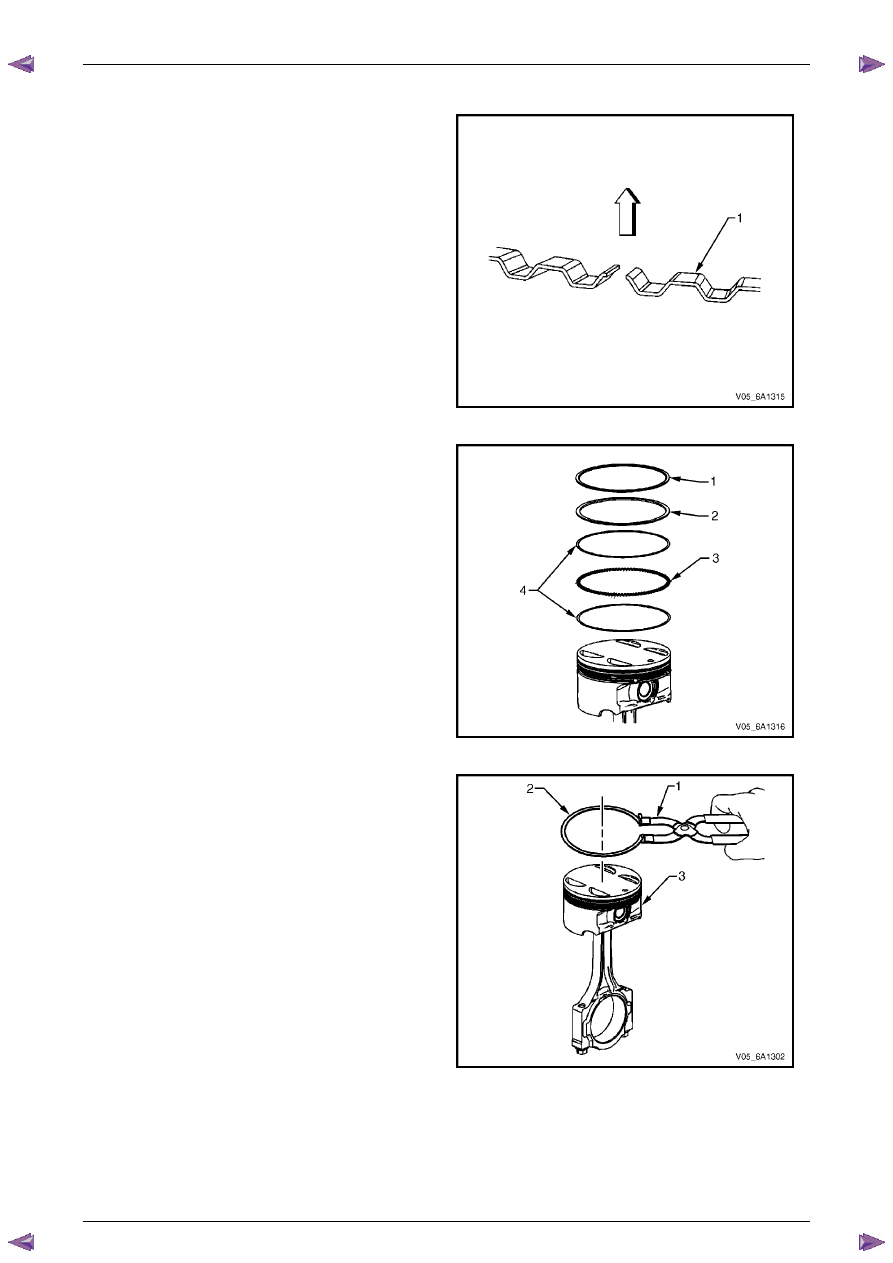

Correctly orient the oil control ring expander (1)
before installation.



Figure 6A1 – 487

2

Using a piston ring expander, install the oil control
ring assembly using the following procedure:

3

Install the expander ring (3).

4

Install the two oil scraper rings (4). Expand the rings
only enough to clear the piston diameter. Over-
expanding the piston rings will distort or crack the
rings.

5

Install the second (2) and top (1) piston rings as
follows.



Figure 6A1 – 488

6

Using the ring expander (1), install the second piston
ring (2) onto the piston (3). Do not over-expand the
ring. Repeat for the top ring.



Figure 6A1 – 489

Engine Mechanical – V6

Page 6A1–276



Page 6A1–276

7

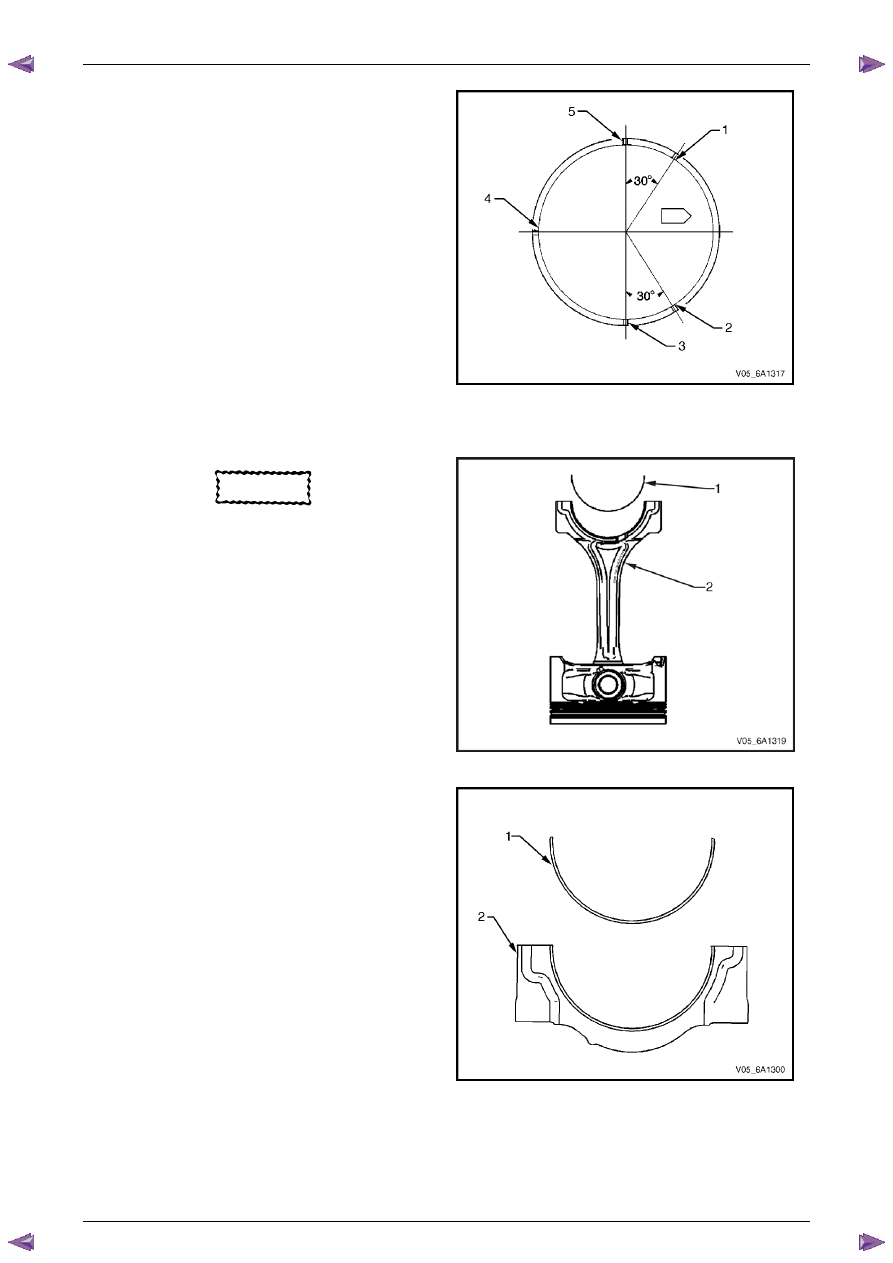

Once the rings are installed, set the ring gaps for the
oil control, second and top ring as follows. Use the
piston location arrow for reference.
•

Lower oil control ring position (1).

•

Upper oil control ring position (2).

•

Top ring position (3).

•

Oil control ring expander position (4).

•

Second ring position (5).



Figure 6A1 – 490

Connecting Rod Bearing

CAUTION



If the connecting rod bearings have been
used in a running engine, they must be
replaced with new connecting rod bearings
for reassembly.

1

Clean the connecting rod (2) and the connecting rod
cap bearing bore with a lint-free cloth.

2

Clean the oil from behind the connecting rod bearing
halves.

3

Install a new upper connecting rod bearing (1) into
position. Roll the bearing into position so the lock tang
engages the alignment slot. The bearing must fit flush
in the connecting rod.



Figure 6A1 – 491

4

Install the lower connecting rod bearing (1) into
position in the connecting rod cap (2).

5

Roll the bearing into position so the lock tang
engages the alignment slot. The bearing must fit flush
with the connecting rod cap.



Figure 6A1 – 492

Engine Mechanical – V6

Page 6A1–277



Page 6A1–277

Reinstall

Piston Connecting Rod and Connecting Rod Bearing Installation

CAUTION



The piston is directional and must be
installed in the engine block in the correct
direction. The locating arrow on the top of
each piston must be pointing toward the
front of the engine.

1

Liberally lubricate the cylinder walls, piston rings and
piston skirts with engine oil.

2

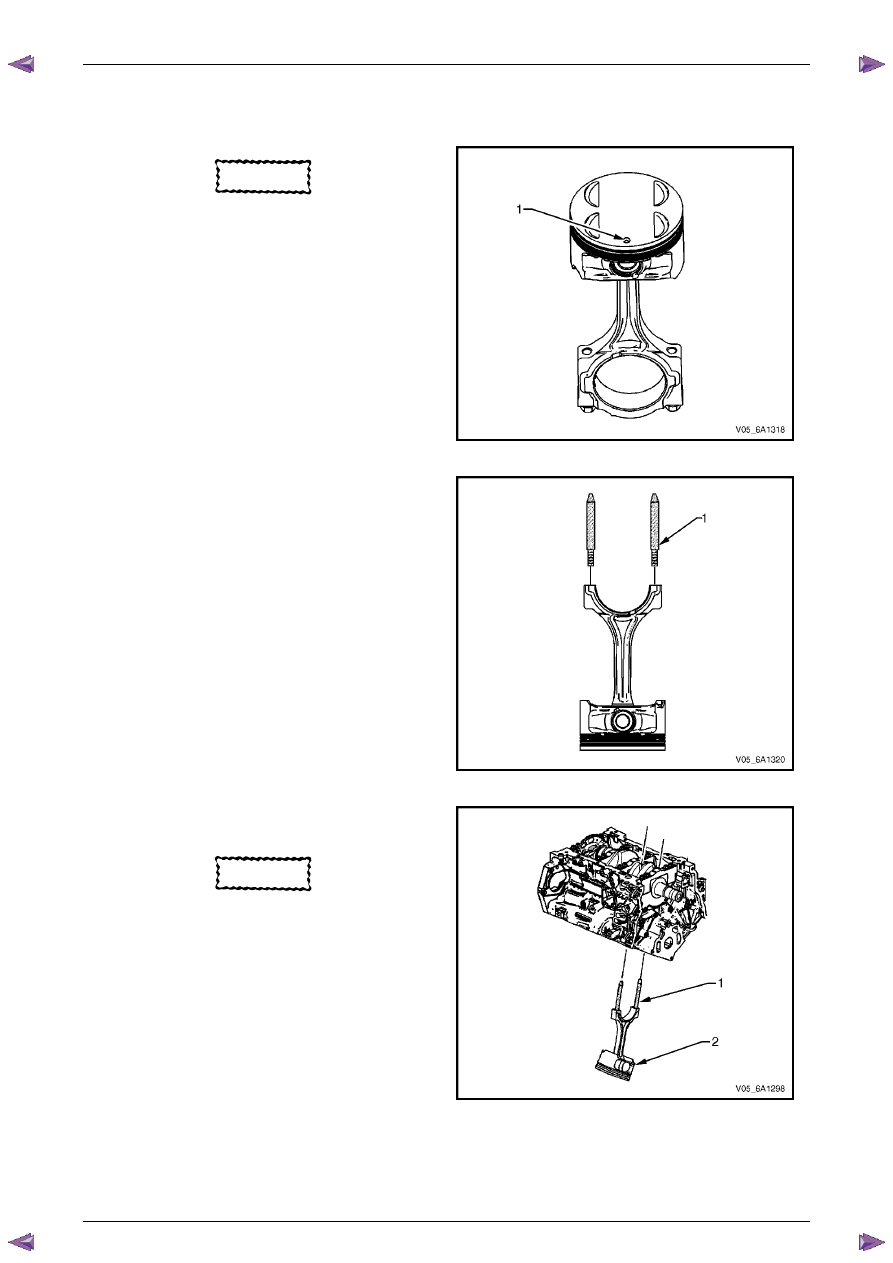

Select the correctly numbered piston/connecting rod
assembly for the cylinder. A dot (1) showing correct
piston orientation is located on the top of the piston.



Figure 6A1 – 493

3

Install connecting rod guide pin set, Tool No.
EN-46121 (1) into the connecting rod bolt holes.



Figure 6A1 – 494

4

Compress the piston rings using a commercially
available ring compressor.

CAUTION



Extreme care must be used when installing
the piston and connecting rod to ensure the
rod does not scrape or nick the cylinder
bore, oil jets, or crankshaft surfaces.

5

Using both hands from the top and bottom of the
cylinder, slowly guide the piston (2) and connecting
rod assembly into the cylinder. Do not allow the
connecting rod to contact the cylinder wall.

6

When the ring compressor contacts the deck surface,
gently tap the piston into the cylinder using the handle
end of a dead-blow hammer. Guide the connecting
rod onto the crankshaft bearing journal using
connecting rod guide pin set, Tool No. EN-46121 (1)
while gently tapping the piston into the cylinder with a
soft-blow hammer.



Figure 6A1 – 495

Engine Mechanical – V6

Page 6A1–278



Page 6A1–278

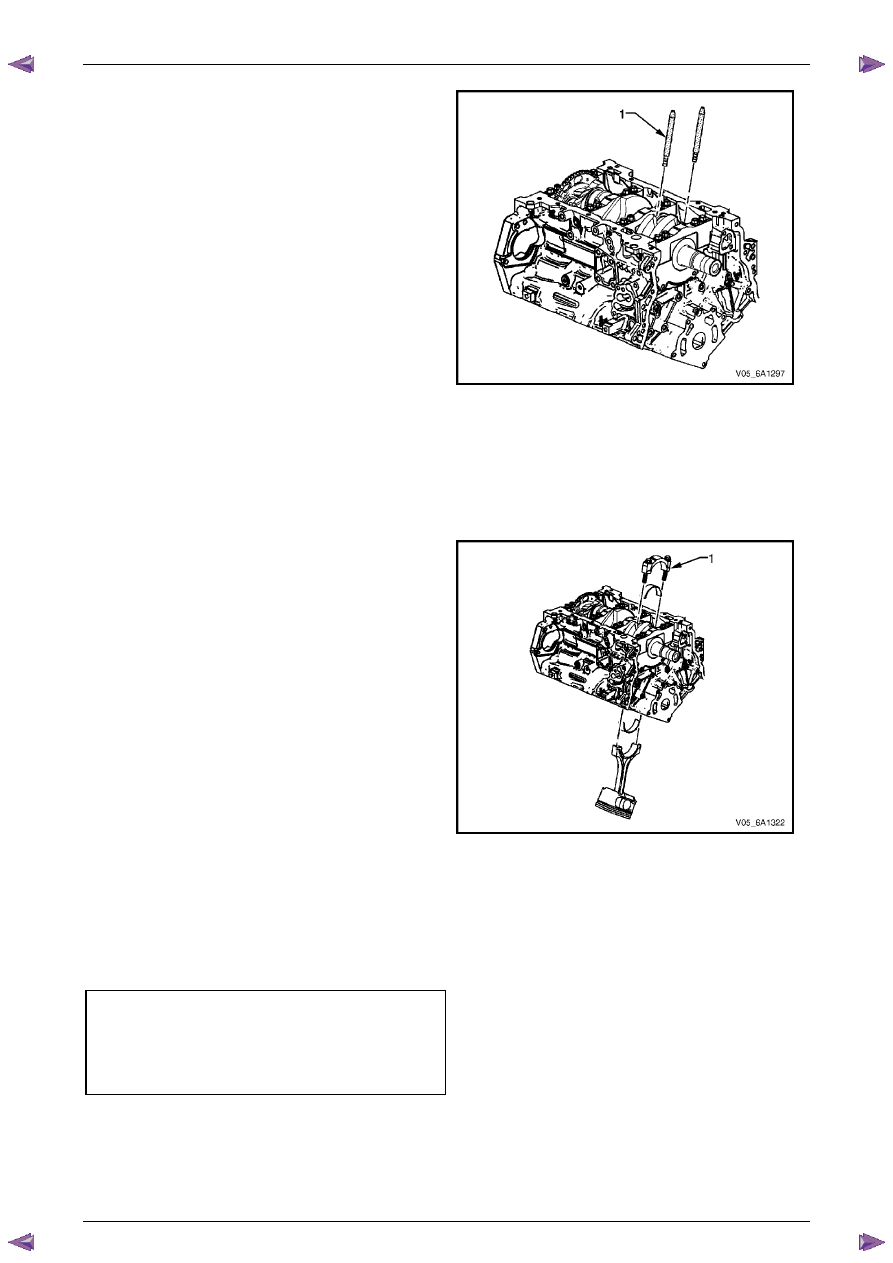

7

Remove connecting rod guide pin set, Tool No.
EN-46121 (1) from the connecting rod bolt holes.



Figure 6A1 – 496

Connecting Rod Bearing Clearance Measurement Procedure

N O T E

Before final assembly, check the clearance of the
new connecting rod bearings.

1

Place a length of fresh, room temperature plastic
gauging material all the way across the connecting
rod bearing journal.

2

Install the connecting rod bearing into the connecting
rod cap.

3

Install the connecting rod end cap (1) on its original
connecting rod and ensure the bearing lock tangs are
aligned on the same side of the rod.



Figure 6A1 – 497

N O T E

Reuse the old connecting rod bolts only for
measuring the connecting rod bearing clearance.

4

Install the connecting rod cap bolts into the connecting rod cap and tighten to the correct torque specification using
torque angle wrench, Tool No. EN-7115.

Connecting rod cap attaching
bolt torque specification:
 Stage

1 .........................30.0 Nm

 Stage

2 ........ Loosen completely

 Stage

3 .........................25.0 Nm

 Stage

4 .................. 110 degrees

5

Allow the assembly to sit for at least 2 minutes.

6

Remove the connecting rod cap bolts and discard.

7

Remove the connecting rod cap.
