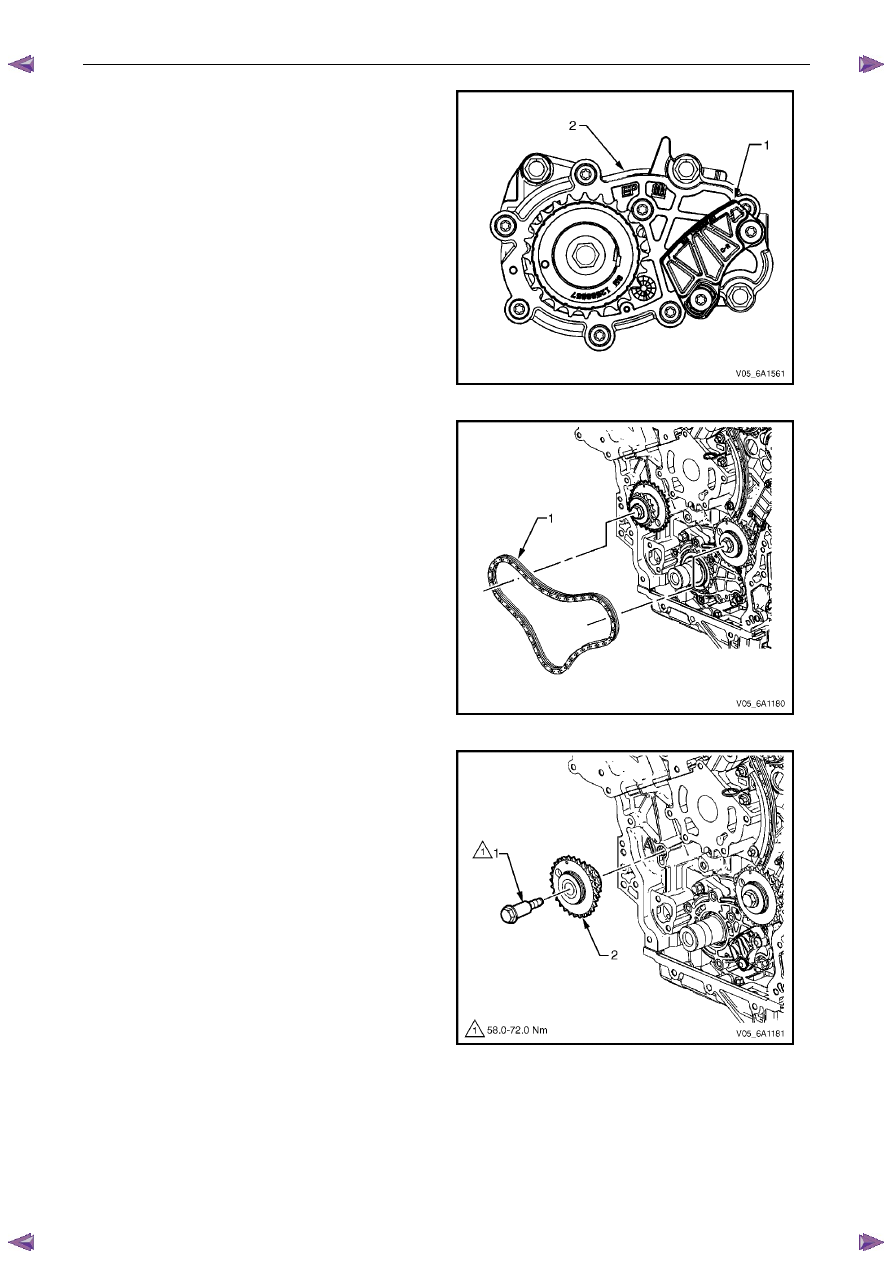

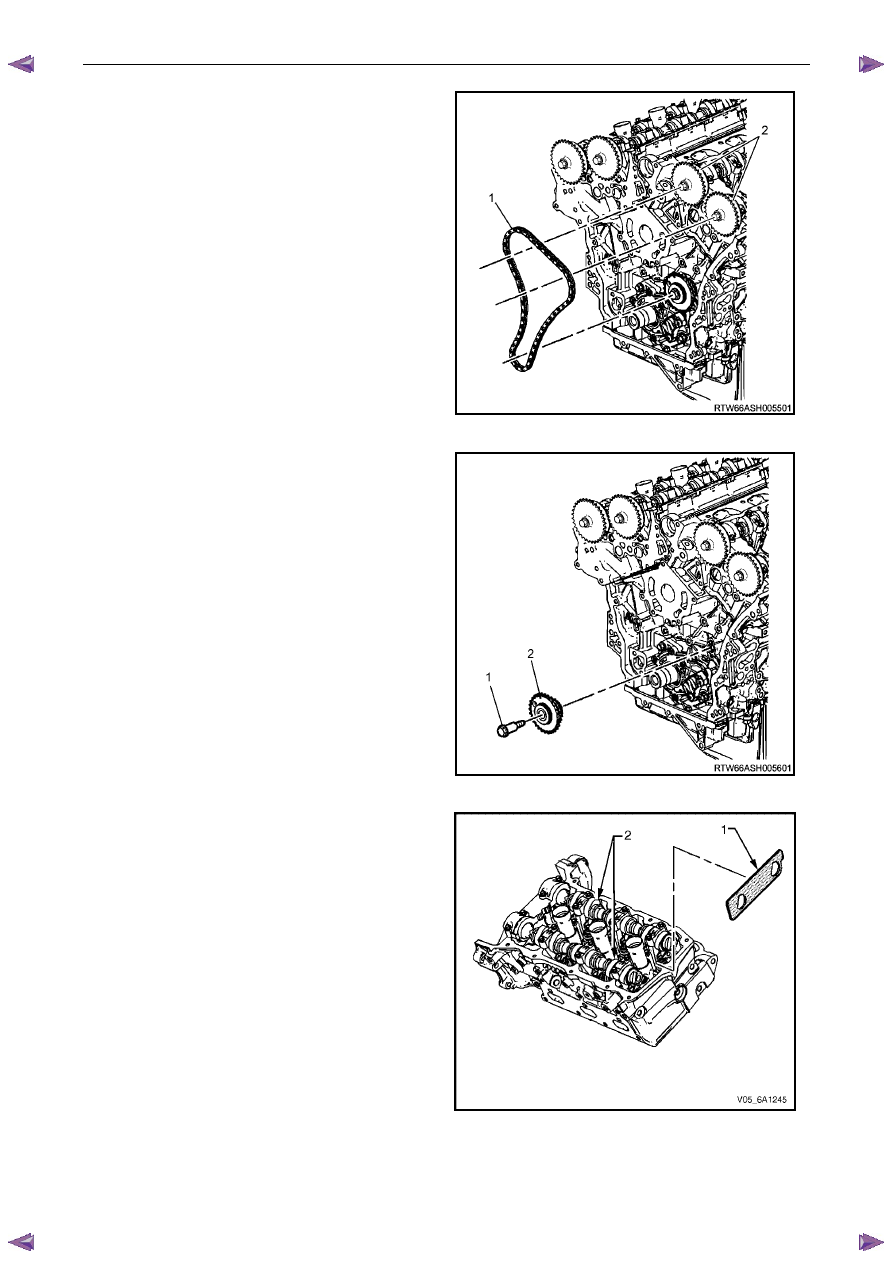

Engine Mechanical – V6
Page 6A1–101
N O T E
Do not remove the primary timing chain lower
guide (1). The primary timing chain lower guide
is not serviced separately. If the primary timing
chain lower guide requires replacement, the oil
pump assembly (2) must be replaced.
Figure 6A1 – 115
6
Remove the primary timing chain (1).
N O T E
For ease of removal, remove the chain from the
crankshaft sprocket, before attempting to
remove from the camshaft intermediate
driveshaft sprockets.
Figure 6A1 – 116
7
If required, remove the right-hand camshaft
intermediate driveshaft sprocket bolt (1) and remove
the sprocket (2).
Figure 6A1 – 117
