ENGINE ELECTRICAL  6D1-3





Diagnosis

1. Visual Inspection

Inspect the battery for obvious physical damage, such as a
cracked or broken case, which would permit electrolyte loss.
Replace the battery if obvious physical damage is discovered
during inspection.
Check for any other physical damage and correct it as
necessary.










2. Hydrometer Check











3. Fluid Level Check

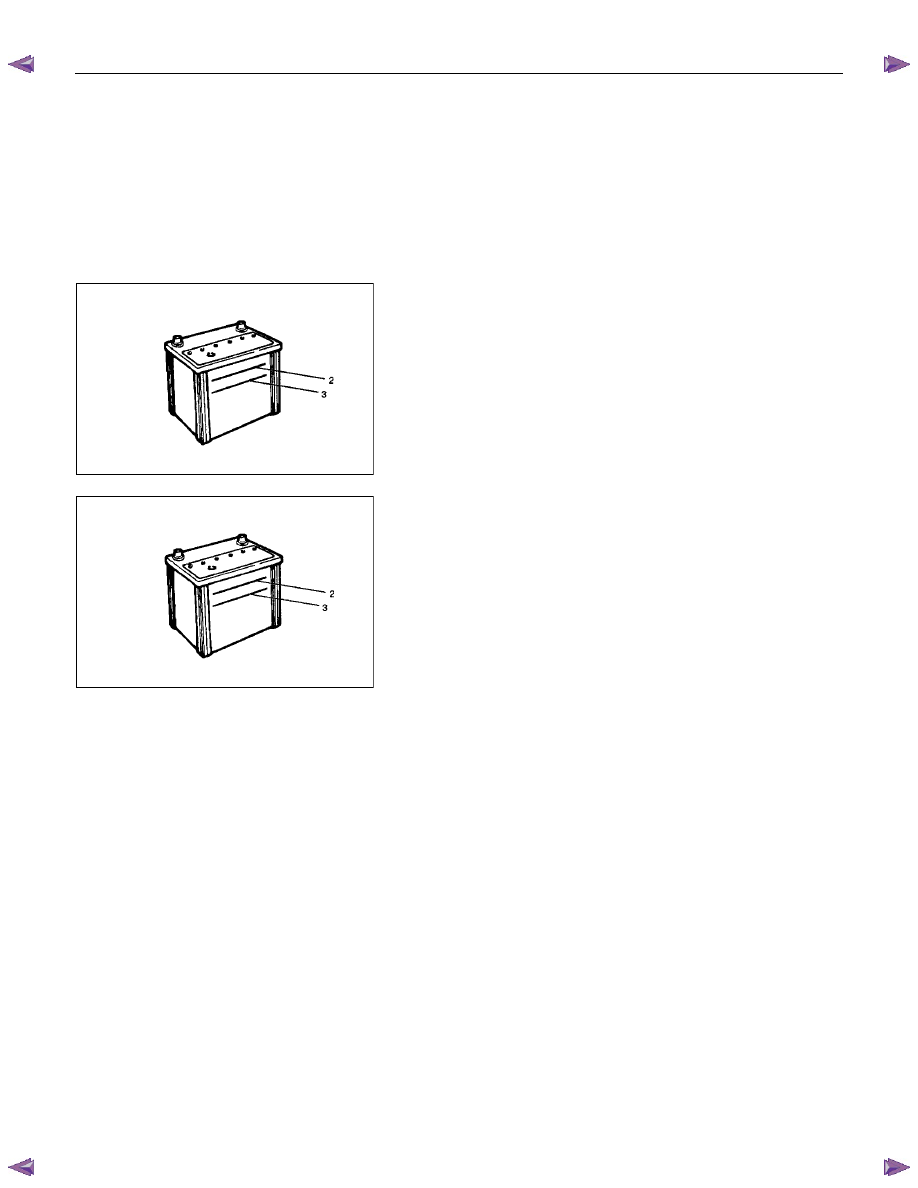

The fluid level should be between the upper level line (2) and
lower lever line (3) on side of battery.

a. CORRECT FLUID LEVEL - Charge the battery.

b. BELOW LOWER LEVEL - Replace battery.









4. Voltage Check

1. Put voltmeter test leads to battery terminals.

a. VOLTAGE IS 12.4V OR ABOVE - Go to Step 5.

b. VOLTAGE IS UNDER 12.4V - Go to procedure (2)

below.

2. Determine fast charge amperage from specification.

  (See Main Data and Specifications in this section).

  Fast charge battery for 30 minutes at amperage rate no

higher than specified value.

  Take voltage and amperage readings after charge.

a.

VOLTAGE IS ABOVE 16V AT BELOW 1/3 OF

AMPERAGE RATE - Replace battery.

b.

VOLTAGE IS ABOVE 16V AT ABOVE 1/3 OF

AMPERAGE RATE - Drop charging voltage to 15V and

charge for 10 - 15 hours. Then go to Step 5.

c. VOLTAGE IS BETWEEN 12V AND 16V - Continue

charging at the same rate for an additional 3-1/2 hours.

Then go to Step 5.

d. VOLTAGE BELOW 12V - Replace Battery.



6D1-4  ENGINE ELECTRICAL





Battery Charging

Observe the following safety precautions when charging the
battery:
1.  Never attempt to charge the battery when the fluid level is

below the lower level line on the side of the battery. In this

case, the battery must be replaced.

2. Pay close attention to the battery during charging

procedure.

  Battery charging should be discontinued or the rate of

charge reduced if the battery feels hot to the touch.

  Battery charging should be discontinued or the rate of

charge reduced if the battery begins to gas or spew

electrolyte from the vent holes.

3.  In order to more easily view the hydrometer blue dot or ring,

it may be necessary to jiggle or tilt the battery.

4. Battery temperature can have a great effect on battery

charging capacity.

5.  The sealed battery used on this vehicle may be either quick

charged or slow charged in the same manner as other

batteries.

  Whichever method you decide to use, be sure that you

completely charge the battery. Never partially charge the

battery.




































Jump Starting

Jump Starting with an Auxiliary (Booster)

Battery

CAUTION: Never push or tow the vehicle in an attempt to
start it. Serious damage to the emission system as well as
other vehicle parts will result.
Treat both the discharged battery and the booster battery
with great care when using jumper cables.
Carefully follow the jump starting procedure, being careful
at all times to avoid sparking.
WARNING: FAILURE TO CAREFULLY FOLLOW THE JUMP
STARTING PROCEDURE COULD RESULT IN THE
FOLLOWING:
1.  Serous personal injury, particularly to your eyes.

2.  Property damage from a battery explosion, battery acid, or

an electrical fire.

3. Damage to the electronic components of one or both

vehicles particularly.

Never expose the battery to an open flame or electrical spark.
Gas generated by the battery may catch fire or explode.
Remove any rings, watches, or other jewelry before working
around the battery. Protect your eyes by wearing an approved
set of goggles.
Never allow battery fluid to come in contact with your eyes or
skin.
Never allow battery fluid to come in contact with fabrics or
painted surfaces.

ENGINE ELECTRICAL  6D1-5
















































Battery fluid is a highly corrosive acid.
Should battery fluid come in contact with your eyes, skin,
fabric, or a painted surface, immediately and thoroughly rinse
the affected area with clean tap water.
Never allow metal tools or jumper cables to come in contact
with the positive battery terminal, or any other metal surface of
the vahicle. This will protect against a short circuit.
Always keep batteries out of reach of young children.

Jump Starting Procedure

1.  Set the vehicle parking brake and place the shift lever in the

"NEUTRAL" position.



Turn "OFF" the ignition.

  Turn "OFF" all lights and any other accessory requiring

electrical power.

2.  Look at the built-in hydrometer.



If the indication area of the built-in hydrometer is completely

clear, do not try to jump start.

3.  Attach the end of one jumper cable to the positive terminal

of the booster battery.



Attach the other end of the same cable to the positive

terminal of the discharged battery.

  Do not allow the vehicles to touch each other. This will

cause a ground connection, effectively neutralizing the

charging procedure.



Be sure that the booster battery has a 12 volt rating.

4.  Attach one end of the remaining cable to the negative

terminal of the booster battery.



Attach the other end of the same cable to a solid engine

ground (such as the air conditioning compressor bracket or

the generator mounting bracket) of the vehicle with the

discharged battery.



The ground connection must be at least 450 mm (18 in.)

from the battery of the vehicle whose battery is being

charged.

WARNING: NEVER ATTACH THE END OF THE JUMPER
CABLE DIRECTLY TO THE NEGATIVE TERMINAL OF THE
DEAD BATTERY.
5.  Start the engine of the vehicle with the good battery.



Make sure that all unnecessary electrical accessories have

been turned "OFF".

6.  Start the engine of the vehicle with the dead battery.

7.  To remove the jumper cables, follow the above directions in

reverse order.

  Be sure to first disconnect the negative cable from the

vehicle with the discharged battery.



6D1-6  ENGINE ELECTRICAL

1

5

3

4

2



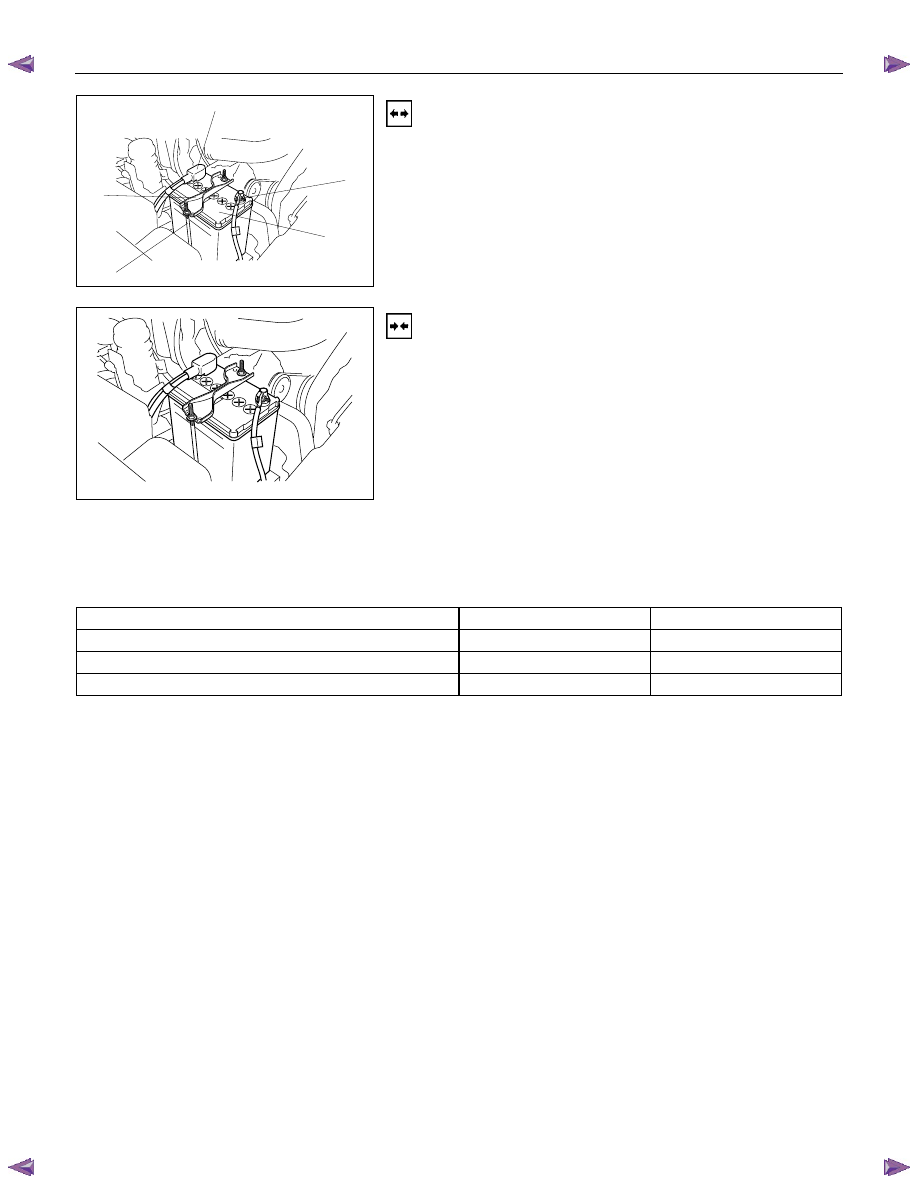

Removal

1.  Remove negative cable (1).

2.  Remove positive cable (2).

3.  Remove retainer screw and rods (3).

4.  Remove retainer (4).

5.  Remove battery (5).





Installation

1. Install battery.

2. Install retainer.

3.  Instal retainer screw and rods.
NOTE: Make sure that the rod is hooked on the body side.
4.  Install positive cable.

5.  Install negative cable.





Main Data and Specifications

General Specifications

Model (JIS)

34B19L

50D20L

Voltage (V)

12

12

Cold Cranking Performance (Amp)

272

306

Reserve Capacity (Min)

49

78
