Isuzu KB P190. Manual - part 258





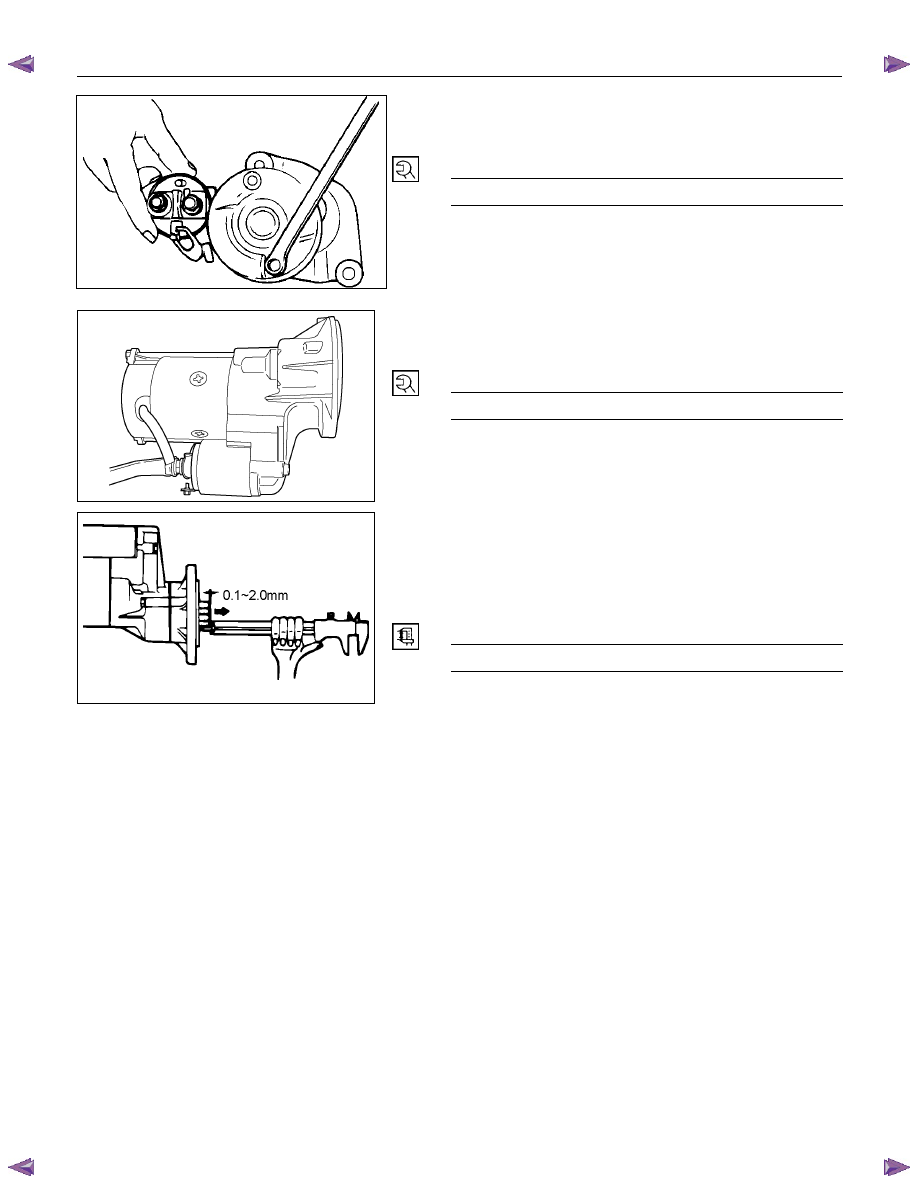

ENGINE ELECTRICAL   6D – 31















24. Through Bolt

Install the through bolts in the rear cover and tighten them
to the specified torque.

Through Bolt Torque

N

⋅m (kg⋅m/lb⋅ft)

8.1 (0.83/6.00)



065RY00044









RTW46DSH002601















25. Lead Wire

Connect the lead wire in the magnetic switch and tighten
the terminal nut to the specified torque.

Lead Wire Terminal Nut Torque

N

⋅m (kg⋅m/lb⋅ft)

8.6 (0.88/6.40)









RTW46DSH005801



























Inspection After Assembly

Use a vernier caliper to measure the pinion shaft thrust
play.
The pinion shaft thrust play is equal to the pinion shaft end
and pinion stopper clearance.
Pinion Shaft Thrust Play

mm (in)

0.1 – 2.0 (0.004 – 0.078)




6D – 32  ENGINE ELECTRICAL









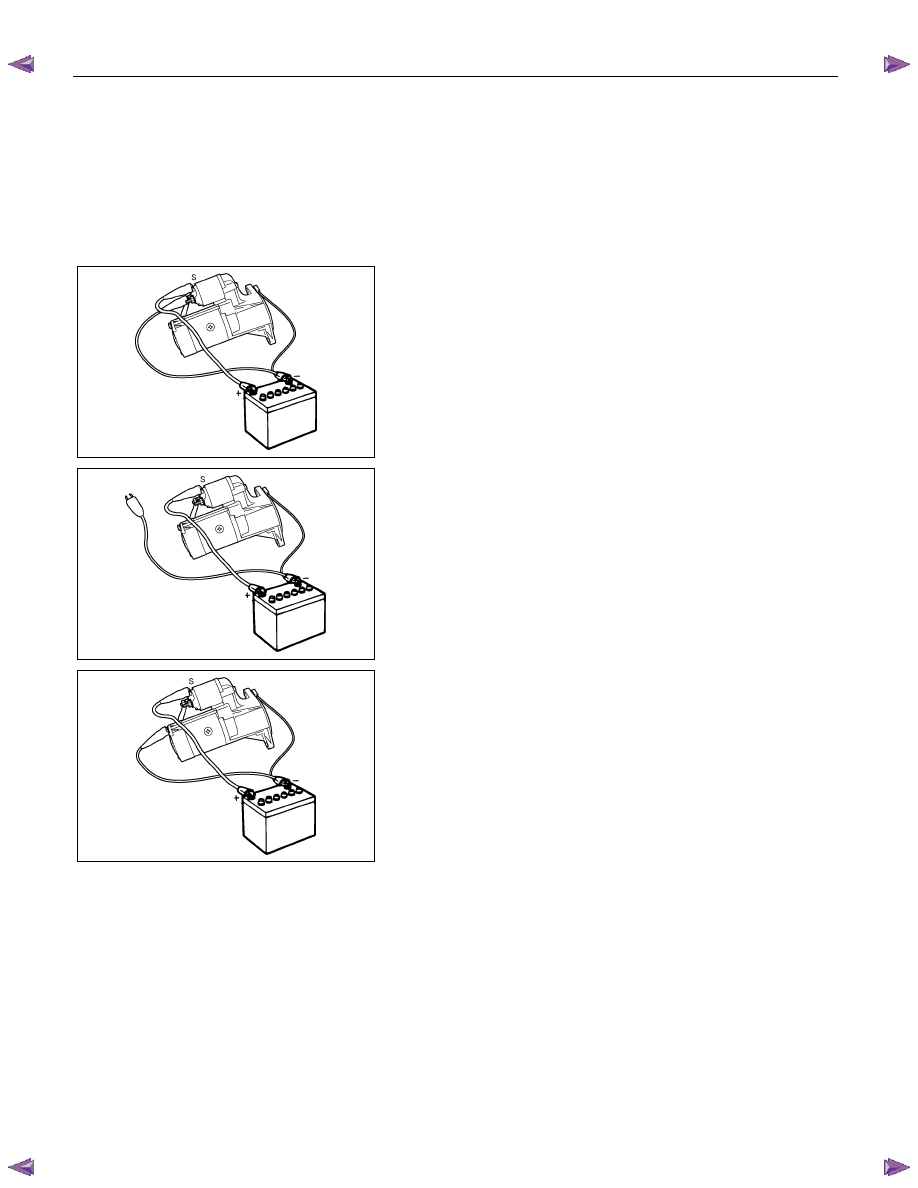

MAGNETIC SWITCH

The following tests must be performed with the starter
motor fully assembled.
The yoke lead wire must be disconnected from the “M”
terminal.
To prevent coil burning, complete each test as quickly as
possible (within three to five seconds).













RTW46DSH004601



Temporarily connect the solenoid switch between the
clutch and the housing and run the following test.
Complete each test within three to five seconds.

1. Pull-in

Test

Connect the battery negative terminal with the solenoid
switch body and the M terminal. When current is applied to
the S terminal from the battery positive terminal, the pinion
should flutter.







RTW46DSH005901



2.  Hold-in Maintenance Test

Disconnect the lead at the M terminal. The pinion should
continue to flutter.







RTW46DSH004701



3. Return

Test

Disconnect the battery positive lead at the S terminal.
The pinion should return to its home position.





ENGINE ELECTRICAL   6D – 33

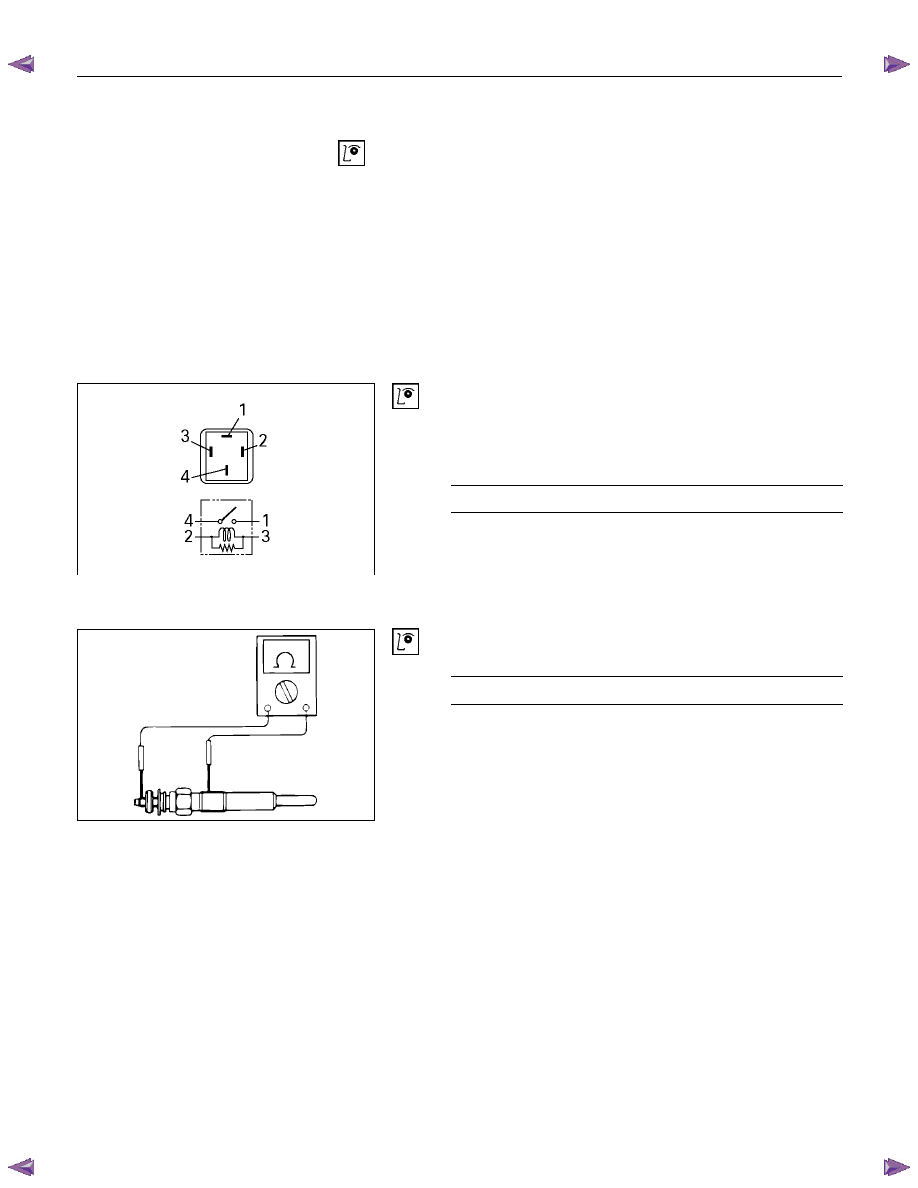

PRE-HEATING SYSTEM

  INSPECTION AND REPAIR

Make the necessary adjustments, repairs, and part replacement if excessive wear of damage is discovered during
inspection.





VISUAL CHECK

Check the main fuses and glow indicator for damage.
Replace the part(s) if required.

GLOW RELAY

The glow relay is located in the relay box the engine
compartment.







825R300046











Use an ohmmeter to measure the resistance between
terminals No.2 and No.3.
If the measured value is outside the specified range, the
glow relay must be replaced.

Glow Relay Resistance

Ohms

94

− 114







GLOW PLUG







LNW21KSH001401

Use a circuit tester to test the glow plugs for continuity.

Glow Plug Resistance (Reference)

Ohms

Approximately 0.9







EGR SYSTEM 4JA1T (L)

Refer to 6F-9. (EGR system diagram)

Engine Control System (4JH1)  6E-1

SECTION 6E

ENGINE CONTROL SYSTEM (4JH1)

TABLE OF CONTENTS




Specifications ..................................................... 6E-4

Schematic And Routing Diagrams .....................  6E-5

Vacuum Hose Routing Diagram......................  6E-5

Engine Controls Schematics ...........................  6E-7

Component Locator............................................ 6E-18

Engine Controls Component Views ................ 6E-18

Engine Control Module (ECM) Connector

 End Views ...................................................... 6E-22

Engine Control Connector End Views ............. 6E-25

Diagnostic Information And Prosedures............. 6E-30

Engine Control System Check Sheet .............. 6E-30

Diagnostic Starting Point - Engine Controls .... 6E-31

Breaker Box .................................................... 6E-32

Diagnostic System Check - Engine Controls .. 6E-33

Scan Tool Data List ......................................... 6E-36

Scan Tool Data Definitions.............................. 6E-37

Scan Tool Output Controls.............................. 6E-40

Scan Tool Does Not Power Up ....................... 6E-41

Scan Tool Does Not Communicate with Keyword

 2000 Device ................................................... 6E-42

Lost Communication with The Engine Control

 Module (ECM)  ............................................... 6E-44

Engine Cranks but Does Not Run ................... 6E-47

Diagnostic Trouble Code (DTC) List ............... 6E-50

DTC P0100 (Symptom Code 7)

 (Flash Code 65) ............................................. 6E-66

DTC P0100 (Symptom Code 9)

 (Flash Code 65)  ............................................ 6E-68

DTC P0100 (Symptom Code B)

 (Flash Code 65)  ............................................ 6E-70

DTC P0100 (Symptom Code C)

 (Flash Code 65)  ............................................ 6E-73

DTC P0105 (Symptom Code 1)

 (Flash Code 34)  ............................................ 6E-75

DTC P0105 (Symptom Code 2)

 (Flash Code 34)  ............................................ 6E-78

DTC P0105 (Symptom Code 7)

 (Flash Code 34)  ............................................ 6E-81

DTC P0105 (Symptom Code 9)

 (Flash Code 34)  ............................................ 6E-83

DTC P0110 (Symptom Code 1)

 (Flash Code 23)  ............................................ 6E-85



DTC P0110 (Symptom Code 2)

 (Flash Code 23)  ............................................ 6E-88

DTC P0115 (Symptom Code 1)

 (Flash Code 14)  ............................................ 6E-90

DTC P0115 (Symptom Code 2)

 (Flash Code 14)  ............................................ 6E-93

DTC P0180 (Symptom Code B)

 (Flash Code 15)  ............................................ 6E-95

DTC P0215 (Symptom Code A)

 (Flash Code 52............................................... 6E-96

DTC P0215 (Symptom Code B)

 (Flash Code 52)  ............................................ 6E-98

DTC P0215 (Symptom Code C)

 (Flash Code 52)  ............................................6E-100

DTC P0215 (Symptom Code D)

 (Flash Code 52)  ............................................6E-102

DTC P0216 (Symptom Code A,B)

 (Flash Code 54)  ............................................6E-103

DTC P0243 (Symptom Code 3)

 (Flash Code 64)  ............................................6E-107

DTC P0243 (Symptom Code 4)

 (Flash Code 64)  ............................................6E-111

DTC P0243 (Symptom Code 5)

 (Flash Code 64) .............................................6E-114

DTC P0243 (Symptom Code 6)

 (Flash Code 64) .............................................6E-118

DTC P0243 (Symptom Code 8)

 (Flash Code 65) .............................................6E-121

DTC P0251 (Symptom Code 6)

 (Flash Code 53)  ............................................6E-123

DTC P0251 (Symptom Code 7)

 (Flash Code 53)  ............................................6E-125

DTC P0251 (Symptom Code 9, A, B, C)

 (Flash Code 53)  ............................................6E-127

DTC P0251 (Symptom Code E)

 (Flash Code 53)  ............................................6E-129

DTC P0335 (Symptom Code B, D)

 (Flash Code 43)  ............................................6E-130

DTC P0335 (Symptom Code E)

 (Flash Code 43) .............................................6E-134

DTC P0380 (Symptom Code 4)

 (Flash Code 66)  ............................................6E-136
