ENGINE ELECTRICAL   6D – 23



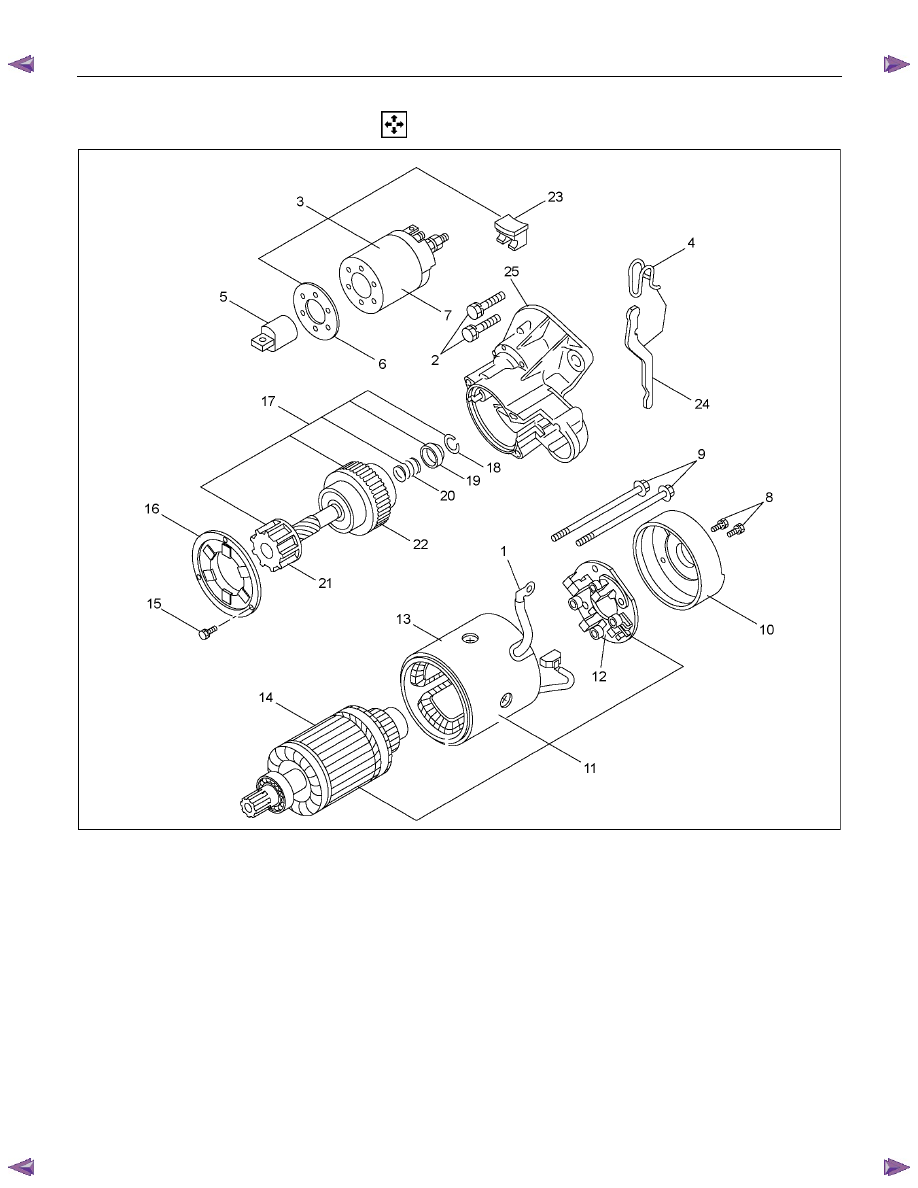

  DISASSEMBLY









RTW460LF000201



Disassembly Step







   1.  Lead wire





14.

Armature

   2.  Bolt



15.

Bolt

   3.  Magnetic switch assembly





16.

Bearing retainer

   4.  Torsion spring





17.

Pinion assembly

   5.  Plunger





18.

Pinion stopper clip

   6.  Dust cover





19.

Pinion stopper

   7.  Magnetic switch





20.

Return spring

   8.  Screw





21.

Pinion shaft

   9.  Through bolt





22.

Clutch

  10.  Rear cover





23.

Dust cover

  11.  Motor assembly





24.

Shift lever

  12.  Brush holder





25.

Gear case

  13.  Yoke







6D – 24  ENGINE ELECTRICAL







RTW46DSH002601

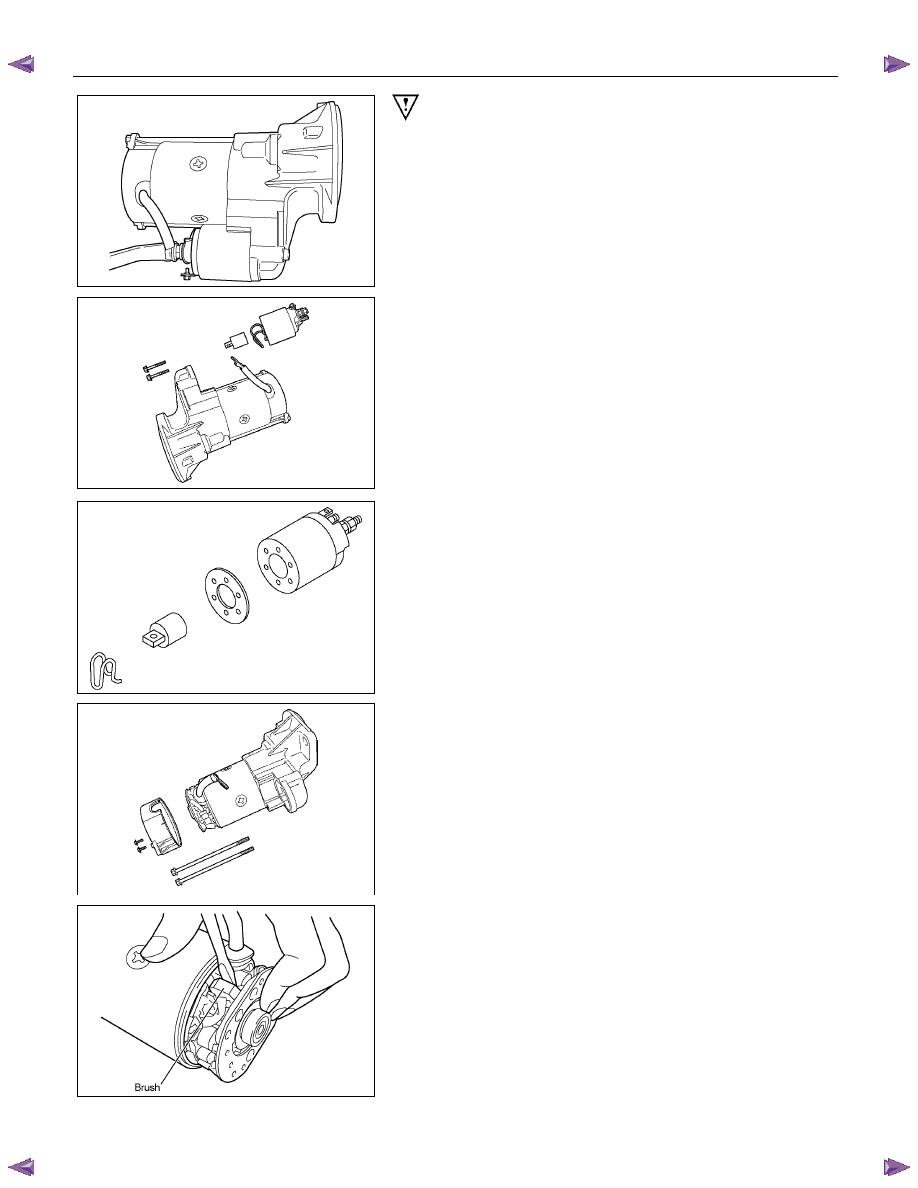

Important Operations

1. Lead

Wire

Disconnect the lead wire at the magnetic switch.







RTW46DSH002701



3.  Magnetic Switch Assembly

Remove the magnetic switch bolts, then remove the
switch from the shift lever.







RTW46DSH002801



Remove the torsion spring from the magnetic switch.







RTW46DSH002901



8. Through

Bolt

9. Screw
10. Rear Cover

Remove the through bolts, then remove the rear cover.







RTW46DSH003001



11. Motor Assembly

Remove the four brushes from the brush holders.



ENGINE ELECTRICAL   6D – 25







RTW46DSH003101

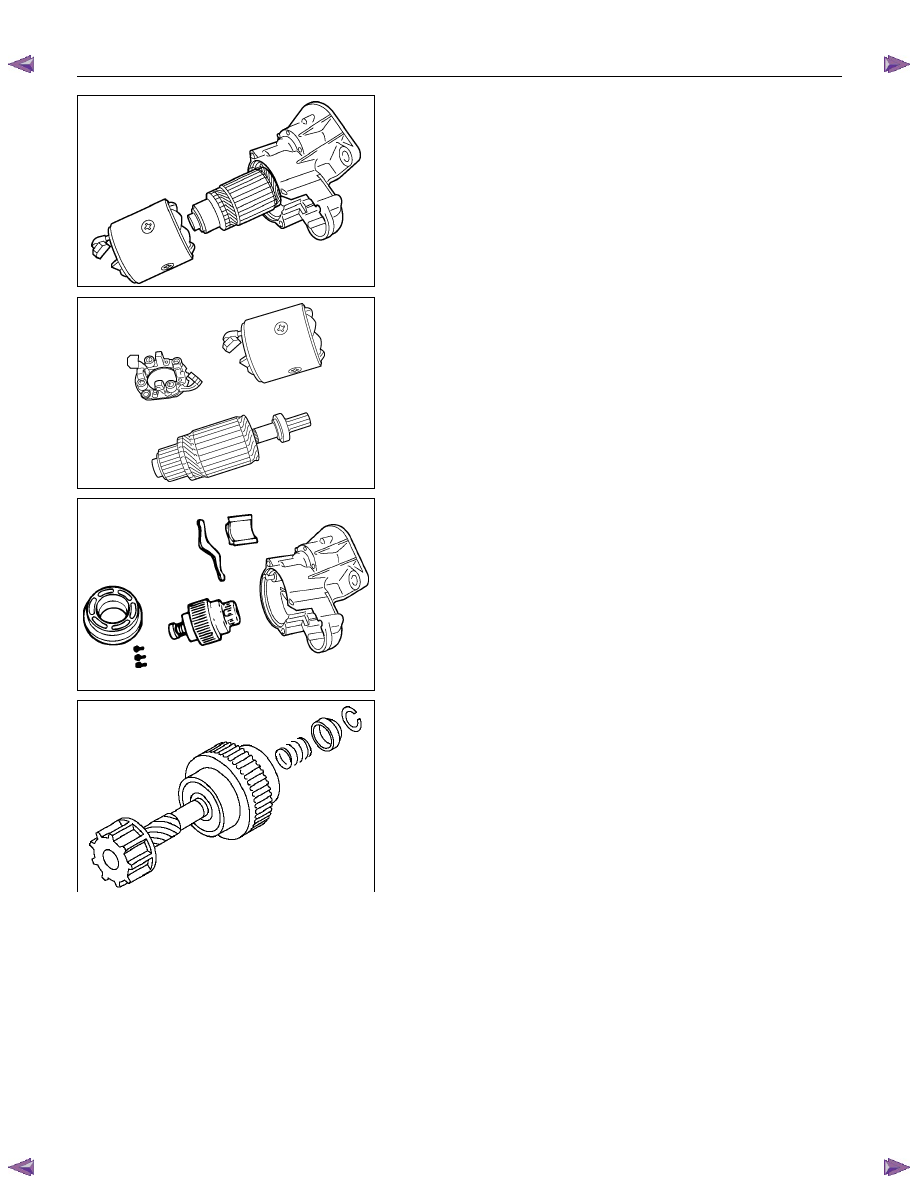

Remove the yoke along with the armature and the brush
holder from the gear case.
Remove the brushes and commutator carefully so as not
to allow them in contact with the adjacent parts.







RTW46DSH003201



12. Brush Holder
13. Yoke
14. Armature

Remove the brush holder and pull out the armature
assembly free from the yoke.







RTW46DSH003301



16. Bearing Retainer
17. Pinion Assembly
23. Dust Cover
24. Shift Lever
25. Gear Case

1.  Remove the bearing retainer.
2.  Remove the pinion from the gear case.







RTW46DSH003401



3.  Use a screwdriver to remove the stopper clip. Then

disassemble the pinion assembly.



6D – 26  ENGINE ELECTRICAL

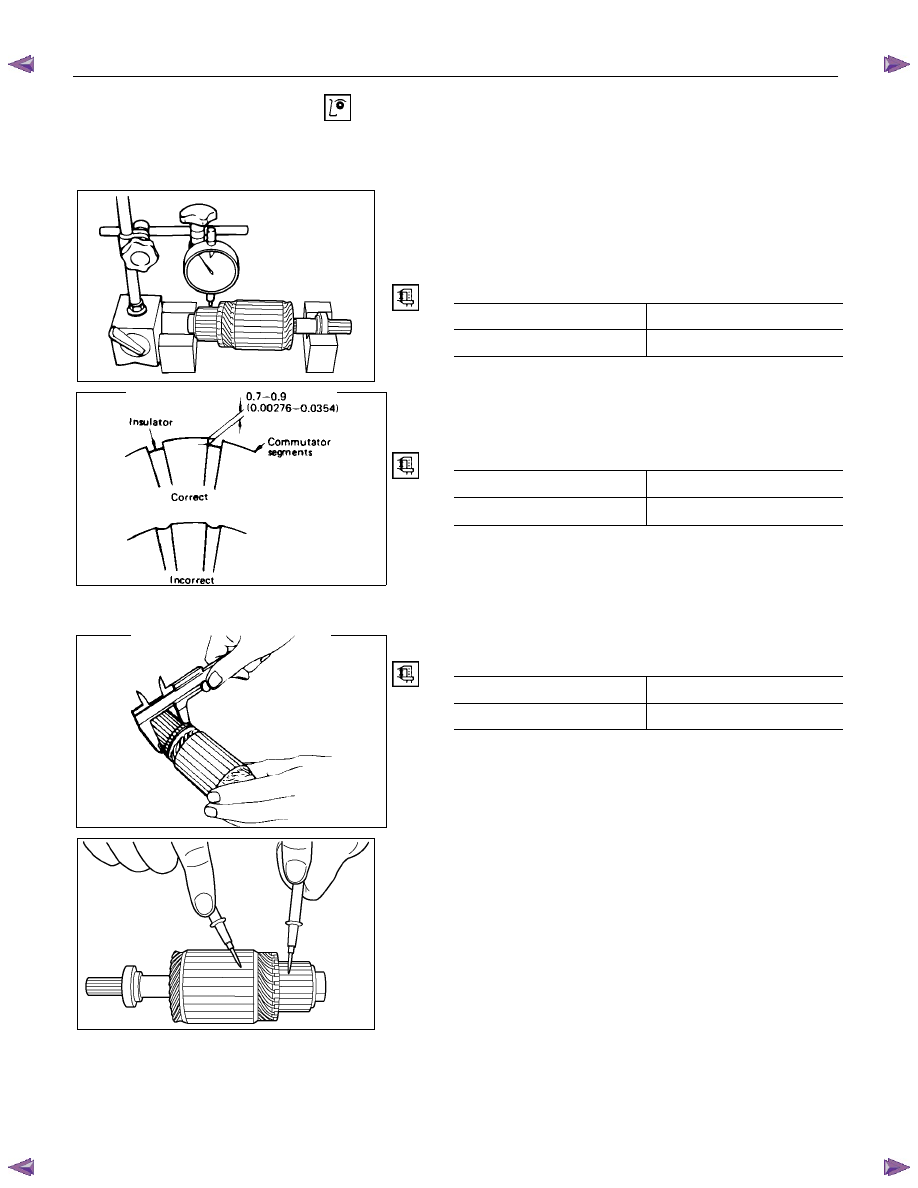

  INSPECTION AND REPAIR

Make the necessary adjustments, repairs, and part replacement if excessive wear or damage is discovered during
inspection.


ARMATURE

1.  Measure the commutator run-out.

Replace the commutator if the measured run-out
exceeds the specified limit.

Commutator Run-Out

mm (in)

Standard Limit

0.05 (0.002)

0.2 (0.008)







RTW46DSH003501

























2.  Check the commutator mica segments for excessive

wear.

3.  Measure the mica segment depth.
Mica Segment Depth

mm (in)

Standard Limit

0.5

∼ 0.8 (0.020 ∼ 0.030)

0.2 (0.008)



065RY00025

















If the mica segment depth is less than the standard but
more than the limit, the commutator may be reground.
If the mica segment depth is less than the limit, the
commutator must be replaced.







4.  Measure the commutator outside diameter.
Commutator Outside Diameter

mm (in)

Standard Limit

36.5 (1.44)

35.5 (1.40)











If the measured outside diameter is less than the specified
limit, the commutator must be replaced.

065RY00026











RTW46DSH003601



5.  Use a circuit tester to check the armature for

grounding.

1

Hold one probe of the circuit tester against the
commutator segment.

2

Hold the other circuit tester probe against the
armature core.



If the circuit tester indicates continuity, the armature is
grounded.
The armature must be replaced.
