BRAKE CONTROL SYSTEM   5A-67

Step Action  Value(s) Yes

No

3

  1. Ignition “ON”, engine “OFF”.

  2. Select “Display DTCs” with the Tech 2.

Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech 2.

Are any DTCs stored?

-

Go to Step 4

Verify repair

4 Replace

EHCU.

Note: Check the EHCU type for specification, when
the EHCU is replaced.

(Specification ; 2WD model or 4WD model)

Is the action complete?

-

Verify repair

-



5A-68   BRAKE CONTROL SYSTEM

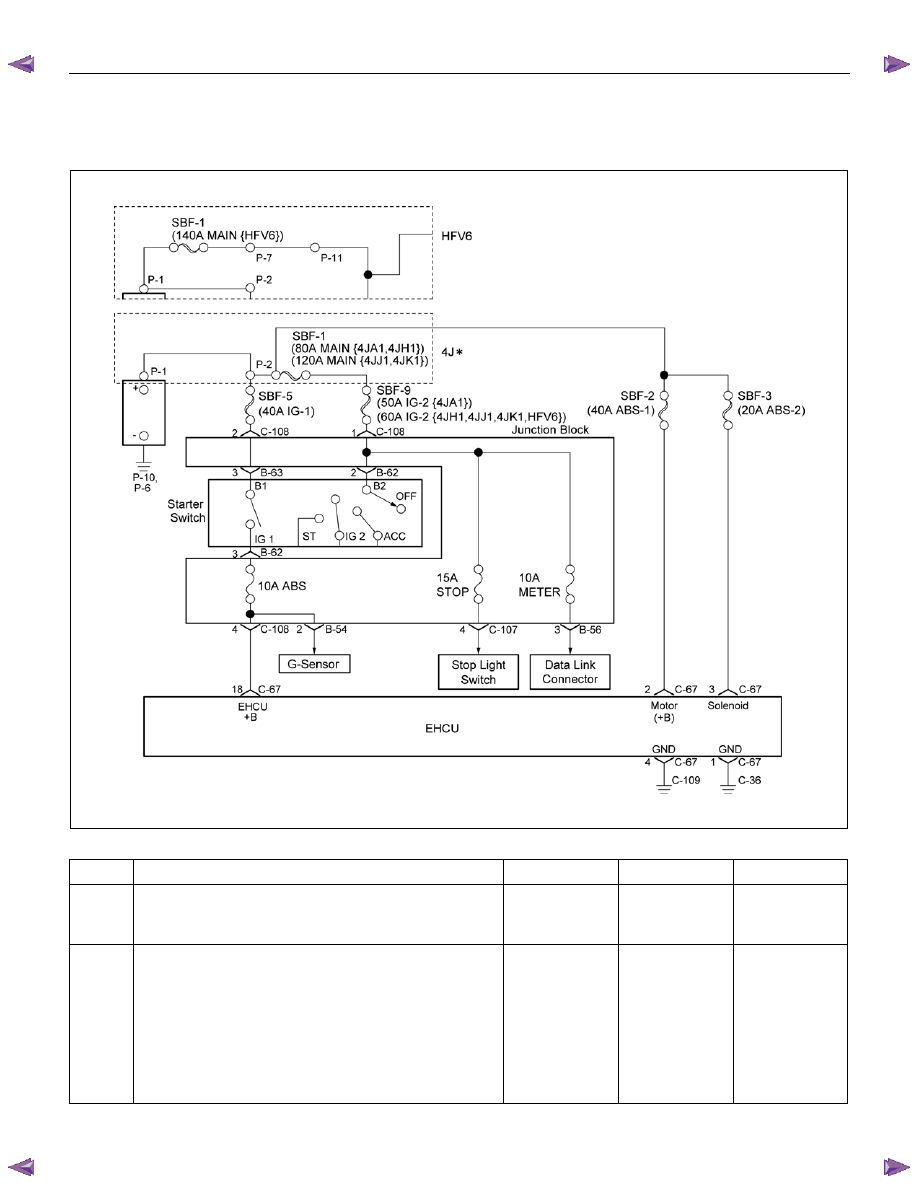

DTC C0245 (Flash Code 45) Front Left Hold Solenoid Valve Circuit
DTC C0246 (Flash Code 46) Front Left Release Solenoid Valve Circuit










RTW75ALF000301



Step Action  Value(s) Yes

No

1

Were the steps of the “Basic Diagnostic Flow Chart”
performed?

-

Go to Step 2

Go to Basic

Diagnostic

Flow Chart

2

1.

Ignition

“OFF”.

  2. Check the EHCU circuit for an open, short to

ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.

  3. If a problem is found, repair as necessary.

Was a problem found?

-

Verify repair

Go to Step 3

BRAKE CONTROL SYSTEM   5A-69

Step Action  Value(s) Yes

No

3

  1. Ignition “ON”, engine “OFF”.

  2. Select “Display DTCs” with the Tech 2.

Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech 2.

Are any DTCs stored?

-

Go to Step 4

Verify repair

4 Replace

EHCU.

Note: Check the EHCU type for specification, when
the EHCU is replaced.

(Specification ; 2WD model or 4WD model)

Is the action complete?

-

Verify repair

-



5A-70   BRAKE CONTROL SYSTEM

DTC C0251 (Flash Code 51) Rear Hold Solenoid Valve Circuit
DTC C0252 (Flash Code 52) Rear Release Solenoid Valve Circuit










RTW75ALF000301



Step Action  Value(s) Yes

No

1

Were the steps of the “Basic Diagnostic Flow Chart”
performed?

-

Go to Step 2

Go to Basic

Diagnostic

Flow Chart

2

1.

Ignition

“OFF”.

  2. Check the EHCU circuit for an open, short to

ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open or short to
voltage.

  3. If a problem is found, repair as necessary.

Was a problem found?

-

Verify repair

Go to Step 3
