Isuzu KB P190. Manual - part 163

BRAKE CONTROL SYSTEM   5A-59

Step Action  Value(s)

Yes

No

7

Check the rear right wheel speed sensor. Refer to
"Wheel Speed Sensor Inspection procedure"

Was a problem found?

-

Go to Step 10

Go to Step 8

8

Does the sensor rotor have missing tooth or saw-
toothed?

-

Go to Step 14

Go to Step 9

9

  1. Clear the DTC.

  2. Test run the vehicle, and check the DTC.

Is the DTC displayed repeatedly?

-

Go to Step 18

Go to Step 17

10

Is the wheel speed sensor damaged or saw-toothed?

-

Go to Step 15

Go to Step 16

11

Repair or replace the wheel bearing.

Is the action complete?

-

Verify repair

-

12

Repair or replace the rear right speed sensor or the
sensor rotor.

Is the action complete?

-

Verify repair

-

13

Repair the rear right speed sensor or the sensor
rotor.

Is the action complete?

-

Verify repair

-

14

Replace the sensor rotor.

Is the action complete?

-

Verify repair

-

15

Replace the rear right wheel speed sensor.

Is the action complete?

-

Verify repair

-

16

Repair or replace the rear right speed sensor circuits.

Is the action complete?

-

Verify repair

-

17

Check the connection btween the EHCU and the rear
right wheel speed sensor and repair as necessary
Refer to "Note on Intermittents".

Is the action complete?

-

Verify repair

-

18 Replace

EHCU.

Note: Check the EHCU type for specification, when
the EHCU is replaced.

(Specification ; 2WD model or 4WD model)

Is the action complete?

-

Verify repair

-



5A-60   BRAKE CONTROL SYSTEM

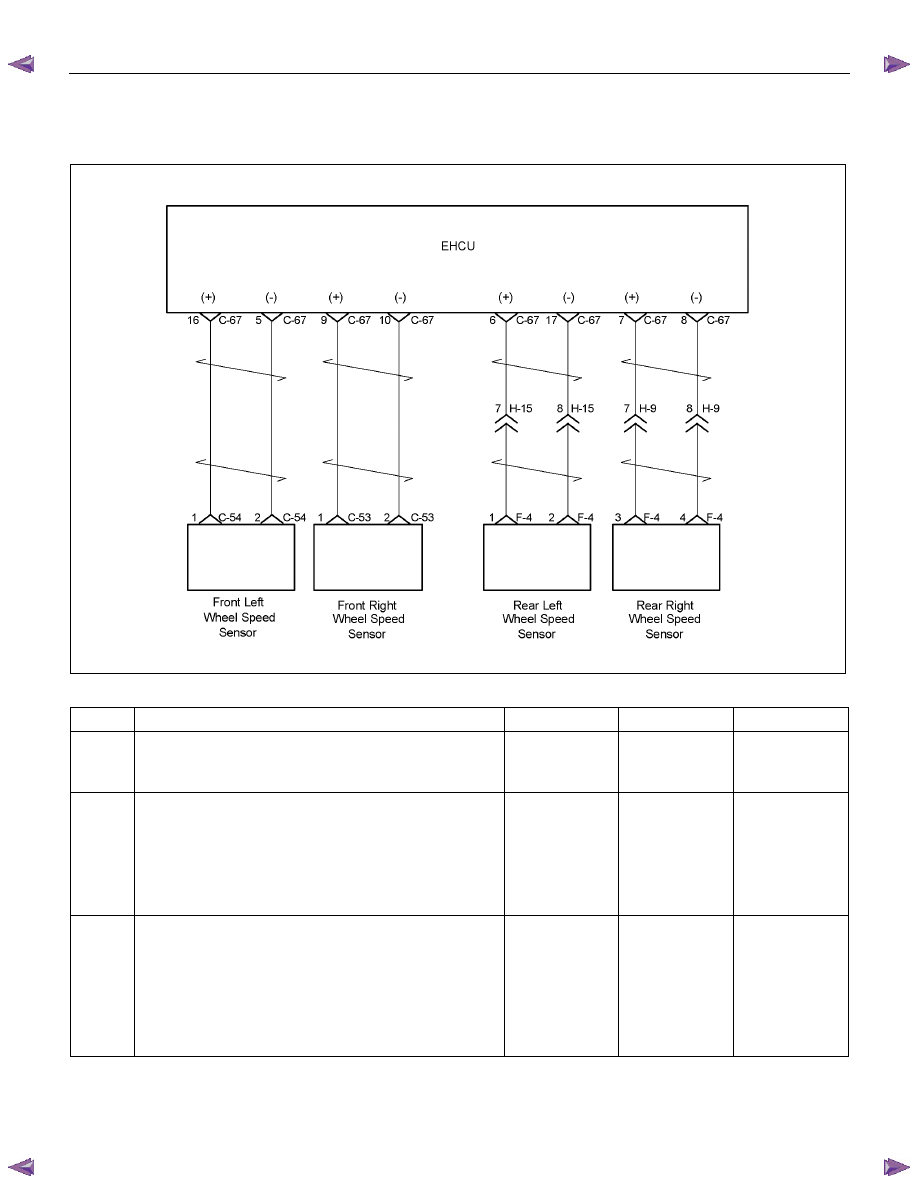

DTC C0235 (Flash Code 35) Rear Left Wheel Speed Sensor Short Circuit or

Circuit Open









RTW75AMF001301



Step Action  Value(s) Yes

No

1

Were the steps of the “Basic Diagnostic Flow Chart”
performed?

-

Go to Step 2

Go to Basic

Diagnostic

Flow Chart

2

  1. Check for a poor connection at the rear left wheel

speed sensor harness connector.

  2. Check installation condition for rear left wheel

speed sensor.

  3. If a problem is found, repair as necessary.

Was a problem found?

-

Verify repair

Go to Step 3

3

  1. Ignition “OFF”, disconnect the EHCU and rear left

wheel speed sensor.

  2. Check the circuit between EHCU and rear left

wheel speed sensor. (Circuit for an open, short to
ground, or short to voltage.)

  3. If a problem is found, repair as necessary.

Was a problem found?

-

Verify repair

Go to Step 4

BRAKE CONTROL SYSTEM   5A-61

Step Action  Value(s) Yes

No

4

  1. Replace rear left wheel speed sensor.

  2. Select “Display DTCs” with the Tech 2.

Note: Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech 2.

Are any DTCs stored?

-

Go to Step 5

Verify repair

5 Replace

EHCU.

Note: Check the EHCU type for specification, when
the EHCU is replaced.

(Specification ; 2WD model or 4WD model)

Is the action complete?

-

Verify repair

-



5A-62   BRAKE CONTROL SYSTEM

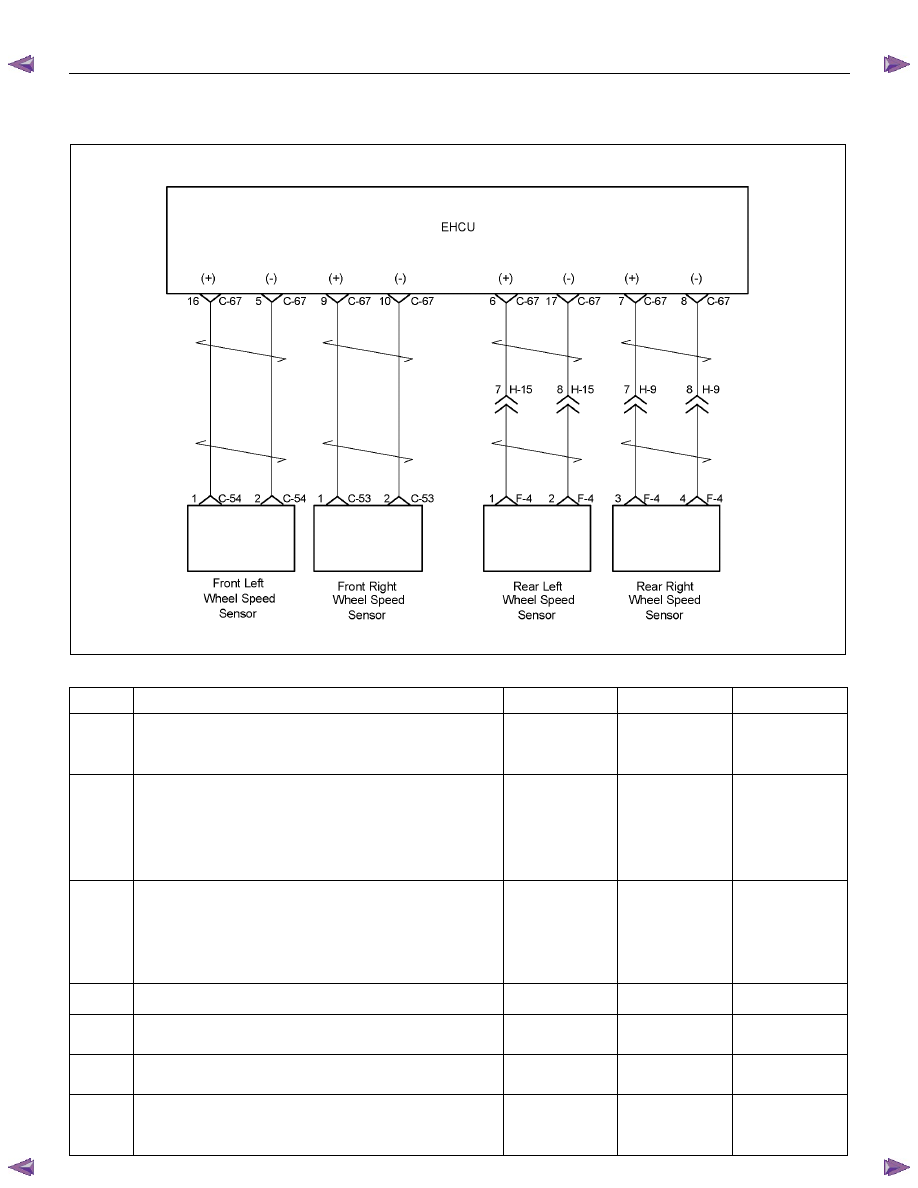

DTC C0236 (Flash Code 36) Rear Left Wheel Speed Sensor Signal Malfunction









RTW75AMF001301



Step Action  Value(s)

Yes

No

1

Were the steps of the “Basic Diagnostic Flow Chart”
performed?

-

Go to Step 2

Go to Basic

Diagnostic

Flow Chart

2

  1. Check the tire for the following conditions.

• Tire specification
• Wear of the outer surface

  2. If a problem is found, repair as necessary.

Was a problem found?

-

Verify repair

Go to Step 3

3

Note:

This DTC is set when certain tire is rotated alone.



Has certain tire been rotated alone by performing for
lift-up or roller tester?

-

Verify repair

Go to Step 4

4

Is the rear left wheel bearing rattling?

-

Go to Step 11

Go to Step 5

5

Is the rear left wheel speed sensor or the sensor
rotor rattling?

-

Go to Step 12

Go to Step 6

6

Is iron powder attached to the rear left wheel speed
sensor or the sensor rotor?

-

Go to Step 13

Go to Step 7

7

Check the rear left wheel speed sensor. Refer to
"Wheel Speed Sensor Inspection procedure"

Was a problem found?

-

Go to Step 10

Go to Step 8
