Isuzu KB P190. Manual - part 1372
8A-550 ELECTRICAL-BODY AND CHASSIS

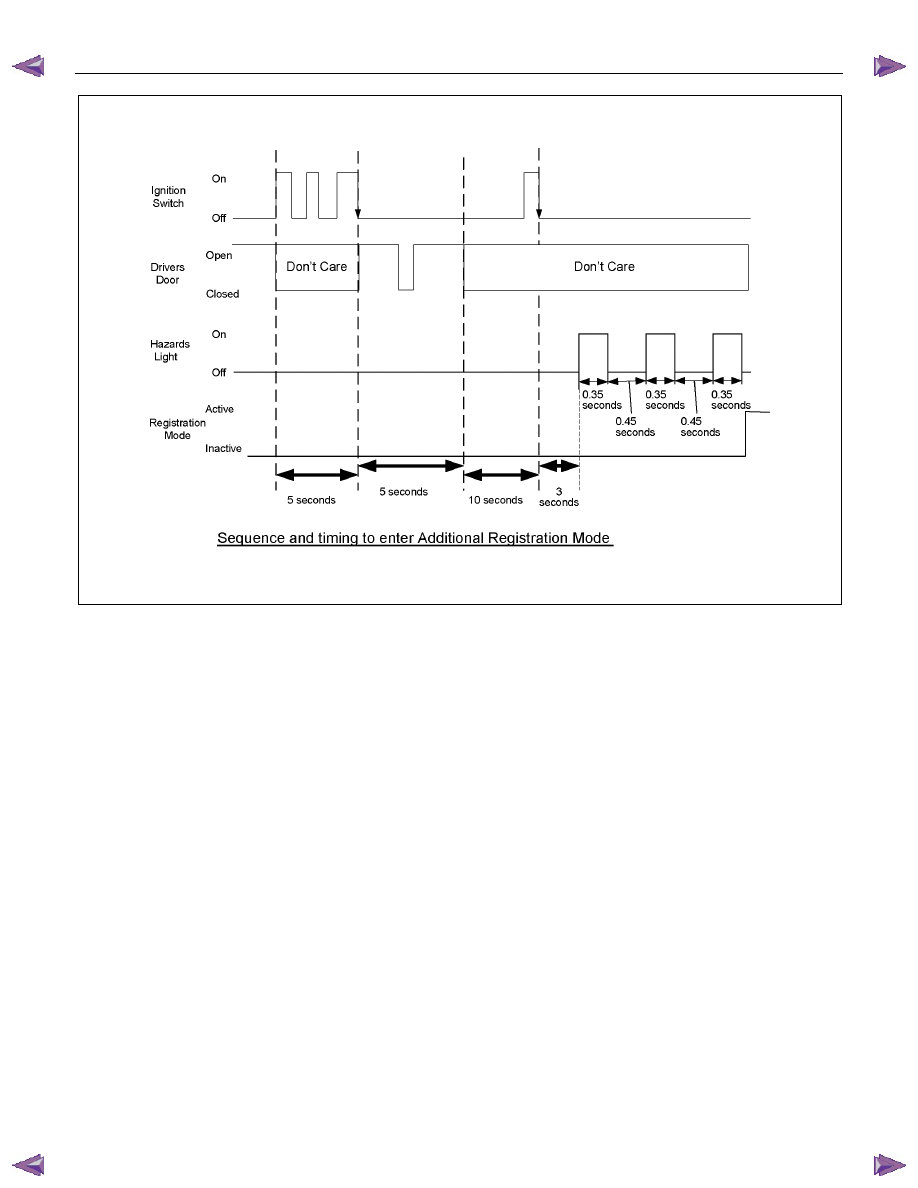

ID Code Additional Registration
A new received ID code shall be additionally registered
with holding registered ID codes. When a total of
already registered and newly
registered ID code exceeds 4, the oldest one shall be
erased.
Step Action
Yes
No
1
NOTE: Make sure that the all the doors are closed and
unlocked. Remove the ignition key from the ignition switch.
1. Open the driver's side door.
2. Insert the ignition key into the starter switch.
Is the action complete?
Go to Step 2
2
Turn the ignition switch to ON position and return it to OFF
position three times.
NOTE: This step must be carried out within five seconds .
Is the action complete?
Go to Step 3 Go
to
Step 1
3
Close and open the driver's side door once.
NOTE: This step must be carried out within five seconds after
step 2 is finished.
Is the action complete?
Go to Step 4 Go
to
Step 1
4
1. Turn the ignition switch to ON position and return it to OFF
position once.
Check that the hazard lamp blinks 3 times.
NOTE: This step must be carried out within ten seconds after
step 3 is finished.
Is the action complete?
Go to Step 5 Go
to
Step 1
5
Operate the lock or unlock button of the transmitter.
NOTE: Confirm that the system is functioning by pressing the
transmitter button to lock and unlock the doors. Listen for the
sound of the actuator operation.
Is the action complete?
Go
to
Step 1
