8A-546  ELECTRICAL-BODY AND CHASSIS

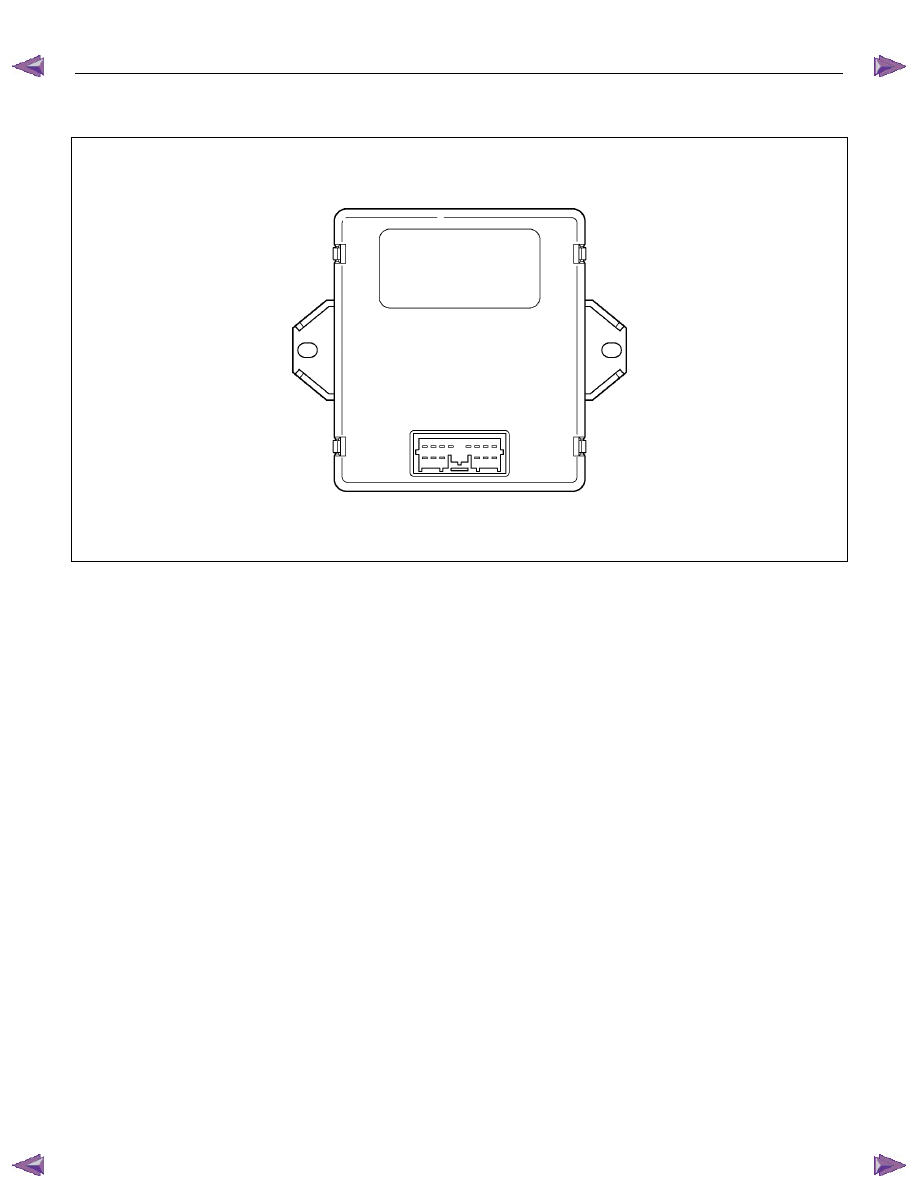

Keyless entry control unit














RUW580SF000201

ELECTRICAL-BODY AND CHASSIS  8A-547

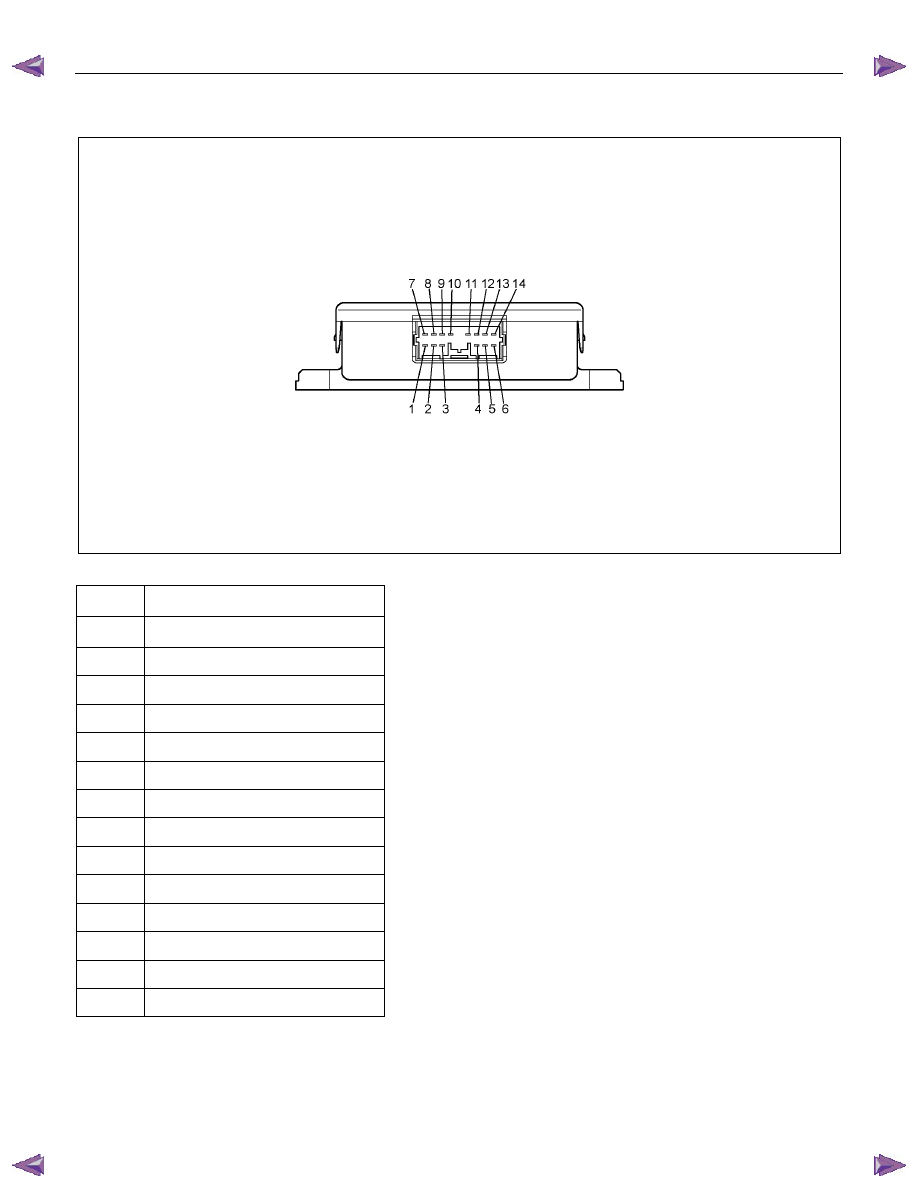

Pin-outs




















RUW580SF000301



No. Pin

Function

1

Door ajar switch

2

Door ajar indicator light

3 Tailgate

switch

4

Test pin (Internal use only)

5

Key switch remote

6 Ignition

switch

7 Battery

8 Hazard

battery

9 Unlock

10 Lock

11

Front map light

12 Hazard-RH

13 Hazard-LH

14 Ground

8A-548  ELECTRICAL-BODY AND CHASSIS








ID Code New Registration

All registered ID codes shall be erased, and a new
received
ID code shall be registered instead of old codes.
Carefully read each of the steps before beginning the
operation.



Step Action

Yes

No

1

NOTE: Make sure that the all the doors are closed and
unlocked. Remove the ignition key from the ignition switch.

1. Open the driver's side door.

2. Insert the ignition key into the starter switch.

Is the action complete?

Go to Step 2



2

Turn the ignition switch to ON position and return it to OFF

position three times.

NOTE: This step must be carried out within five seconds.

Is the action complete?

Go to Step 3 Go

to

Step 1

3

Close and open the drive's side door twice.

NOTE: This step must be carried out within five seconds after

step 2 is finished.

Is the action complete?

Go to Step 4 Go

to

Step 1

4

1. Turn the ignition switch to ON position and return it to OFF

position twice.

NOTE: This step must be carried out within ten seconds after

step 3 is finished.

Is the action complete?

Go to Step 5 Go

to

Step 1

5

Operate the lock or unlock button of the transmitter.

NOTE: Confirm that the system is functioning by pressing the
transmitter button to lock and unlock the doors. Listen for the
sound of the actuator operation.

Is the action complete?

 Go

to

Step 1

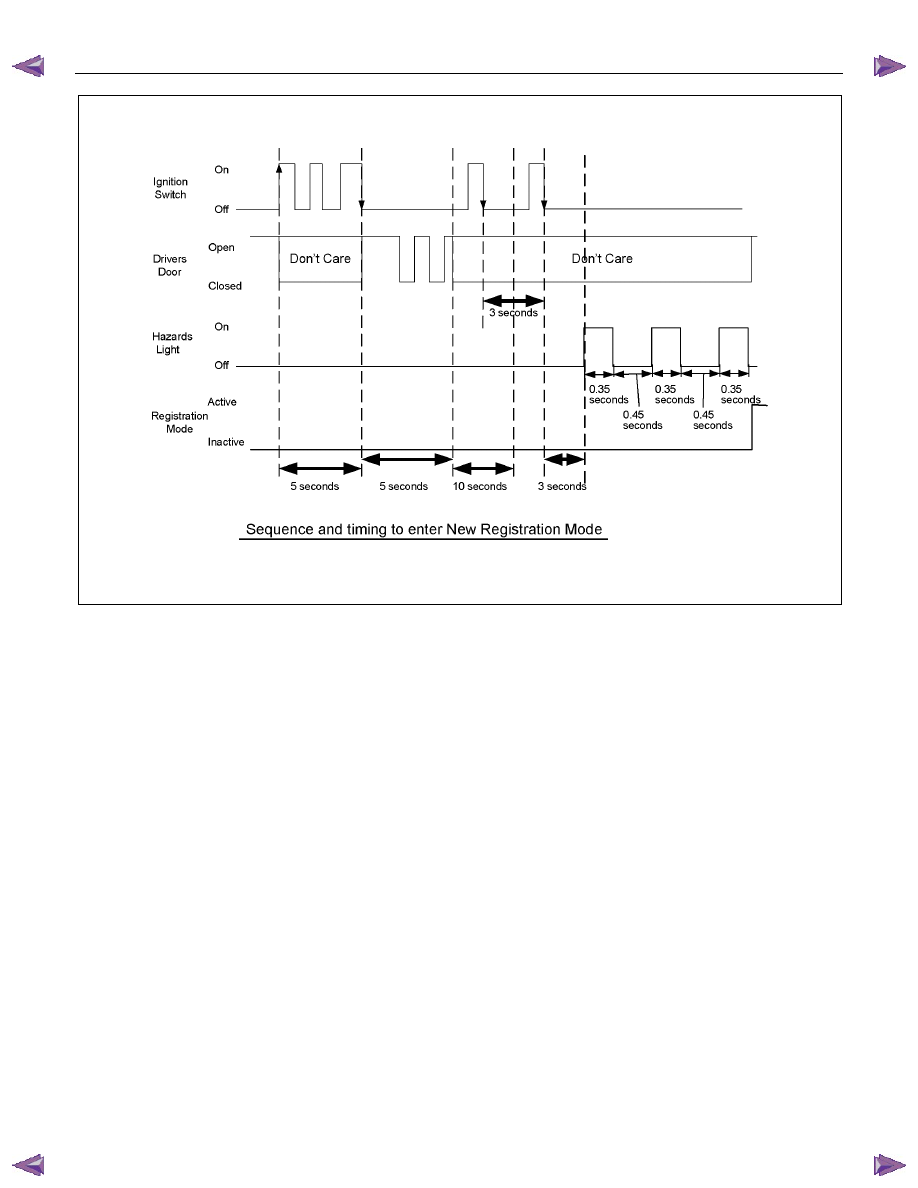

ELECTRICAL-BODY AND CHASSIS  8A-549











RUW59DMF000101
