4C1-24  FRONT WHEEL DRIVE

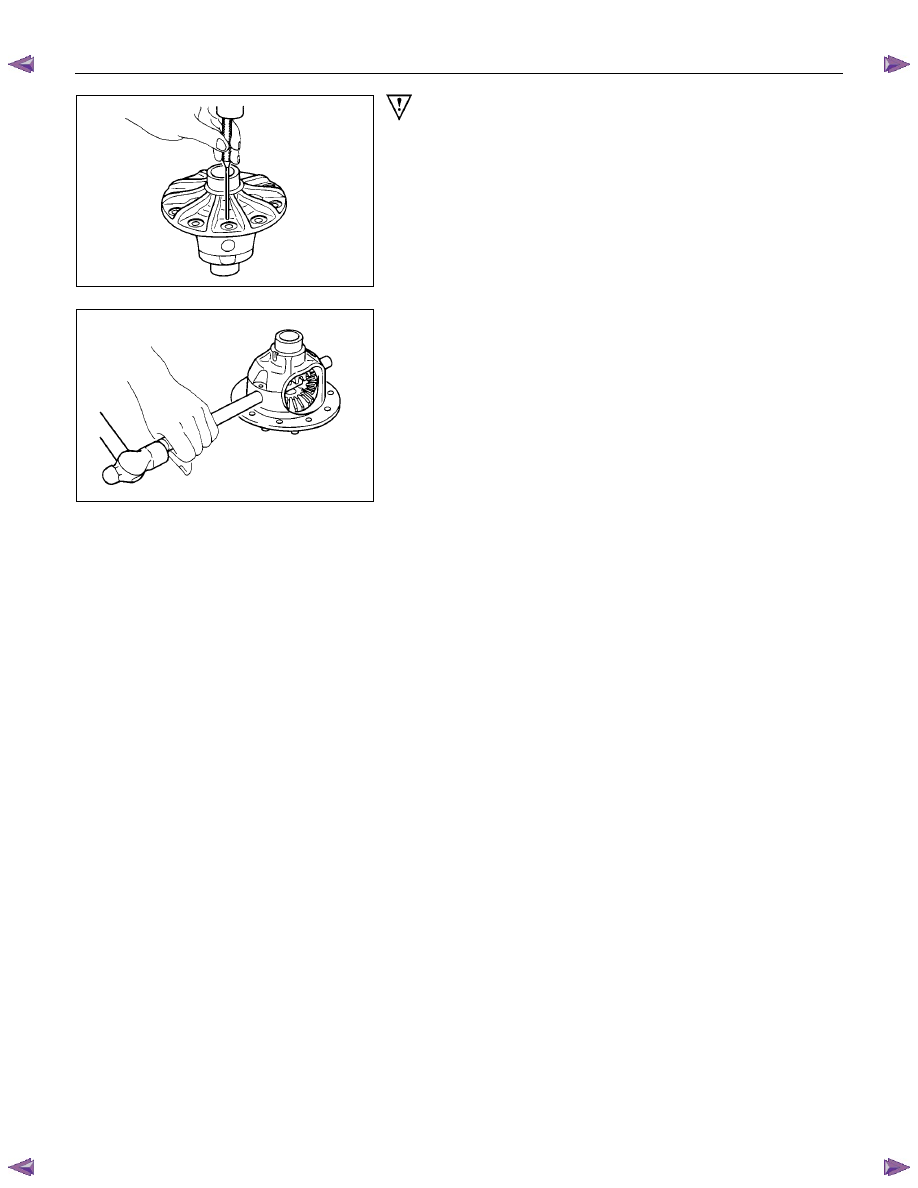

Important Operations

3. Lock Pin
Break staking on the lock pin using a 5 mm (0.20 in.) diameter
drill.






4. Cross Pin
Remove the cross pin using a soft metal rod and a hammer.





FRONT WHEEL DRIVE  4C1-25

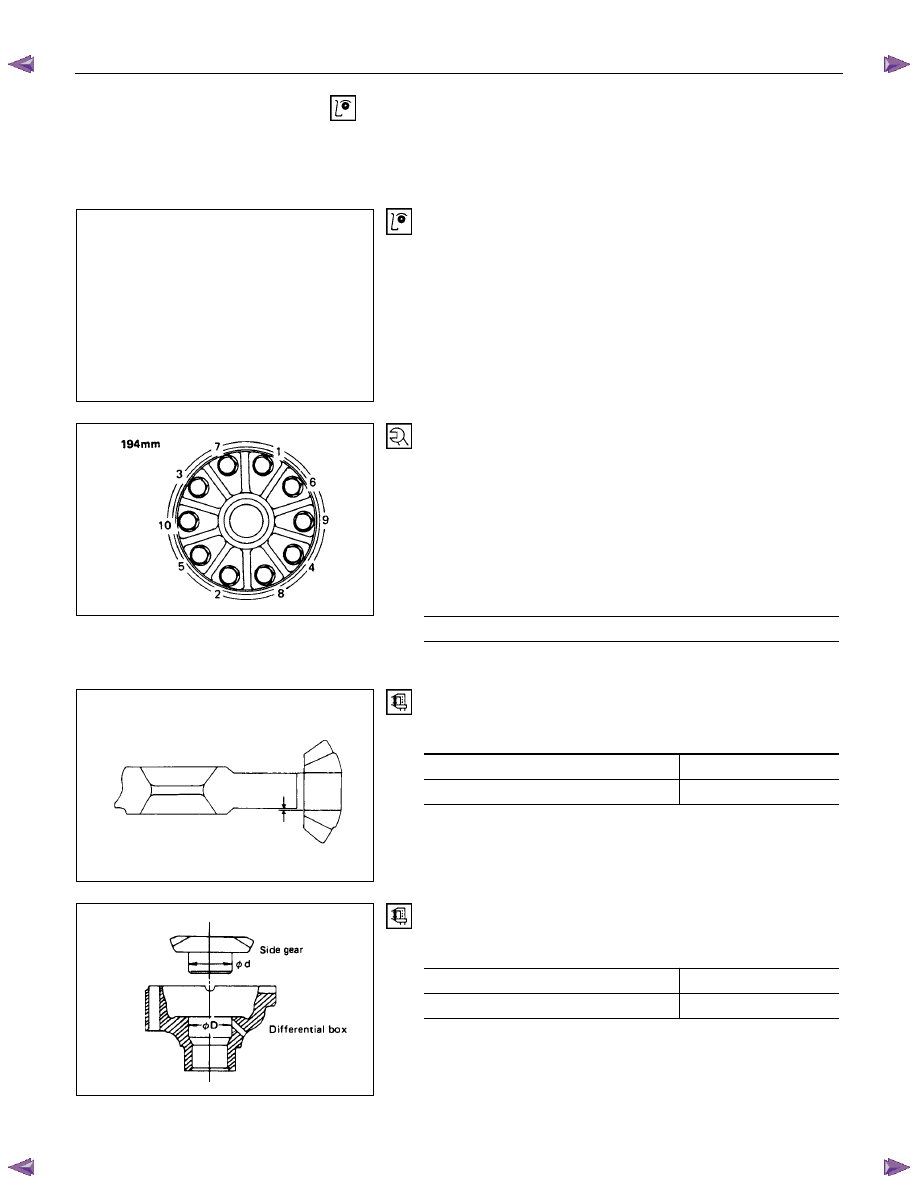

  Inspection and Repair

Make all necessary adjustments, repairs, and part replacements if wear, damage, or other problems are discovered
during inspection.





• Ring gear, pinion gear
• Bearing
• Side gear, pinion gear, cross pin
• Differential cage, carrier
• Thrust washer
• Oil seal





Visual Check

Inspect the following parts for wear, damage, or other
abnormal conditions.







Ring Gear Replacement

(1) The ring gear should always be replaced with the drive

pinion as a set.

(2)

When installing the ring gear, apply LOCTITE 271 or

equivalent to the threaded hole and bolt.

(3)

Tighten the fixing bolts in a diagonal sequence as

illustrated.

(4) Discard used bolts and install new ones.

Bolt Torque

N

⋅m (kgf⋅m/lb⋅ft)



108

± 9.8 (11 ± 1/79.6 ± 7.2)









Clearance Between the Differential Pinion

and the Cross Pin

mm(in)



Standard Limit

0.05 - 0.10 (0.002 - 0.004)

0.2 (0.008)







Clearance Between the Side Gear and the

Differential Box

mm(in)



Standard Limit

0.03 - 0.10 (0.001 - 0.004)

0.15 (0.006)

4C1-26  FRONT WHEEL DRIVE





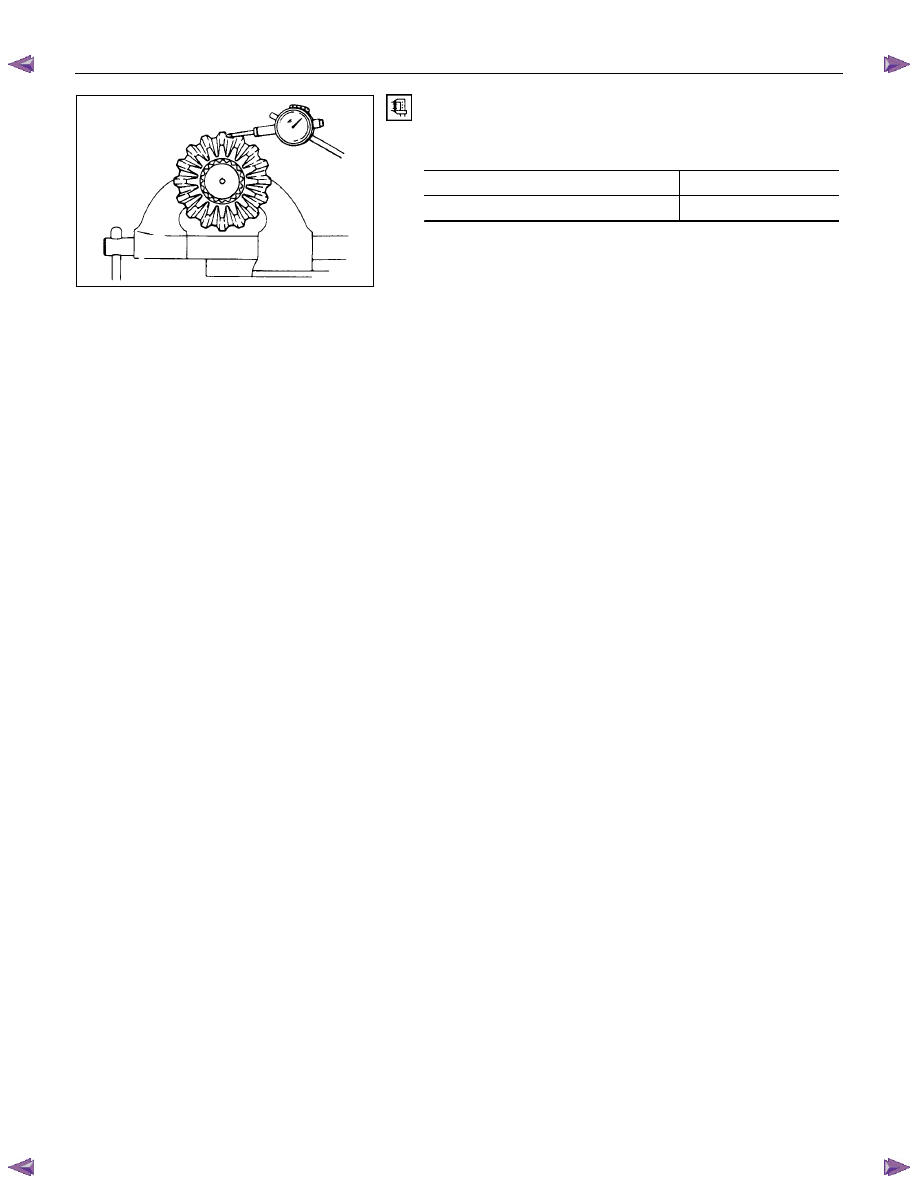

Play in Splines Between the Side Gear
and the Axle Shaft

mm(in)



Standard Limit

0.07 - 0.36 (0.003 - 0.014)

0.25 (0.010)



FRONT WHEEL DRIVE  4C1-27

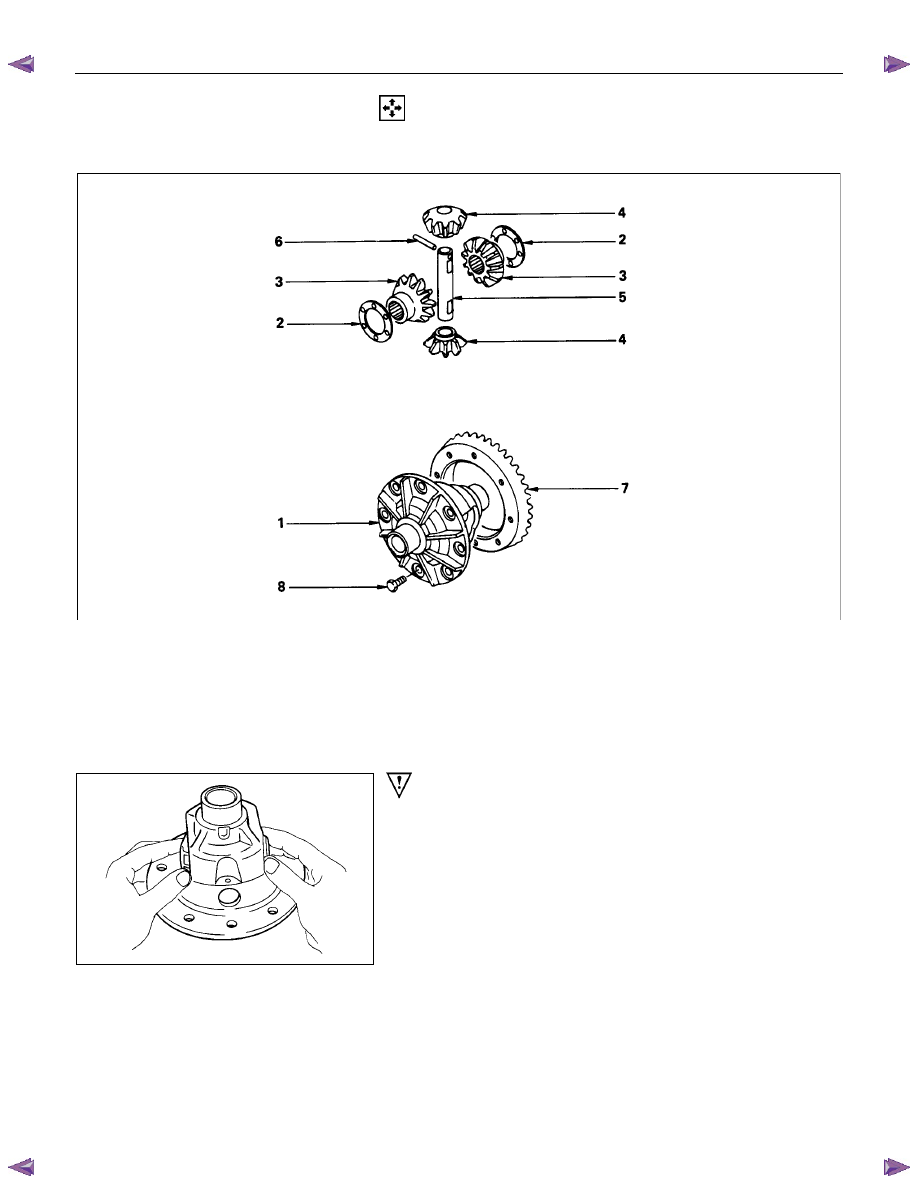

  Reassembly

Minor Components







Reassembly Steps

 1.

Differential

cage

 2.

Thrust

washer

 3.

Side

gear

▲ 4. Pinion gear






▲ 5. Cross pin
▲ 6. Lock pin
▲ 7. Ring gear
▲ 8. Bolt








Important Operations

4. Pinion Gear
Install the pinion gear by engaging it with the side gears while
turning both pinion gears simultaneously in the same direction.
