8A-166  ELECTRICAL-BODY AND CHASSIS

LIGHTING SYSTEM



  REMOVAL AND INSTALLATION







3

2

1



RTW78ASH000101





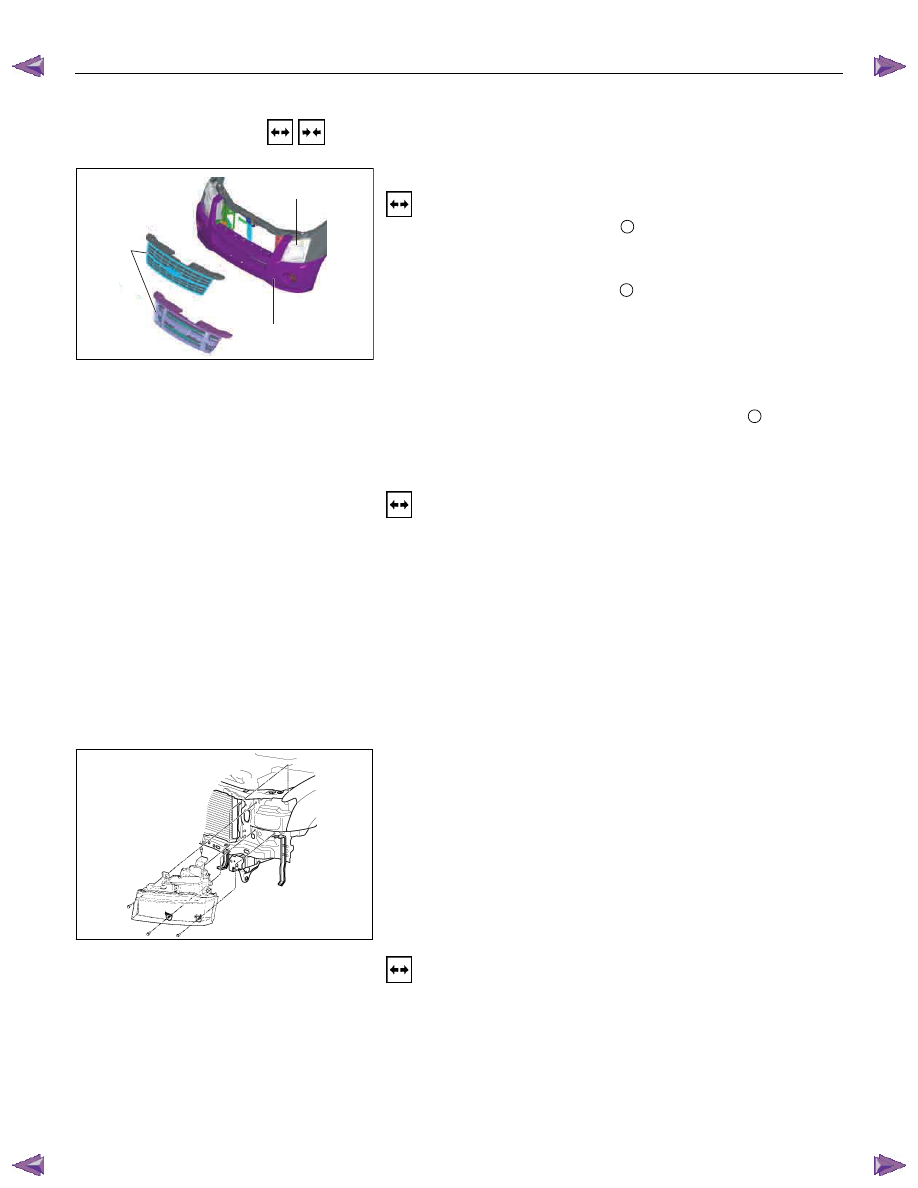

FRONT COMBINATION LIGHT (A type)

Removal

1.  Remove the radiator grille

1

.

Refer to the removal procedure of the RADIATOR GRILLE

in Section 2B “SHEET METAL”.

2.  Remove the front bumper

3

.

Refer to the removal procedure of the FRONT BUMPER in

Section 2A “FRAME AND BUMPER”.

3.  Disconnect the headlight connector.

4.  Disconnect the clearance light connector.

5.  Disconnect the turn signal light connector.

6.  Remove the front combination light assembly

2

.

•  Remove four fixing screws.









HEADLIGHT ASSEMBLY (B type)

Removal

1.  Open the bonnet.

2.  Remove the front combination light assembly.

•  Refer to "Front Combination Light Assembly" removal

procedure in this section.

3.  Remove the radiator grille.

•  Refer to "Radiator grille" removal procedure in 2B

section.

4.  Remove the front bumper.

•  Refer to "Front Bumper" removal procedure in 2B

section.

5.  Disconnect headlight bulb connectors.



RTW580SH0008001



6.  Remove the bolts of headlight assembly.

7.  Remove the headlight assembly.







Installation

To install the front combination light assembly, follow the
removal procedure in reverse order.


ELECTRICAL-BODY AND CHASSIS  8A-167







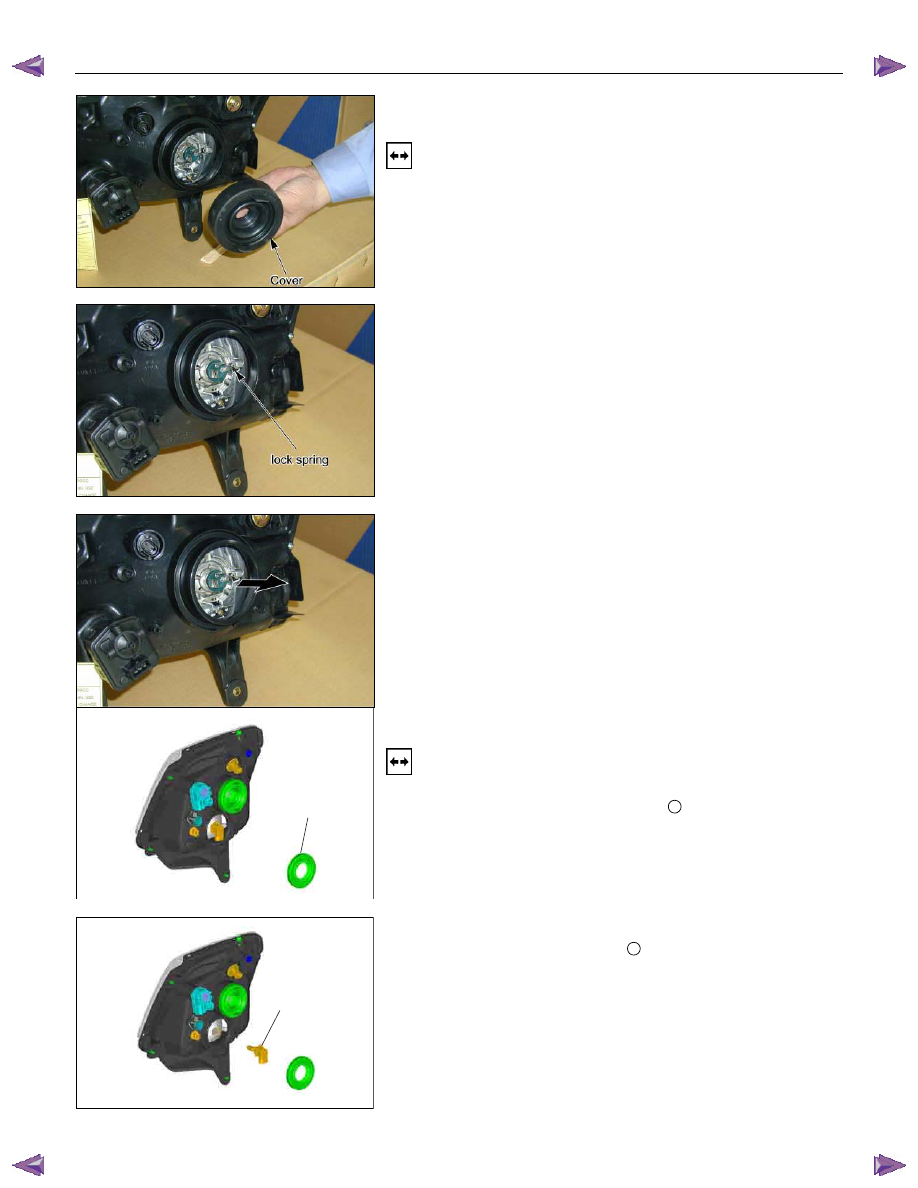

HEADLIGHT (HALOGEN STD TYPE)
(A type)

Removal

1.  Remove the head light socket.

2.  Remove the headlight dust cover.







3.  Slide out the lock spring.





4.  Remove the bulb.







1



RTW78ASH000801




HEADLIGHT (HALOGEN PROJECTOR

TYPE)

Removal

1.  Remove the head light socket.

2.  Remove the headlight dust cover

1

.







1



RTW78ASH000901



3.  Turn the bulb socket counterclockwise to remove it.

4.  Remove the headlight bulb

1

.

8A-168  ELECTRICAL-BODY AND CHASSIS







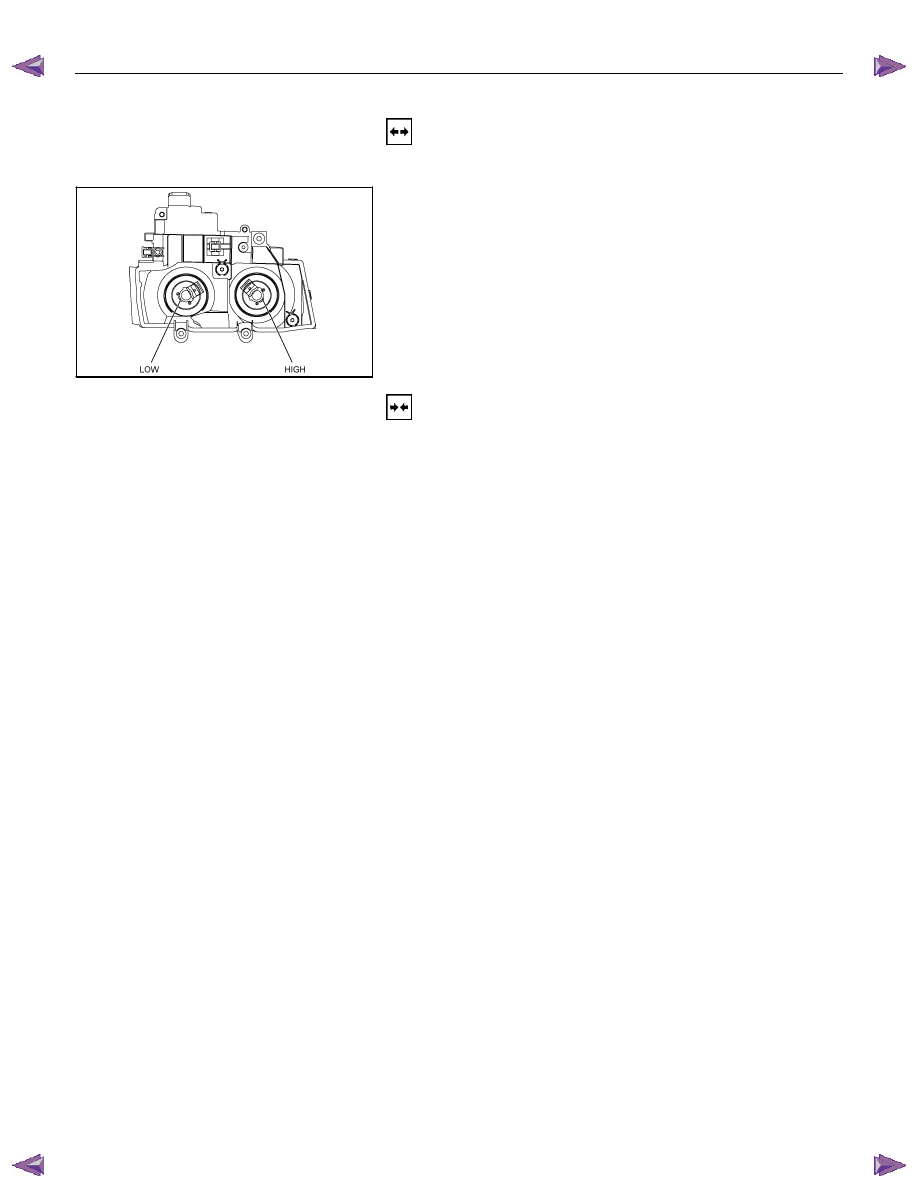

HALOGEN HEADLIGHT BULB (B type)

Removal

1.  Open the bonnet.

2.  Disconnect the headlight bulb connectors.



RTW580SH000101



3.  Turn the bulb counterclockwise to remove it.




Installation

To install the headlight, follow the removal procedure in
reverse order.
Pay close attention to the important points mentioned in the
following paragraphs.


Connector

Be absolutely sure that the headlight connector is securely
connected.
This will prevent a contact and an open circuit.


ELECTRICAL-BODY AND CHASSIS  8A-169



Installation

Follow the removal procedure in the reverse order to install the
headlight.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the headlight connector is securely
connected.
This will prevent a contact and an open circuit.








RTW780SH000901

This illustration is based on RHD model





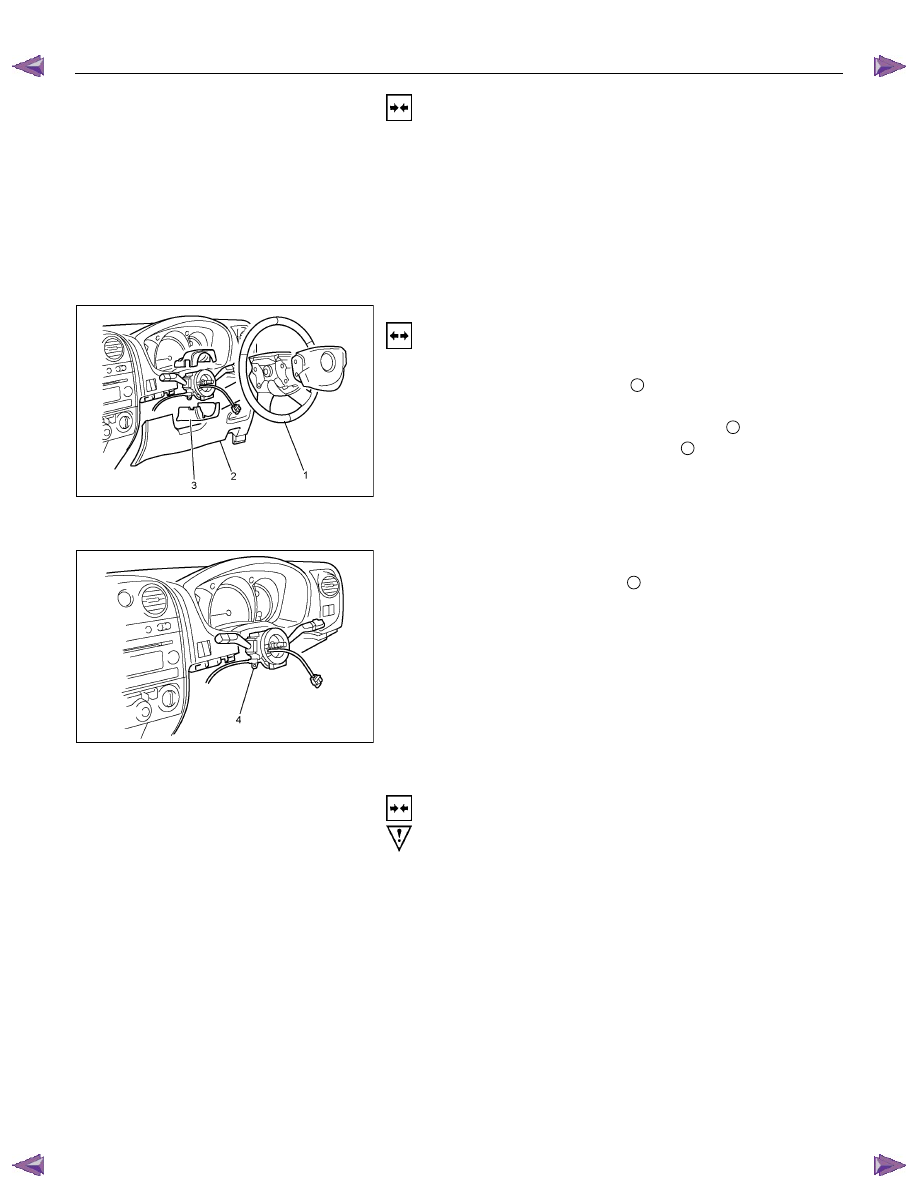

LIGHTING SWITCH

Removal

1.  Disconnect the battery ground cable.

2.  Remove the steering wheel

1

.



Refer to the “STEERING” Section of this manual.

3.  Remove the Instrument panel lower cover

2

.

4.  Remove the steering column cover

3

.















RTW780SH001001

This illustration is based on RHD model




5.  Disconnect the connector.

6.  Remove the lighting switch

4

 from the steering shaft.














Installation

Follow the removal procedure in the reverse order to install the
lighting switch.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the lighting switch connector is securely
connected.
This will prevent a poor contact and an open circuit.






Wire Harness

Do not pinch the wire harnesses between the cluster and the
meter hood during the cluster installation procedure.
Wire damage will result.
