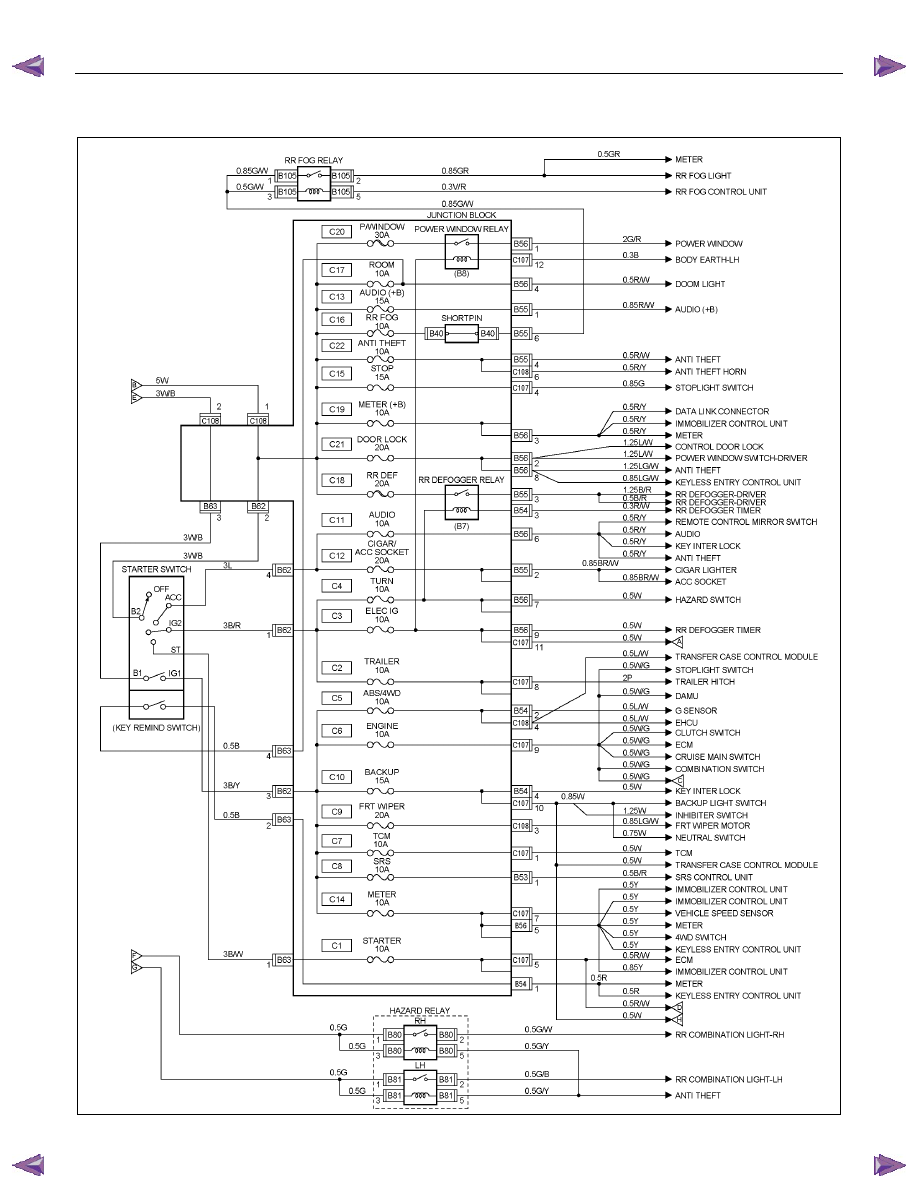

8A-42  ELECTRICAL-BODY AND CHASSIS



FUSE BLOCK CIRCUIT 4JJ1-TC/4JK1-TC (RHD) EXCEPT SOUTH AFRICA

Sheet 2/2









RTW78AXF034901

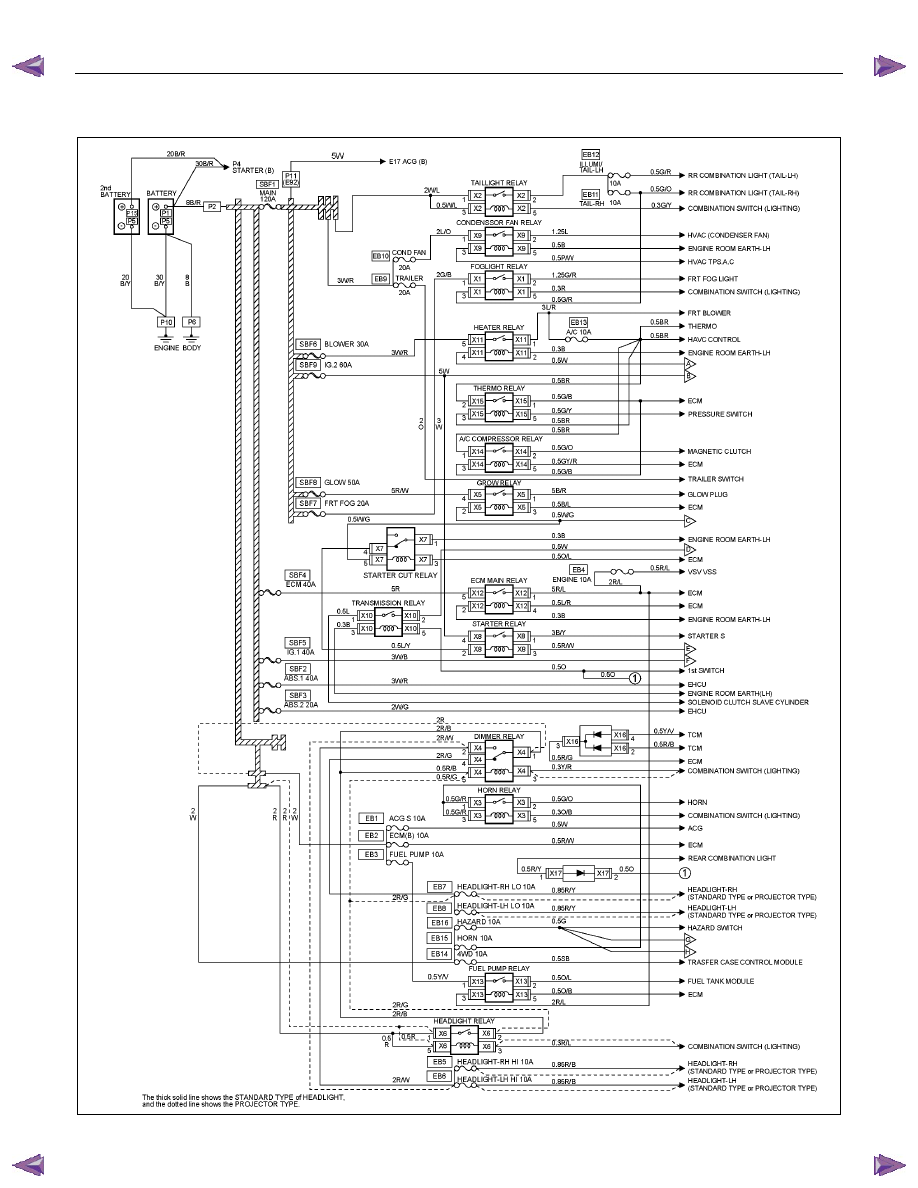

ELECTRICAL-BODY AND CHASSIS  8A-43



FUSE BLOCK CIRCUIT 4JJ1-TC/4JK1-TC (LHD) G.EXP

Sheet 1/2









RTW78AXF029901

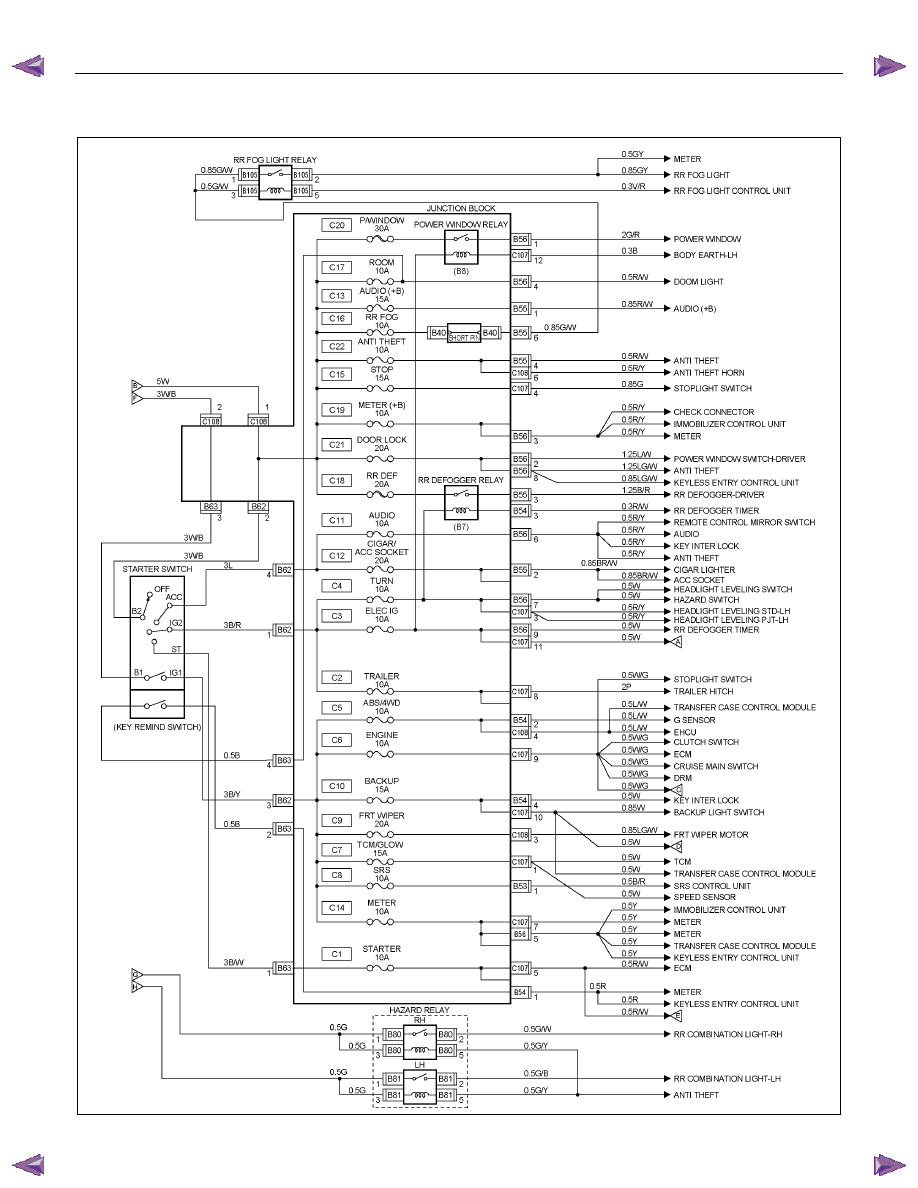

8A-44  ELECTRICAL-BODY AND CHASSIS



FUSE BLOCK CIRCUIT 4JJ1-TC/4JK1-TC (LHD) G.EXP

Sheet 2/2









RTW78AXF030001

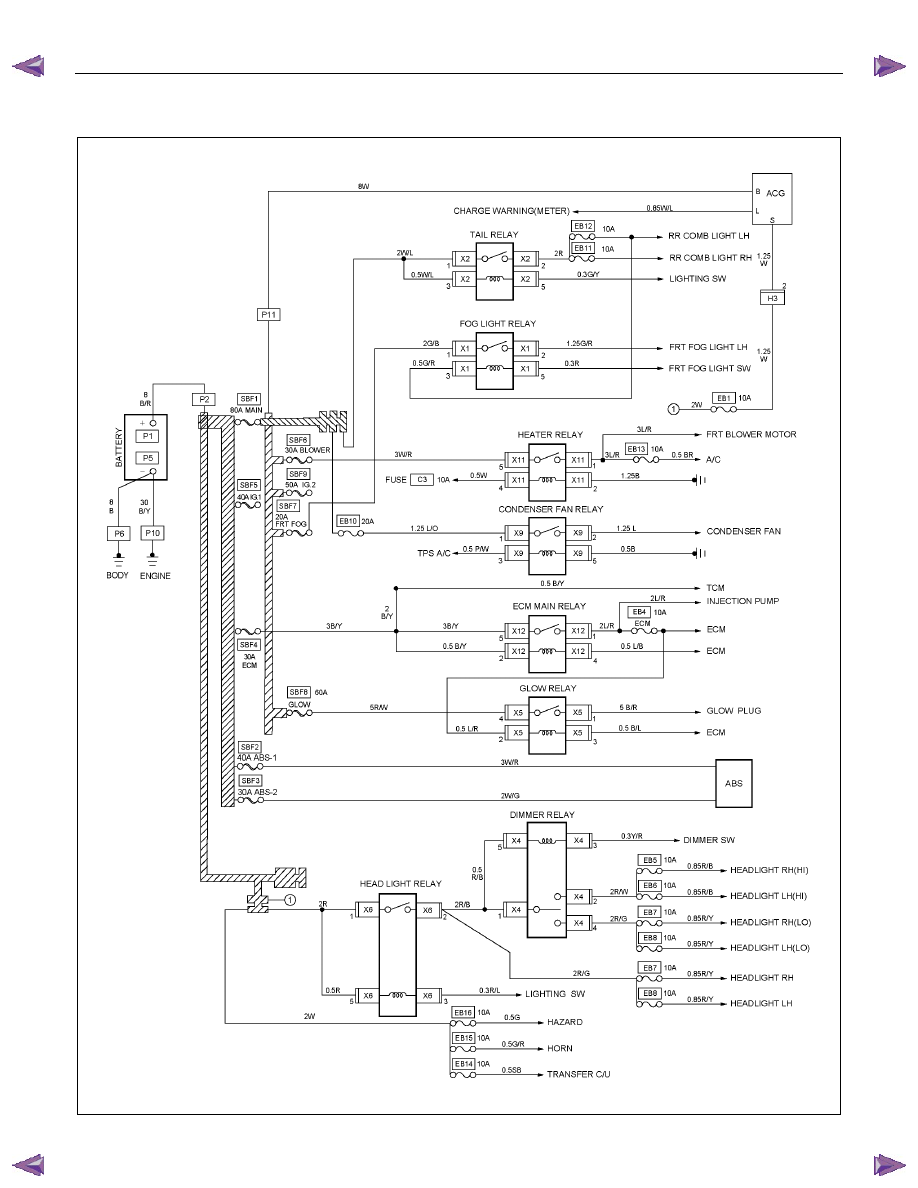

ELECTRICAL-BODY AND CHASSIS  8A-45



FUSE BLOCK CIRCUIT 4JH1-TC (LHD)

Sheet 1/2













RTW78AXF005201
