8A-10  ELECTRICAL-BODY AND CHASSIS

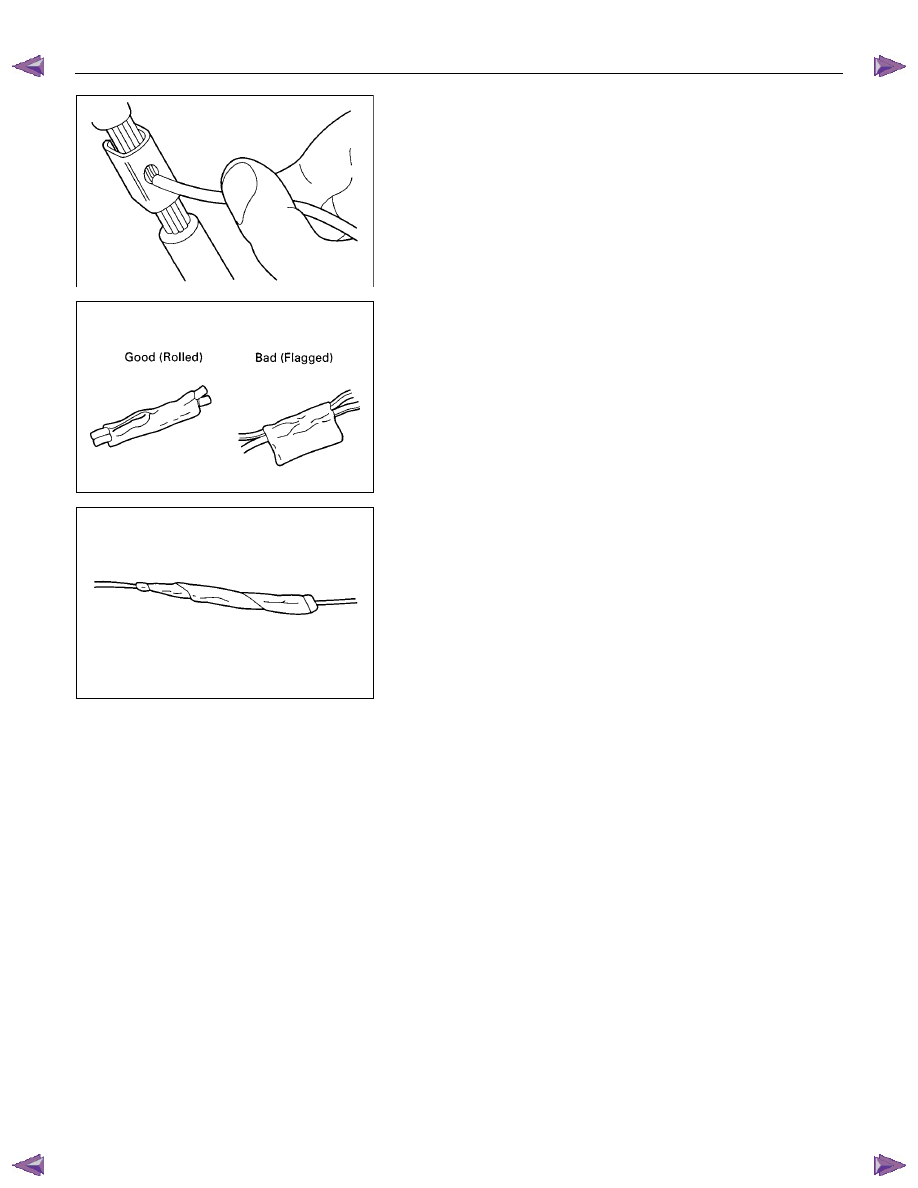

Solder

Apply 60/40 rosin core solder to the opening in the back of the
clip.
Follow the manufacturer’s instructions for the solder equipment
you are using.







Tape the Splice

Center and roll the splicing tape.
The tape should cover the entire splice.
Roll on enough tape to duplicate the thickness of the insulation
on the existing wires.
Do not flag the tape.
Flagged tape may not provide enough insulation, and the
flagged ends will tangle with the other wires in the harness.







If the wire does not belong in a conduit or other harness
covering, tape the wire again.
Use a winding motion to cover the first piece of tape.




ELECTRICAL-BODY AND CHASSIS  8A-11

SYMBOLS AND ABBREVIATIONS

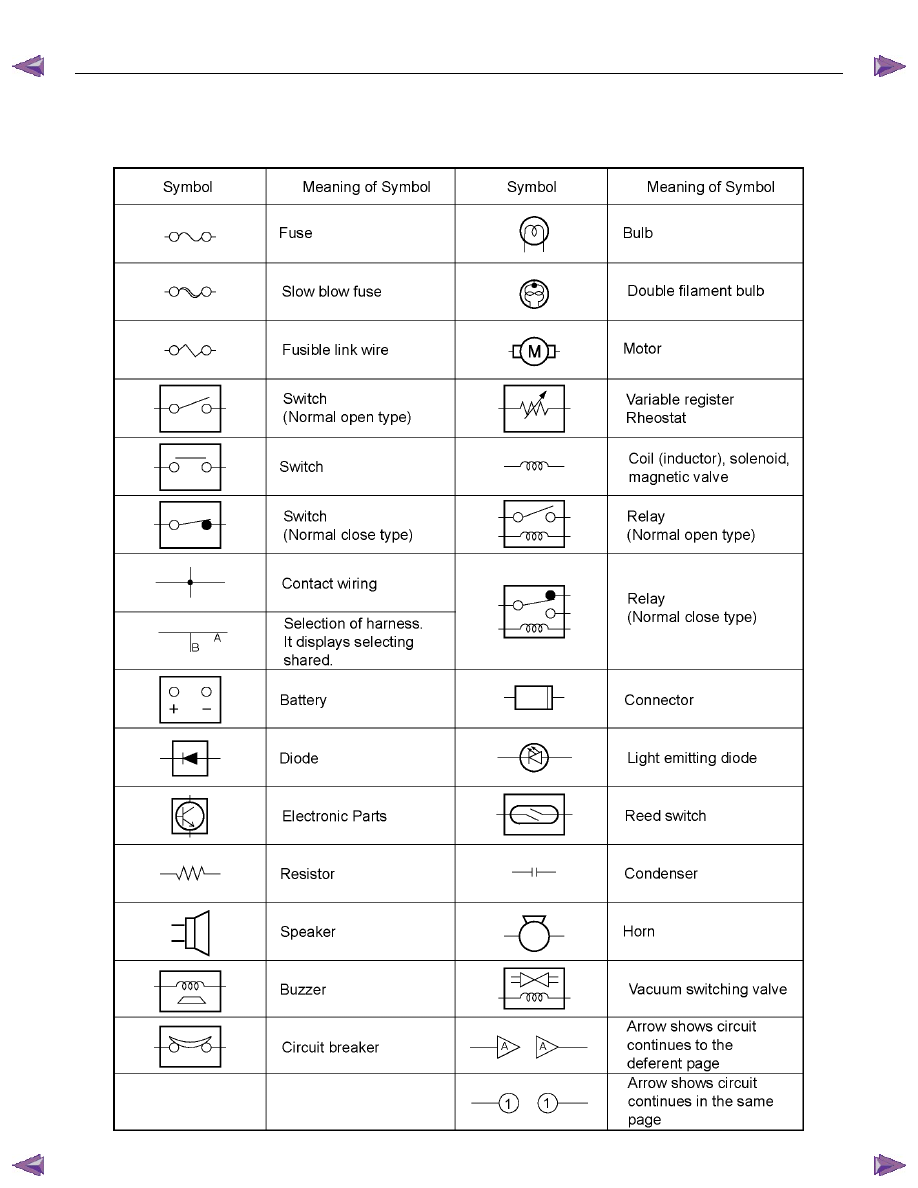

SYMBOLS





8A-12  ELECTRICAL-BODY AND CHASSIS

ABBREVIATIONS

Abbreviation

Meaning of abbreviation

Abbreviation

Meaning of abbreviation

A Ampere

(S)

kW Kilowatt

ABS

Anti-lock brake system

LH

Left hand

ASM

Assembly

LWB

Long wheel base

AC

Alternating current

MPI

Multipart fuel injection

A/C

Air conditioner

M/T

Manual transmission

ACC Accessories

PA  Passenger

CARB

Carburetor

PIM

Power train interface module

C/B Circuit

breaker

PJT Projector

CKP

Crankshaft position

QOS

Quick On Start system

CSD

Cold start device

RH

Right hand

DIS

Direct ignition system

RR

Rear

DR

Driver

RWAL

Rear wheel anti-lock brake system

DRM

Data Recording Module

SCV

Suction control valve

EHCU

Electronic Hydraulic control Unit

SRS

Supplemental restraint system

ECGI

Electronic control gasoline injection

ST

Start

ECM

Engine control module

STD

Standard

ECU

Electronic control unit

SW

Switch

EFE

Early fuel evaporation

SWB

Short wheel base

EGR

Exhaust gas recirculation

TCM

Transmission control module

2WD

Two-wheel drive

TCCM

Transfer case control module

4WD Four-wheel

drive

V  Volt

FL

Fusible link

VSV

Vacuum switching valve

FRT Front

W  Watt

(S)

H/L

Headlight

WOT

Wide open throttle

W/ With

HVAC

Heater, Ventilation, and Air

Conditioning

W/O Without

IC

Integrated circuit

W/S

Weld Splice

IG Ignition





ELECTRICAL-BODY AND CHASSIS  8A-13

PARTS FOR ELECTRICAL CIRCUIT






WIRING

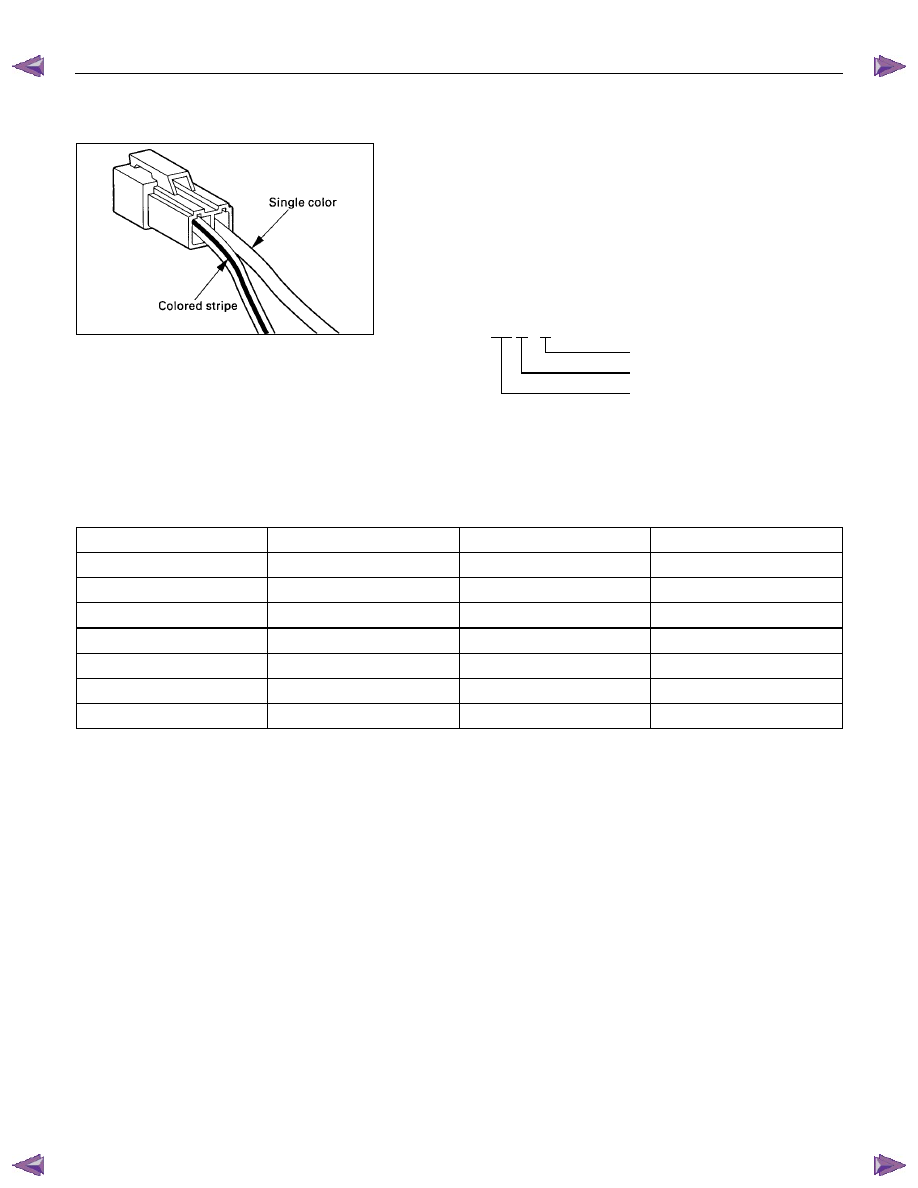

Wire Color

All wires have color-coded insulation.
Wires belonging to system's main harness will have a single
color.
Wires belonging to a system's sub-circuits will have a colored
stripe.
Striped wires use the following code to show wire size and
colors.
Example: 0.5 G / R

Red (Stripe color)

Green (Base color)

Wire size (0.5mm

2

)

Abbreviations are used to indicate wire color within a circuit
diagram.
Refer to the following table.




Wire Color-Coding

Color-Coding

Meaning

Color-Coding

Meaning

B Black BR

Brown

W White LG

Light

green

R Red GR

Gray

G Green P  Pink

Y Yellow SB

Sky

blue

L Blue V Violet

O Orange
