UNIT REPAIR (JR405E)  7A4-39

248L300004




5.0 mm (0.197 in)

5.2 mm (0.205 in)

5.4 mm (0.213 in)









24R&H34




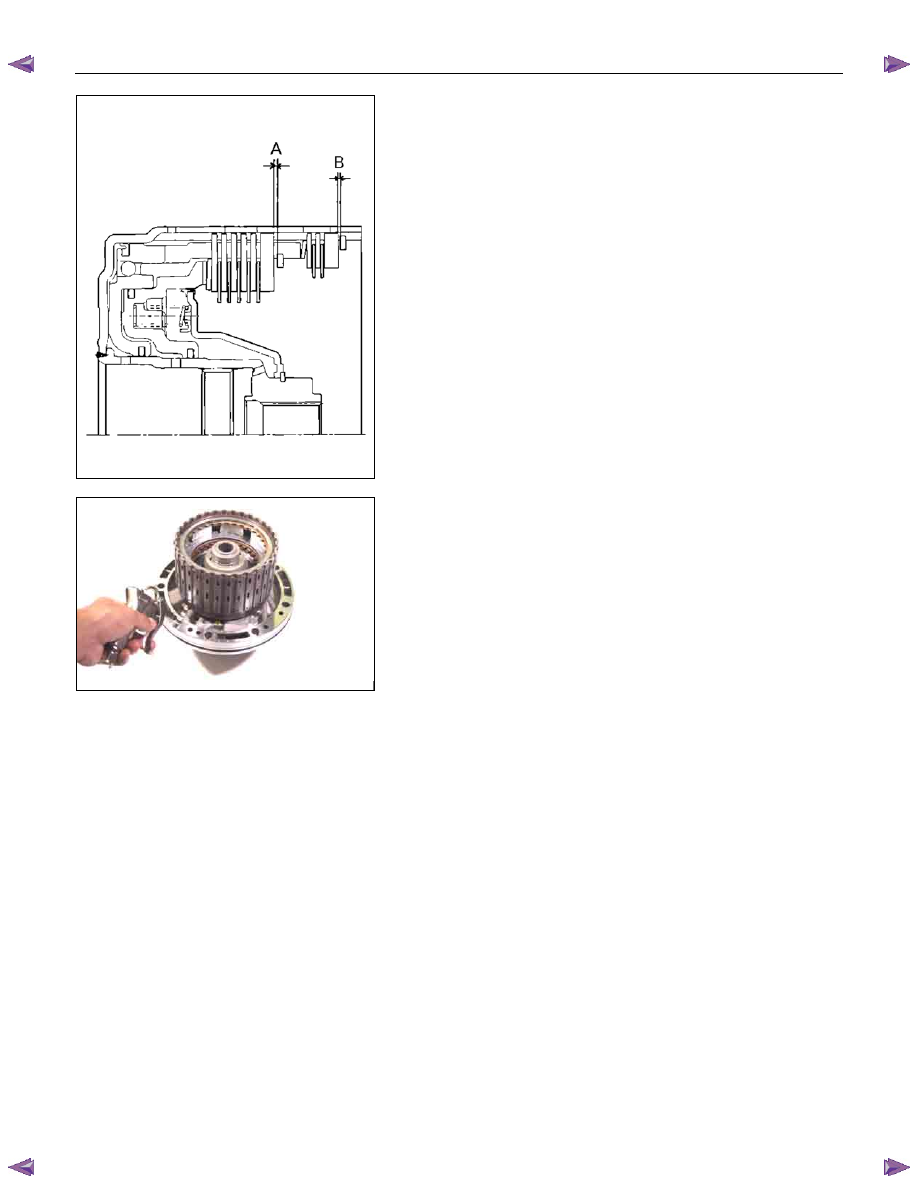

•  Force compressed air (390 kPa/4.0 kgf/cm

2

/57 psi)

through the oil pump oil passages to check reverse

clutch operation.

If the clutch does not operate, the seal ring may be

damaged or the parts may have been installed in the

wrong order.



7A4-40  UNIT REPAIR (JR405E)



25CLEAR04




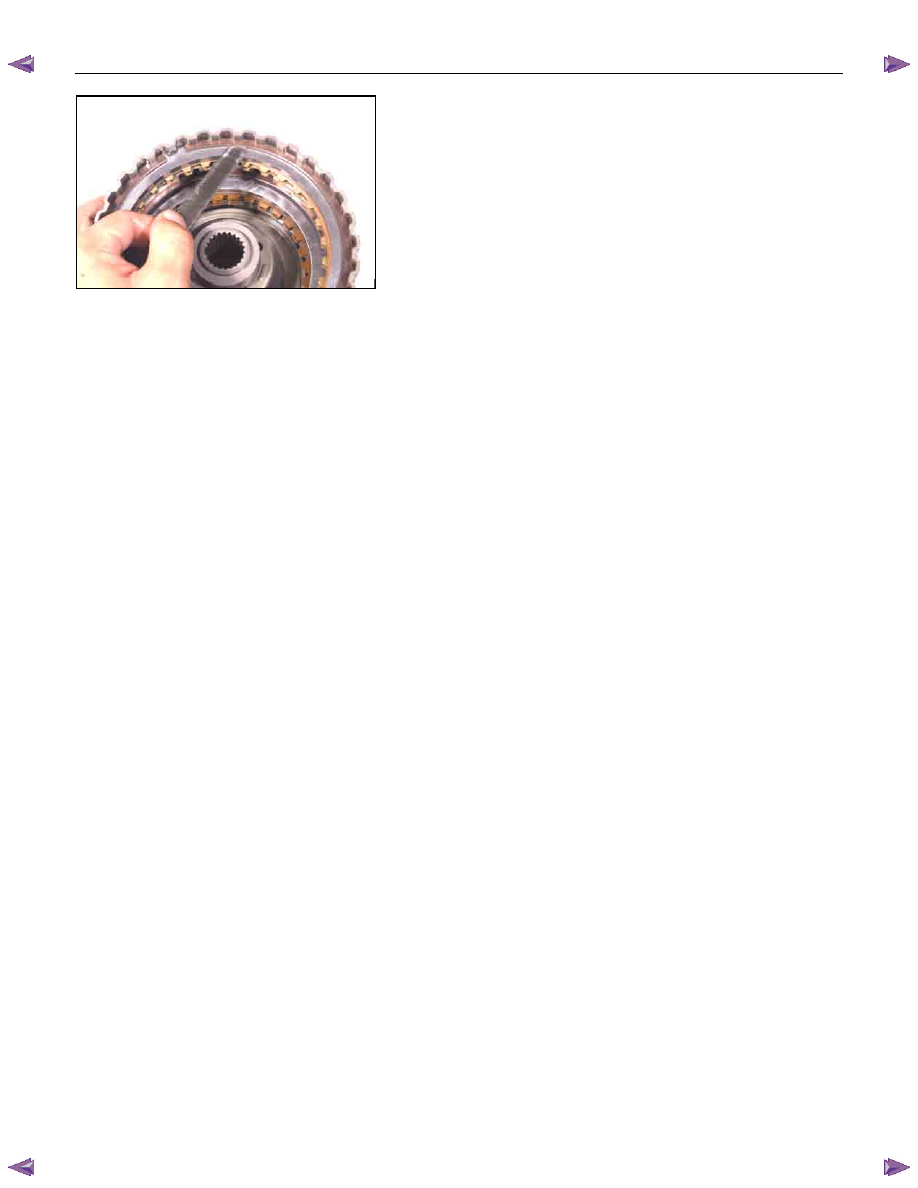

•  Measure the clearance between the reverse clutch

retaining plate and the snap ring.

If the clearance is outside the specified range, replace

the existing retaining plate with a new plate of the proper

size (thickness).

Reverse clutch retaining plate and snap ring

clearance (B):

0.6~0.9 mm (0.024~0.035 in)

Available reverse clutch retaining plate thicknesses

4.8 mm (0.189 in)

5.0 mm (0.197 in)

5.2 mm (0.205 in)

5.4 mm (0.213 in)





UNIT REPAIR (JR405E)  7A4-41

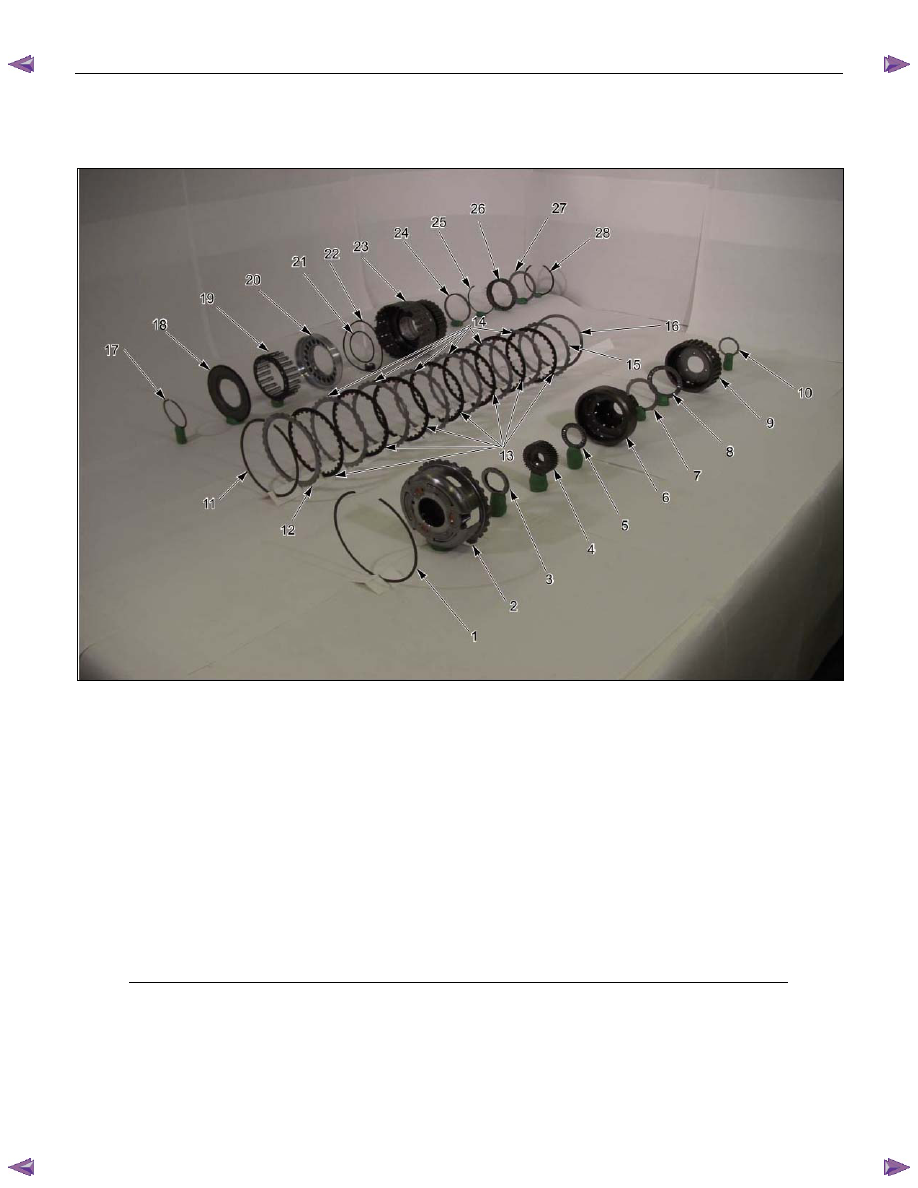

CARRIER AND LOW CLUTCH
ASSEMBLY





01C&L12

Legend



1. Snap ring



2. Front carrier



3. Bearing (with bearing race)



4. Rear sun gear

 5.

Bearing



6. Rear carrier



7. Bearing race

 8.

Bearing



9. Rear internal gear

  10. Bearing race
  11. Snap ring
  12. Retaining plate
  13. Drive plate (7, low clutch)
  14. Driven plate (6, low clutch)





  15. Driven plate (1, 2 mm thick, low clutch)
  16. Dish plate
  17. Snap ring
  18. Cancel cover
  19. Return spring
  20. Low clutch piston
  21. Seal ring (small)
  22. Seal ring (large)
  23. Low clutch drum
 24.

Bearing

  25. Snap ring
  26. Low one-way clutch
  27. Side plate
  28. Snap ring

7A4-42  UNIT REPAIR (JR405E)



02C&L-SUB03




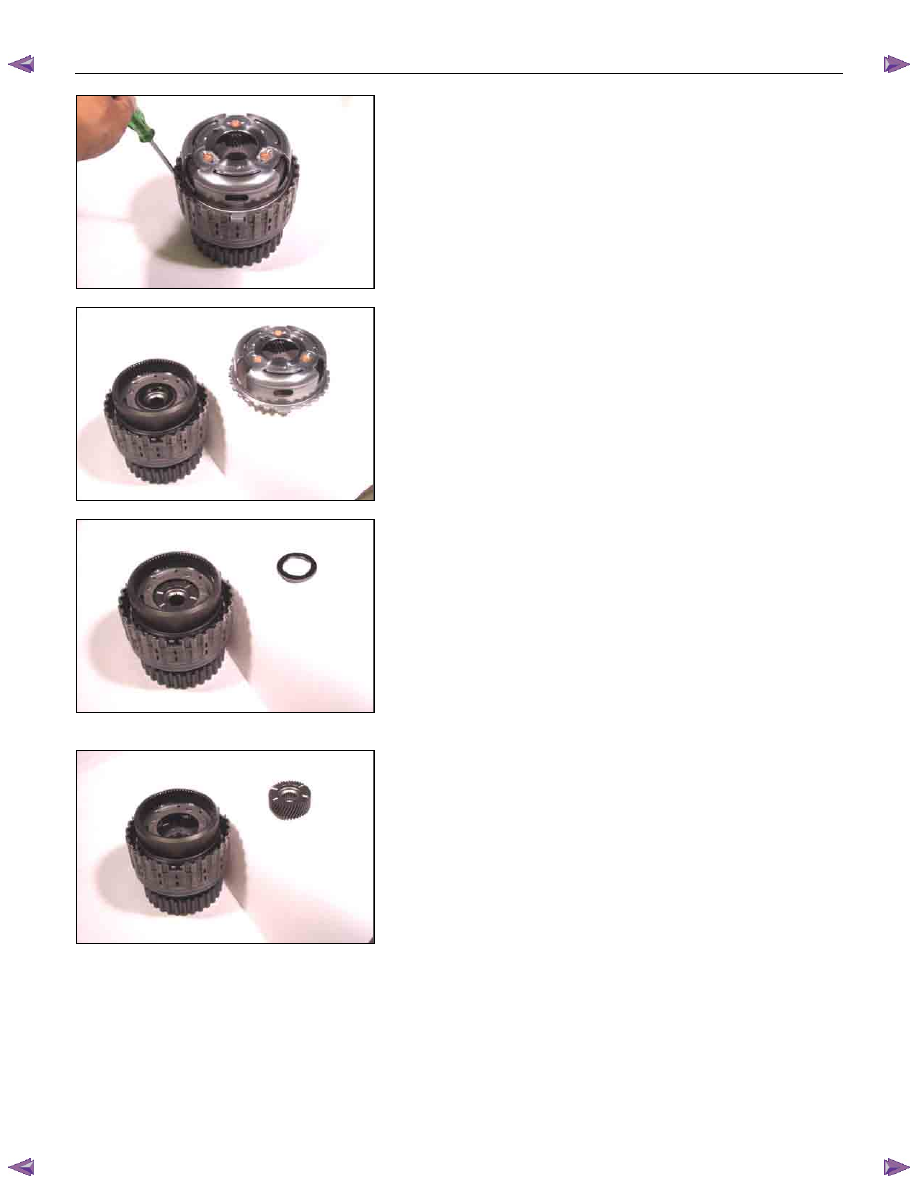

Disassembly steps

1. Snap ring

Remove the snap ring from the low clutch drum.





03C&L-SUB05




2. Front carrier

Remove the front carrier from the low clutch assembly.





04C&L-SUB06




3.  Bearing (with bearing race)

4.  Rear sun gear

5. Bearing

6. Rear carrier

7. Bearing race

8. Bearing

9.  Rear internal gear

10.Bearing race

Remove the bearing (with bearing race), the rear sun gear,

the bearing, the rear carrier, the bearing race, the bearing,

and rear internal gear.



05C&L-SUB07
