UNIT REPAIR (JR405E)  7A4-35

Return springs

•  Check the number of effective return spring coils.

If the number is less than the specified minimum, the

return spring must be replaced.

Effective return spring coils (standard): 10.2

•  Measure the return spring outside diameter, free length,

and linear diameter.

If any of the measured values exceed the specified limit,

the return spring must be replaced.

Return spring measurements (standard):

Outside diameter – 8.0 mm (0.315 in)

Free length – 27.1 mm (1.067 in)

Linear diameter – 1.1 mm (0.043 in)





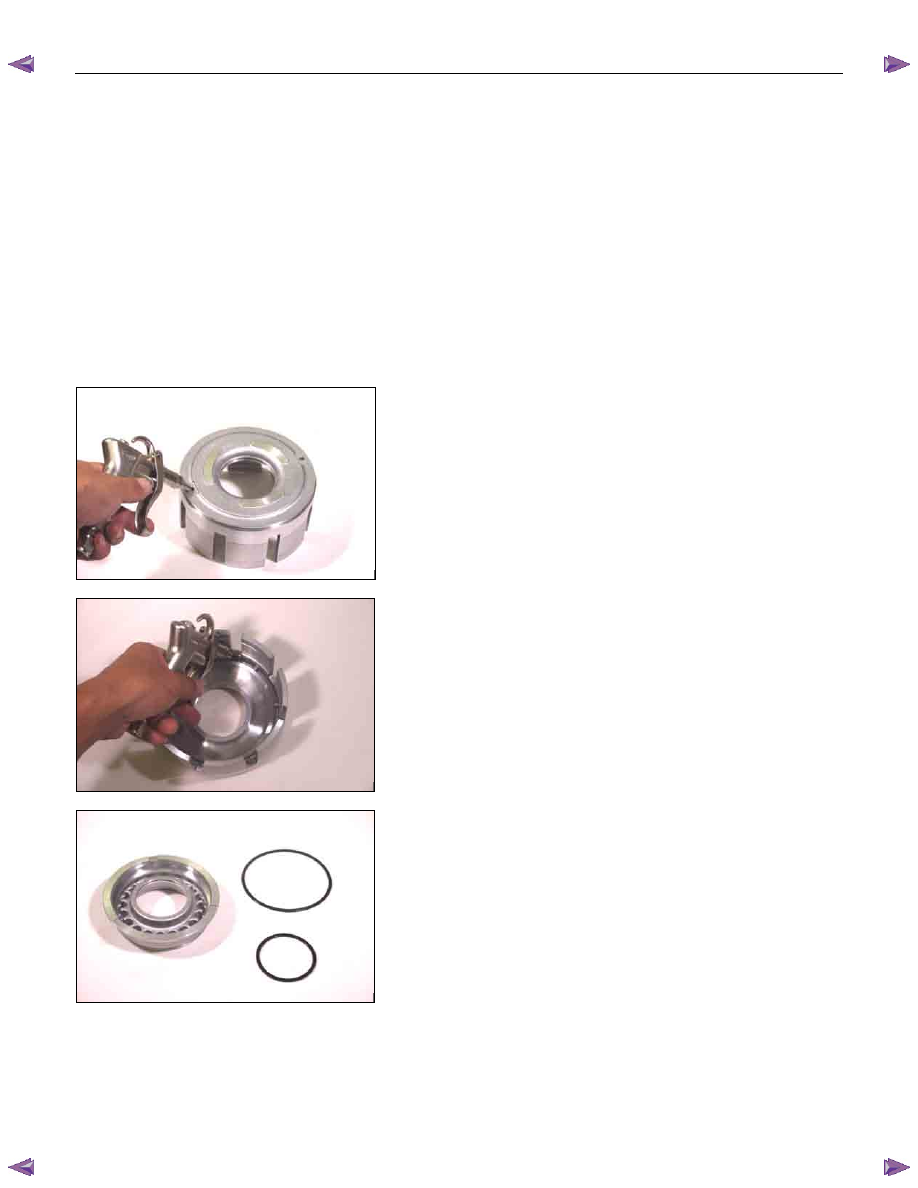

10R&H40




Reverse clutch piston

•  Apply compressed air (390 kPa/4.0 kgf/cm

2

/57 psi) to

the reverse clutch piston from the outside to the inside.

The flow of air should be blocked.





11R&H44




•  Apply compressed air (390 kPa/4.0 kgf/cm

2

/57 psi) to

the reverse clutch piston from inside to the outside.

The flow of air should be unrestricted.





12R&H39




Reassembly steps

Coat the parts with ATF before installing them.
1.  Seal ring (high clutch)

Install new seal rings to the high clutch piston.



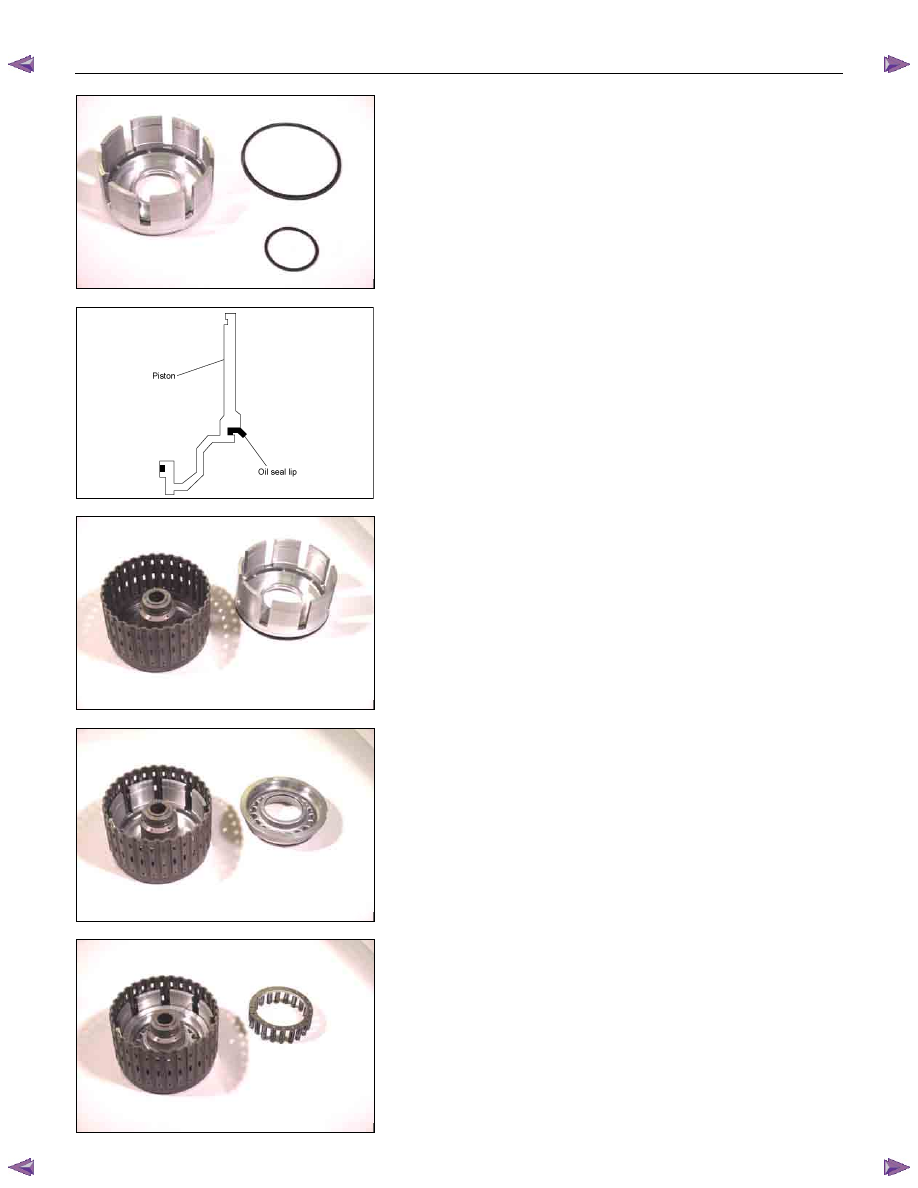

7A4-36  UNIT REPAIR (JR405E)



13R&H38




2.  Seal ring (reverse clutch)

Install new seal rings to the reverse clutch piston.









RTW47ASH000601





As shown in a figure, oil seal lip is attached.



14R&H32




3.  Reverse clutch piston

Install the reverse clutch piston to the reverse and high

clutch drum.





15R&H31




4.  High clutch piston

Install the high clutch piston to the reverse clutch piston.





16R&H33




5. Return spring

Install the return spring to the high clutch piston.



UNIT REPAIR (JR405E)  7A4-37



17R&H30




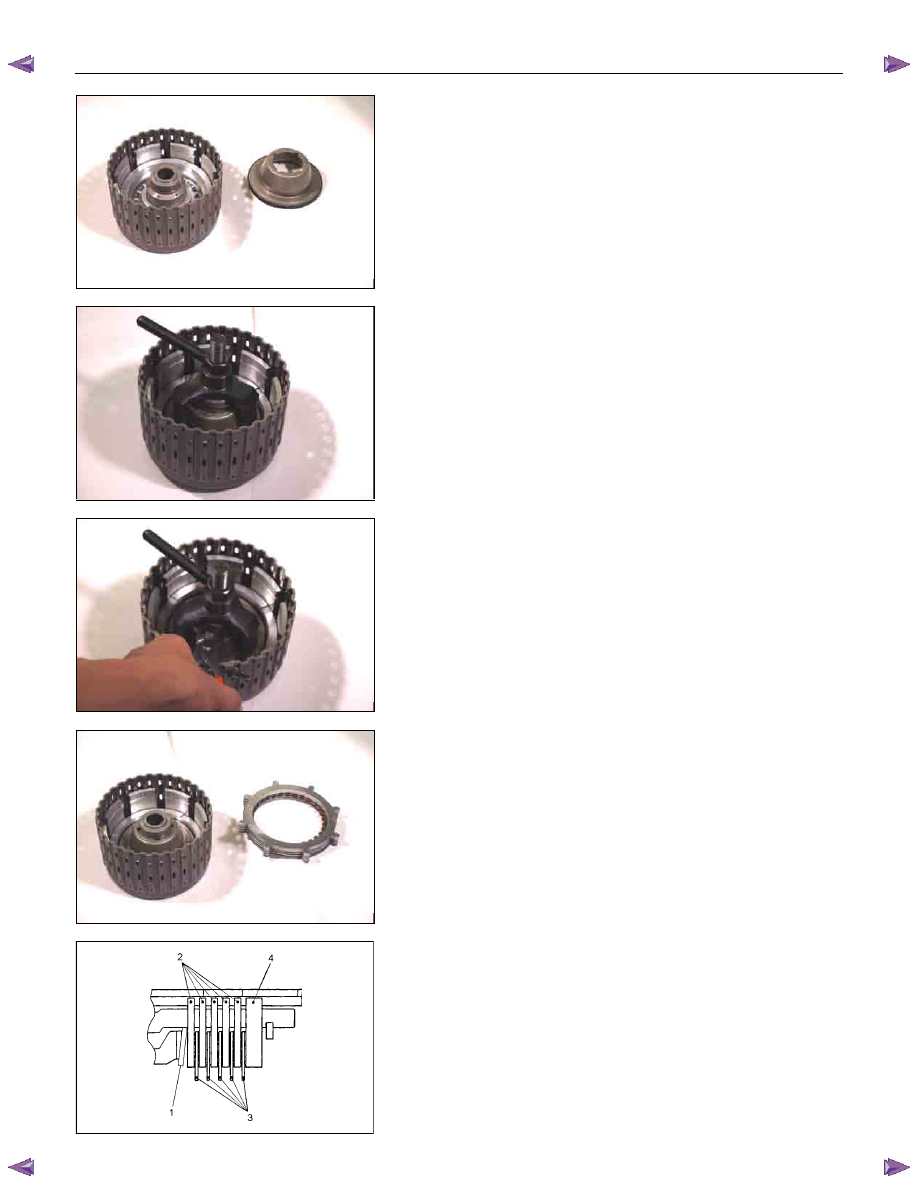

6.  High clutch cover

•  Carefully center the high clutch cover and install it.

NOTE:
If the clutch cover is not centered, the cover outside seal
gum will be forced into the piston area where it will be
damaged.




18R&H27




7. Snap ring

•  Install the spring compressor to the reverse and high

clutch drum.

•  Use the spring compressor to carefully force the high

clutch cover down.

Spring compressor: 5-8840-2767-0

NOTE:
To avoid damage to the return springs, use only as much
force as is required to press the high clutch cover into
place.



19R&H28




•  Install the new snap ring to the reverse and high clutch

drum.



20R&H25




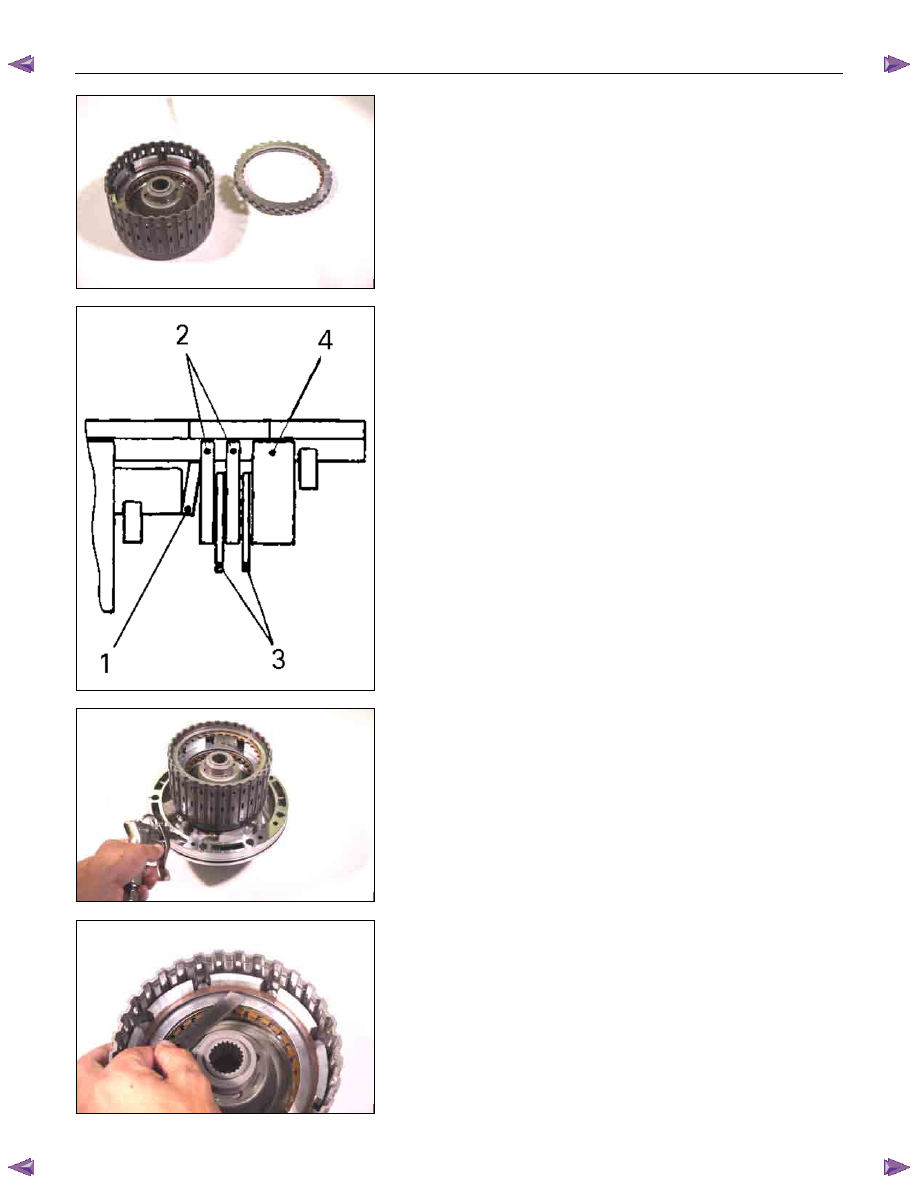

8. Dish plate, drive plates, driven plates, and retaining

plate

Install the high clutch dish plate (1), the 5 driven plates (2),

the 5 drive plates (3), and retaining plate (4).









RTW47ASH000501




9. Snap ring

Install the snap ring.


NOTE:
Ensure the attachment direction of dish plate (1) is correct.

7A4-38  UNIT REPAIR (JR405E)



21R&H21




10.Dish plate, drive plates, driven plates, and retaining

plate

Install the reverse clutch dish plate (1) the 2 driven plates

(2), the 2 drive plates (3), and retaining plate (4).



248L300003




11.Snap ring

Install the snap ring.


NOTE:
Ensure the attachment direction of dish plate (1) is correct.



22R&H35




•  Install the reverse and high clutch drum to the oil pump

assembly.

•  Force compressed air (390 kPa/4.0 kgf/cm

2

/57 psi)

through the oil pump oil passages to check high clutch

operation.

If the clutch does not operate, the seal ring may be

damaged or the parts may have been installed in the

wrong order.





23CLEAR02




•  Measure the clearance between the high clutch retaining

plate and the snap ring.

If the clearance is outside the specified range, replace

the existing retaining plate with a new plate of the proper

size (thickness).

High clutch retaining plate and snap ring clearance

(A): 1.2~1.6 mm (0.047~0.063 in)

Available high clutch retaining plate thicknesses

4.6 mm (0.181 in)

4.8 mm (0.189 in)
