7A2-48 DIAGNOSIS

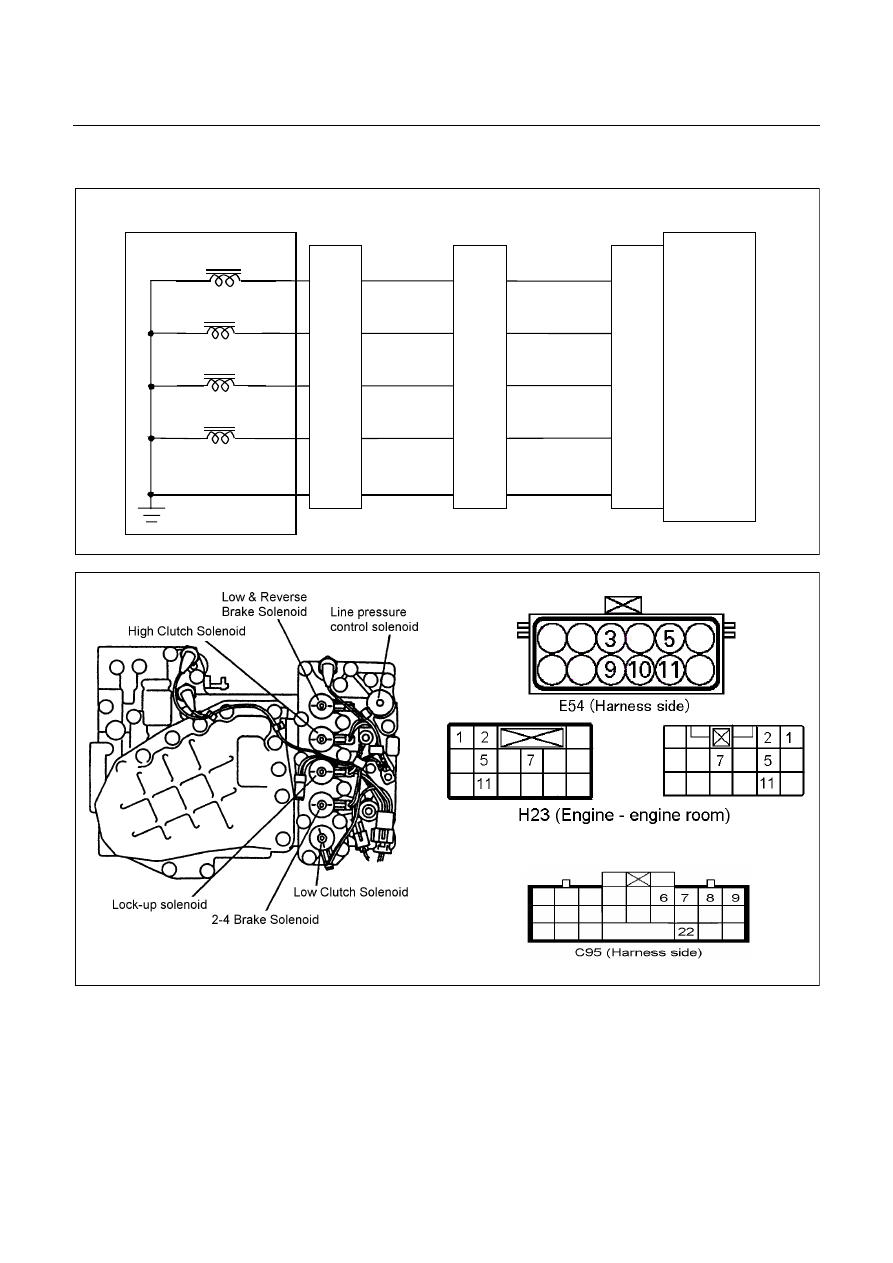

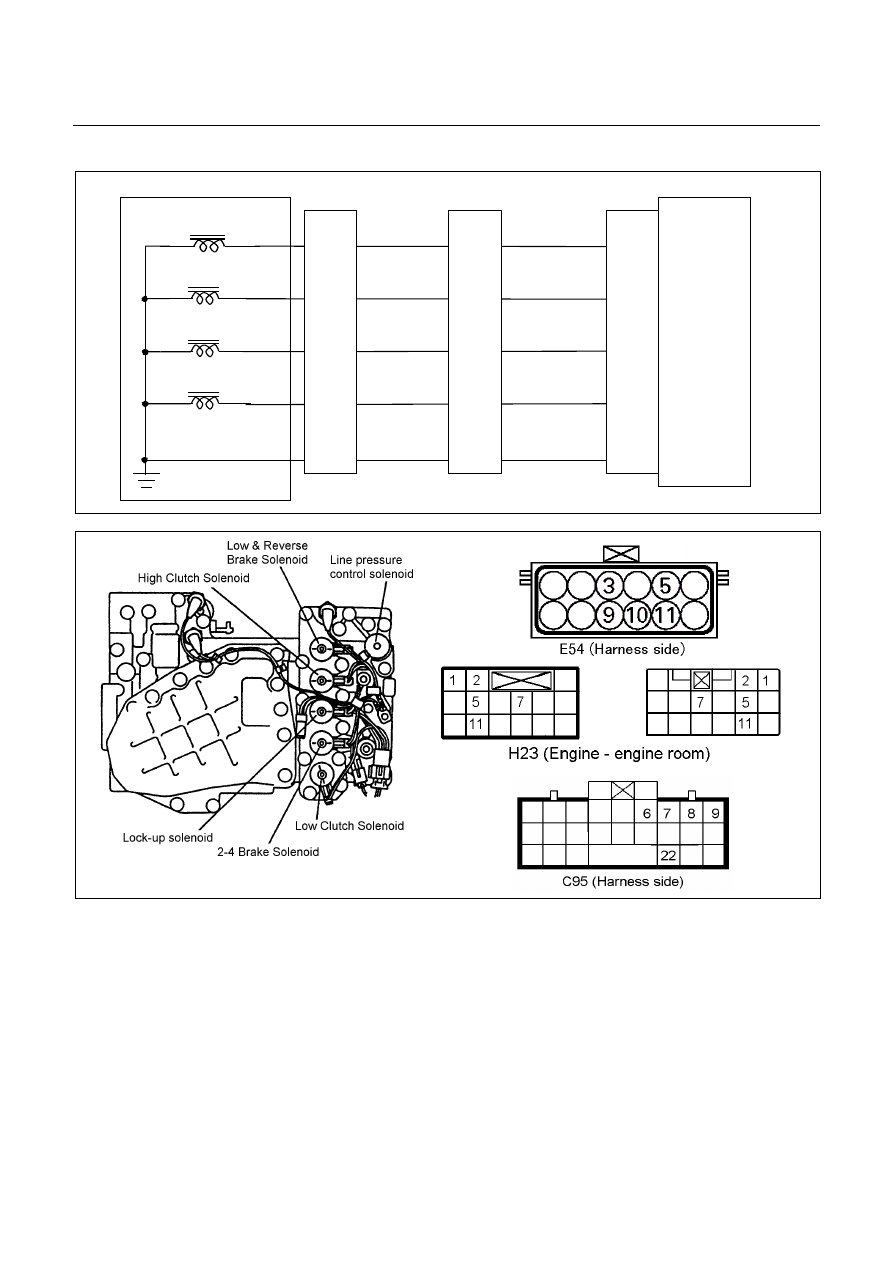

DTC P1875 (Flash Code 25) GND Return Circuit Failure
Control Valve
TCM
BLU/BLK WHT/BLU L&R Brake Solenoid
Terminal Assembly BLK/YEL RED 2-4 Brake Solenoid
High Clutch Solenoid
Low Clutch Solenoid
E54
(5)
(9) (10)
(3) (11) H23 (5) (7) (2) (1) GRY/RED C95 (6) (7) (8) (9) (22)
BLU/BLK BLK/YEL RED WHT/BLU GRY/RED

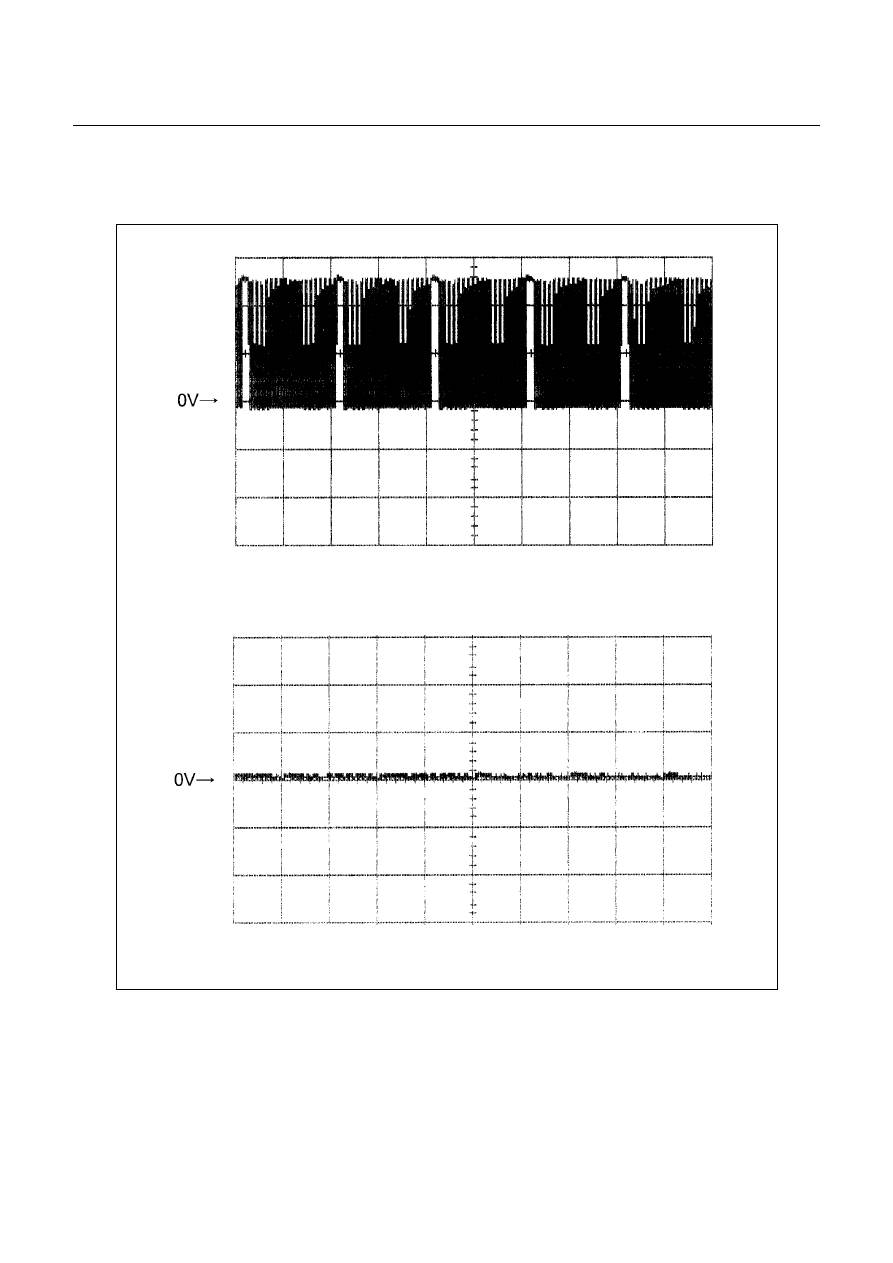

• Ground return circuit is failed 7 times continuously after the low & reverse brake duty solenoid output signal turn on. • All solenoid operations are stopped (OFF), the gear is fixed to the 3rd, and the lock-up is inhibited. (In case of fail-safe valve failure, gear shift to 4th (over-drive) and lock-up are inhibited.) • Ground return wire open circuit between terminal assembly terminal 11 and TCM terminal B22 (C95). • Poor connection of each connector.
|
