Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1408





ELECTRICAL-BODY AND CHASSIS  8-197

AUDIO, CLOCK AND CIGARETTE LIGHTER

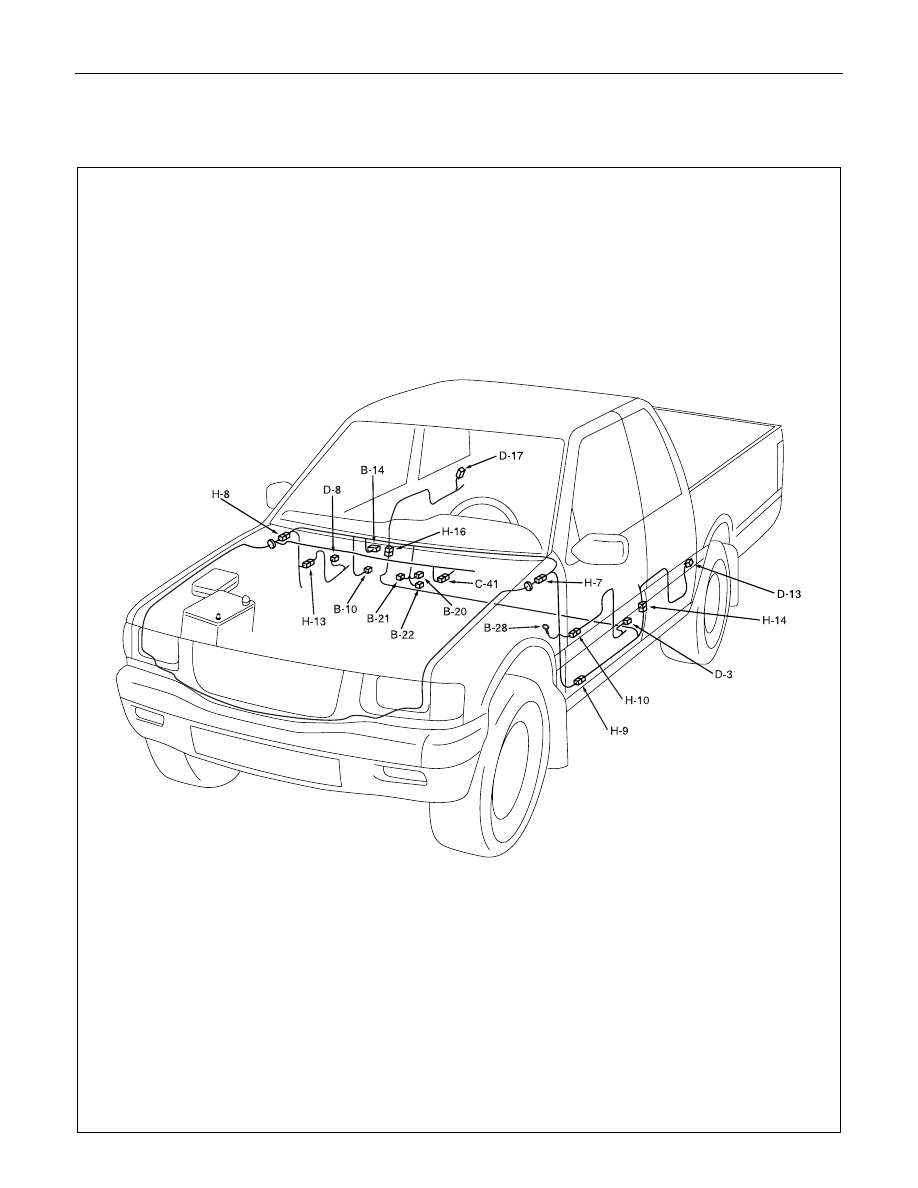

PARTS LOCATION (LHD)

8-198  ELECTRICAL-BODY AND CHASSIS

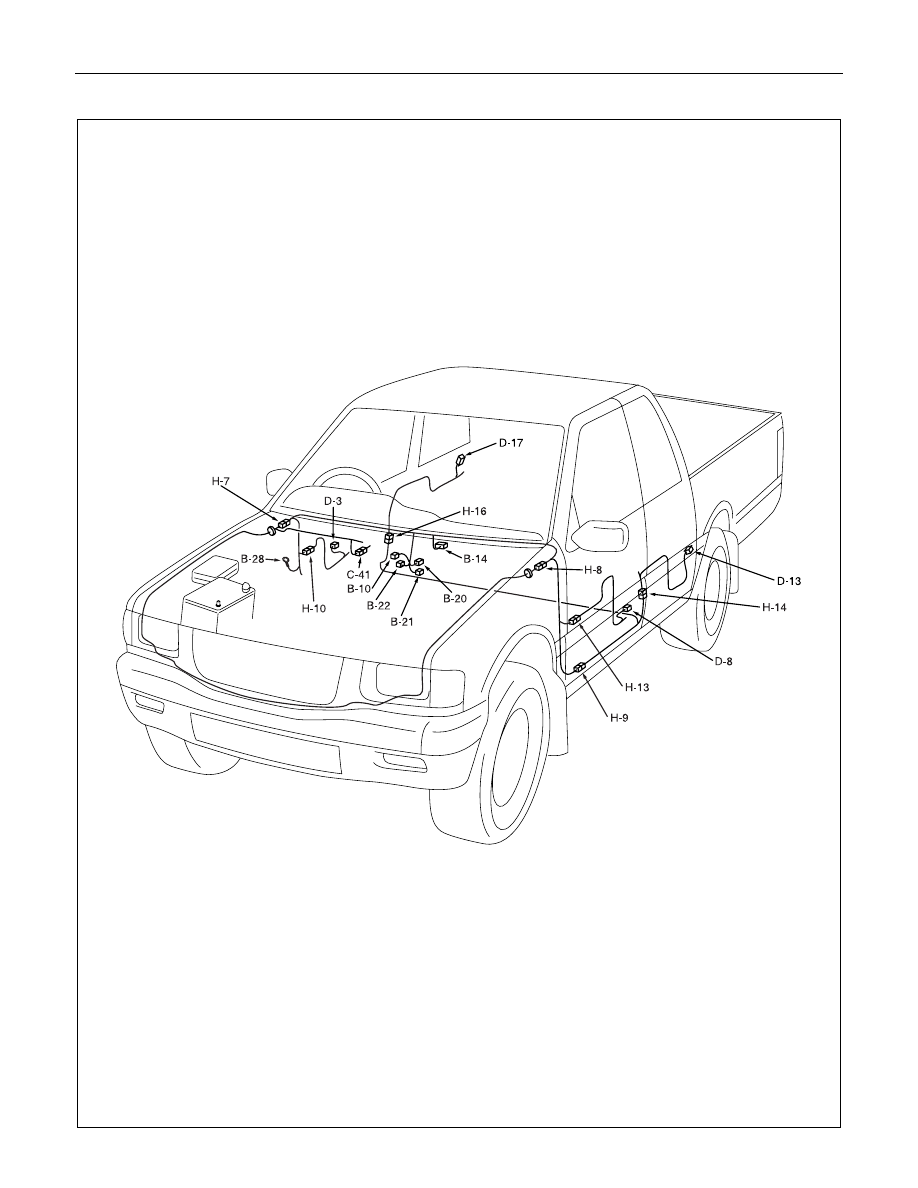

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-199

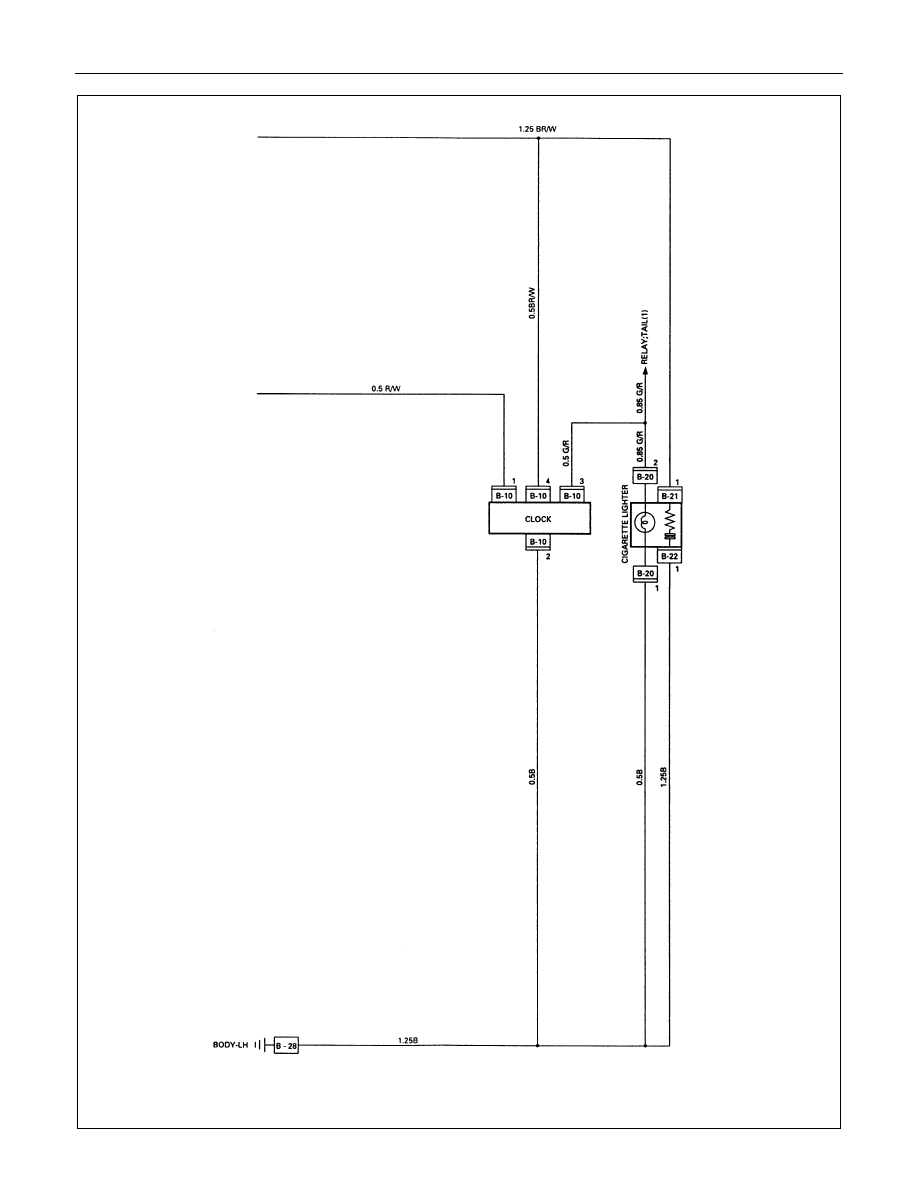

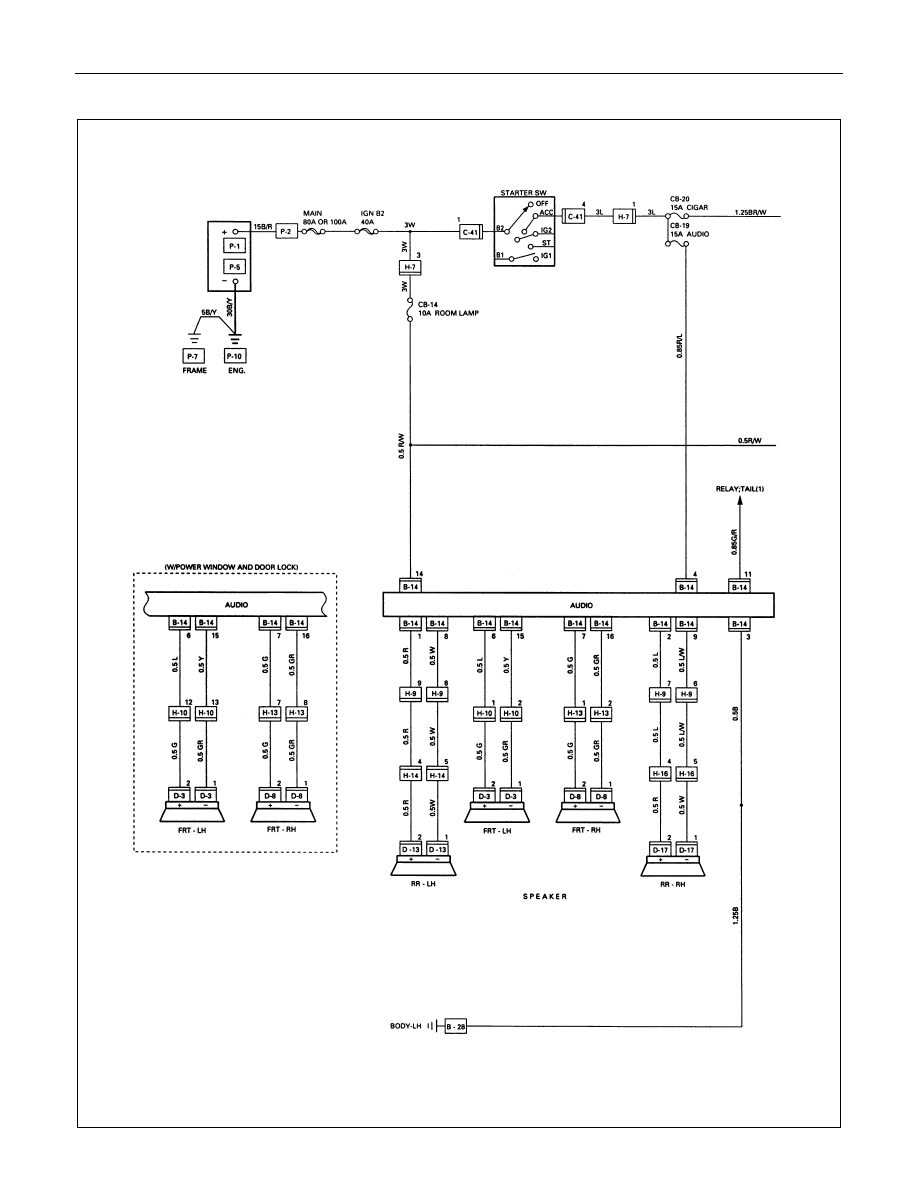

CIRCUIT DIAGRAM (LHD)

8-200  ELECTRICAL-BODY AND CHASSIS
