child restraint while in the vehicle.

When the child restraint is not in use,
keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the ve-
hicle.

CAUTION

A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.

This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attach-
ments that can be connected to these
anchors.
For details, see “Lower Anchors and Tethers
for CHildren System (LATCH)” (P.1-24).
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints
for infants and small children of various
sizes. When selecting any child restraint,

keep the following points in mind:

Choose only a restraint with a label

certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.

Check the child restraint in your vehicle to

be sure it is compatible with the vehicle’s
seat and seat belt system.

If the child restraint is compatible with

your vehicle, place your child in the child
restraint and check the various adjust-
ments to be sure the child restraint is
compatible with your child. Choose a
child restraint that is designed for your
child’s height and weight. Always follow
all recommended procedures.

If the combined weight of the child and

child restraint is less than 65 lbs (29.5
kg), you may use either the LATCH
anchors or the seat belt to install the
child restraint (not both at the same
time).

If the combined weight of the child and

child restraint is greater than 65 lbs (29.5
kg), use the vehicle’s seat belt (not the
lower anchors) to install the child re-
straint.

Be sure to follow the child restraint

manufacturer’s instructions for installa-
tion.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle.

Safety — Seats, seat belts and supplemental restraint system

1-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-24

Safety — Seats, seat belts and supplemental restraint system

JVR0188X

Models with rear seat folding

SSS0567

Models without rear seat folding

Lower Anchors and Tethers for
CHildren System (LATCH)

Your vehicle is equipped with special anchor
points that are used with the LATCH (Lower
Anchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do
not have to use a vehicle seat belt to secure
the child restraint unless the combined
weight of the child and child restraint
exceeds 65 lbs (29.5 kg). If the combined
weight of the child and child restraint is
greater than 65 lbs (29.5 kg), use the
vehicle’s seat belt (not the lower anchors)
to install the child restraint. Be sure to follow
the child restraint manufacturer’s instruc-
tions for installation.
The LATCH anchor points can be used to
install child restraints in either of the rear
outboard seating positions or in the center
rear seating position. Please refer to the
following section of this Owner’s Manual for
specific information about installing a child
restraint in the center rear seating position
using the LATCH anchors.

LATCH lower anchor

WARNING

Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or other
passengers in a sudden stop or collision:

Only attach LATCH system compa-
tible child restraints to the lower
anchors shown in the illustration.
(See the following sections of this
Owner’s Manual for installation gui-
dance.)

Inspect the lower anchors by insert-
ing your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such as
seat belt webbing or seat cushion
material. The child restraint will not
be secured properly if the lower
anchors are obstructed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.

SSS0637

LATCH lower anchor location

Models without rear seat folding:

The LATCH lower anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH lower anchors.

WAB0039X

Models with rear seat folding:

The LATCH lower anchors are located
behind the cover. Flip and fold the cover,
and fix it with the hook-and-loop fastener as
shown. A label is attached to the seatback to
help you locate the LATCH lower anchors.

Safety — Seats, seat belts and supplemental restraint system

1-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-26

Safety — Seats, seat belts and supplemental restraint system

WAB0130X

LATCH in the center rear seating
position

There are no LATCH anchors dedicated to
the center rear seating position. However,
the inboard LATCH anchors belonging to
the two outboard seating positions (indi-
cated by the arrows) can be used together to
secure a CRS in the center rear seating
position. These anchors are separated by a
distance

of 15.6 in (395 mm). Before

attempting to secure a CRS in this seating
position, ensure that the CRS manufac-
turer’s instructions permit the use of LATCH
anchors with the spacing indicated above.
(These are sometimes referred to as “shared
anchors” or “borrowed anchors”.)

CRS with rigid lower attachments cannot be
installed in the center seat. This type of CRS
should only be installed in the outboard
seating positions.

WARNING

Never attach two CRS attachments to
the same LATCH anchor. This may over-
load the anchor in a collision, which could
increase the risk of the occupant’s
serious injury or death.

When installing the CRS in the center
rear seating position with the inboard
LATCH anchors, be careful to ensure any
occupant or CRS in the outboard seating
positions is properly restrained using the
vehicle seat belt and there is no inter-
ference with the center CRS installation.
If the outboard occupants cannot be
properly restrained, consider using the
vehicle seat belt to restrain the CRS in
the center seating position, or moving
the CRS to another position instead.

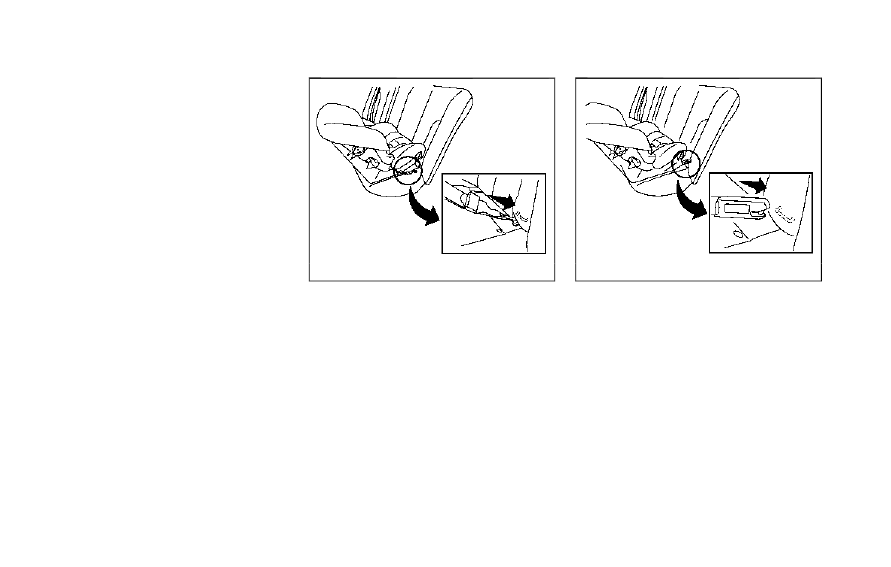

SSS0643

LATCH webbing-mounted attachment

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attachments
that can be connected to two anchors
located at certain seating positions in your
vehicle. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint. Check your child restraint for a
label stating that it is compatible with
LATCH. This information may also be in
the instructions provided by the child re-
straint manufacturer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0644

LATCH rigid-mounted attachment

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

JVR0258X

Top tether anchor point locations

Anchor points are located on the rear parcel
shelf.

If you have any questions when installing a
top tether strap child restraint on the rear
seat, it is recommended you visit an
INFINITI retailer for this service.

The child restraint top tether strap must be
used when installing forward facing child
restraints with the LATCH lower anchor
attachments or seat belts. (See “Installing
top tether strap” (P.1-34).)

WARNING

Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.

REAR-FACING CHILD RE-
STRAINT INSTALLATION USING
LATCH

For additional information, refer to all
Warnings and Cautions in the “Child safety”
and “Child restraints” sections before instal-
ling a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s

Safety — Seats, seat belts and supplemental restraint system

1-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-28

Safety — Seats, seat belts and supplemental restraint system

instructions for installation.
Follow these steps to install a rear-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

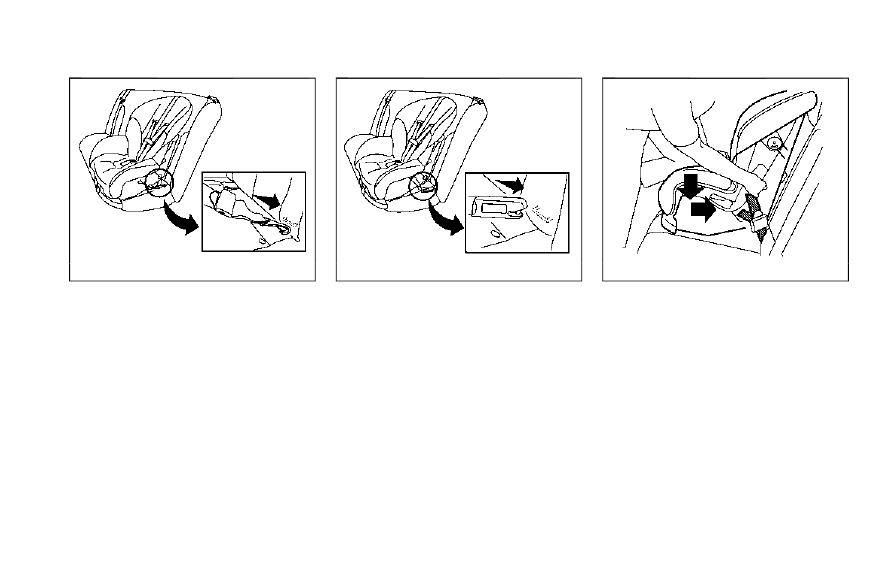

SSS0648

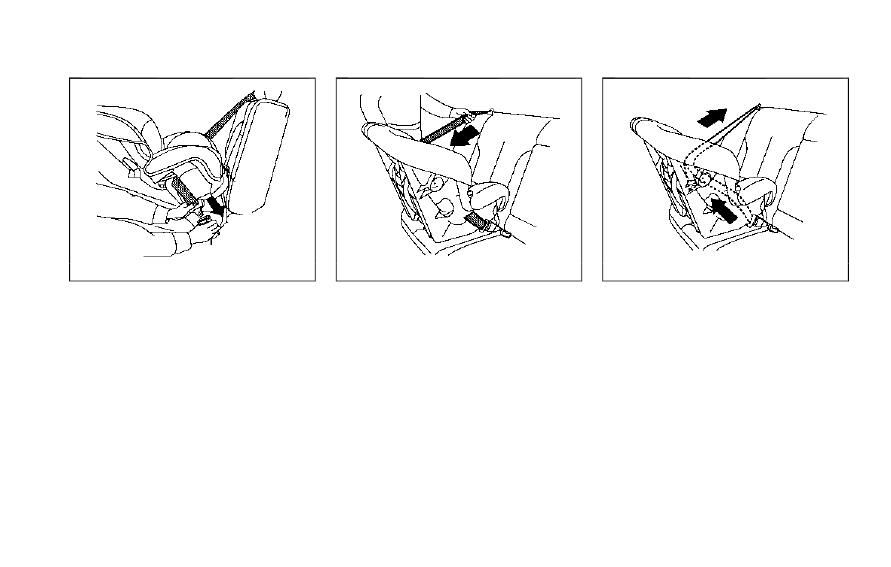

Rear-facing web-mounted — step 2

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.

SSS0649

Rear-facing rigid-mounted — step 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

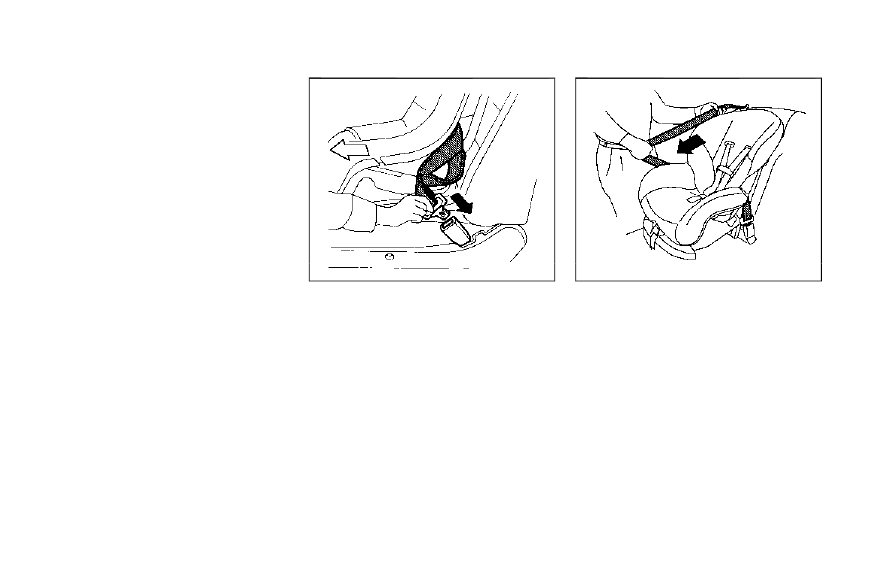

SSS0639

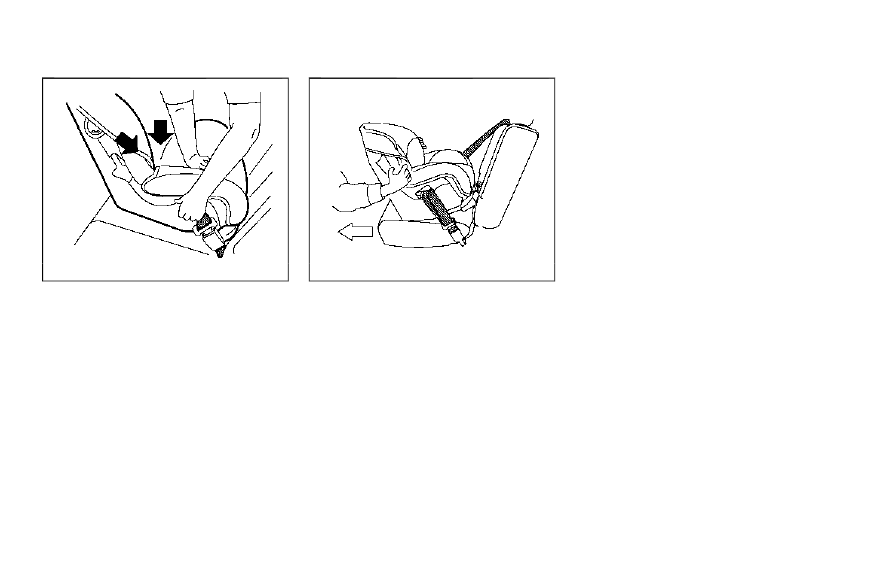

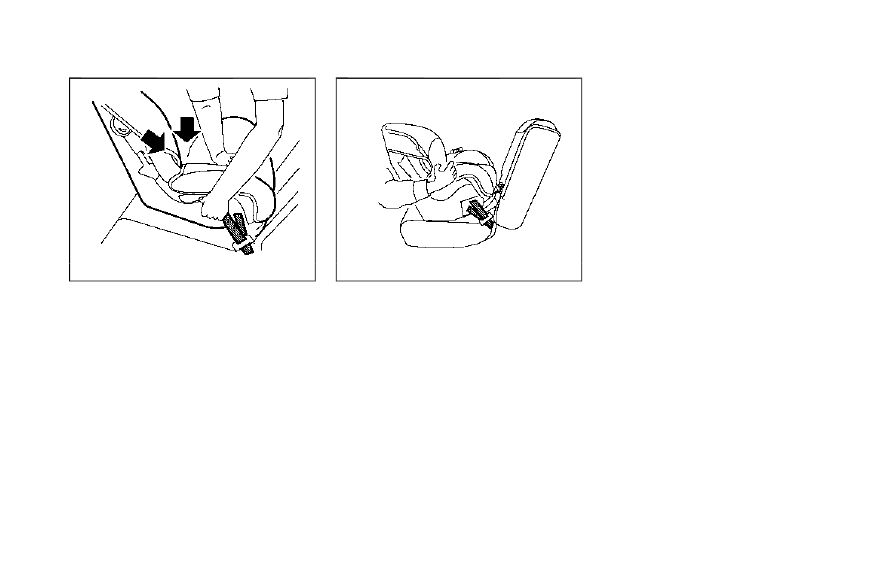

Rear-facing — step 3

3. For child restraints that are equipped

with webbing-mounted attachments, re-
move any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of the
anchor attachments.

SSS0650

Rear-facing — step 4

4. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to
see if the LATCH attachment holds the
restraint in place. If the restraint is not
secure, tighten the LATCH attachment
as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint or
try installing by using the vehicle seat
belt (if applicable). Not all child restraints
fit in all types of vehicles.

5. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.

Safety — Seats, seat belts and supplemental restraint system

1-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-30

Safety — Seats, seat belts and supplemental restraint system

REAR-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-50).

For additional information, refer to all
Warnings and Cautions in the “Child safety”
(P.1-19) and “Child restraints” (P.1-22) be-
fore installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s

instructions for installation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

SSS0100

Rear-facing — step 1

Child restraints for infants must be used
in the rear-facing direction and there-
fore must not be used in the front seat.

Position the child restraint on the seat.
Always follow the restraint manufac-
turer’s instructions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0654

Rear-facing — step 2

2. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint
manufacturer’s instructions for belt
routing.

SSS0655

Rear-facing — step 3

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt
retractor is in the Automatic Locking
Retractor (ALR) mode (child restraint
mode). It reverts to the Emergency
Locking Retractor (ELR) mode when
the seat belt is fully retracted.

SSS0656

Rear-facing — step 4

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

Safety — Seats, seat belts and supplemental restraint system

1-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-32

Safety — Seats, seat belts and supplemental restraint system

SSS0657

Rear-facing — step 5

5. Remove any additional slack from the

seat belt; press downward and rearward
firmly in the center of the child restraint
to compress the vehicle seat cushion and
seatback while pulling up on the seat
belt.

SSS0658

Rear-facing — step 6

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the belt holds the restraint in place. If the
restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint. Not
all child restraints fit in all types of
vehicles.

7. Check to make sure that the child

restraint is properly secured prior to each

use. If the seat belt is not locked, repeat
steps 1 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode (child
restraint mode) is canceled.

FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
LATCH

Always follow the child restraint manu-
facturer’s instructions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0645

Forward-facing web-mounted — step 2

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point. See “Installing top
tether strap” (P.1-34). Do not install child
restraints that require the use of a top
tether strap in seating positions that do
not have a top tether anchor.

SSS0646

Forward-facing rigid-mounted — step 2

3. The back of the child restraint should be

secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint to obtain the correct child
restraint fit. If the head restraint is
removed, store it in a secure place.

sure to reinstall the head restraint when
the child restraint is removed.

See “Head

restraints/headrests” (P.1-8) for head
restraint adjustment information.
If the seating position does not have an
adjustable head restraint and it is inter-
fering with the proper child restraint fit,
try another seating position or a differ-
ent child restraint.

SSS0647

Forward-facing — step 4

4. For child restraints that are equipped

with webbing-mounted attachments, re-
move any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your knee to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of the
anchor attachments.

5. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

Safety — Seats, seat belts and supplemental restraint system

1-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-34

Safety — Seats, seat belts and supplemental restraint system

SSS0638

Forward-facing — step 6

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to
see if the LATCH attachment holds the
restraint in place. If the restraint is not
secure, tighten the LATCH attachment
as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint. Not
all child restraints fit in all types of
vehicles.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 6.

WAB0131X

Anchor point
Top tether strap

Installing top tether strap

WARNING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

and a child could be seriously injured or
killed in a collision.

The child restraint top tether strap must be
used when installing forward-facing child
restraints with the LATCH lower anchor
attachments.
First, secure the child restraint with the
LATCH lower anchors.
1. Position the top tether strap

over the

seatback.
If necessary, raise or remove the head
restraint or headrest to position the top
tether strap over the top of the seatback.
If the head restraint or headrest is
removed, store it in a secure place. Be
sure to reinstall the head restraint or
headrest when the child restraint is
removed.

See “Head restraints/headrests” (P.1-
8) for head restraint or headrest adjust-
ment, removal and installation informa-
tion.

2. Secure the tether strap to the tether

anchor point

as shown.

3. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

If you have any questions when installing a
top tether strap, it is recommended you

visit an INFINITI retailer for this service.

FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

SSS0640

Forward-facing (front passenger seat) —

step 1

Safety — Seats, seat belts and supplemental restraint system

1-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-36

Safety — Seats, seat belts and supplemental restraint system

belt in the rear seats or in the front
passenger seat:
1.

If you must install a child restraint in the
front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position. Child
restraints for infants must be used in the
rear-facing direction and, therefore,
must not be used in the front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct child restraint fit. If the head
restraint or headrest is removed, store it
in a secure place.

Be sure to reinstall the

head restraint or headrest when the
child restraint is removed.

See “Head

restraints/headrests” (P.1-8) for head
restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have an
adjustable head restraint or headrest
and it is interfering with the proper child
restraint fit, try another seating position
or a different child restraint.

SSS0360B

Forward-facing — step 3

3. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint
manufacturer’s instructions for belt
routing.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point (rear seat installation
only). See “Installing top tether strap”
(P.1-38). Do not install child restraints
that require the use of a top tether strap
in seating positions that do not have a
top tether anchor.

SSS0651

Forward-facing — step 4

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt
retractor is in the Automatic Locking
Retractor (ALR) mode (child restraint
mode). It reverts to Emergency Locking
Retractor (ELR) mode when the seat belt
is fully retracted.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0652

Forward-facing — step 5

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

SSS0653

Forward-facing — step 6

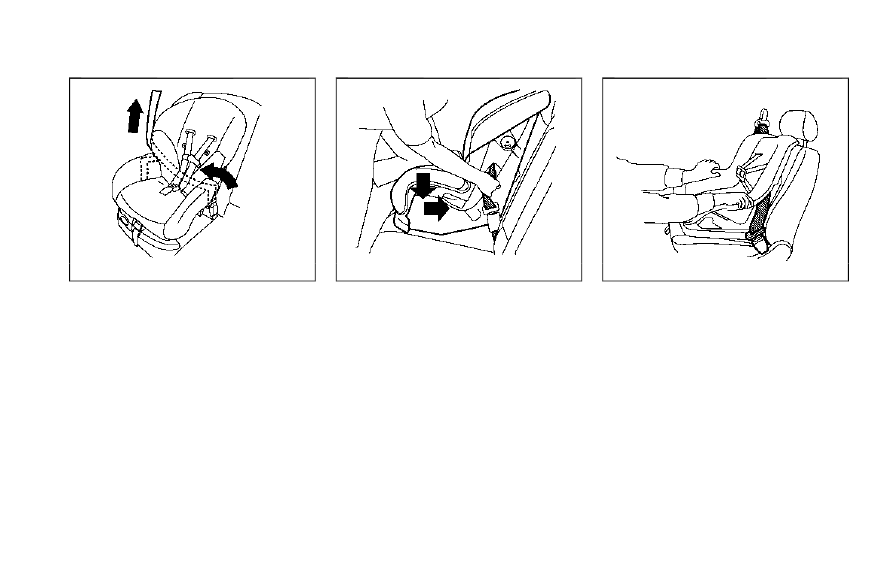

6. Remove any additional slack from the

seat belt; press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while pulling
up on the seat belt.

7. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

SSS0641

Forward-facing — step 8

8. After attaching the child restraint, test it

9. Check to make sure the child restraint is

properly secured prior to each use. If the

Safety — Seats, seat belts and supplemental restraint system

1-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-38

Safety — Seats, seat belts and supplemental restraint system

seat belt is not locked, repeat steps 2
through 8.

JVR0192X

Forward-facing — step 10

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light

should

illuminate. If this light is not illuminated,
see “Front passenger air bag and status
light” (P.1-50).

Move the child restraint

to another seating position.

Have the

system checked. It is recommended you
visit an INFINITI retailer for this service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

WAB0131X

Anchor point
Top tether strap

Installing top tether strap

WARNING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q50 (2021 year). Manual in english - page 3
