Illustrated table of contents

JVC1100X

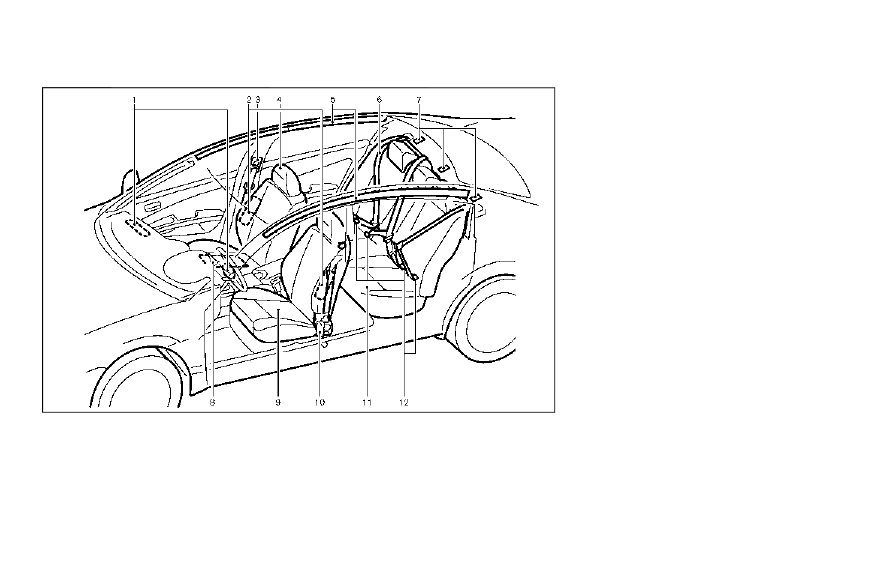

Supplemental front-impact air bags
(P.1-42)

Front seat-mounted side-impact sup-
plemental air bags (P.1-42)

Front seat belt with pretensioner and
shoulder height adjuster (P.1-12)

Head restraints (P.1-8)

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-42)

Rear seat belts (P.1-12)

Child restraint anchor points (for top
tether strap child restraint) (P.1-27,
P.1-34, P.1-38)

Occupant classification sensors
(weight sensors) (P.1-48)

Front seats (P.1-3)

10. Seat belts with pretensioners (P.1-59)
11. Rear seats (P.1-5)

— Child restraints (P.1-22)

12. LATCH (Lower Anchors and Tethers

for CHildren) system (P.1-24)

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1103X

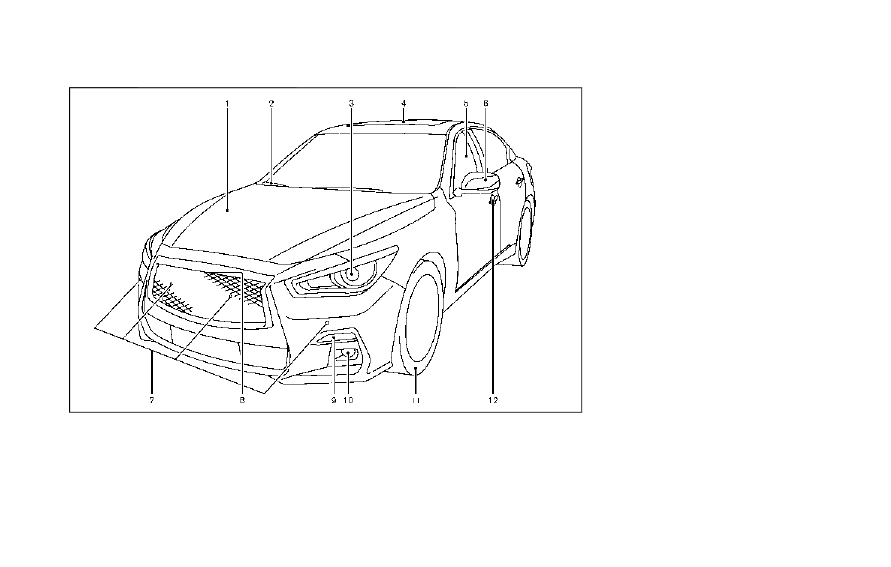

Hood (P.3-22)

Windshield wiper and washer
— Operation (P.2-32)
— Maintenance (P.8-15)

Headlight
— Operation (P.2-35)

— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-40)

Moonroof (if so equipped) (P.2-54)

Power windows (P.2-52)

Outside mirrors (P.3-30)
— Side turn signal lights (P.2-41)

— Side view camera (if so equipped)
(P.4-11)

Sonar sensors (if so equipped)
— Camera aiding sonar function
(P.4-25)
— Sonar system (P.5-132)

Front view camera (if so equipped)
(P.4-11)

Turn signal
— Operation (P.2-35)

10. Fog light (P.2-42)
11. Tires

— Wheels and tires (P.8-25, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-13, P.5-5)

12. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)
— Courtesy light (P.2-59)

Illustrated table of contents

0-3

EXTERIOR FRONT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

JVC1104X

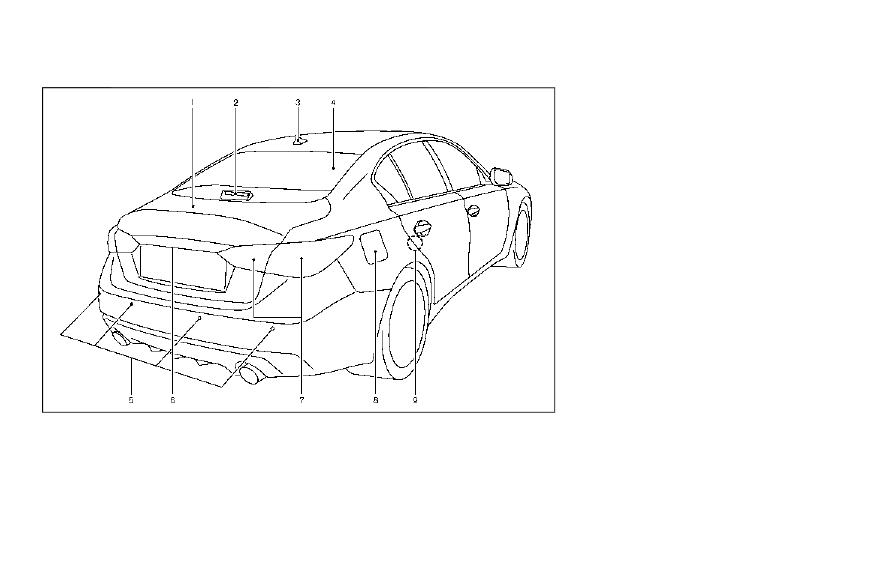

Trunk
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Trunk lid (P.3-22)

High-mounted stop light (P.8-22)

Satellite antenna (P.4-43)

Rear window defroster (P.2-35)/An-
tenna (P.4-43)

Sonar sensors (if so equipped)
— Camera aiding sonar function
(P.4-25)

— Sonar system (P.5-132)
— Back-up Collision Intervention (BCI)
system (if so equipped) (P.5-60)

Rear view camera
— RearView Monitor (if so equipped)
(P.4-3)
— Around View

Monitor (if so

equipped) (P.4-11)

Rear combination light (P.8-22)

Fuel-filler door
— Operation (P.3-25)
— Fuel information (P.10-4)

Child safety rear door locks (P.3-6)

EXTERIOR REAR

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1233X

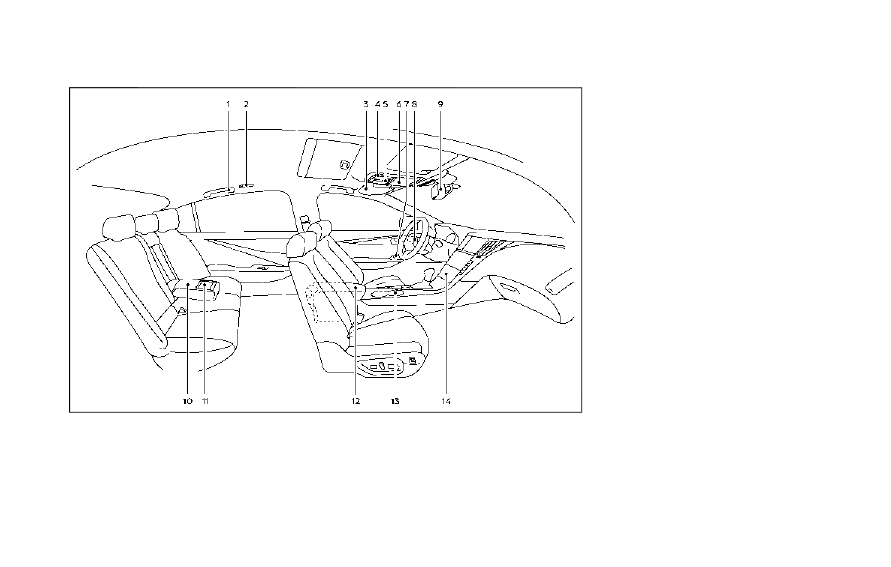

Coat hooks (P.2-51)

Rear personal light (P.2-57)

Sun visors (P.3-29)

Map light (P.2-56)
— Emergency Call (SOS) button (if so
equipped) (P.2-46)

Moonroof switch (if so equipped)
(P.2-54)

Sunglasses holder (P.2-49)

Door armrest
— Power window switch (P.2-52)
— Outside mirror remote control

switch (driver’s side) (P.3-30)

Memory seat switch (if so equipped)
(P.3-33)

Inside mirror
— Operation (P.3-29)
— HomeLink

universal transceiver

(P.2-59)

10. Trunk pass-through/Rear armrest

(P.1-7)

11. Rear cup holders (P.2-48)
12. Console box (P.2-50)

— Power outlet (P.2-45)
— USB (Universal Serial Bus) connec-
tion ports and AUX (auxiliary) input
jack*

13. Front cup holders (P.2-48)
14. Front passenger air bag status light

(P.1-50)

Refer to the INFINITI InTouch

Own-

er’s Manual.

Illustrated table of contents

0-5

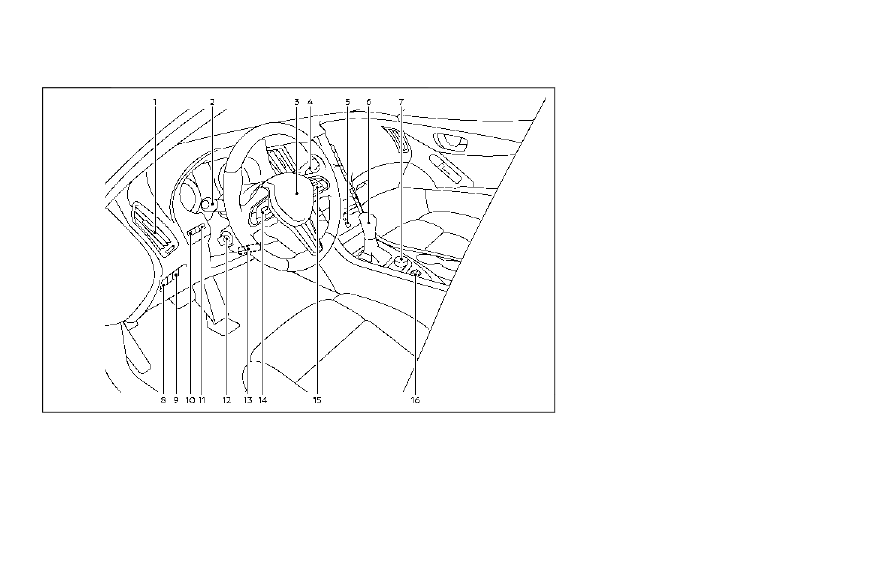

PASSENGER COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

WAA0093X

Side ventilator (P.4-35)

Headlight, fog light and turn signal
switch (P.2-35)

Steering wheel
— Horn (P.2-42)
— Driver supplemental air bag (P.1-42)

— Heated steering wheel (if so
equipped) (P.2-44)
— Power steering (P.5-123)

Windshield wiper and washer switch
(P.2-32)

Hazard warning flasher switch (P.6-2)

Shift lever (P.5-16)

INFINITI controller*

Vehicle Dynamic Control (VDC) OFF
switch (P.2-42, P.5-128)

Trunk lid release switch (P.3-23)

10. Instrument brightness control switch

(P.2-41)

11. TRIP/RESET switch for twin trip od-

ometer (P.2-7)

12. Electric tilting/telescopic steering

wheel switch (if so equipped) (P.3-27)

13. Manual tilting/telescopic steering

wheel lever (if so equipped) (P.3-27)

14. Steering-wheel-mounted controls (left

side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*

15. Steering-wheel-mounted controls

(right side)
— Trip computer switches (P.2-27)
— Cruise control switches (if so
equipped) (P.5-69)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-71)
— Dynamic driver assistance switch (if
so equipped) (P. 5-25, P.5-33, P.5-48,
P.5-91)

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

JVC0969X

Paddle shifter (if so equipped) (P.5-18)

Meters and gauges (P.2-6)
— Clock (P.2-29)

Push-button ignition switch (P.5-11)

Center ventilator (P.4-35)

Automatic climate control system
(P.4-36)

Upper touch screen display* (upper
display) and Navigation system* (if so
equipped)
— RearView Monitor (if so equipped)
(P.4-3)

— Around View

Monitor (if so

equipped) (P.4-11)

Lower touch screen display* (lower
display)

Rear window and outside mirror
defroster switch (P.2-35)

Front passenger supplemental air bag
(P.1-42)

10. Hood release handle (P.3-22)
11. Fuse box cover (P.8-17)
12. Parking brake (P.5-20)
13. Storage box (P.2-51) and power outlet

(P.2-45)

14. Seat heater switch (if so equipped)

(P.2-43)

15. Audio system*
16. Trunk release power cancel switch

(P.3-24)

17. Glove box (P.2-50)
*:

Refer to the INFINITI InTouch

Own-

er’s Manual.

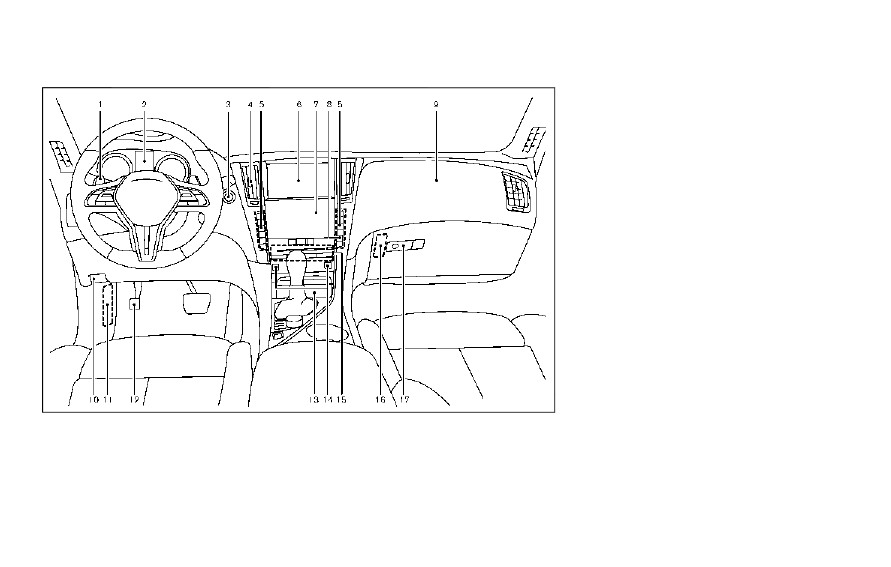

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC0428X

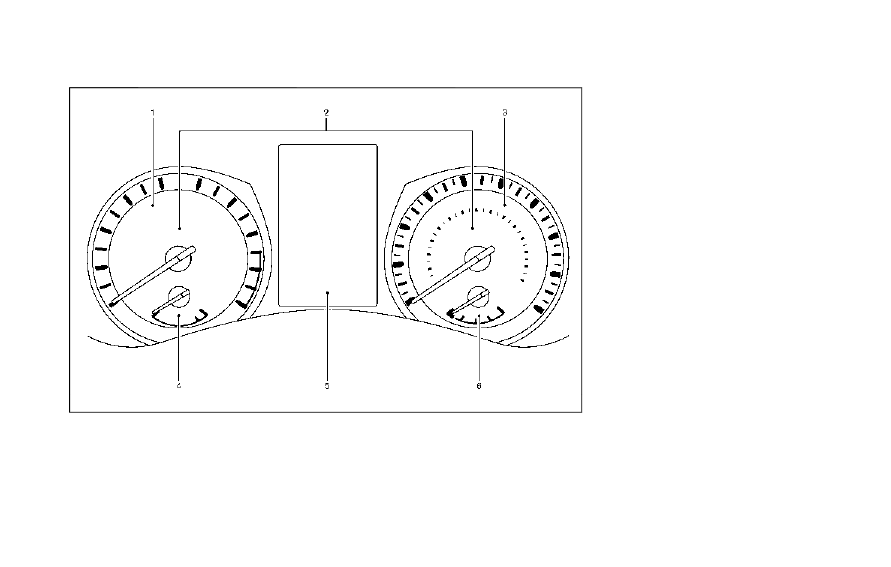

Tachometer (P.2-8)

Warning and indicator lights (P.2-10)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Vehicle information display (P.2-18)/

Odometer/twin trip odometer (P.2-7)

Fuel gauge (P.2-9)

Illustrated table of contents

0-9

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

JVC0968X

VR30DDTT ENGINE

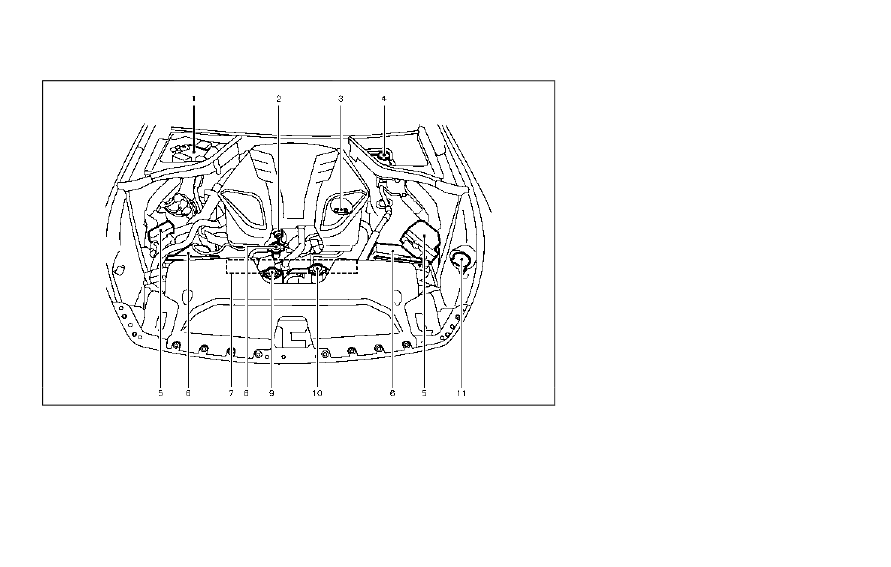

Battery (P.8-11)

Engine oil dipstick (P.8-7)

Engine oil filler cap (P.8-7)

Brake fluid reservoir (P.8-10)

Fuse/fusible link holder (P.8-17)

Air cleaner (P.8-15)

Engine drive belt location (P.8-13)

Radiator filler cap (P.8-3)

Intercooler cooling reservoir (P.8-5)

10. Engine coolant reservoir (P.8-4)
11. Window washer fluid reservoir

(P.8-10)

ENGINE COMPARTMENT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Red light

Name

Page

Brake warning light

2-11

Charge warning light

2-11

Master warning light

2-12

Seat belt warning light and
chime

2-12

Security indicator light

2-12

Supplemental air bag warn-
ing light

2-12

Yellow

light

Name

Page

Anti-lock Braking System
(ABS) warning light

2-13

Forward Emergency Braking
(FEB) system warning light

2-13

Front passenger air bag sta-
tus light

2-13

Low fuel warning light

2-13

Low tire pressure warning
light

2-13

Malfunction Indicator Light
(MIL)

2-15

Master warning light

2-16

Power steering warning light

2-16

Vehicle Dynamic Control
(VDC) off indicator light

2-16

Vehicle Dynamic Control
(VDC) warning light

2-17

Other

light

Name

Page

ECO drive indicator light

2-17

Exterior light indicator

2-17

Front fog light indicator light

2-17

High beam assist indicator
light (if so equipped)

2-17

High beam indicator light

2-17

Turn signal/hazard indicator
lights

2-17

Illustrated table of contents

0-11

WARNING AND INDICATOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

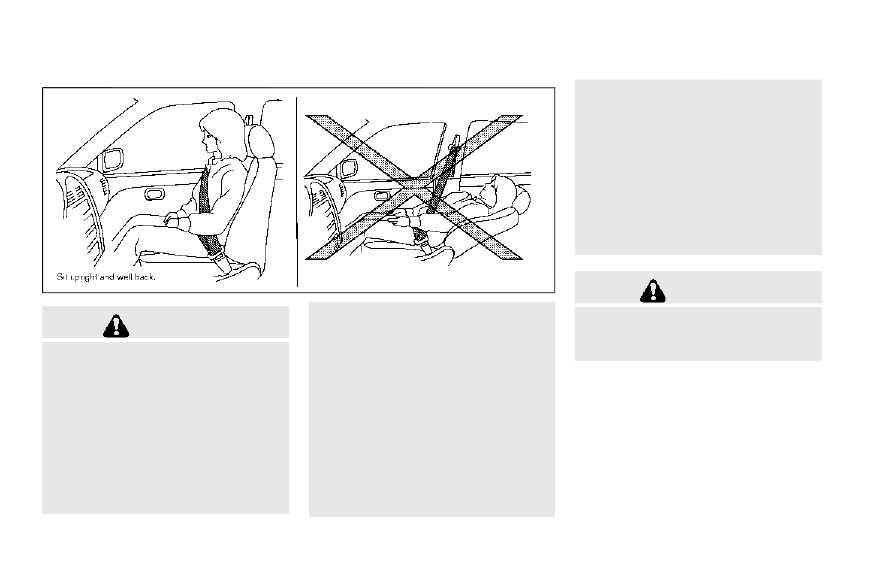

WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with

both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-12).

Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-

hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

The seatback should not be reclined
further than necessary for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.

SEATS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT SEATS

Front power seat adjustment

Operating tips:

The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

See “Memory seat” (P.3-33) for the seat
position memory function.

SSS1051

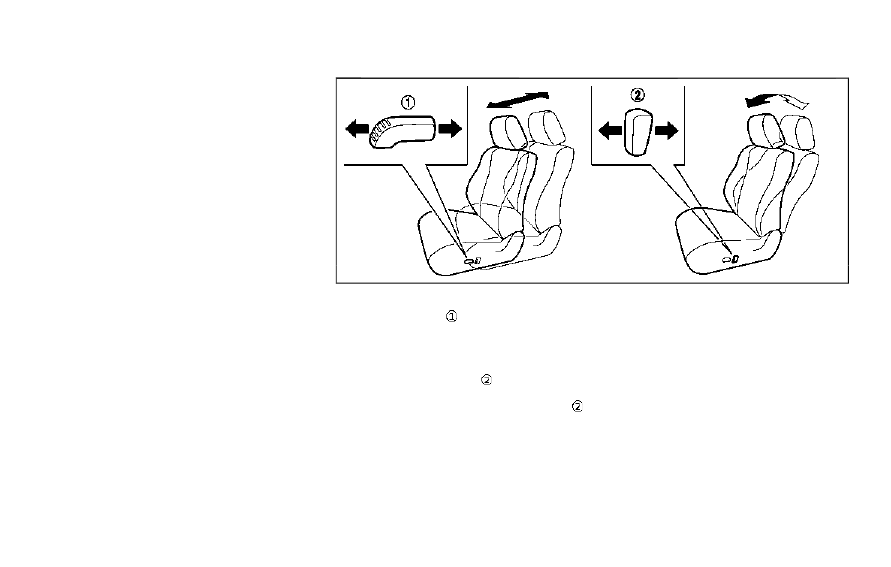

Forward and backward:

Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:

Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-12).) Also, the seatback can be
reclined to allow occupants to rest when the

vehicle is parked.

Safety — Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety — Seats, seat belts and supplemental restraint system

SSS1052

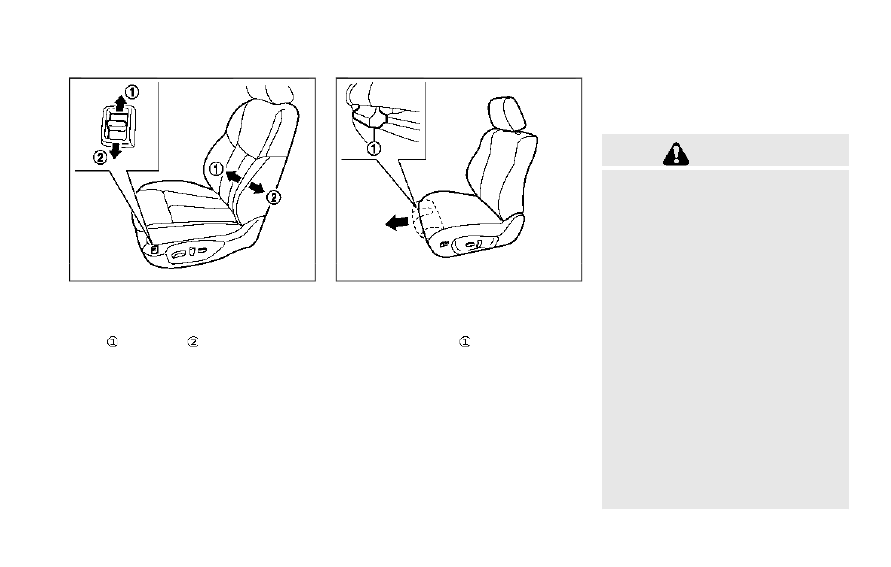

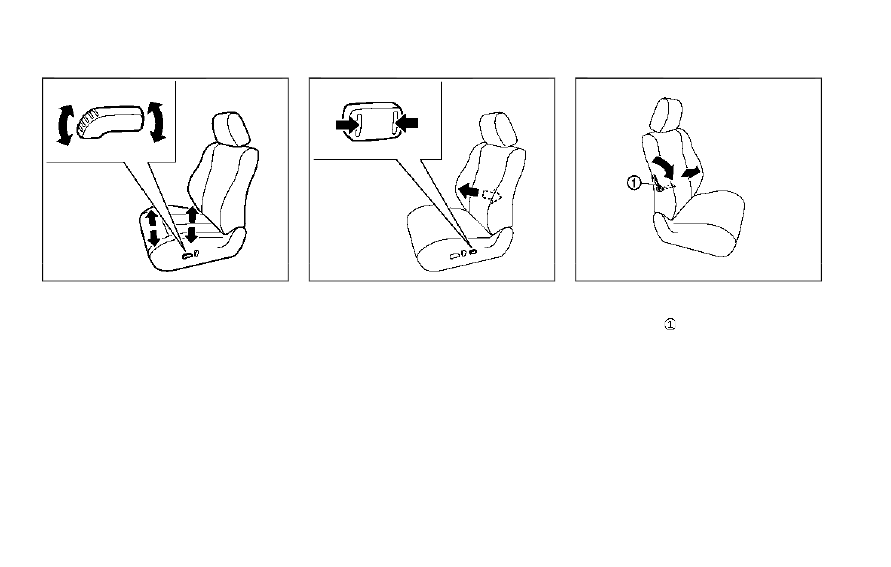

Seat lifter:

Push the front or rear end of the switch up or
down to adjust the angle of the front portion
or height of the seat.

SSS1053

Type A (if so equipped)

Lumbar support (if so equipped):

The lumbar support feature provides lower
back support to the driver.
Type A (if so equipped)
Push the front or back end of the switch to
adjust the seatback lumbar area.

SSS0836

Type B (if so equipped)

Type B (if so equipped)
Move the lever

up or down to adjust the

seatback lumbar area.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVR0186X

Side support (if so equipped):

The side support feature allows you to
adjust the torso supports. Push the switch
inside

or outside

to adjust the torso

area.

SSS1057

Thigh extension (if so equipped):

The front portion of the front seats can be
extended forward for seating comfort. Pull
up and hold the lever

to extend the front

portion to the desired position.

REAR SEATS

Folding (if so equipped)

WARNING

Never allow anyone to ride in the
trunk or on the rear seat when it is in
the fold-down position. Use of these
areas by passengers without proper
restraints could result in serious in-
jury in an accident or sudden stop.

Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place cargo
higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely

Safety — Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-6

Safety — Seats, seat belts and supplemental restraint system

latched when not in use, and prevent
children’s access to car keys.

JVR0195X

The rear seatback can be folded according to
the following procedure.

Before folding the seatback:

Remove drink containers from the rear cup
holder.

To fold the seatback:

1. Open the trunk lid.
2. Pull the strap located on the left and

right side of the trunk. The rear seatback
will be unlatched.

3. Fold the rear seatback down.

To return the seatback:

1. Fold up the rear seatback.
2. Securely lock the seatback in position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q50 (2021 year). Manual in english - page 1
