Infiniti Q60 (2018 year). Manual - part 11

3-28

Pre-driving checks and adjustments

SPA2328

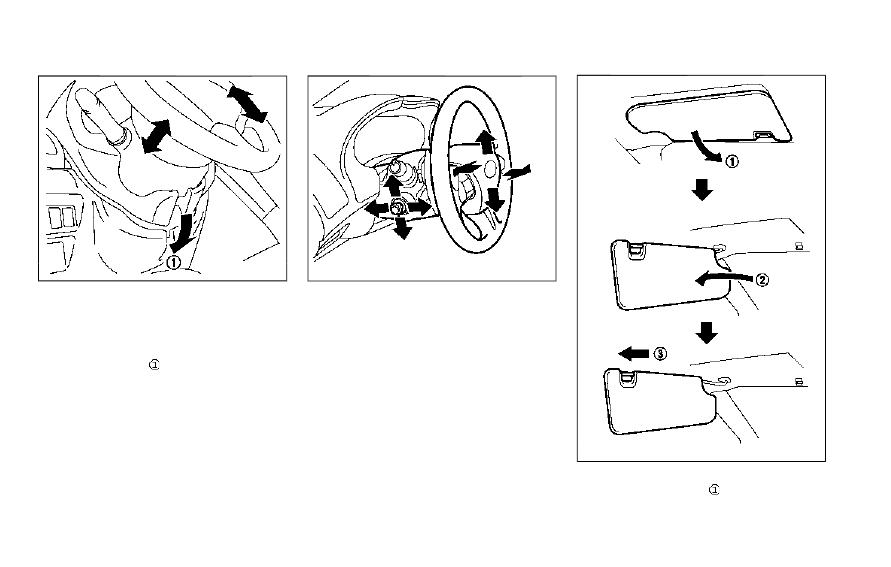

MANUAL OPERATION (if so
equipped)

Tilt or telescopic operation

Pull the lock lever

down and adjust the

steering wheel up, down, forward or rear-
ward to the desired position.
Push the lock lever up securely to lock the
steering wheel in place.

JVP0205X

ELECTRIC OPERATION (if so
equipped)

Tilt or telescopic operation

Move the switch to adjust the steering
wheel up or down, forward or rearward to
the desired position.

SPA2471

1. To block glare from the front, swing

down the sun visor

SUN VISORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. To block glare from the side, remove the

sun visor from the center mount and
swing the visor to the side

3. Slide the sun visor

in or out as needed

(for driver’s side only).

SPA2447

INSIDE MIRROR

Adjust the height and the angle of the inside
mirror to the desired position.

SPA2143

Manual anti-glare type

The night position

will reduce glare from

the headlights of vehicles behind you at
night.
Use the day position

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view clarity.

Pre-driving checks and adjustments

3-29

MIRRORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-30

Pre-driving checks and adjustments

SPA2422A

Type A (if so equipped)

SPA2450

Type B (if so equipped)

Automatic anti-glare type

The inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is placed
in the ON position.
The anti-glare system also operates for the
outside mirrors (if so equipped).
When the anti-glare system is turned on, the
indicator light

will illuminate and excessive

glare from the headlights of the vehicle
behind you will be reduced.
Type A (if so equipped): Push the

switch

to make the inside mirror operate normally

and the indicator light will turn off. Push the

switch

again to turn the system on.

Type B (if so equipped): Push the “

*” switch

to make the inside mirror operate nor-

mally. The indicator light will turn off. Push
the “I” switch

to turn the system on.

Do not allow any object to cover the sensors

or apply glass cleaner on them. Doing so

will reduce the sensitivity of the sensor,
resulting in improper operation.
For the compass (if so equipped) operation,
see “Compass” (P.2-9).
For the HomeLink

Universal Transceiver (if

so equipped) operation, see “HomeLink

Universal Transceiver” (P.2-59).

OUTSIDE MIRRORS

WARNING

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVP0246X

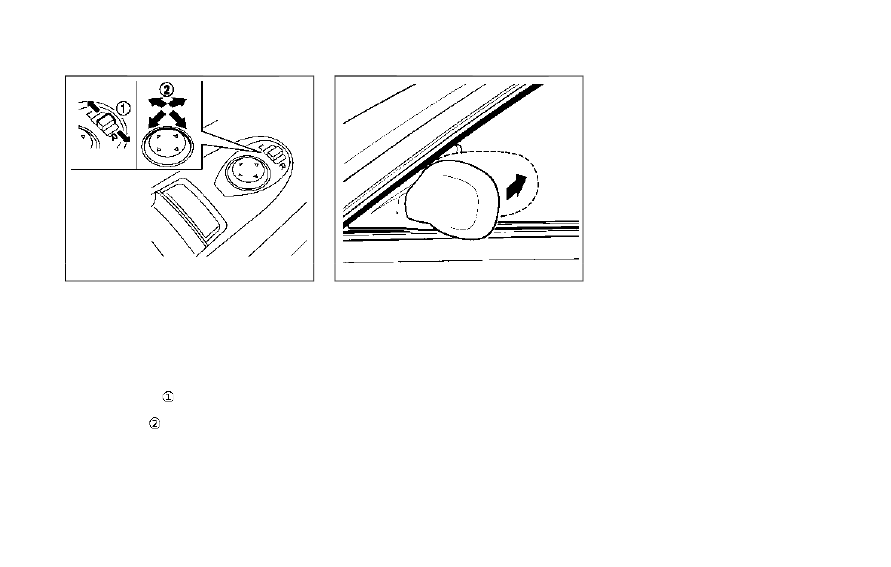

Adjusting outside mirrors

The outside mirror control switch is located
on the driver’s armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Move the switch

right or left to select the

right or left side mirror, then adjust using the
control switch

Defrosting outside mirrors

The outside mirrors will be heated when the
rear window defroster switch is operated.

SPA1829

Foldable outside mirrors

Fold the outside mirror by pushing it toward
the rear of the vehicle.

Reverse tilt-down feature (if so
equipped)

When backing up the vehicle, the right and
left outside mirrors will turn downward
automatically to provide better rear visibility.
1. Push the ignition switch to the ON

position.

2. Move the shift lever to the R (Reverse)

position.

3. Select the right or left side mirror by

operating the outside mirror control

switch.

4. The outside mirror surface moves down-

ward.

When one of the following conditions has
occurred, the outside mirror surface will
return to its original position.
. The shift lever is moved to any position

other than R (Reverse).

. The outside mirror control switch is set to

the center position.

. The ignition switch is pushed to the OFF

position.

Automatic anti-glare (if so
equipped)

The outside mirrors are designed so that
they automatically change reflection ac-
cording to the intensity of the headlights of
the vehicle following you.
The anti-glare system will be automatically
turned on when the ignition switch is placed
in the ON position.

Pre-driving checks and adjustments

3-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-32

Pre-driving checks and adjustments

SIC3869

VANITY MIRROR

To use the front vanity mirror, pull down the
sun visor and pull up the cover.

The automatic drive positioner system has a
memory storage function.

JVP0462X

MEMORY STORAGE

Two positions for the driver’s seat, steering
column and outside mirrors can be stored in
the automatic drive positioner memory.
Follow these procedures to use the memory
system.
1. Adjust the driver’s seat, steering column

and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
see “Seats” (P.1-2), “Tilt/telescopic
steering” (P.3-27) and “Outside mirrors”
(P.3-30).

2. Push the SET switch and, within 5

seconds, push the memory switch (1 or

AUTOMATIC DRIVE POSITIONER
(if so equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2) fully for at least 1 second.
The indicator light for the pushed mem-
ory switch will stay on for approximately
5 seconds after pushing the switch.
When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.
If memory is stored in the same memory
switch, the previous memory will be
deleted.

Confirming memory storage

Push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored in position,
the indicator light will stay on for approxi-
mately 5 seconds.

Selecting the memorized position

1. Move the shift lever to the P (Park)

position.

2. Push the memory switch (1 or 2) fully for

at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memor-
ized position with the indicator light
flashing, and then the light will stay on
for approximately 5 seconds.

Linking log-in function to a stored
memory position

The log-in function can be linked to a stored
memory position with the following proce-
dure.
1. Place the ignition switch in the ON

position while carrying an Intelligent
Key that was registered to the vehicle
with the log-in function. For more de-
tails, see “Log-in function” (P.3-15).

2. Adjust the position of the driver’s seat,

steering column and outside mirrors
manually. See “Seats” (P.1-2), “Tilt/tele-
scopic steering” (P.3-27) and “Outside
mirrors” (P.3-30).

3. Place the ignition switch in the OFF

position.

The next time you log in (selecting the user
on the display) after placing the ignition
switch in the ON position while carrying the
Intelligent Key, the system will automatically
adjust to the memorized driving position.

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle is moving.

. When any of the memory switches are

pushed while the automatic drive posi-

tioner is operating.

. When the adjusting switch for the dri-

ver’s seat and steering column is turned
on while the automatic drive positioner is
operating.

. When the memory switch 1 or 2 is pushed

for less than 1 second.

. When the seat has already been moved

to the memorized position.

. When no seat position is stored in the

memory switch.

. While the walk-in function operates.

Pre-driving checks and adjustments

3-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-34

Pre-driving checks and adjustments

MEMO

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Monitor, climate, audio, phone and voice re-

cognition systems

Infiniti InTouch Owner’s Manual................................... 4-2
Ventilators............................................................................ 4-2
Antenna ................................................................................ 4-3

Window antenna.......................................................... 4-3

Satellite antenna......................................................... 4-3

Car phone or CB radio..................................................... 4-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-2

Monitor, climate, audio, phone and voice recognition systems

Refer to the Infiniti InTouch Owner’s Manual
that includes the following information.
. Infiniti InTouch

. Navigation system (if so equipped)

. Audio system

. Bluetooth

Hands-Free Phone system

. Heater and air conditioner

. Viewing information

. Other settings

. Voice recognition (if so equipped)

. Monitor system

. Meter settings

. General system information

JVH0510X

Center ventilators

JVH0511X

Side ventilators

Open or close, and adjust the air flow
direction of ventilators.

: This symbol indicates that the ventilators

are closed.

: This symbol indicates that the ventilators

are open.

INFINITI INTOUCH OWNER’S MANUAL

VENTILATORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WINDOW ANTENNA

The antenna pattern is printed inside the
rear window.

CAUTION

. Do not place metalized film near the

rear window glass or attach any
metal parts to it. This may cause poor
reception or noise.

. When cleaning the inside of the rear

window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.

JVH0641X

SATELLITE ANTENNA

There is a satellite antenna on the rear part
of the vehicle roof.
A buildup of ice on the satellite radio
antenna can affect satellite radio perfor-
mance. Remove the ice to restore satellite
radio reception.

When installing a car phone or a CB radio in
your vehicle, be sure to observe the follow-
ing cautions, otherwise the new equipment
may adversely affect the electronic control
modules and electronic control system har-
ness.

WARNING

. A cellular phone should not be used

for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohibit
the use of cellular phones while
driving.

. If you must make a call while your

vehicle is in motion, the hands-free
cellular phone operational mode (if so
equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

. If a conversation in a moving vehicle

requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.

Monitor, climate, audio, phone and voice recognition systems

4-3

ANTENNA

CAR PHONE OR CB RADIO

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Monitor, climate, audio, phone and voice recognition systems

CAUTION

. Keep the antenna as far away as

possible from the electronic control
modules.

. Keep the antenna wire more than 8 in

(20 cm) away from the electronic
control system harness. Do not route
the antenna wire next to any harness.

. Adjust the antenna standing-wave

ratio as recommended by the manu-
facturer.

. Connect the ground wire from the CB

radio chassis to the body.

. For details, it is recommended you

visit an INFINITI retailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5 Starting and driving

Precautions when starting and driving........................ 5-4

Push-button ignition switch......................................... 5-11

Operating range for engine start function.......... 5-12
Push-button ignition switch operation................ 5-12
Push-button ignition switch positions................. 5-13
Emergency engine shut off...................................... 5-13
Intelligent Key battery discharge........................... 5-14

Before starting the engine............................................ 5-14
Starting the engine.......................................................... 5-15

Remote start (if so equipped)................................. 5-15

Driving the vehicle ........................................................... 5-16

Automatic Transmission (AT).................................. 5-16

Parking brake.................................................................... 5-21
INFINITI Drive Mode Selector ..................................... 5-22

STANDARD mode...................................................... 5-22
SPORT+ mode (if so equipped) .............................. 5-23

SPORT mode............................................................. 5-23
SNOW mode.............................................................. 5-23
ECO mode (if so equipped) ................................... 5-23
PERSONAL mode.................................................... 5-25

Active Lane Control (if so equipped)......................... 5-26

Active Lane Control operation............................. 5-28
Turning Active Lane Control ON/OFF.............. 5-29
How to enable/disable Active Lane Control.... 5-30
Active Lane Control limitations............................ 5-31
System temporarily unavailable........................... 5-32
System malfunction................................................. 5-32
System maintenance ............................................... 5-33

Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) (if so equipped).......... 5-34

Blind Spot Warning (BSW) (if so equipped)............ 5-41

BSW system operation........................................... 5-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

How to enable/disable the BSW system............ 5-43
BSW system limitations............................................ 5-43
BSW driving situations ............................................ 5-44
System temporarily unavailable............................. 5-47
System malfunction................................................... 5-47
System maintenance................................................. 5-48

Blind Spot Intervention

(BSI) (if so equipped)....... 5-49

Back-up Collision Intervention (BCI) (if
so equipped) ...................................................................... 5-61

BCI system operation................................................ 5-63
Turning the BCI system ON/OFF......................... 5-66
How to enable/disable the BCI system............... 5-67
BCI system limitations .............................................. 5-68
System temporarily unavailable............................. 5-69
System malfunction................................................... 5-70
System maintenance.................................................. 5-70

Cruise control (if so equipped)..................................... 5-71

Precautions on cruise control ................................. 5-71
Cruise control operations......................................... 5-72

Intelligent Cruise Control (ICC) (if so equipped)..... 5-73

How to select the cruise control mode.............. 5-75
Vehicle-to-vehicle distance control mode......... 5-75
Conventional (fixed speed) cruise
control mode............................................................. 5-90

Distance Control Assist (DCA) (if so equipped)...... 5-94

Forward Emergency Braking (FEB) with
pedestrian detection system (if so equipped) ...... 5-105

Predictive Forward Collision Warning (PFCW)
(if so equipped)............................................................... 5-115

PFCW system operation...................................... 5-117

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Turning the PFCW system ON/OFF................. 5-118
PFCW system limitations...................................... 5-120
System temporarily unavailable........................... 5-122
System malfunction................................................. 5-123
System maintenance............................................... 5-124

Electric power steering type................................. 5-129
Hydraulic pump electric power
steering type.............................................................. 5-129
Direct Adaptive Steering type............................. 5-130

Brake system................................................................... 5-132

Braking precautions................................................. 5-132
Parking brake break-in ........................................... 5-132

Brake assist...................................................................... 5-133

Brake assist................................................................ 5-133
Anti-lock Braking System (ABS).......................... 5-133

Vehicle Dynamic Control (VDC) system ................ 5-134

Brake force distribution........................................ 5-135

Active trace control..................................................... 5-136
Hill Start Assist system............................................... 5-138
Chassis control.............................................................. 5-138
Idling Stop System (if so equipped) ........................ 5-139

Retrograde movement control function......... 5-140
Idling Stop System display.................................. 5-140
Idling Stop OFF switch........................................ 5-142

Cold weather driving................................................... 5-143

Active noise cancellation/Active
sound enhancement..................................................... 5-145

Active noise cancellation..................................... 5-146
Active sound enhancement ................................ 5-146

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-4

Starting and driving

WARNING

. Do not leave children or adults who

would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

. Closely supervise children when they

are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.

EXHAUST GAS (carbon monoxide)

WARNING

. Do not breathe exhaust gases; they

contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

. If you suspect that exhaust fumes are

entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

. Do not run the engine in closed spaces

such as a garage.

. Do not park the vehicle with the

engine running for any extended
length of time.

. Keep the trunk lid closed while driv-

ing, otherwise exhaust gases could be
drawn into the passenger compart-
ment. If you must drive with the
trunk lid open, follow these precau-
tions:

1) Open all the windows.
2) Set the air recirculation to off and

the fan control to high to circulate
the air.

. If electrical wiring or other cable

connections must pass to a trailer
through the seal on the trunk lid or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

. The exhaust system and body should

be inspected by a qualified mechanic
whenever:

— The vehicle is raised for service.

— You suspect that exhaust fumes

are entering into the passenger
compartment.

— You notice a change in the sound

of the exhaust system.

— You have had an accident invol-

ving damage to the exhaust sys-
tem, underbody, or rear of the
vehicle.

PRECAUTIONS WHEN STARTING
AND DRIVING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

THREE-WAY CATALYST

The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.

WARNING

. The exhaust gas and the exhaust

system are very hot. Keep people,
animals or flammable materials away
from the exhaust system compo-
nents.

. Do not stop or park the vehicle over

flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

CAUTION

. Do not use leaded gasoline. Deposits

from leaded gasoline seriously reduce
the three-way catalyst’s ability to
help reduce exhaust pollutants.

. Keep your engine tuned up. Malfunc-

tions in the ignition, fuel injection, or
electrical systems can cause overrich

fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly. It is recommended
you visit an INFINITI retailer for this
service.

. Avoid driving with an extremely low

fuel level. Running out of fuel could
cause the engine to misfire, damaging
the three-way catalyst.

. Do not race the engine while warming

it up.

. Do not push or tow your vehicle to

start the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Mon-
itoring System (TPMS) that illuminates a low
tire pressure telltale when one or more of
your tires is significantly under-inflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and
check your tires as soon as possible, and
inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
For models with run-flat tires, if the vehicle
is being driven with one or more flat tires,
the low tire pressure warning light will
illuminate continuously and a chime will
sound for 10 seconds. The flat tire warning
will also appear in the vehicle information
display. The chime will only sound at the first
indication of a flat tire, and the warning light
will illuminate continuously. When the flat
tire warning is activated, it is recommended
you have the system reset and the tire
checked and replaced if necessary by an
INFINITI retailer. Even if the tire is inflated
to the specified COLD tire pressure, the
warning light will continue to illuminate until
the system is reset by an INFINITI retailer.
Your vehicle can be driven for a limited time
on a flat tire. See “Run-flat tires” (P.8-39).

Starting and driving

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 9 10 11 12 ..
