Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

3-34

Pre-driving checks and adjustments

switch.

4. The outside mirror surfaces move

downward.

When one of the following conditions has
occurred, the outside mirror surfaces will
return to their original positions.

The shift lever is moved to any position

other than R (Reverse).

The outside mirror control switch is set

to the center position.

The ignition switch is placed in to the

OFF position.

Automatic anti-glare

The outside rearview mirrors are designed
so that its automatically change reflection
according to the intensity of the headlights
of the vehicle following you.
The anti-glare system will be automatically
turned on when you push the ignition
switch to the “ON” position.

SIC4448

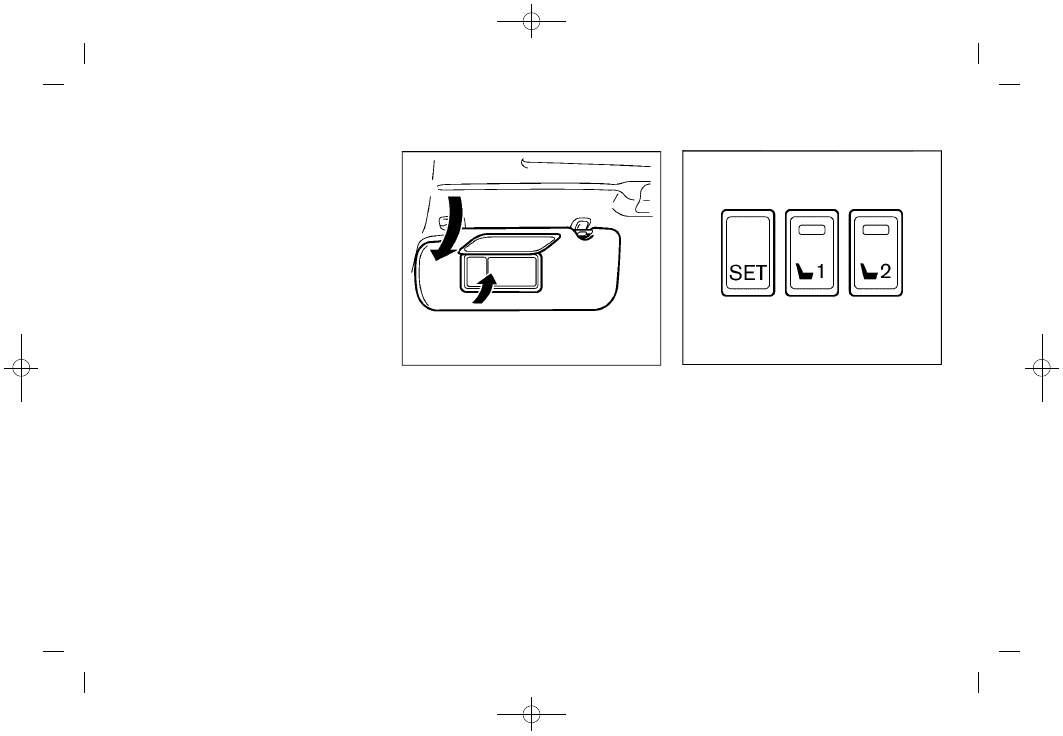

VANITY MIRROR

To use the front vanity mirror, pull down
the sun visor and pull up the cover.

JVP0247X

SET/memory switches

The automatic drive positioner system has
three features:
.

Entry/exit function

Memory storage

Setting memory function

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s
seat and steering column will automati-
cally move when the automatic transmis-
sion shift lever is in the P (Park) position.
This allows the driver to get into and out of
the driver’s seat more easily.
The driver’s seat will slide backward and

AUTOMATIC DRIVE POSITIONER

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(203,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

the steering wheel will move up when the
driver’s door is opened with the ignition
switch in the LOCK position.
The driver’s seat and steering wheel will
return to the previous positions when the
ignition switch is pushed to the ACC
position.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the seat
is at the exit position.

Cancel or activate entry/exit func-

tion

The shift lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The entry/exit function can also be acti-
vated or canceled if the “Lift Steering
Wheel on Exit” key or “Slide Driver Seat
Back on Exit” key is turned to ON or OFF in

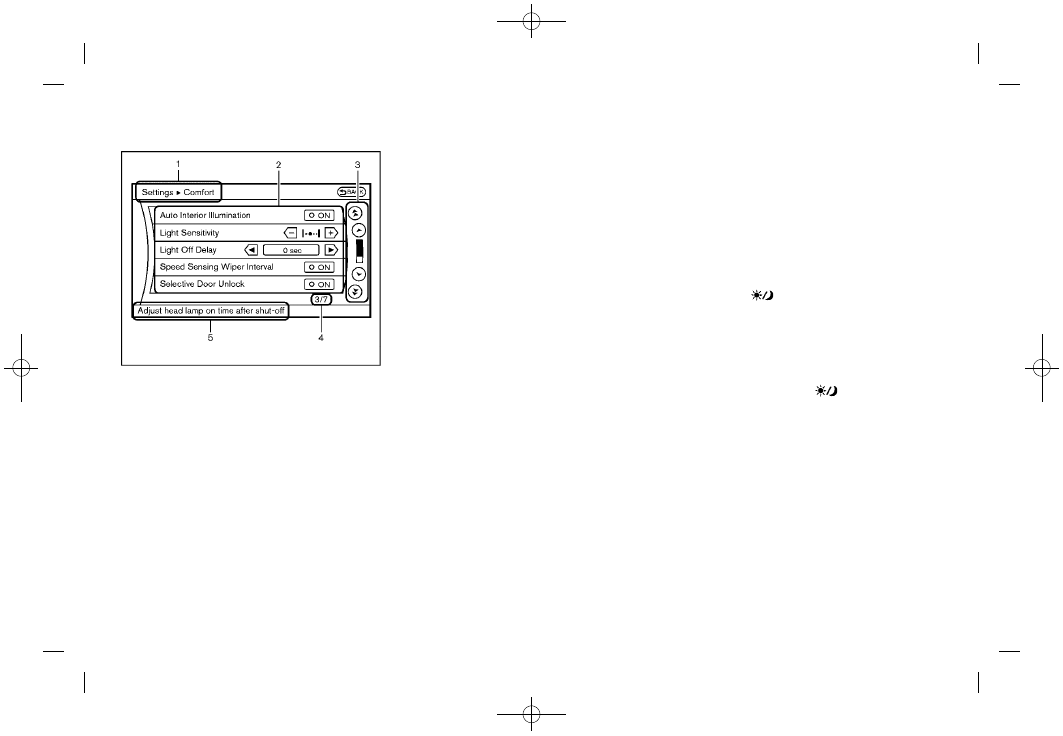

the “Comfort” settings. (See “Vehicle
information and settings” (P.4-7).)

Initialize entry/exit function

If the battery cable is disconnected, or if
the fuse opens, the entry/exit function will
not work though this function was set on
before. In such a case, after connecting the
battery or replacing with a new fuse, open
and close the driver’s door more than two
times after the ignition switch is turned
from the ON position to the LOCK position.
The entry/exit function will be activated.

MEMORY STORAGE

Two positions for the driver’s seat, steering
column and outside mirrors can be stored
in the automatic drive positioner memory.
Follow these procedures to use the mem-
ory system.
1. Move the shift lever to the P (Park)

position.

2. Adjust the driver’s seat, steering col-

umn and outside mirrors to the desired
positions by manually operating each
adjusting switch. For additional infor-
mation, see “Seats” (P.1-3) and “Tilt/
telescopic steering” (P.3-30) and “Out-
side mirrors” (P.3-32).

3. Push the SET switch and, within 5

seconds, push the memory switch (1
or 2) fully for at least 1 second.

The indicator light for the pushed
memory switch will stay on for approxi-
mately 5 seconds after pushing the
switch.
When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.
If memory is stored in the same
memory switch, the previous memory
will be deleted.

Linking Intelligent Key to a stored

memory position

The Intelligent Key can be linked to a
stored memory position with the following
procedure.
1. Follow the steps for storing a memory

position.

2. While the indicator light for the memory

switch being set is illuminated for 5
seconds, push the

button on the

Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.

Push the ignition switch to the OFF posi-
tion, and then push the

button on the

Intelligent Key. The driver’s seat, steering
wheel and outside mirrors will move to the

Pre-driving checks and adjustments

3-35

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(204,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

3-36

Pre-driving checks and adjustments

memorized position.

Confirming memory storage

Push the ignition switch to the ON

position and push the SET switch. If
the main memory has not been stored,
the indicator light will come on for
approximately 0.5 second. When the
memory has stored in position, the
indicator light will stay on for approxi-
mately 5 seconds.

If the battery cable is disconnected, or if

the fuse opens, the memory will be
canceled. In this case, reset the desired
position using the previous procedure.

If optional Intelligent Keys are added to

your vehicle, the memory storage pro-
cedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be performed
again for each Intelligent Key. For
additional Intelligent Key information,
see “Keys” (P.3-2).

Selecting the memorized position

1. Move the shift lever to the P (Park)

position.

2. Use one of the following methods to

move the driver’s seat, the outside

mirrors and the steering wheel.

Within 45 seconds of opening the
driver’s door, push the memory
switch (1 or 2) fully for at least 1
second.

The driver’s seat, steering column and
outside mirrors will move to the mem-
orized position or to the exit position
when the entry/exit function is set to
active with the indicator light flashing,
and then the light will stay on for
approximately 5 seconds.

SETTING MEMORY FUNCTION

The status of the following settings can be
linked to the Intelligent Key and the
memorized settings can be available for
each Intelligent Key.
.

Air conditioner system

Navigation system

Audio system

To use the memory function, lock the doors
with the Intelligent Key that is linked to the
settings.
To enable the memorized settings:
1. Carry the Intelligent Key that is linked

to the settings, and unlock the doors by
pushing the driver’s door handle re-

quest switch or “UNLOCK”

button

on the Intelligent Key.

2. Push the ignition switch to the “ON”

position. “Connection with the key has
been done” will be displayed on the
screen and the memorized settings are
available (only when a new Intelligent
Key is used).

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:

When the vehicle speed is above 4 MPH

(7 km/h).

When the adjusting switch for the

driver’s seat and steering column is
turned on while the automatic drive
positioner is operating.

When the memory switch 1 or 2 is not

pushed for at least 1 second.

When the seat, steering column and

outside mirrors have already been
moved to the memorized position.

When no position is stored in the

memory switch.

When the engine is started while mov-

ing the automatic drive positioner.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(209,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

WARNING

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.

Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.

In case you notice any foreign object in
the system hardware, spill liquid on it, or
notice smoke or smell coming from it,
stop using the system immediately. It is
recommended you visit an INFINITI re-
tailer for servicing. Ignoring such condi-
tions may lead to accidents, fire, or
electric shock.

Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.

Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.

SAA3020

“CAMERA” Around View

Monitor dis-

play button (P.4-21)

2, 6, 7.

For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)

INFINITI controller (P.4-4)

“INFO” vehicle and navigation infor-
mation button (P.4-7)

“SETTING” button (P.4-12)

“STATUS” status display button
(P.4-7)

“

OFF” brightness control and

display ON/OFF button (P.4-7)

Monitor, climate, audio, phone and voice recognition systems

4-3

SAFETY NOTE

CENTER MULTI-FUNCTION CONTROL PANEL

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(210,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

4-4

Monitor, climate, audio, phone and voice recognition systems

SAA3025

HOW TO USE INFINITI CONTROLLER

Choose an item on the display by rotating
or pushing the center dial

upward/

downward, and push the ENTER button

for operation.
If you push the BACK button

before the

setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button

and return to the previous

screen.

For the VOICE button

functions, refer to

the separate Navigation System Owner’s
Manual.

HOW TO USE TOUCH SCREEN

WARNING

ALWAYS give your full attention to
driving.

Avoid using vehicle features that could
distract you. If distracted, you could lose
control of your vehicle and cause an
accident.

CAUTION

The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass screen
breaks, do not touch it. Doing so could
result in an injury.

To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any

kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(211,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

SAA2473

Example

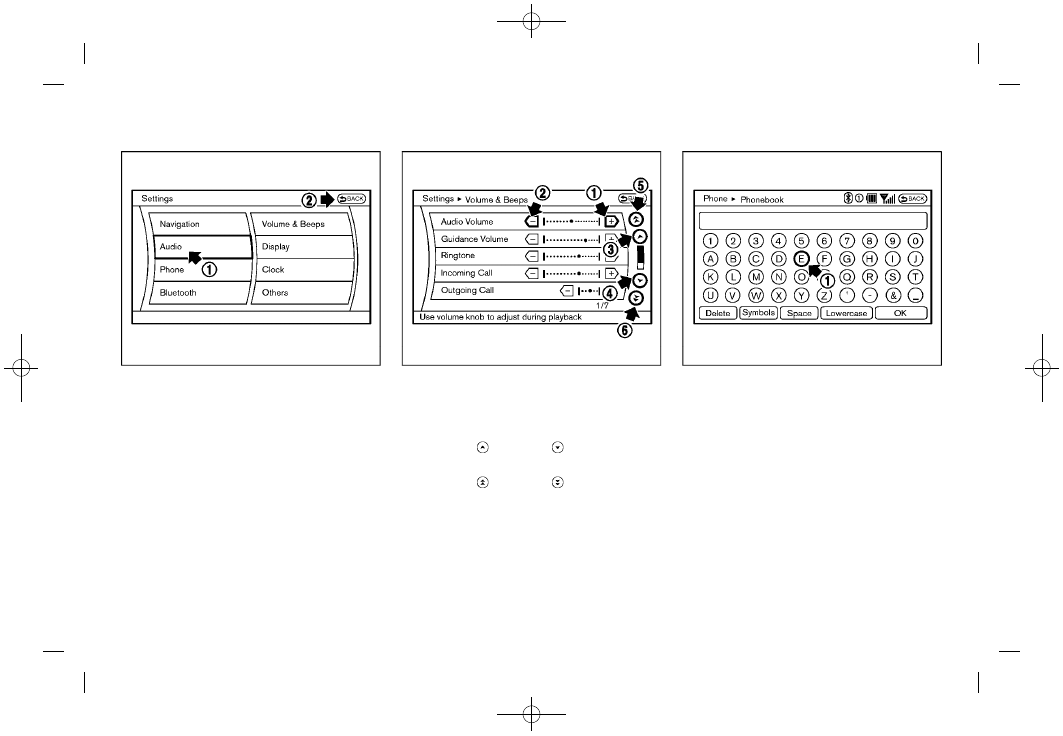

Touch screen operation

With this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Selecting the item:
Touch an item to select it. To select the
“Audio” settings, touch the “Audio” area

on the screen.

Touch the BACK

key to return to the

previous screen.

SAA2474

Example

Adjusting an item:
Touch the +

or −

button to adjust the

settings.
Touch the

button to

move to the previous or next item.
Touch the

button to

move to the previous or next page.

SAA2475

Inputting characters:
Touch the letter or number

There are some options available when
inputting characters.
.

Uppercase:

Shows uppercase characters.

Lowercase:

Shows lowercase characters.

Symbols:

Shows symbols such as the question
mark (?).

Space:

Inserts a space.

Monitor, climate, audio, phone and voice recognition systems

4-5

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(212,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

4-6

Monitor, climate, audio, phone and voice recognition systems

Delete:

Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.

OK:

Completes character inputs.

Touch screen maintenance

If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen.

JVH1394X

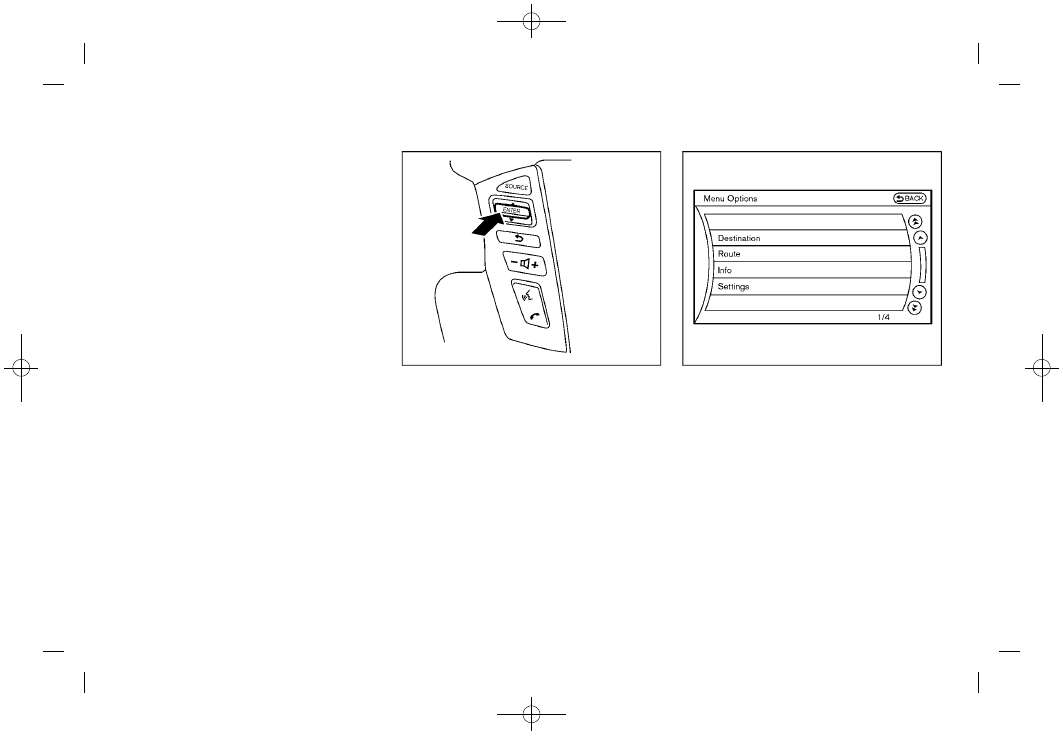

MENU OPTIONS

The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is

displayed, push and hold the menu
control switch until the “Menu Options”
screen appears.

2. Highlight the preferred item by tilting

the menu control switch up or down,
and then push the menu control switch
to select it.

SAA2476

Available items

Destination/Route:
These items are for the navigation system.
See the separate Navigation System Own-
er’s Manual for details.
Info:
Displays the information screen. It is the
same screen that appears when you push
the INFO button.
Settings:
Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(213,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

SAA2477

HOW TO SELECT MENUS ON THE

SCREEN

Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the
INFINITI controller and push the ENTER
button.
Whenever a menu selection is made or
menu item is highlighted, different areas
on the screen provide you with important
information. See the following for details.
1. Header:

Shows the path used to get to the
current screen.

2. Menu Selections:

Shows the options to choose within
that menu screen.

3. UP/DOWN Movement indicator:

Shows that the INFINITI controller may
be used to move UP/DOWN on the
screen and select more options.

4. Menu Items Counter:

Shows the total number of items listed
across all pages for the current menu.

5. Footer/Information Line:

Provides more information (if available)
about the menu selection currently
highlighted.

HOW TO USE STATUS BUTTON

You can check information related to the
audio, climate control system, fuel con-
sumption and navigation system by push-
ing the STATUS button repeatedly.

HOW TO USE BRIGHTNESS CON-

TROL AND DISPLAY ON/OFF BUTTON

Push the “

OFF” button to switch the

display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.
Push and hold the “

OFF” button for

more than 2 seconds to turn the display
off. Push the button again to turn the
display on.

HOW TO USE INFO BUTTON

The display screen shows vehicle and
navigation information for your conveni-
ence.
The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.

Monitor, climate, audio, phone and voice recognition systems

4-7

VEHICLE INFORMATION AND SETTINGS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(214,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

4-8

Monitor, climate, audio, phone and voice recognition systems

JVH0256M

1. Push the INFO button on the control

panel.

2. Select an item from the INFO menu.
3. After viewing or adjusting the informa-

tion on the following screens, push the
BACK button to return to the INFO
menu.

See the separate Navigation System Own-
er’s Manual for the following items:

Infiniti Connection

Where am I?

Traffic Info

Weather Info

Map Update

Navigation Version*

GPS Position

* When the ignition switch is in the ON
position, the “Navigation Version” key is
displayed after selecting the “Others” key.

SAA2479

SAA2480

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(215,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

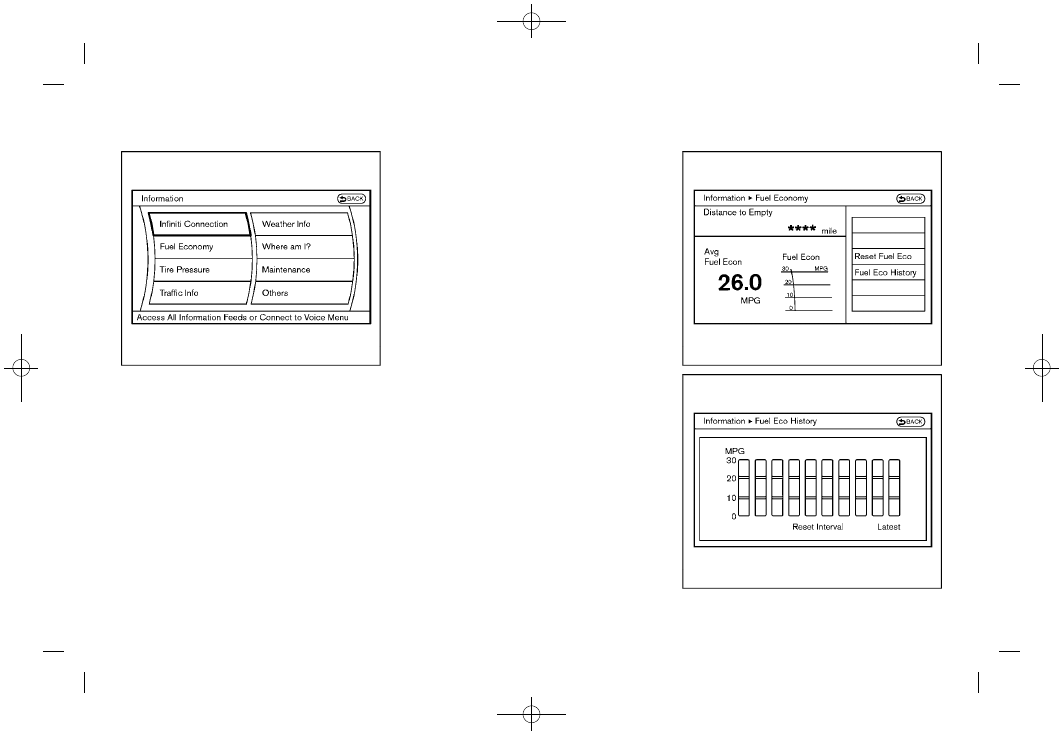

Fuel Economy information

The approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.
To reset the average fuel economy (Avg
Fuel Econ), select the “Reset Fuel Eco” key.
If the “Fuel Eco History” key is selected, the
average fuel consumption history will be
displayed in graph form along with the
average for the previous Reset-to-Reset
period.
The unit can be converted between “US”
and “Metric”. (See “How to use SETTING
button” (P.4-12).)
The fuel economy information may differ
from the information displayed on the
vehicle information display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.

SAA3146

TIRE PRESSURE information

WARNING

Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately 1
minute. The light will remain on after 1
minute. Have your tires replaced and/or
TPMS system reset as soon as possible.
It is recommended you visit an INFINITI
retailer for these services.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

The tire pressure will be displayed for
reference.
The pressure indication “** kPa” or “**
psi” on the screen means that the pressure
is being measured. After a few driving
trips, the pressure for each tire will be
displayed.
To change the measurement units, select
the “Select Units” key with the INFINITI
controller and push the ENTER button.
In case of low tire pressure, LOW PRES-
SURE information will be displayed on the
screen. Check the pressure of all tires.
Tire pressure rises and falls depending on
the heat caused by the vehicle’s traveling
condition and the temperature.
After tire rotation is performed, tire pres-
sure will not be displayed in the actual tire
position. Drive the vehicle at over 25 MPH
(40 km/h) for approximately 10 minutes to
reset the display.
For more details about the Tire Pressure
Monitoring System (TPMS), see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-5).

Monitor, climate, audio, phone and voice recognition systems

4-9

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(216,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

4-10

Monitor, climate, audio, phone and voice recognition systems

* When the ignition switch is in the ACC
position, the “Tire Pressure” key is not
displayed.

SAA2481

SAA2482

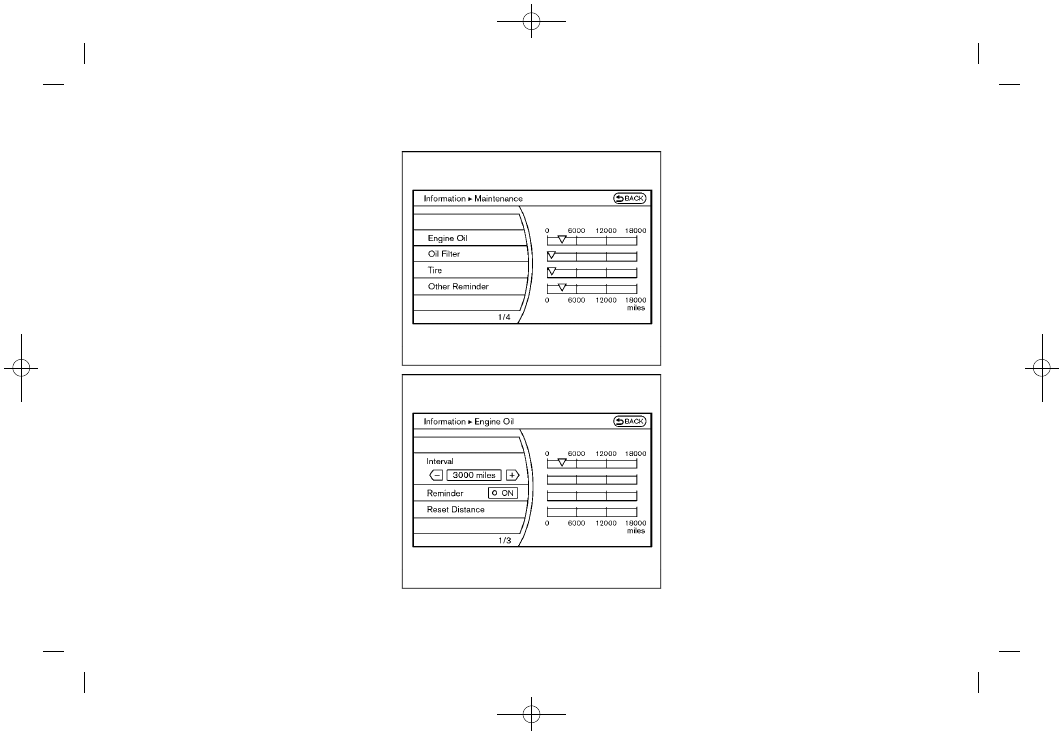

Maintenance information

The maintenance intervals can be dis-
played for the engine oil, oil filter, tire
and other reminders.
To set a maintenance interval, select a
preferred item from the list.
You can also set to display a message to
remind you that the maintenance needs to
be performed.
The following example shows how to set
the engine oil maintenance information.
Use the same steps to set the other
maintenance information.
1. Set the interval (mileage) of the main-

tenance schedule. To determine the
recommended maintenance interval,
refer to the “9. Maintenance and
schedules” section.

2. To display the reminder automatically

when the desired distance is reached,
select the “Reminder” key.

3. Reset the driving distance to the new

maintenance schedule.

4. To return to the previous screen, push

the BACK button.

The unit can be converted between “US”
and “Metric”. (See “How to use SETTING

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(217,1)

Model: 2017MY INFINITI QX80(Z62) OM17E00Z62U0 ]

button” (P.4-12).)

SAA3003

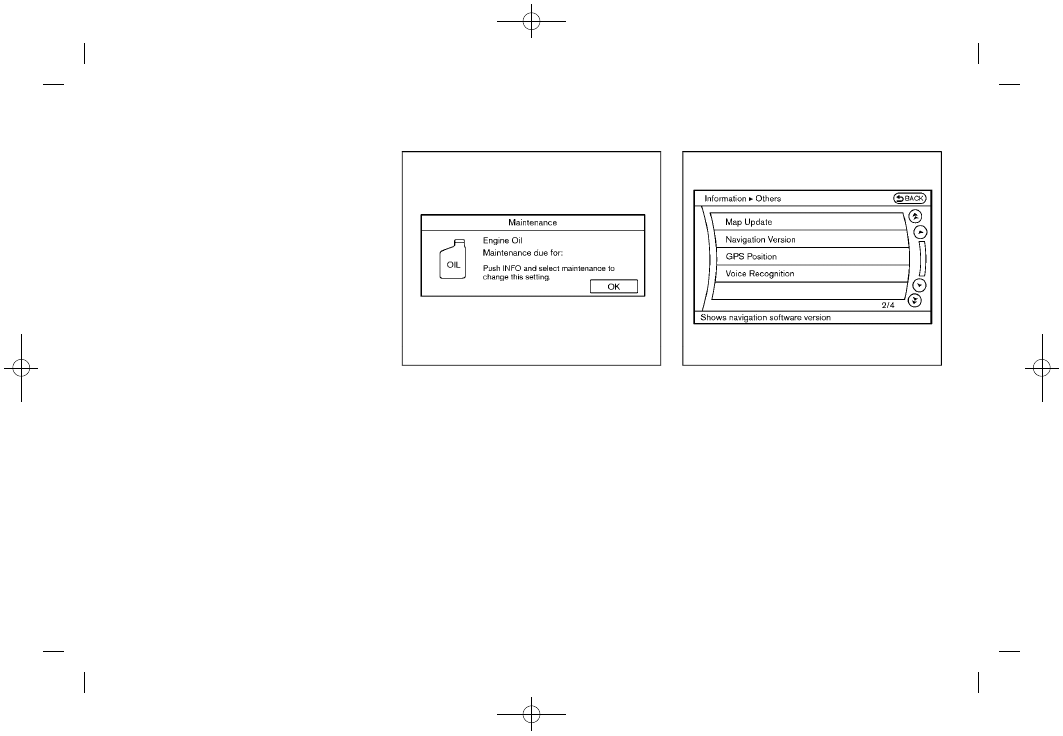

The Reminder will be automatically dis-
played when the specified distance has
been driven and every time the ignition
switch is pushed to the ACC or ON position.
The reminder will not appear while driving.
Select the “OK” key to hide the reminder
for the rest of the current drive.
To stop the reminder from appearing,
perform one of the following actions:

Select the “Reset Distance”.

Deactivate the “Reminder”.

Increase the “Interval” distance to be

more than the current distance being
tracked.

JVH0272M

Others information

The Others information display will appear
when pushing the INFO button and select-
ing the “Others” key.
Map Update:
For the details of this item, see the
separate Navigation System Owner’s Man-
ual.
Navigation Version:
For the details of this item, see the
separate Navigation System Owner’s Man-
ual.
When the ignition switch is in the ON

Monitor, climate, audio, phone and voice recognition systems

4-11

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX80/QX (2017 year). Manual - part 13
