Infiniti Q60 Coupe (2014 year). Manual

4-128

Monitor, climate, audio, phone and voice recognition systems

Minimize voice feedback (for Alter-
nate Command Mode)

To minimize the voice feedback from the
system, perform the following steps.

1. Push the SETTING button on the instru-

ment panel.

2. Select the

“Others” key.

3. Select the

“Voice Recognition” key.

4. Select the

“Minimize Voice Feedback”

key.

5. The setting is turned to ON and the

voice guidance will now be reduced
when using the Voice Recognition
system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TROUBLESHOOTING GUIDE

The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in
this guide for the appropriate error.

Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.

Symptom/error message

Solution

The system fails to interpret the command correctly.

1. Ensure that the command format is valid, see

“Command List” (P.4-108).

2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.

NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.

4. If optional words of the command have been omitted, then the command should be tried with these in place.

The system consistently selects the wrong voicetag in
the phonebook.

1. Ensure that the voicetag requested matches what was originally stored. (See

“Bluetooth

Hands-Free Phone

System (models with navigation system)

” (P.4-77).)

2. Replace one of the voicetags being confused with a different voicetag.

The system cannot be operated.

1. Make sure that the retractable hard top is usable. If the retractable hard top is not working, contact an INFINITI
retailer.

2. Close the retractable hard top.

3. Open and close the retractable hard top before operating the system.

Monitor, climate, audio, phone and voice recognition systems

4-129

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

. Do not leave children or adults who

would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. They could
accidentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

. Closely supervise children when they are

around cars to prevent them from play-
ing and becoming locked in the trunk
where they could be seriously injured.
Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children

’s

access to car keys.

EXHAUST GAS (carbon monoxide)

WARNING

. Do not breathe exhaust gases; they

contain colorless and odorless carbon
monoxide. Carbon monoxide is danger-
ous. It can cause unconsciousness or
death.

. If you suspect that exhaust fumes are

entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

. Do not run the engine in closed spaces

such as a garage.

. Do not park the vehicle with the engine

running for any extended length of time.

. Keep the trunk lid closed while driving,

otherwise exhaust gases could be drawn
into the passenger compartment. If you
must drive with the trunk lid open,
follow these precautions:

1) Open all the windows.

2) Set the

air recirculation to off

and the fan control to high to
circulate the air.

. If electrical wiring or other cable con-

nections must pass to a trailer through
the seal on the trunk lid or the body,
follow the manufacturer

’s recommenda-

tion to prevent carbon monoxide entry
into the vehicle.

. The exhaust system and body should be

inspected by a qualified mechanic when-
ever:

— The vehicle is raised for service.
— You suspect that exhaust fumes are

entering into the passenger compart-
ment.

— You notice a change in the sound of

the exhaust system.

— You have had an accident involving

damage to the exhaust system,
underbody, or rear of the vehicle.

Starting and driving

5-3

PRECAUTIONS WHEN STARTING AND
DRIVING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-4

Starting and driving

THREE-WAY CATALYST

The three-way catalyst is an emission
control device installed in the exhaust
system. Exhaust gases in the three-way
catalyst are burned at high temperatures to
help reduce pollutants.

WARNING

. The exhaust gas and the exhaust system

are very hot. Keep people, animals or
flammable materials away from the
exhaust system components.

. Do not stop or park the vehicle over

flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.

CAUTION

. Do not use leaded gasoline. Deposits

from leaded gasoline seriously reduce
the three-way catalyst

’s ability to help

reduce exhaust pollutants.

. Keep your engine tuned up. Malfunctions

in the ignition, fuel injection, or elec-
trical systems can cause overrich fuel

flow into the three-way catalyst, causing
it to overheat. Do not keep driving if the
engine misfires, or if noticeable loss of
performance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly by an INFINITI retai-
ler.

. Avoid driving with an extremely low fuel

level. Running out of fuel could cause
the engine to misfire, damaging the
three-way catalyst.

. Do not race the engine while warming it

up.

. Do not push or tow your vehicle to start

the engine.

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle

’s handling and

stopping ability.

Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver

’s responsibility to

maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one

-------------------------------------------------------------------------------------------------------------------------------------------------------------

minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the sys-
tem may not be able to detect or signal low
tire pressure as intended. TPMS malfunc-
tions may occur for a variety of reasons,
including the installation of replacement or
alternate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

Additional information

. The TPMS does not monitor the tire

pressure of the spare tire.

. The TPMS will activate only when the

vehicle is driven at speeds above 16
MPH (25 km/h). Also, this system may
not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

. The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is

inflated to the recommended pressure,
the vehicle must be driven at speeds
above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

. The CHECK TIRE PRESSURE warning

appears on the dot matrix liquid crystal
display when the low tire pressure
warning light is illuminated and low
tire pressure is detected. The CHECK
TIRE PRESSURE warning turns off when
the low tire pressure warning light
turns off.
The CHECK TIRE PRESSURE warning
appears each time the ignition switch
is placed in the ON position as long as
the low tire pressure warning light
remains illuminated.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

. Tire pressure rises and falls depending

on the heat caused by the vehicle

’s

operation and the outside temperature.
Low outside temperature can lower the
temperature of the air inside the tire
which can cause a lower tire inflation

pressure. This may cause the low tire
pressure warning light to illuminate. If
the warning light illuminates in low
ambient temperature, check the tire
pressure for all four tires.

For additional information, see

“Low tire

pressure warning light

” (P.2-12) and “Tire

Pressure Monitoring System (TPMS)

” (P.6-

3).

WARNING

. If the low tire pressure warning light

illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still

Starting and driving

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-6

Starting and driving

illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible. (See

“Flat

tire

” (P.6-3) for changing a flat tire.)

. When a spare tire is mounted or a wheel

is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.

. Replacing tires with those not originally

specified by INFINITI could affect the
proper operation of the TPMS.

. Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors (for models not equipped with
the emergency tire puncture repair kit).

. If you used the Emergency Tire Sealant

to repair a minor tire puncture, your
INFINITI retailer will also need to replace
the TPMS sensor in addition to repairing
or replacing the tire (for models
equipped with the emergency tire punc-
ture repair kit).

. INFINITI recommends using only NISSAN

Genuine Emergency Tire Sealant pro-
vided with your vehicle. Other tire
sealants may damage the valve stem
seal which can cause the tire to lose air
pressure (for models equipped with the
emergency tire puncture repair kit).

CAUTION

. The TPMS may not function properly

when the wheels are equipped with tire
chains or the wheels are buried in snow.

. Do not place metalized film or any metal

parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.

Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some exam-
ples are:
. Facilities or electric devices using simi-

lar radio frequencies are near the
vehicle.

. If a transmitter set to similar frequen-

cies is being used in or near the
vehicle.

. If a computer (or similar equipment) or

a DC/AC converter is being used in or
near the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user

’s

authority to operate the equipment.

For Canada:

This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AVOIDING COLLISION AND ROLL-
OVER

WARNING

Failure to operate this vehicle in a safe and
prudent manner may result in loss of control
or an accident.

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid exces-
sive speed, high speed cornering, or
sudden steering maneuvers, because
these driving practices could cause you to
lose control of your vehicle.

As with any

vehicle, a loss of control could result in a
collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if
the loss of control causes the vehicle to
slide sideways. Be attentive at all times,
and avoid driving when tired. Never drive
when under the influence of alcohol or
drugs (including prescription or over-the-
counter drugs which may cause drowsi-
ness). Always wear your seat belt as
outlined in the

“Seat belts” (P.1-11) of this

manual, and also instruct your passengers
to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers.

In a rollover crash,

an unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side
wheels may unintentionally leave the road
surface. If this occurs, maintain control of
the vehicle by following the procedure
below. Please note that this procedure is
only a general guide. The vehicle must be
driven as appropriate based on the condi-
tions of the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

4. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while the
vehicle speed is reduced. Do not
attempt to drive the vehicle back onto

the road surface until vehicle speed is
reduced.

6. When it is safe to do so, gradually turn

the steering wheel until both tires
return to the road surface. When all
tires are on the road surface, steer the
vehicle to stay in the appropriate
driving lane.

If you decide that it is not safe to
return the vehicle to the road surface
based on vehicle, road or traffic
conditions, gradually slow the vehi-
cle to a stop in a safe place off the
road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a

“blow-out” can

occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by
driving on under-inflated tires.

Rapid air pressure loss can affect the
handling and stability of the vehicle,
especially at highway speeds.

Help prevent rapid air pressure loss by
maintaining the correct air pressure and
visually inspect the tires for wear and
damage. See

“Wheels and tires” (P.8-30) of

this manual.

Starting and driving

5-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-8

Starting and driving

If a tire rapidly loses air pressure or
“blows-out” while driving maintain control
of the vehicle by following the procedure
below. Please note that this procedure is
only a general guide. The vehicle must be
driven as appropriate based on the condi-
tions of the vehicle, road and traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pressure.
Losing control of the vehicle may cause a
collision and result in personal injury.

. The vehicle generally moves or pulls in

the direction of the flat tire.

. Do not rapidly apply the brakes.
. Do not rapidly release the accelerator

pedal.

. Do not rapidly turn the steering wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

3. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

4. Gradually steer the vehicle to a safe

location off the road and away from
traffic if possible.

5. Lightly apply the brake pedal to gradu-

ally stop the vehicle.

6. Turn on the hazard warning flashers

and either contact a roadside emer-
gency service to change the tire or see
“Changing flat tire (for models with
spare tire)

” (P.6-4) of this Owner’s

Manual.

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces
coordination, delays reaction time and im-
pairs judgement. Driving after drinking
alcohol increases the likelihood of being
involved in an accident injuring yourself and
others. Additionally, if you are injured in an
accident, alcohol can increase the severity

of the injury.

INFINITI is committed to safe driving.
However, you must choose not to drive
under the influence of alcohol. Every year
thousands of people are injured or killed in
alcohol-related accidents. Although the
local laws vary on what is considered to
be legally intoxicated, the fact is that
alcohol affects all people differently and
most people underestimate the effects of
alcohol.

Remember, drinking and driving don

’t mix!

And that is true for drugs, too (over-the-
counter, prescription, and illegal drugs).
Don

’t drive if your ability to operate your

vehicle is impaired by alcohol, drugs, or
some other physical condition.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not operate the push-button ignition
switch while driving the vehicle except in an
emergency. (The engine will stop when the
ignition switch is pushed 3 consecutive
times or the ignition switch is pushed and
held for more than 2 seconds.) If the engine
stops while the vehicle is being driven, this
could lead to a crash and serious injury.

Before operating the push-button ignition
switch, be sure to move the shift lever to
the P (Park) position (for automatic trans-
mission model) or the shift lever to the N
(Neutral) position (for manual transmission
model).

SSD0872

OPERATING RANGE FOR ENGINE
START FUNCTION

The Intelligent Key can only be used for
starting the engine when the Intelligent
Key is within the specified operating range

When the Intelligent Key battery is almost
discharged or strong radio waves are
present near the operating location, the
Intelligent Key system

’s operating range

becomes narrower and may not function
properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even

someone who does not carry the Intelligent
Key, to push the ignition switch to start the
engine.
. The trunk area is not included in the

operating range but the Intelligent Key
may function.

. If the Intelligent Key is placed on the

instrument panel, rear parcel shelf,
inside the glove box or door pocket,
the Intelligent Key may not function.

. If the Intelligent Key is placed near the

door or window outside the vehicle, the
Intelligent Key may function.

Starting and driving

5-9

PUSH-BUTTON IGNITION SWITCH

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-10

Starting and driving

SSD1021

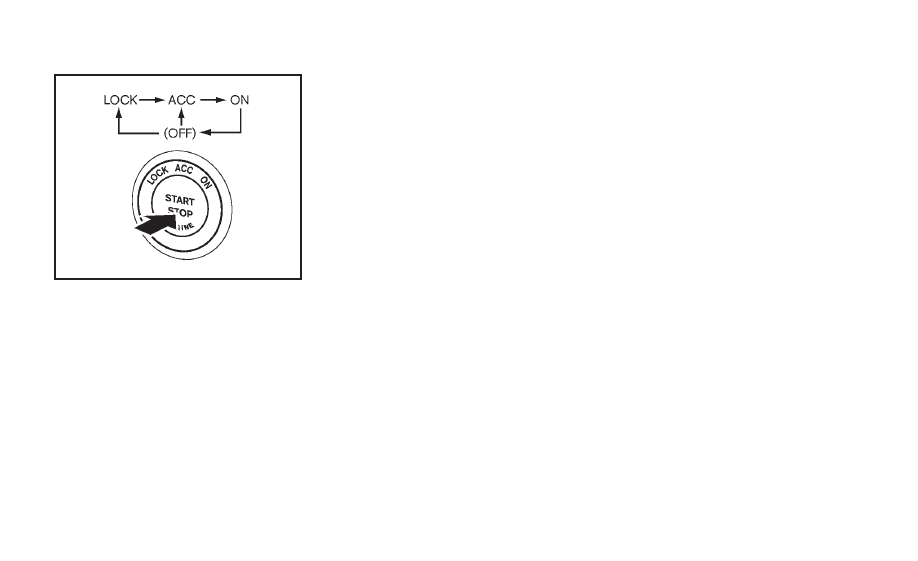

PUSH-BUTTON IGNITION SWITCH
OPERATION

When the ignition switch is pushed without
depressing the brake pedal (automatic
transmission model) or the clutch pedal
(manual transmission model), the ignition
switch position will change as follows:
. Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to

OFF. (No position illuminates.)

. Push center four times to return to ACC.
. Open or close any door to return to

LOCK during the OFF position.

The ignition lock is designed so that the
ignition switch position cannot be switched
to LOCK until the shift lever is moved to the
P (Park) position (Automatic Transmission
models).

When the ignition switch cannot be
switched toward the LOCK position, pro-
ceed as follows:

Move the shift lever into the P (Park)
position (Automatic Transmission models).

1. Push the ignition switch to the OFF

position. The ignition switch position
indicator will not illuminate.

2. Open the door. The ignition switch will

change to the LOCK position.

The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed (Automatic Transmission mod-
els).

PUSH-BUTTON IGNITION SWITCH
POSITIONS

LOCK (Normal parking position)

The ignition switch can only be locked in
this position.

The ignition switch will be unlocked when
it is pushed to the ACC position while
carrying the Intelligent Key or with the
Intelligent Key inserted in the port.

ACC (Accessories)

This position activates electrical acces-
sories such as the radio, when the engine
is not running.

ON (Normal operating position)

This position turns on the ignition system
and electrical accessories.

OFF

The engine can be turned off in this
position.

The ignition lock is designed so that the
ignition switch cannot be switched to the
LOCK position until the shift lever is moved
to the P (Park) position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not leave the vehicle with the push-
button ignition switch in ACC or ON posi-
tions when the engine is not running for an
extended period. This can discharge the
battery.

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
. Rapidly push the push-button ignition

switch 3 consecutive times in less than
1.5 seconds, or

. Push and hold the push-button ignition

switch for more than 2 seconds.

SSD0768

INTELLIGENT KEY BATTERY DIS-
CHARGE

If the battery of the Intelligent Key is
almost discharged, the guide light

the Intelligent Key port

blinks and the

indicator appears on the dot matrix liquid
crystal display. (See

“Dot matrix liquid

crystal display

” (P.2-17).)

In this case, inserting the Intelligent Key
into the port

allows you to start the

engine. Make sure that the key ring side
faces backward as illustrated. Insert the
Intelligent Key in the port until it is latched
and secured.

To remove the Intelligent Key from the port,
push the ignition switch to the OFF position
and pull the Intelligent Key out of the port.

NOTE:

The Intelligent Key port does not charge
the Intelligent Key battery. If you see the
low battery indicator in the dot matrix
liquid crystal display, replace the battery
as soon as possible. (See

“Intelligent Key

battery replacement

” (P.8-25).)

CAUTION

. Never place anything except the Intelli-

gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.

. Make sure the Intelligent Key is in the

correct direction when inserting it to the
Intelligent Key port. The engine may not
start if it is in the incorrect direction.

. Remove the Intelligent Key from the

Intelligent Key port after the ignition
switch is pushed to the OFF position.

Starting and driving

5-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-12

Starting and driving

. Make sure the area around the vehicle

is clear.

. Check fluid levels such as engine oil,

coolant, brake fluid and window
washer fluid as frequently as possible,
or at least whenever you refuel.

. Check that all windows and lights are

clean.

. Visually inspect tires for their appear-

ance and condition. Also check tires for
proper inflation.

. Lock all doors.
. Position seat and adjust head re-

straints.

. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passen-

gers to do likewise.

. Check the operation of warning lights

when the ignition switch is pushed to
the ON position. (See

“Warning/indica-

tor lights and audible reminders

” (P.2-

10).)

1. Apply the parking brake.

Automatic Transmission (AT) model:

Move the shift lever to the P (Park) or N
(Neutral) position. (P is recommended.)

The starter is designed not to operate
unless the shift lever is in either of the
above positions.

Manual Transmission (MT) model:

Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully
to the floor.

The starter is designed not to operate
unless the clutch pedal is fully de-
pressed.

The Intelligent Key must be carried
when operating the ignition switch.

3. Push the ignition switch to the ON

position. Depress the brake pedal (AT
model) or the clutch pedal (MT model)
and push the ignition switch to start
the engine.

To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal or the
clutch pedal (MT model) with the
ignition switch in any position.

If the engine is very hard to start in
extremely cold weather or when

restarting, depress the accelerator
pedal a little (approximately 1/3 to
the floor) and while holding, crank
the engine. Release the accelerator
pedal when the engine starts.

If the engine is very hard to start
because it is flooded, depress the
accelerator pedal all the way to the
floor and hold it. Push the ignition
switch to the ON position to start
cranking the engine. After 5 or 6
seconds, stop cranking by pushing
the ignition switch to OFF. After
cranking the engine, release the
accelerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and the clutch pedal (MT model) and
pushing the push-button ignition
switch to start the engine. If the
engine starts, but fails to run, repeat
the above procedure.

CAUTION

Do not operate the starter for more than 15
seconds at a time. If the engine does not
start, push the ignition switch to OFF and
wait 10 seconds before cranking again,

BEFORE STARTING THE ENGINE

STARTING THE ENGINE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

otherwise the starter could be damaged.

Warm-up

Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 - 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.

When racing the engine up to 4,000
rpm or more under no load condition,
the engine will enter the fuel cut mode.

5. To stop the engine, shift the shift lever

to the P (Park) position (AT model) or
move the shift lever to the N (Neutral)
position (MT model), and push the
ignition switch to the OFF position.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)

Vehicle is not driven regularly and/or
only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

AUTOMATIC TRANSMISSION

7 speed automatic transmission

The automatic transmission in your vehicle
is electronically controlled by a transmis-
sion control module to produce maximum
efficiency and smooth operation.

Shown on the following pages are the
recommended operating procedures for
this transmission. Follow these procedures
for maximum vehicle performance and
driving enjoyment.

Starting the vehicle

After starting the engine, fully depress the
foot brake pedal and push the shift lever
button before shifting the shift lever to the
R (Reverse), N (Neutral), D (Drive), DS (Drive
Sport) or Manual shift mode position. Be
sure the vehicle is fully stopped before
attempting to shift the shift lever.

This automatic transmission model is
designed so that the foot brake pedal
must be depressed before shifting from P
(Park) to any drive position while the
ignition switch position is ON.

Starting and driving

5-13

DRIVING THE VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q60 Coupe (2014 year). Manual - part 19
