Infiniti Q60 Coupe (2014 year). Manual - part 6





2-20

Instruments and controls

INDICATORS FOR OPERATION

1. Engine start operation indicator
(Automatic Transmission models)

This indicator appears when the shift lever
is in the P (Park) position.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed.

2. Intelligent Key insertion indicator

This indicator appears when the Intelligent
Key needs to be inserted into the Intelli-
gent Key port. (For example, the Intelligent
Key battery is discharged.)

If this indicator appears, insert the Intelli-
gent Key into the Intelligent Key port in the
correct direction. (See

“Push-button igni-

tion switch

” (P.5-9).)

3. Intelligent Key removal indicator

This indicator appears when the driver

’s

door is opened with the ignition switch in
the OFF or LOCK position and the Intelli-
gent Key placed in the Intelligent Key port.
A key reminder chime also sounds.

If this indicator appears, remove the
Intelligent Key from the Intelligent Key port
and take it with you when leaving the

vehicle.

4. NO KEY warning

This warning appears in either of the
following conditions.

No key inside the vehicle:

The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.

Unregistered Intelligent Key:

The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recog-
nized by the system. You cannot start the
engine with an unregistered key. Use the
registered Intelligent Key.

See

“Intelligent Key system” (P.3-7) for

more details.

5. SHIFT

“P” warning (Automatic

Transmission models)

This warning appears when the ignition
switch is pushed to stop the engine with
the shift lever in any position except the P
(Park) position.

If this warning appears, move the shift

lever to the P (Park) position or push the
ignition switch to the ON position.

An inside warning chime will also sound.
(See

“Intelligent Key system” (P.3-7).)

6.

“PUSH” warning (Automatic

Transmission models)

This warning appears when the shift lever
is moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT

“P” warning appears.

To push the ignition switch to the OFF
position, perform the following procedure:

SHIFT

“P” warning ? (Move the shift lever

to

“P”) ? PUSH warning ? (Push the

ignition switch

? ignition switch position

is turned to ON)

PUSH warning ? (Push

the ignition switch

? ignition switch

position is turned to OFF)

7. Intelligent Key battery discharge
indicator

This indicator appears when the Intelligent
Key battery is running out of power.

If this indicator appears, replace the
battery with a new one. (See

“Intelligent

Key battery replacement

” (P.8-25).)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8. Engine start operation indicator
(Manual Transmission models)

This indicator means that the engine will
start by pushing the ignition switch with
the clutch pedal depressed.

9. Parking brake release warning

This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.

10. Low fuel warning

This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (E) position.

There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (E) position.

11. Low washer fluid warning

This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See

“Window washer fluid”

(P.8-14).)

12. Door/trunk open warning (igni-
tion switch is in the ON position)

This warning appears if any of the doors

and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.

13. Loose fuel cap warning

This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See

“Fuel-filler

cap

” (P.3-32).)

14. Check tire pressure warning

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure detected. The
CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in
the ON position as long as the low tire
pressure warning light remains illumi-
nated. If this warning appears, stop the
vehicle and adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information label.
(See

“Low tire pressure warning light” (P.2-

12) and

“Tire Pressure Monitoring System

(TPMS)

” (P.5-4).)

15.

“Time to rest” indicator

This indicator appears when the set

“time

to rest

” indicator activates. You can set the

time for up to 6 hours. (See

“Trip

computer

” (P.2-26).)

16. Low outside temperature warn-
ing

This warning appears if the outside tem-
perature is below 37

8F (38C). The warning

can be set not to be displayed. (See

“Trip

computer

” (P.2-26).)

17. Cruise indicator

Cruise main switch indicator:

The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.

Cruise set switch indicator:

The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
properly. Have the system checked by an
INFINITI retailer.

See

“Cruise control” (P.5-21) for details.

Instruments and controls

2-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-22

Instruments and controls

18. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)

The indicator is displayed when the In-
telligent Cruise Control (ICC) system main
switch is pushed. When the main switch is
pushed again, the indicator disappears.
While the main switch indicator is dis-
played, the ICC system is operational.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC4168

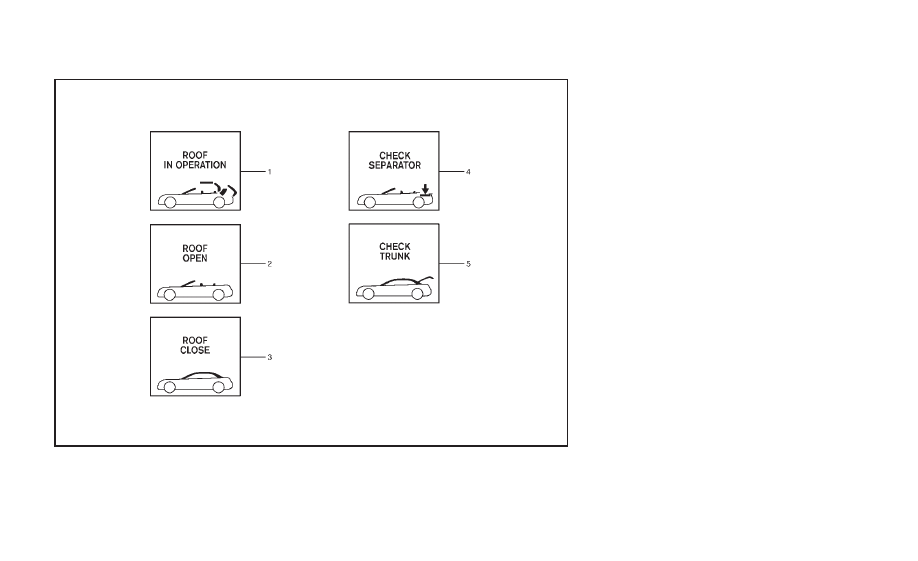

INDICATORS FOR RETRACTABLE
HARD TOP

This indicates the operating state of the
retractable hard top. Displays a message
and displays the status of the hard top.
(See

“Retractable hard top” (P.3-18).)

1. Roof in operation indicator

This indicator is displayed while the
retractable hard top is being operated.

2. Roof open indicator

This indicator is displayed when the
retractable hard top is open completely.

3. Roof close indicator

This indicator is displayed when the
retractable hard top is closed completely.

4. Check separator indicator

This indicator is displayed when the
separator is not set in the holder normally.

5. Check trunk indicator

This indicator is displayed when the trunk
is not closed completely.

NOTE:

A message is not displayed while the
Intelligent Cruise Control (ICC) system (if

Instruments and controls

2-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-24

Instruments and controls

so equipped) is being operated.

SIC3281

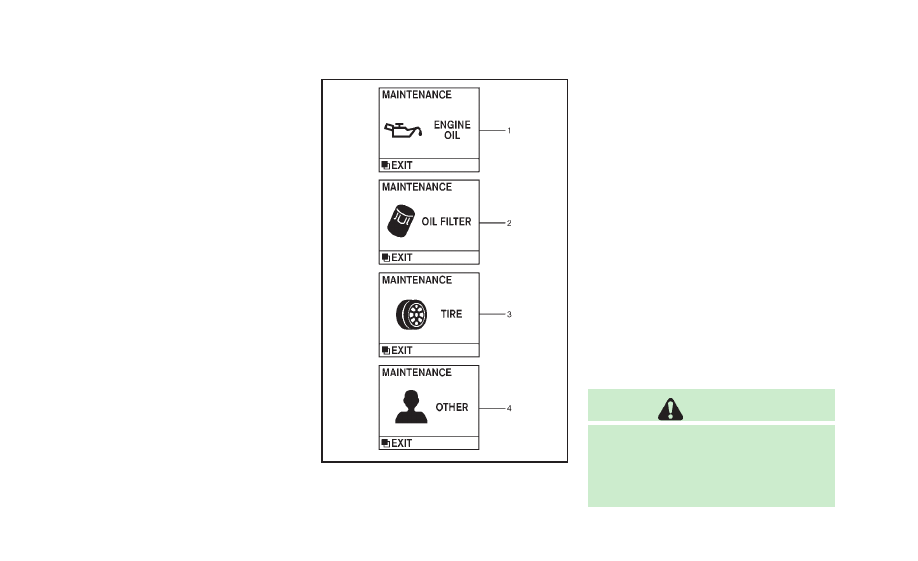

INDICATORS FOR MAINTENANCE

1. Engine oil replacement indicator

This indicator appears when the customer
set time comes for changing the engine oil.
You can set or reset the distance for
changing the engine oil. (See

“Trip compu-

ter

” (P.2-26).)

2. Oil filter replacement indicator

This indicator appears when the customer
set time comes for replacing the oil filter.
You can set or reset the distance for
replacing the oil filter. (See

“Trip compu-

ter

” (P.2-26).)

3. Tire replacement indicator

This indicator appears when the customer
set distance comes for replacing tires. You
can set or reset the distance for replacing
tires. (See

“Trip computer” (P.2-26).)

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, including
tire pressure checks. See

Changing wheels

and tires

” (P.8-37). Many factors including

tire inflation, alignment, driving habits and

-------------------------------------------------------------------------------------------------------------------------------------------------------------

road conditions affect tire wear and when
tires should be replaced. Setting the tire
replacement indicator for a certain driving
distance does not mean your tires will last
that long. Use the tire replacement indicator
as a guide only and always perform regular
tire checks. Failure to perform regular tire
checks, including tire pressure checks could
result in tire failure. Serious vehicle damage
could occur and may lead to a collision,
which could result in serious personal injury
or death.

4.

“OTHER” indicator

This indicator appears when the customer
set time comes for replacing items other
than the engine oil, oil filter and tires. You
can set or reset the distance for replacing
the items. (See

“Trip computer” (P.2-26).)

More maintenance reminders are also
available on the center display. (See
“How to use INFO button” (P.4-9).)

SIC3282

Instruments and controls

2-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-26

Instruments and controls

SIC3264

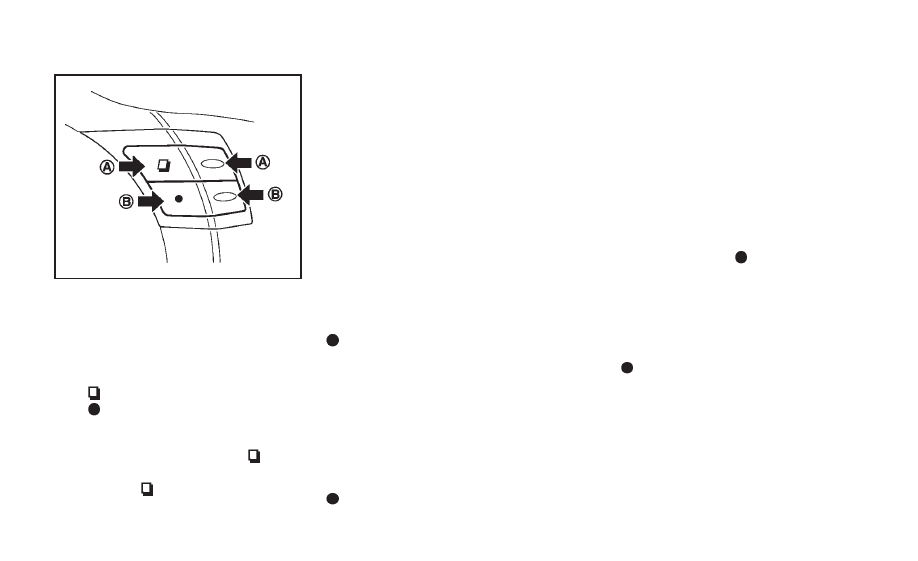

TRIP COMPUTER

Switches for the trip computer are located
on the right side of the combination meter
panel. To operate the trip computer, push
the side or front of the switches as shown
above.

*

A

switch

*

B

switch

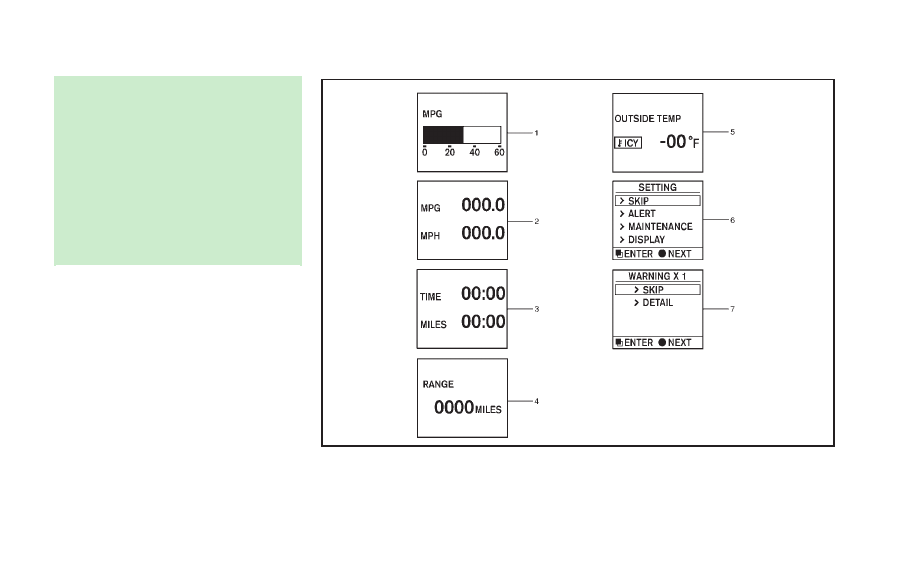

When the ignition switch is pushed to the
ON position, modes of the trip computer
can be selected by pushing the

switch

*

A

.

Each time the

switch

*

A

is pushed, the

display will change as follows:

Current fuel consumption

? Average fuel

consumption and speed

? Elapsed time

and trip odometer

? Distance to empty

(dte)

? Outside air temperature (ICY) ?

Setting

? Warning check

1. Current fuel consumption

The current fuel consumption mode shows
the current fuel consumption.

2. Average fuel consumption (MPG
or l (liter)/100 km) and speed (MPH
or km/h)

Fuel consumption:

The average fuel consumption mode shows
the average fuel consumption since the
last reset. Resetting is done by pushing the

switch

*

B

for longer than 1 second.

(The average speed is also reset at the
same time.)

The display is updated every 30 seconds.
At about the first 1/3 mile (500 m) after a
reset, the display shows

“——”.

Speed:

The average speed mode shows the
average vehicle speed since the last reset.
Resetting is done by pushing the

switch

*

B

for longer than 1 second.

(The average fuel consumption is also reset
at the same time.)

The display is updated every 30 seconds.
The first 30 seconds after a reset, the
display shows

“——”.

3. Elapsed time and trip odometer
(mls or km)

Elapsed time:

The elapsed time mode shows the time
since the last reset. The displayed time can
be reset by pushing the

switch

*

B

for

longer than 1 second. (The trip odometer is
also reset at the same time.)

Trip odometer:

The trip odometer mode shows the total
distance the vehicle has been driven since
the last reset. Resetting is done by pushing
the

switch

*

B

for longer than 1

second. (The elapsed time is also reset at
the same time.)

4. Distance to empty (dte

— mls or

km)

The distance to empty (dte) mode provides
you with an estimation of the distance that
can be driven before refueling. The dte is
constantly being calculated, based on the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

amount of fuel in the fuel tank and the
actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen.

When the fuel level drops even lower, the
dte display will change to

“——”.

. If the amount of fuel added is small, the

display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.

. When driving uphill or rounding curves,

the fuel in the tank shifts, which may
momentarily change the display.

5. Outside air temperature (ICY

— 8F

or

8C)

The outside air temperature is displayed in
8F or 8C in the range of −22 to 1318F (−30
to 55

8C).

The outside air temperature mode includes
a low temperature warning feature. If the
outside air temperature is below 37

8F

(3

8C), the warning is displayed on the

screen.

The outside temperature sensor is located
in front of the radiator. The sensor may be

affected by road or engine heat, wind
directions and other driving conditions.
The display may differ from the actual
outside temperature or the temperature
displayed on various signs or billboards.

6. Setting

Setting cannot be made while driving. A
message

“Setting can only be operated

when stopped

” is also displayed on the

dot matrix crystal display.

The

switch

*

A

and

switch

*

B

are

used in the setting mode to select and
decide a menu.

SKIP:

Push the

switch

*

A

to move to the

warning check mode.

Push the

switch

*

B

to select other

menus.

ALERT:

There are 3 submenus under the alert
menu.
. BACK

Select this submenu to return to the top
page of the setting mode.

. TIME TO REST

Select this submenu to specify when

the

“time to rest” indicator activates.

. ICY

Select this submenu to display the low
outside temperature warning.

MAINTENANCE:

There are 5 submenus under the main-
tenance menu.
. BACK

Select this submenu to return to the top
page of the setting mode.

. ENGINE OIL

Select this submenu to set or reset the
distance for changing the engine oil.

. OIL FILTER

Select this submenu to set or reset the
distance for replacing the oil filter.

. TIRE

Select this submenu to set or reset the
distance for replacing tires.

. OTHER

Select this submenu and set or reset
the distance for replacing items other
than the engine oil, oil filter and tires.

DISPLAY:

There are 3 submenus under the display
menu.

Instruments and controls

2-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-28

Instruments and controls

. BACK

Select this submenu to return to the top
page of the setting mode.

. LANGUAGE

Select this submenu to choose English
or French for display.

. UNIT

Select this submenu to choose the unit
from MPG or l/100 km.

7. Warning check

SKIP:

Push the

switch

*

A

to move to the

warning check mode.

Push the

switch

*

B

to select other

menus.

DETAIL:

This item is available only when a warning
is displayed.

Select this menu to see the details of
warnings.

SIC4169

Your vehicle has two types of security
systems, as follows:
. Vehicle security system
. INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.

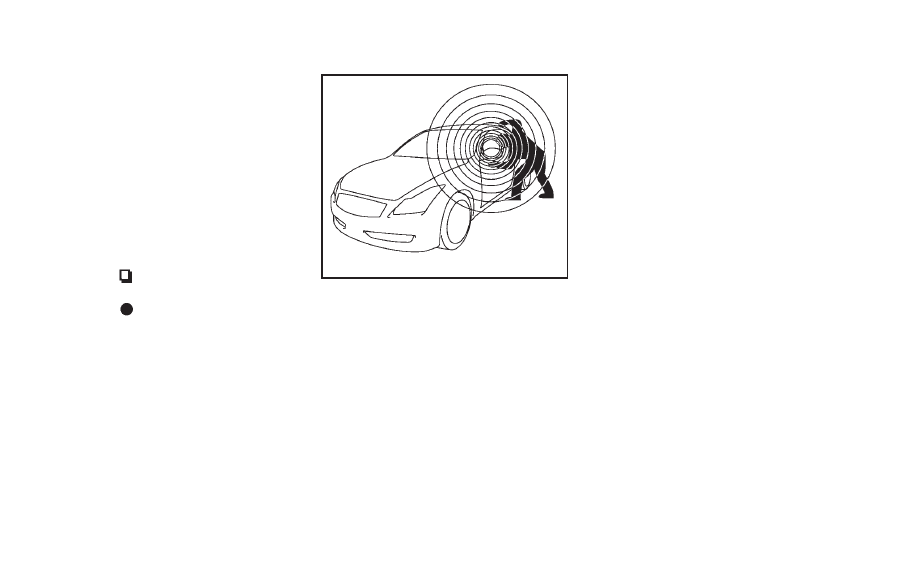

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual
and audio alarm signals if someone opens
the doors, hood, or trunk lid when the
system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key(s) in the
vehicle, and always lock it when unat-
tended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and speci-
alty shops. Your INFINITI retailer may also
offer such equipment. Check with your
insurance company to see if you may be
eligible for discounts for various theft
protection features.

SECURITY SYSTEMS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC2045

How to arm the vehicle security
system

1. Close all windows.

The system can be armed even if the
windows are open.

2. Push the ignition switch to the OFF

position.

3. Remove the Intelligent Key from the

vehicle.

4. Close all doors, hood and trunk. Lock

all doors. The doors can be locked with
the Intelligent Key, door handle request
switch, power door lock switch or
mechanical key.

5. Confirm that the security indicator light

comes on. The security indicator light
stays on for about 30 seconds. The
vehicle security system is now pre-
armed. After about 30 seconds the
vehicle security system automatically
shifts into the armed phase. The
security light begins to flash once every
approximately 3 seconds. If, during this
30-second pre-arm time period, the
door is unlocked, or the ignition switch
is pushed to ACC or ON, the system will
not arm.

Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.

Vehicle security system activation

The vehicle security system will give the
following alarm:
. The headlights blink and the horn

sounds intermittently.

. The alarm automatically turns off after

approximately 1 minute. However, the
alarm reactivates if the vehicle is

tampered with again.

The alarm is activated by:
. Unlocking the door or opening the trunk

lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if
the door is opened by releasing the
door inside lock knob, the alarm will
activate.)

. Opening the hood.

How to stop an activated alarm

The alarm will stop by unlocking a door by
pushing the unlock button on the Intelli-
gent Key, the door handle request switch
or using the mechanical key, or when the
ignition switch is pushed to the ACC or ON
position.

If the system does not operate as de-
scribed above, have it checked by an
INFINITI retailer.

Instruments and controls

2-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-30

Instruments and controls

INFINITI VEHICLE IMMOBILIZER
SYSTEM

The INFINITI Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered Intelligent Key.
Never leave these keys in the vehicle.

Statement related to section 15 of FCC
rules for INFINITI Vehicle Immobilizer
System (CONT ASSY - CARD SLOT)

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user

’s authority

to operate the equipment.

For Canada:

This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

SIC2045

Security indicator light

The security indicator light is located on
the meter panel. It indicates the status of
the INFINITI Vehicle Immobilizer System.

The light blinks after the ignition switch
was in the LOCK position. This function
indicates the security systems equipped on
the vehicle are operational.

If the INFINITI Vehicle Immobilizer System
is malfunctioning, this light will remain on
while the ignition switch is in the ON
position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the light still remains on and/or the
engine will not start, see an INFINITI
retailer for INFINITI Vehicle Immobilizer
System service as soon as possible.
Please bring all Intelligent Keys that you
have when visiting an INFINITI retailer for
service.

WARNING

In freezing temperatures the washer solu-
tion may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm windshield with the defros-
ter before you wash the windshield.

CAUTION

Do not operate the washer continuously

for more than 30 seconds.

Do not operate the washer if the

reservoir tank is empty.

Do not fill the window washer reservoir

tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.

Pre-mix washer fluid concentrates with

water to the manufacturer

’s recom-

mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir

tank to mix the washer fluid concentrate
and water.

Instruments and controls

2-31

WINDSHIELD WIPER AND WASHER SWITCH

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-32

Instruments and controls

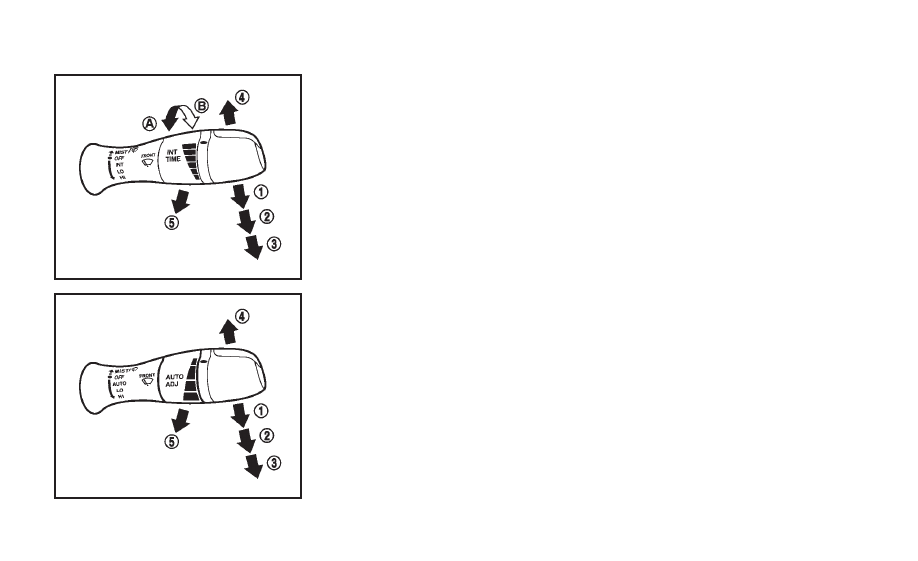

SIC3238

Type A

SIC4281

Type B

The windshield wiper and washer operates
when the ignition switch is in the ON
position.

Push the lever down to operate the wiper
at the following speed:

*

1

Intermittent

— intermittent operation

Type A: The intermittent operation can
be adjusted by turning the knob
toward

*

A

(Slower) or

*

B

(Faster).

When the speed sensing wiper inter-
val function is turned on, the inter-
mittent operation speed varies in
accordance with the vehicle speed.
(For example, when the vehicle speed
is high, the intermittent operation
speed will be faster.) To turn this
function on and off, see

“How to use

SETTING button

” (P.4-13).

Type B: For models with the rain-
sensing auto wiper system, see

“Rain-

sensing auto wiper system

” (P.2-33).

*

2

Low

— continuous low speed opera-

tion

*

3

High

— continuous high speed opera-

tion

Push the lever up

*

4

to have one sweep

operation of the wiper.

Pull the lever toward you

*

5

to operate the

washer. Then the wiper will also operate
several times.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC4190

RAIN-SENSING AUTO WIPER SYS-
TEM (if so equipped)

The rain-sensing auto wiper system can
automatically turn on the wipers and
adjust the wiper speed depending on the
rainfall and the vehicle speed by using the
rain sensor located on the upper part of
the windshield.

To set the rain-sensing auto wiper system,
push the lever down to the AUTO position

*

1

. The wiper will sweep once while the

ignition switch is in the ON position.

The rain sensor sensitivity level can be
adjusted by turning the knob toward

*

2

(High) or

*

3

(Low).

. High — High sensitive operation
. Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, push up the lever to the OFF position,
or pull down the lever to the LO or HI
position.

CAUTION

Do not touch the rain sensor and around it
when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate un-
expectedly and cause to an injury or a wiper
damage.

The rain-sensing auto wipers are in-

tended for use during rain. If the switch
is left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are
stuck on or around the sensor. The
wipers may also operate when exhaust
gas or moisture affect the rain sensor.

The rain-sensing auto wipers may not

operate if rain does not hit the rain
sensor even if it is raining.

When the windshield glass is coated

with water repellent, the speed of the
rain-sensing auto wipers may be high-
er even though the amount of the
rainfall is small.

Be sure to turn off the rain-sensing

auto wiper system when you use a car
wash.

Using genuine wiper blades is recom-

mended for proper operation of the
rain-sensing auto wiper system. (See
“Windshield wiper blades” (P.8-20) for
wiper blade replacement.)

Instruments and controls

2-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-34

Instruments and controls

SIC3239

To defog/defrost the rear window glass
and outside mirrors, start the engine and
push the switch

*

1

on. The indicator light

*

2

will come on. Push the switch again to

turn the defroster off.

It will automatically turn off in approxi-
mately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.

XENON HEADLIGHTS

WARNING

HIGH VOLTAGE

When xenon headlights are on, they

produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xenon
headlights replaced at an INFINITI retai-
ler.

Xenon headlights provide considerably

more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to an INFINITI retailer
and have the headlights adjusted cor-
rectly.

When the xenon headlight is initially
turned on, its brightness or color varies
slightly. However, the color and brightness
will soon stabilize.
The life of xenon headlights will be

shortened by frequent on-off operation.

It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon head-
lights is not reduced.

If the xenon headlight bulb is close to

burning out, the brightness will dras-
tically decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact an INFINITI
retailer.

REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH

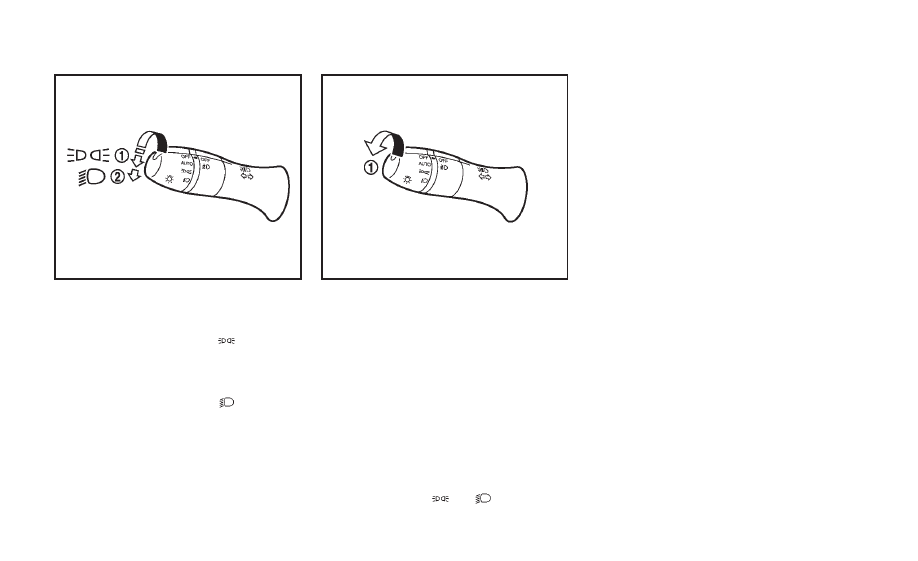

HEADLIGHT AND TURN SIGNAL SWITCH

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC3267

HEADLIGHT SWITCH

Lighting

*

1

Turn the switch to the

position:

The front parking, side marker, tail,
license plate and instrument lights
will come on.

*

2

Turn the switch to the

position:

Headlights will come on and all the
other lights remain on.

SIC3268

Autolight system

The autolight system allows the headlights
to be set so they turn on and off
automatically.

To set the autolight system:

1. Make sure the headlight switch is in the

AUTO position

*

1

.

2. Push the ignition switch to the ON

position.

3. The autolight system automatically

turns the headlights on and off.

To turn the autolight system off, turn the
switch to the OFF,

or

position.

The autolight system can turn on the
headlights automatically when it is dark
and turn off the headlights when it is light.

If the ignition switch is pushed to the OFF
position and one of the doors is opened
and this condition is continued, the head-
lights remain on for 5 minutes.

Instruments and controls

2-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
