Infiniti QX4. Electrical System (2003 year). Manual - part 35

SEL460Y

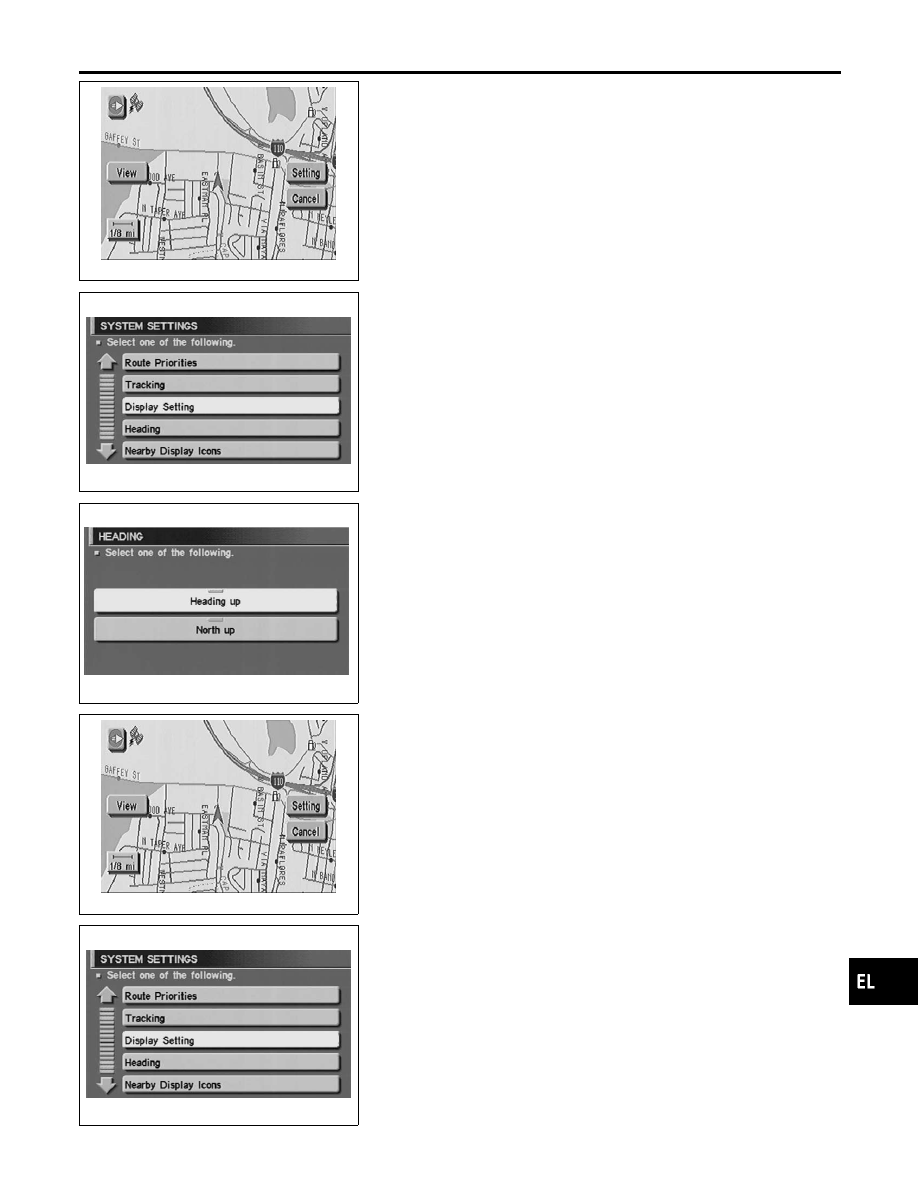

“TRACKING” MODE

NBEL0426S11

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL467Y

Touch “Tracking”.

SEL470Y

Touch the “On” or “Off” icon.

쐌

If you don’t need a trail on the map, select “Off”.

쐌

If you need a trail on the map, select “On”.

Push the “MAP” switch to return the display to the current
location map.

NOTE:
When a trail display is turned OFF, trail data is erased from the
memory.

SEL460Y

“HEADING” MODE

NBEL0426S12

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL467Y

Touch “Heading”.

IDX

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-549

SEL470Y

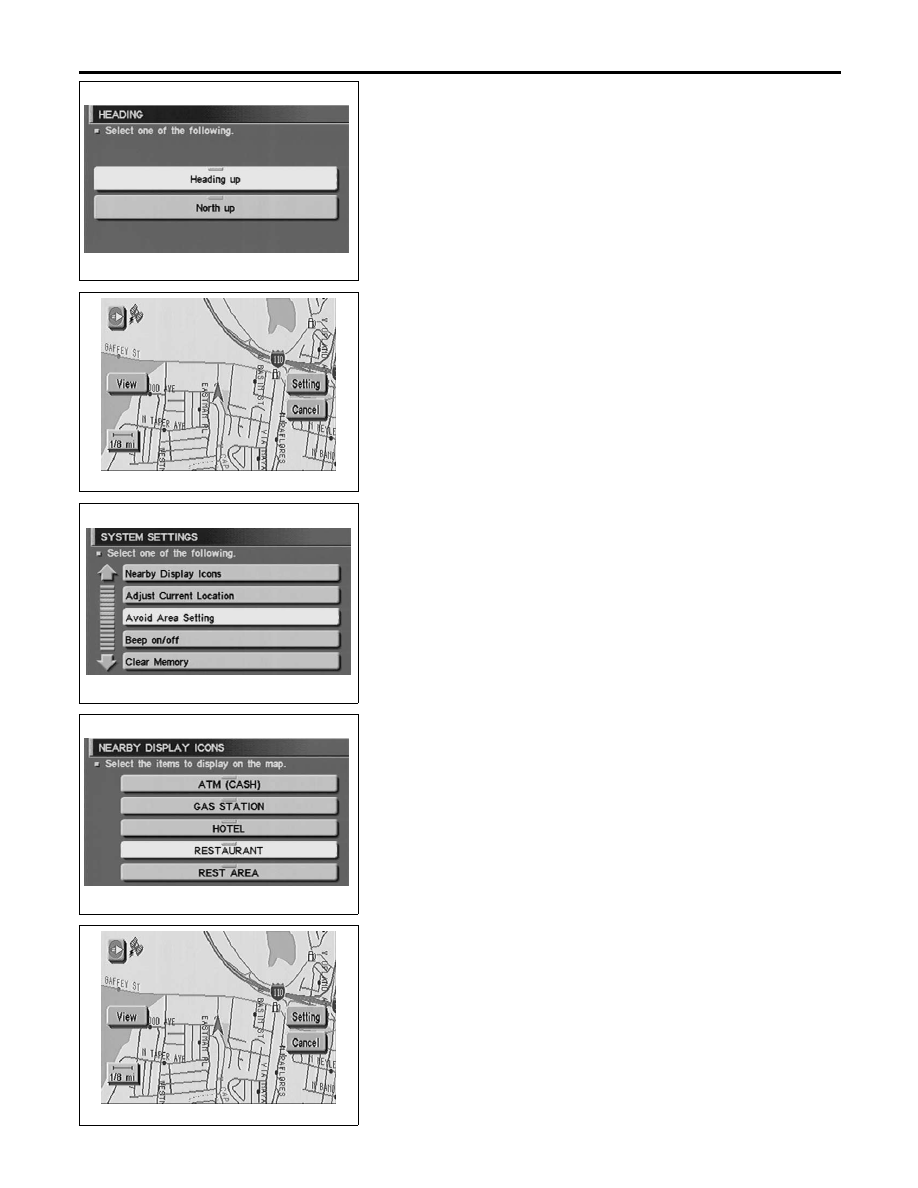

Touch the “Heading up” or “North up” icon.

쐌

To display North up, select “North up”.

쐌

To display the car heading up, select “Heading up”.

Push the “MAP” switch, then the display will go back to the
current location map.

SEL460Y

“NEARBY DISPLAY ICONS” MODE

NBEL0426S13

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL463Y

Touch “Nearby Display Icons”.

SEL471Y

Select and touch the itemized list.

Push the “MAP” switch to return the display to the current
location map.

SEL460Y

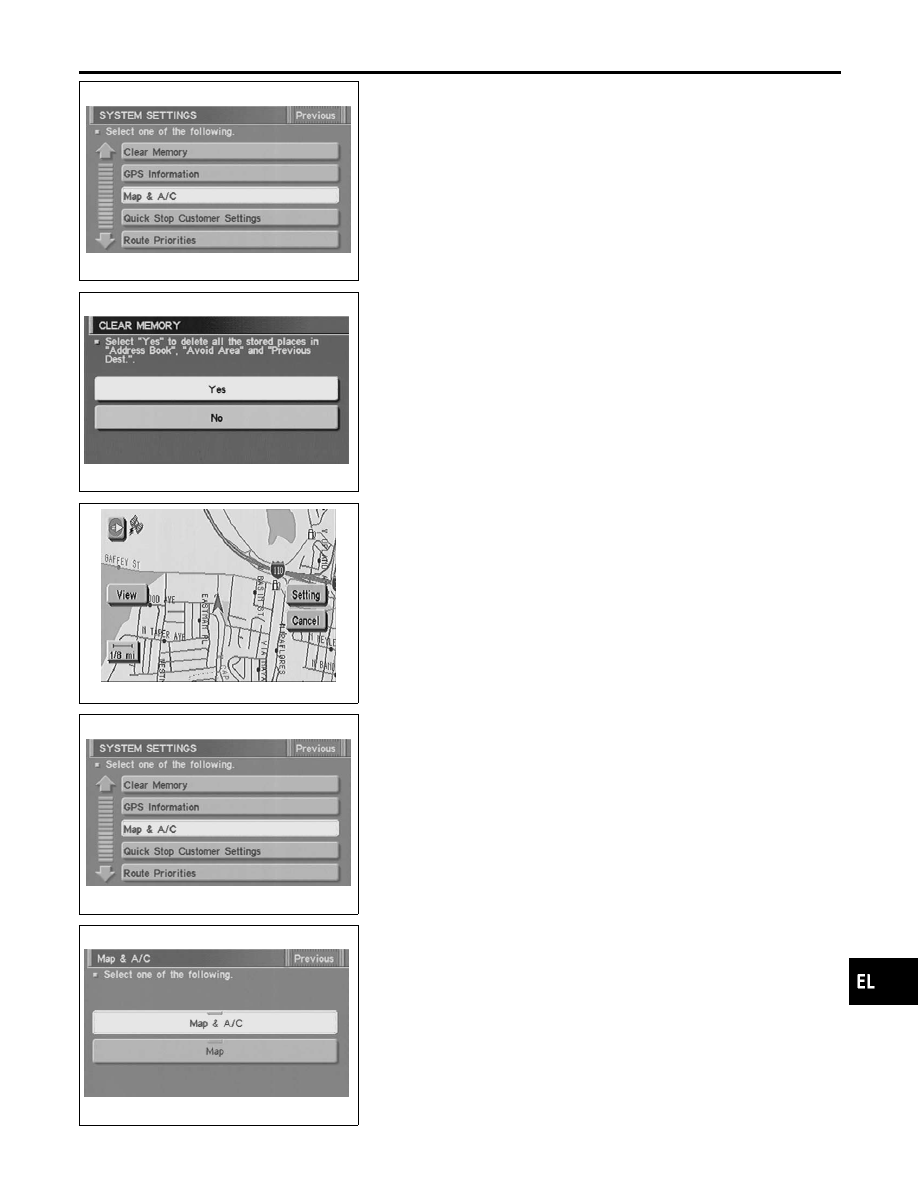

“CLEAR MEMORY” MODE

NBEL0426S14

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-550

SEL462Y

Touch “Clear Memory”.

SEL472Y

To delete all the stored places in the “Address Book”, “Avoid
Area” and “Previous Dest.”, select “Yes”.

SEL460Y

“MAP & A/C” MODE

NBEL0426S15

Start the engine.

Push “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL462Y

Touch “MAP & A/C”.

SEL474Y

Touch “Map & A/C” or “Map” icon.

쐌

To set the split display with both the map and the air condi-
tioner information as the initial setting of the NAVI system,
select “MAP & A/C”.

쐌

To set the map only display as the initial setting of the NAVI
system, select “MAP”.

Push “MAP” switch, then the display will go back to the current
location map.

NOTE:
When the enlarged view is displayed, the air conditioner control
screen will not be displayed.

IDX

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-551

Trouble diagnoses

NBEL0427

SYMPTOM CHART

NBEL0427S01

Symptom

Diagnoses/service procedure

Reference

page

Any function of the system
does not operate.

Check power supply and ground circuit for display & NAVI control unit.

EL-555

Strange screen color or
unusual screen brightness.

1. Check “DISPLAY SETTING”.

EL-546

2. Check display in “Diagnosis of Display” MODE.

—

The display is not dimmed
when turning lighting switch
to ON.

1. Check “DISPLAY SETTING”.

EL-546

2. Check lighting switch signal input to display & NAVI control unit correctly in
“DIAGNOSTIC SIGNAL FROM THE CAR” MODE.

EL-538

No navigation guide voice
are heard from both front
speakers.

1. Check “Voice Guidance Setting”.

—

2. Check voice guide operation.

EL-556

Beep does not sound when
the system guides route.

Check “BEEP ON/OFF SETTING”.

EL-546

Position marker does not
trace along the route being
traveled.

Go to “WORK FLOW FOR NAVIGATION INSPECTION”.

EL-553

Position marker does not
indicate forward or backward
movement.

Check reverse signal input to display & NAVI control unit correctly by “DIAGNOS-
TIC SIGNAL FROM THE CAR” MODE.

EL-538

Radio wave of GPS cannot
be received. (GPS marker
on the display does not
become green color.)

1. Is there anything obstructing the GPS antenna on the rear parcel finisher?
(GPS antenna located under the rear parcel finisher.)

—

2. Check GPS radio wave receive condition in “GPS INFORMATION SETTING”.

EL-544

3. Check GPS antenna in “Self Diagnosis”.

EL-531

Heading direction of position
marker does not match
vehicle direction.

1. Perform “ADJUST CURRENT LOCATION” SETTING.

EL-545

2. Go to “WORK FLOW FOR NAVIGATION INSPECTION”.

EL-553

Stored location in the
address book and other
memory functions are lost
when battery is disconnected
or becomes discharged.

Stored location in the address book and other memory functions may be lost if the
battery is disconnected or becomes discharged. If this should occur, charge or
replace the battery as necessary and re-enter the information.

—

Map appears grey and can-
not be scrolled.

The current location in the memory is out of the map data area.
Perform “Initialize Location”.

EL-568

NAVIGATION SYSTEM

Trouble diagnoses

EL-552

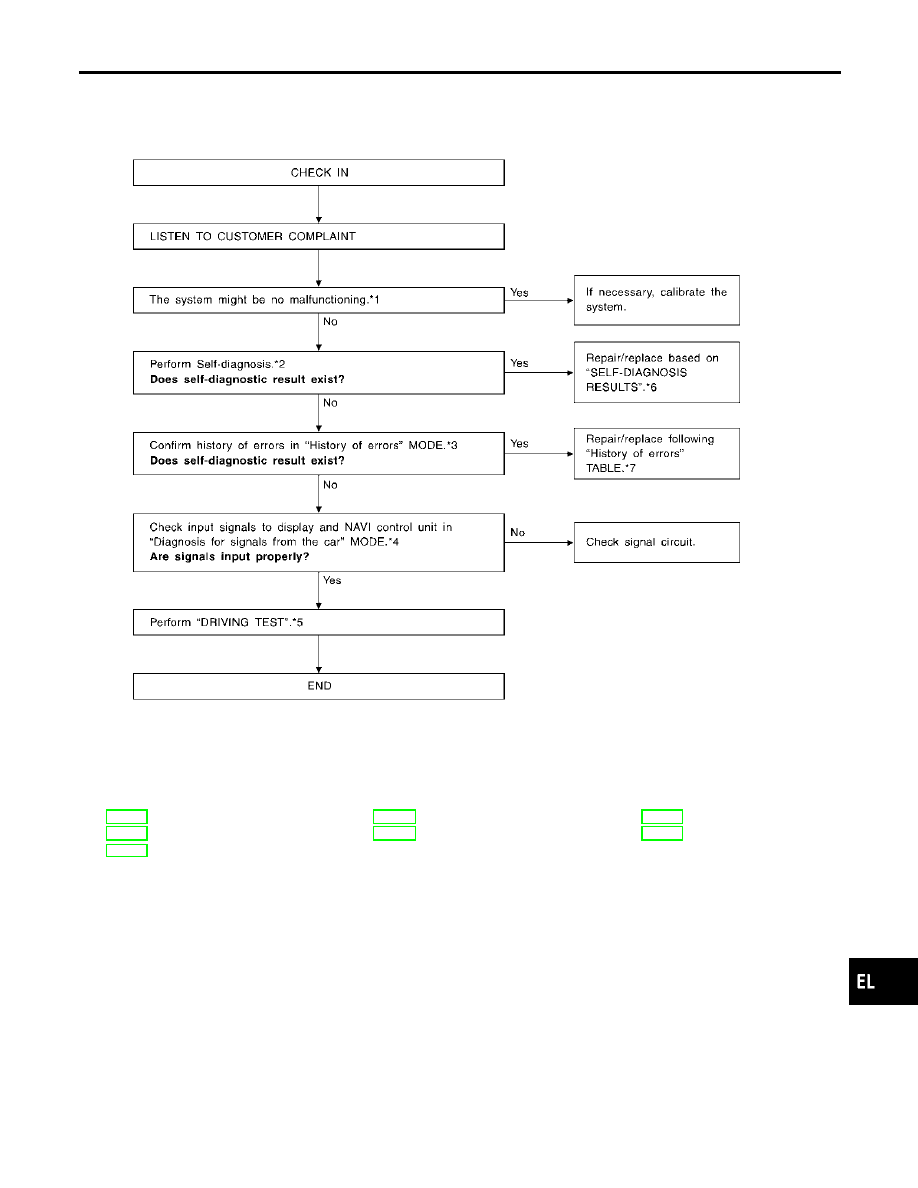

WORK FLOW FOR NAVIGATION INSPECTION

NBEL0427S02

SEL629XA

*1: EL-558
*2: EL-531
*3: EL-534

*4: EL-538
*5: EL-554

*6: EL-533
*7: EL-536

IDX

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-553

DRIVING TEST

=NBEL0427S03

During the driving test, diagnose the system by checking the dif-
ference of symptoms with each sensor ON or OFF.
Test pattern 1
Test method in which current position adjustment is not made
according to GPS data.

쐌

Remove the GPS antenna connector from the display & NAVI
control unit. Drive the vehicle.
Before driving the vehicle, perform “ADJUST CURRENT
LOCATION” (EL-545).

Test pattern 2
Test procedure in which map matching is not used.

쐌

Before driving the vehicle, perform “ADJUST CURRENT
LOCATION” (EL-545). With the ignition switch OFF and the
map CD-ROM removed from the display & NAVI control unit,
drive the vehicle. After driving the vehicle, reinstall the map
CD-ROM. Compare the saved driving tracks for the vehicle’s
current location with roads on the map.

Example
<The position marker consistently indicates the wrong position
when driving in the same area. Determine if this is the result of the
map matching function or the GPS function.>

Perform test pattern 1.

Perform test patterns 1 and 2.

쐌

Compare the map and the saved driving tracks. The precision
of the saved driving tracks is within several hundred meters.

Perform test patterns 1 and 2.

쐌

Make adjustments by driving the vehicle over a known course
(highway or other road where distances are clearly marked).
Calibrate the distance against the known distance. Use the
formula below.
Calibration value = Screen display distance/Actual distance

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-554

SEL693VD

POWER SUPPLY AND GROUND CIRCUIT CHECK FOR
DISPLAY & NAVI CONTROL UNIT

=NBEL0427S04

Power Supply Circuit Check

NBEL0427S0401

Terminal

Ignition switch

(+)

(−)

OFF

ACC

Ground

Battery voltage

Ground

Battery voltage

Ground

Battery voltage

Ground

Battery voltage

If NG, check the following.

쐌

7.5A fuse [No. 11, located in the fuse block (J/B)]

쐌

10A fuse [No. 10, located in the fuse block (J/B)]

쐌

15A fuse [No. 4, located in the fuse block (J/B)]

쐌

Harness for open or short between fuse and display & NAVI
control unit

SEL694VD

Ground Circuit Check

NBEL0427S0402

Terminals

Continuity

3 - Ground

Yes

4 - Ground

Yes

IDX

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-555

VOICE GUIDE OPERATION CHECK

=NBEL0427S05

PRELIMINARY CHECK

1. Turn ignition switch to ACC position.
2. Insert the music CD into the radio and CD player.
3. Try to play the music CD.

Is the sound emitted from all speakers?

Yes or No

Yes

䊳

GO TO 2.

䊳

Repair or replace audio system.
Refer to “AUDIO”, EL-183.

CHECK NAVI OPERATION ON SIGNAL

1. Disconnect AUDIO unit connector.
2. Push “VOICE” button.
3. Check voltage between AUDIO unit harness connector terminal 28 and ground.

SEL645XA

OK or NG

䊳

GO TO 3.

䊳

Repair or replace harness or NAVI control unit.

CHECK VOICE SIGNAL CIRCUIT

1. Push “VOICE” button.
2. Check voltage between NAVI control unit harness connector M118 terminal 30 (G/Y) or 31 (OR/L) and ground.

SEL797Y

OK or NG

䊳

GO TO 4.

䊳

Repair or replace NAVI control unit.

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-556

CHECK VOICE SIGNAL CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and AUDIO unit connector.
3. Check continuity between NAVI control unit harness connector M118 terminal 30 (G/Y) and AUDIO unit harness con-

nector M139 terminal 36 (G/Y).

4. Check continuity between NAVI control unit harness connector M118 terminal 31 (OR/L) and AUDIO unit harness con-

nector M139 terminal 34 (OR/L).

SEL798Y

Yes or No

Yes

䊳

Repair or replace audio system.
Refer to “AUDIO”, EL-183.

䊳

Repair or replace harness or connector.

IDX

NAVIGATION SYSTEM

Trouble diagnoses (Cont’d)

EL-557

This Condition is Not Abnormal

=NBEL0428

EXAMPLE OF BASIC OPERATIONAL ERRORS

NBEL0428S01

Symptom

Possible cause

Repair order

No image is dis-
played.

Monitor brightness control is set to full dark.

Readjust monitor brightness.

Map does not appear
on display.

Map CD is not inserted or inserted upside down.

Insert the map CD with the label facing up.

Map mode is turned OFF.

Press the “MAP” button.

No guide tone is
heard.

Voice guide adjustment OFF/Volume is set to the
lowest or highest level.

Adjust the voice guide level.

Voice guide volume
is too high or too low.

Dark display/Slow
image movement

Low vehicle interior temperature

Wait until vehicle interior temperature rises to appro-
priate level.

Small black or white
dots appear on the
screen.

Unique liquid crystal display phenomena

No problem

“Unable to read CD”
message appears
only during specified
operation.

Map CD surface is tainted/CD surface is partially
scratched.

Check map CD surface. If dirty, wipe clean with a
soft cloth.

If map CD surface is damaged, replace the CD.

Area place names are not displayed.
If area place names do not appear on the map display, these names may not be available. Use the BIRD-
VIEW

姞

flat surface map display function. Display output may differ. Note the items related to BIRDVIEW

姞

below.

쐌

Priority is given to the display of place names in the direction of vehicle travel.

쐌

Extended display of vehicle travel distance for both surfaces and steering angle (flat directional changes).
This phenomenon disappears after the display image has been replaced by another one.

쐌

The names of route and area might vary between the immediate front area and distance front area.

쐌

Alphanumeric display characters are limited to maintain display simplicity and clarity. Display details may
differ with time and place.

쐌

Identical place and road names may appear on the display at more than one location.

NAVIGATION SYSTEM

This Condition is Not Abnormal

EL-558

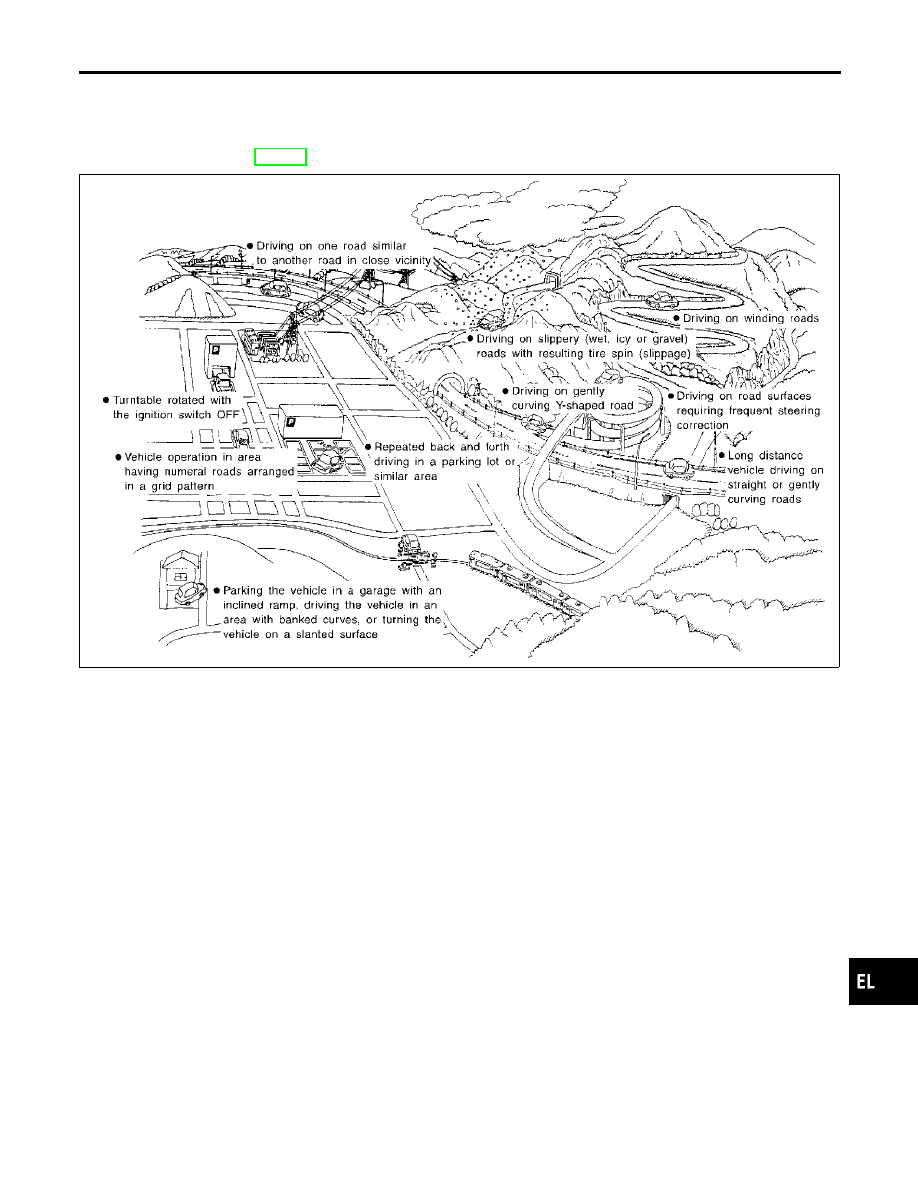

EXAMPLE OF CURRENT VEHICLE POSITION MARKER ERROR

=NBEL0428S02

The navigation system reads the vehicle distance and steering angle data. Because the vehicle is moving,
there will be an error in the current position indication. After the error appears, drive the vehicle for a short
distance. Stop the vehicle. If the position marker does not return to its original position, perform “ADJUST
CURRENT LOCATION” (EL-545).

SEL698V

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-559

Possible cause

Drive condition

Service procedure

Area

Slippery road surface

On wet, icy, or gravel road where
frequent wheel slippage occurs, dis-
tance calculations may be errone-
ous. The position marker may show
the vehicle to be in inaccurate posi-
tion.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “ADJUST CUR-
RENT LOCATION” (EL-545). If
necessary, perform “SPEED
CALIBRATION” (EL-543).

Slanted area

Hilly areas where the road has
banked curves. When the vehicle
enters these banked curves, there
may be an error in steering angle
measurement. The position marker
may show the vehicle to be in inac-
curate position.

Map
data

Map display for a given road does not appear.

SEL699V

When the vehicle is driven on a
newly constructed road that does
not appear on the existing map.
Map marking and calibration are not
possible. The position marker may
indicate inaccurate position in close
proximity to the actual position.
Subsequently, when the vehicle is
driven on a road which is available
as map data, the position marker
may still indicate an inaccurate posi-
tion.

The vehicle is driven on a road whose course
has been altered (usually to improve the road or
to eliminate some hazard).

SEL700V

When the map data shown on the
display and the actual conditions are
different. Map matching will not be
possible. The position marker may
indicate inaccurate position in close
proximity to the actual position. If
the vehicle is driven on the indicated
road, further errors may occur.

Vehicle

Use of tire chains (Stormy weather)

Tire chains will affect distance sens-
ing. The position marker may indi-
cate inaccurate position.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “SPEED CALI-
BRATION” (EL-543). After
removing the tire chains, sens-
ing accuracy may recover by
itself.

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-560

Possible cause

Drive condition

Service procedure

Opera-
tion

Driving immediately after starting engine.

The gyro (angular velocity sensor)
needs about 15 seconds after the
engine is started to precisely sense
the angular velocity. Directional
sensing errors will occur if the
vehicle is moved immediately after
starting the engine. The position
marker may indicate inaccurate
position.

Wait a few moments between
starting the engine and actually
driving the vehicle.

Continuous driving for long distances (non-stop)

When the vehicle is driven continu-
ously without stopping over a long
distance, errors in directional sens-
ing may occur. The position marker
may indicate inaccurate position.

Stop the vehicle. Perform
“SPEED CALIBRATION” (EL-
543).

Rough or violent driving

Wheel spinning (peeling out) or simi-
lar rough driving techniques can
adversely affect sensing accuracy.
The position marker may indicate
inaccurate position.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “ADJUST CUR-
RENT LOCATION” (EL-545).

Posi-
tional
calibra-
tion pro-
cedures

Positional calibration precision

SEL701V

If current vehicle location is roughly
set, the system may be unable to
locate the road that the vehicle is
traveling on. (This is especially true
in an area where there are many
roads.)

Perform “ADJUST CURRENT
LOCATION” (EL-545) within a
precision standard of 1 mm
(0.04 in) on the display.
Note: During calibration, use
the most detailed map pos-
sible.

Position calibration direction

SEL702V

When calibrating the position, check
the vehicle direction. If the vehicle
direction is not correct, subsequent
precision of current location will be
affected.

Perform “ADJUST CURRENT
LOCATION”, refer to EL-545.

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-561

Possible cause:

—: Vehicle running

---: Indication

Drive condition

Service procedure

Road
shapes

Y-intersection

SEL703V

In Y-intersections with a very
gradual change in course, a direc-
tional sensing may be inaccurate.
This may result in the position
marker giving the wrong road indica-
tion.

If the position marker does not
move to the correct position
even after the vehicle has been
driven approximately 10 km (6
miles), perform “Store place”. If
required, also perform
“ADJUST CURRENT LOCA-
TION” (EL-545).

Spiral road

SEL704V

On loop bridges and similar struc-
tures which result in a large and
continuous turn, turning angle may
be sensed inaccurately. As a result,
the position marker may separate
from the route on the map.

Straight road

SEL705V

In long distance driving on a straight
road or road with very gradual
curves, map marking inaccuracies
may occur. In such cases, the posi-
tion marker may stray from the route
being traveled during subsequent
turns due to inaccurate distance cal-
culation.

Winding road

SEL706V

Directional sensing precision errors
may occur when traveling on wind-
ing roads. During map matching, the
position marker may stray to an
adjacent road having a similar
shape. Subsequent position marker
error may occur.

Grid-like road shape

SEL707V

Directional sensing and distance
sensing, precision errors may occur
because of many roads having a
similar shape in the immediate area.
During map matching, the position
marker may stray to an adjacent
road having a similar shape. Subse-
quent position marker error may
occur.

Parallel roads

SEL708V

When driving on a parallel road,
map matching errors may occur.
Subsequent position marker error
may also occur.

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-562

Possible cause:

—: Vehicle running

---: Indication

Drive condition

Service procedure

Loca-
tion

Parking lot or similar area

SEL709V

When the vehicle is driven in a park-
ing lot or similar area, such as in an
area not normally marked as a road
on map, during map matching, the
system may select nearby roads.
This error may continue after the
vehicle exits the parking area and
begins to run on ordinary roads.
Vehicle operation in a parking area
may involve frequent turns and up
and/or down operation. Directional
sensing errors may occur leading to
subsequent route and position mis-
takes.

Turntable

SEL710V

When the ignition switch is OFF (the
usual situation when the vehicle is
on a turntable), the navigation sys-
tem receives no data from the gyro
(angular velocity sensor). When the
turntable rotates, no directional
change is sensed. During subse-
quent vehicle operation, directional
and route errors may occur.

Position marker displays a completely different location
In circumstances such as those described below, GPS signal reception conditions may result in an erroneous
position of the position marker. Perform “ADJUST CURRENT LOCATION” (EL-545).
NOTE:

쐌

When GPS satellite signal reception conditions are poor, the position of position marker may be errone-
ous. If correction is not made immediately, the position marker error will be compounded and a completely
different location will be indicated. In an area where GPS satellite signal reception conditions are good,
the system can be returned to normal operation.

쐌

The vehicle is driven aboard a car ferry or is towed for some distance with the ignition switch OFF. Vehicle
movement is not sensed. Current location calculations do not occur and current location data does not
appear on the display screen. Use GPS to accurately determine actual vehicle position. The system can
be returned to normal operation when the GPS satellite signal reception conditions are good.

Position marker jumps
In circumstances such as those described below, the position marker may jump as a result of automatic cur-
rent location corrections made by the system.
During map matching

쐌

During map matching, the position marker may jump from one spot to another. In this case, it may be cor-
rected to a wrong road or to an area where no road exist.

GPS location correcting

쐌

Vehicle current location is sensed using the GPS data. Positional calibration is performed. The position
marker continues to be in the wrong position. It may jump about from one area of the screen to another.
In this case, it may be corrected to a wrong road or to an area where no road exist.

Position marker indicates that the vehicle is in the middle of an ocean or large river
The navigation system does not distinguish between land and water surfaces. In some cases, a position
marker error may cause the display to show the vehicle above a water surface.
Position of position marker varies when the vehicle is repeatedly operated on the same road
Driving lane and steering wheel movement results in a variety of different positions of the position mark when
traveling on the same road based on sensing results by the GPS antenna and gyro (angular velocity sensor).
Slow locational correction using map matching

쐌

The map matching function requires verification of local data. To make the map matching function, some
distance needs to be driven.

쐌

The map matching function may not provide accurate performance in an area where there are numerous
parallel roads. Until the system judges the road characteristics, an incorrect position may be shown.

IDX

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-563

GPS signal reception conditions are good. However, the position mark does not return to its proper
position.

쐌

he system senses the vehicle location with an error of approximately 100 m (328 ft). Due to the limitation
of precision, the position marker may be inaccurate even if the GPS signal reception condition is good.

쐌

The navigation system uses GPS data to determine vehicle location. GPS data is compared with other
locational sensing data during the map matching process. The system decides which data is more pre-
cise and uses that data.

쐌

When the vehicle is stationary, GPS data cannot be used to make system corrections.

Area designations on the map display and the BIRDVIEW

姞

display differ.

To prevent the display from becoming congested, alphanumeric information is abridged.
[No problem]
Correct position of your vehicle is not displayed.
Vehicle position changed after ignition key was turned to the OFF position (Vehicle is transported on car ferry,
car train, or by some other means).
[Operate vehicle for short time under GPS receiving conditions.]
The display does not change to night-time mode even though the light switch has been turned ON.
Lights have been turned on. In “DISPLAY CHANGE” mode, night-time mode on display has been switched to
day-time mode and still is.
[Turn lights on again. Set the display to night-time mode. Refer to EL-546.]
Map does not scroll even though the position of your vehicle is changed.
Present area does not appear on the display.
[Press the “MAP” switch.]
Vehicle position marker does not appear.
Present area does not appear on the display.
[Press the “MAP” switch.]
The map surface precision display (GPS satellite marker) still remains gray.
Vehicle is parked inside a building or in the shadow of a large building. This intercepts the GPS signal.
[Move the vehicle to a more open position.]
GPS signal is not received because objects are placed on the rear parcel shelf.
[Remove objects from the rear parcel shelf.]
GPS satellite position is bad.
[Wait until GPS satellite position improves.]
Vehicle position precision is bad.
The map surface precision display (GPS satellite marker) still remains gray.
[Refer to “The map surface precision display (GPS satellite marker) still remains gray” item (Symptoms)]
Vehicle speed and elapsed distance is calculated from the vehicle speed pulse. This pulse is dependent upon
tire size. If tire chains are used on the vehicle, accuracy will be affected (pulse rate will be too fast or too slow).
The same is true if the system installed to your vehicle is removed and installed on another vehicle.
[Drive the vehicle at a speed higher than 30 km/h (19 MPH) for approximately 30 minutes. Automatic read-
justment should occur. If it does not (remains too fast or too slow), distance calibration is required. Or, drive
the vehicle for a short distance. Perform “SPEED CALIBRATION” (EL-543). After removing the tire chains,
sensing accuracy may recover by itself.]
Bad map data or system defect (same error consistently occurs in the same area)

ROUTE SEARCH/ROUTE GUIDE

NBEL0428S03

쐌

If the present location or the destination location is displayed in the avoid area, it is not possible to search
routes.

쐌

If the avoid area is set to wide range area, it may not be possible to find appropriate routes or search for
alternate routes.

쐌

The automatic re-route calculates a return to the original route. Because of this, it may not be possible to
search appropriate new routes. If you deviate from the original route and wish to select an appropriate new
route, touch “Route Calculation”.

쐌

The automatic re-route function may sometimes require considerable time.

쐌

Displayed route number and directional information at a highway junction may differ from the information
posted on the actual road signs.

쐌

Displayed street name information at a highway exit may differ from the information posted on the actual
road signs.

쐌

Street name information displayed on the enlarged intersection map may differ from the information posted
on the actual road signs.

NAVIGATION SYSTEM

This Condition is Not Abnormal (Cont’d)

EL-564

Content .. 33 34 35 36 ..
