SELF-DIAGNOSIS RESULTS

=NBEL0424S03

Diagnosed

item

Displayed

color

Detailed result

Description

Diagnoses/service procedure

Recheck system at each check or

replacement (When malfunction is

eliminated, further repair work is

not required.)

“GPS
Antenna”
(GPS
antenna con-
nection)

Green

—

GPS antenna is connected to dis-
play & NAVI control unit correctly.

—

Yellow

Connection to the follow-
ing unit is abnormal. See
the Service Manual for
further diagnosis.

GPS antenna connection error is
detected.

1. Check GPS antenna feeder cable

connection at display & NAVI
control unit.

2. Visually check GPS antenna

feeder cable. If NG, replace GPS
antenna assembly.

3. Replace GPS antenna.

“Navigation”
(Display &
NAVI control
unit)

Green

—

No failure is detected.

—

Red

[*** is abnormal.]

Display & NAVI control unit is mal-
functioning.

Replace display & NAVI control unit.

Gray

Self-diagnosis for CD-
ROM DRIVER of DISP &
NAVI was not conducted
due to no insertion of
CD-ROM.

Any CD-ROM is not inserted or dis-
play & NAVI control unit is malfunc-
tioning.

1. Confirm that map CD-ROM is not

inserted into display & NAVI con-
trol unit.

2. Replace display & NAVI control

unit.

Yellow

CD-ROM or CD-ROM
DRIVER of DISP & NAVI
is abnormal. See the
Service Manual for fur-
ther diagnosis.

Display & NAVI control unit judges
that inserted CD-ROM is malfunc-
tioning.
Map CD-ROM or CD-ROM driver of
the unit is malfunctioning.

1. Confirm the disk is installed cor-

rectly (not up side down.)

2. Perform “CHECK THE MAP CD-

ROM VERSION” in EL-539 to
confirm whether correct CD-ROM
is inserted or not.

3. Check the disk surface. Are there

any scratches, abrasions or pits
on the surface?

4. Replace the CD-ROM.
5. Replace display & NAVI control

unit.

CD-ROM is abnormal.
Please check the disc.

Inserted map CD-ROM can not be
read.
Map CD-ROM or CD-ROM driver of
the unit is malfunctioning.

Connection to the follow-
ing unit is abnormal. See
the Service Manual for
further diagnosis.

GPS antenna connection error is
detected.

1. Check GPS antenna feeder cable

connection at display & NAVI
control unit.

2. Visually check GPS antenna

feeder cable. If NG, replace GPS
antenna assembly.

3. Replace GPS antenna.

IDX

NAVIGATION SYSTEM

Self-diagnosis Mode (Cont’d)

EL-533

Confirmation/Adjustment Mode

=NBEL0425

“HISTORY OF ERRORS” MODE

NBEL0425S01

Description

NBEL0425S0101

In this mode, historical errors of the system are displayed with the
following data.

쐌

How many times the error was detected

쐌

The last time data when the error was detected

쐌

The last place where the error was detected

NOTE:

쐌

The number of errors can be counted up to 50 times. More
than 51 times will be indicated as 50 times.

쐌

Malfunction of the GPS board (inside the display & NAVI
control unit) will result in the display of incorrect time
data.

쐌

When an error occurs, an incorrect position marker
appears on the display. The accuracy of the display data
(position marker) will be affected.

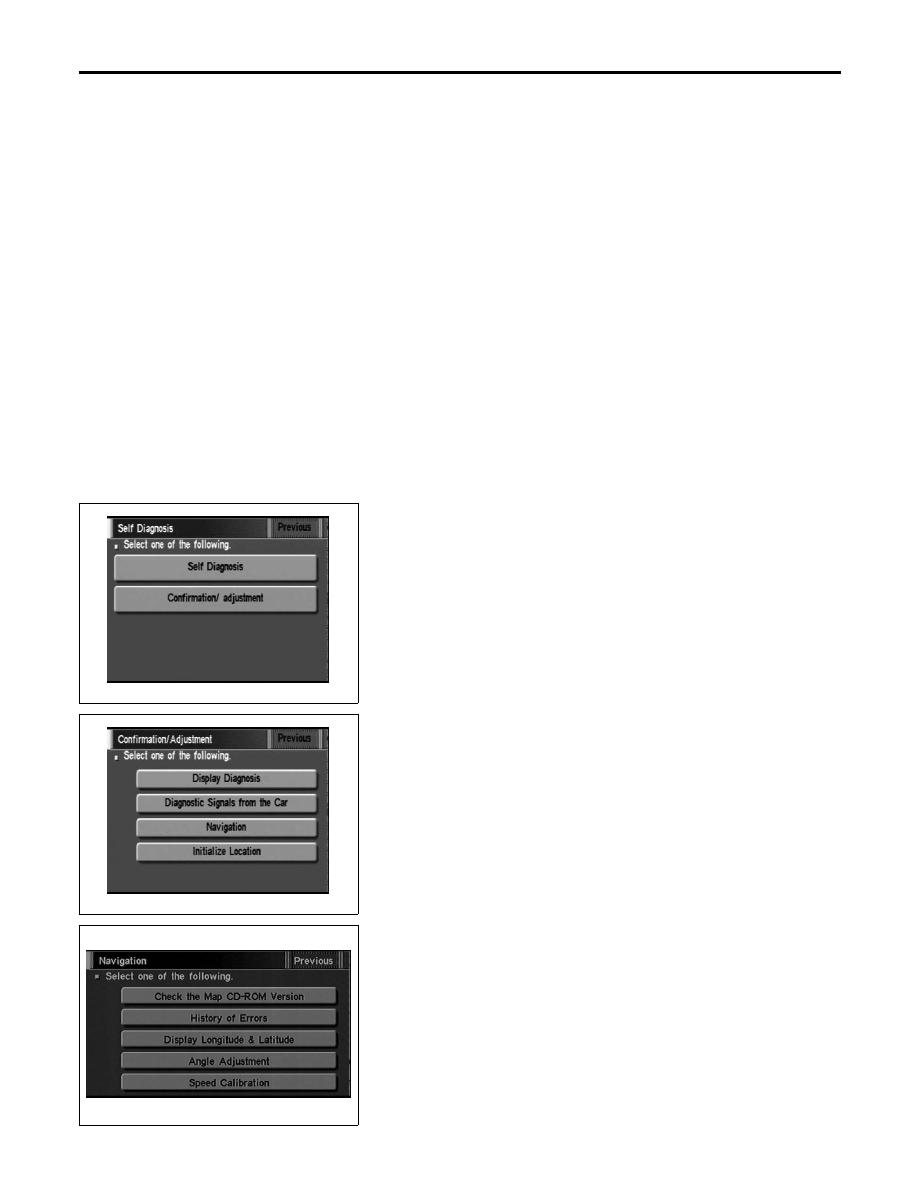

SEL584X

How to Perform

NBEL0425S0102

Start the engine.

Push both “MAP” and “D/N” switch at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Navigation”.

SEL453Y

Touch “Error history”.

NAVIGATION SYSTEM

Confirmation/Adjustment Mode

EL-534

SEL590X

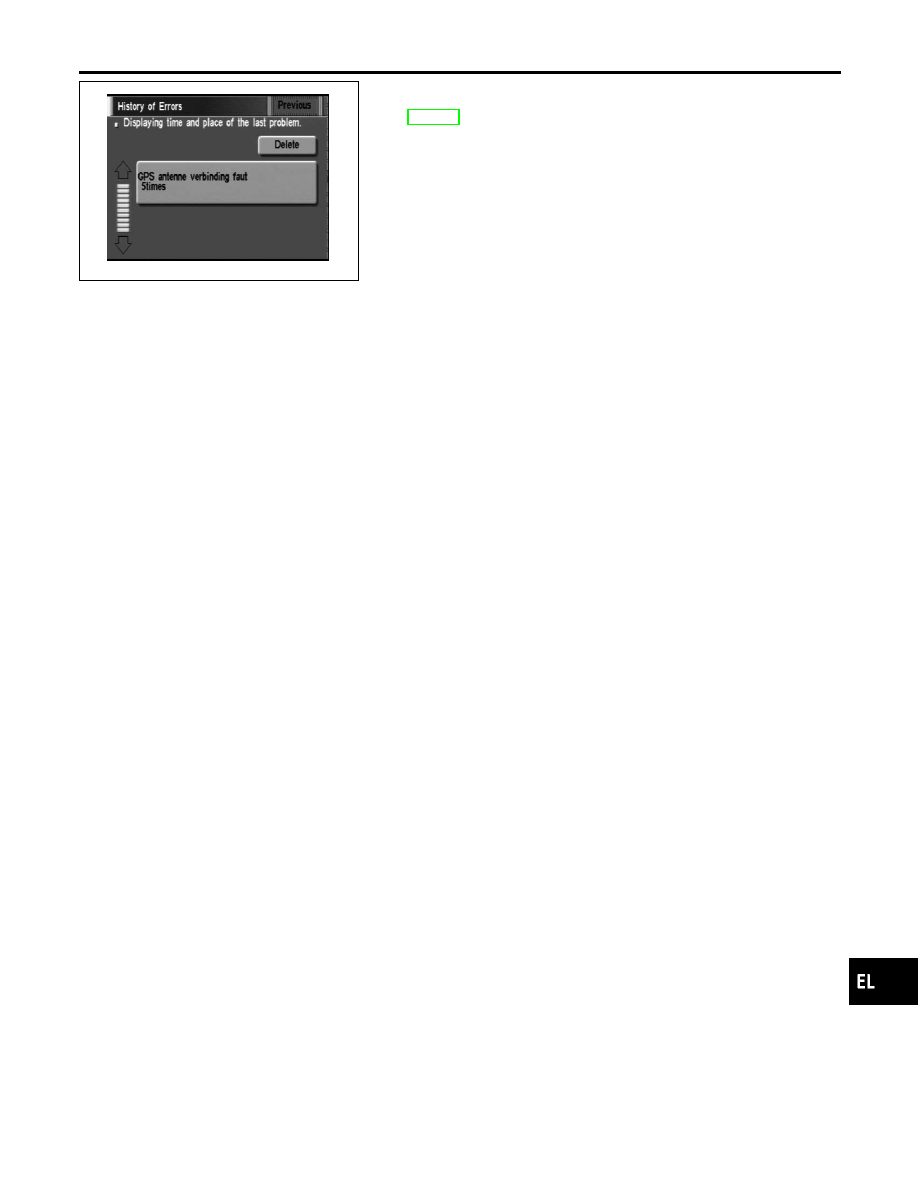

If trouble items are displayed with time count, repair/replace
the system according to “HISTORY OF ERRORS” TABLE,
EL-536.

If necessary, touch error item to display the time when the error
was detected and the place where the error was detected.

After repairing the system, erase the diagnosis memory.

NOTE:
When the display & NAVI control unit must be replaced, do not
erase the diagnosis memory for further inspection of malfunc-
tions.
a.

Start the engine.

Push both “Map” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

Touch “Navigation”.

Touch “Error history”.

Touch “Delete”.

Touch “Yes”.

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-535

“HISTORY OF ERRORS” TABLE

=NBEL0425S02

Detected items

Description

Diagnosis/service procedure

Refer-

ence
page

Gyro sensor disconnected

Communications malfunction between
display & NAVI control unit and internal
gyro

Perform self-diagnosis to confirm
whether the display & NAVI control unit
is malfunctioning or not. If no failure is
detected, a momentary and/or tempo-
rary malfunction may have been caused
by strong electromagnetic wave interfer-
ence.

EL-531

Connection problem of speed
sensor

Input malfunction of display & NAVI con-
trol unit and speed sensor

Check vehicle speed sensor signal in
“DIAGNOSTIC SIGNALS FROM THE
CAR” mode. If the input signal is not
detected correctly, check harness for
open or short between combination
meter and display & NAVI control unit.

EL-538

GPS disconnected

Communications malfunction between
display & NAVI control unit and GPS
board

EL-531

GPS transmission cable malfunc-
tion

GPS input line connection error

GPS TCXO over

The transmission circuit of the GPS
board frequency synchronization oscilla-
tor (inside the display & NAVI control
unit) is sending an oscillation frequency
that is greater or less than the set value.

A location error occurs. Strong electro-
magnetic wave interference may have
occurred. The GPS antenna may be in a
very hot or very cold environment. This
is usually a temporary malfunction.

—

GPS TCXO under

GPS ROM malfunction

Internal malfunction of GPS board RAM
or ROM inside the display & NAVI con-
trol unit.

EL-531

GPS RAM malfunction

GPS RTC malfunction

Malfunction of GPS board clock IC
inside the display & NAVI control unit.

GPS antenna disconnected

—

Perform self-diagnosis to confirm GPS
antenna connection. If no failure is
detected, a momentary and/or tempo-
rary malfunction may have been caused
by a strong impact.

EL-539

Low voltage of GPS

Power supply voltage for GPS board
inside the display & NAVI control unit is
low.

1. Check power supply circuits for dis-
play & NAVI control unit.

EL-552

2. Perform self-diagnosis to confirm
GPS antenna connection.

EL-531

3. If above diagnosis results are OK, a
momentary and/or temporary malfunc-
tion may have been caused by a strong
impact.

—

CD-ROM communication error

CD-ROM driver malfunction (inside the
display & NAVI control unit)

EL-531

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-536

Detected items

Description

Diagnosis/service procedure

Refer-

ence
page

Loading mechanism malfunction

—

Check that whether the disc can be
inserted and ejected correctly. If the
loading function does not operate
correctly, replace NAVI & display control
unit.

—

CD-ROM reading error

It is confirmed that the appropriate CD-
ROM disc is positioned in the CD-ROM
loader. However, no data can be read.

Perform self-diagnosis to confirm
whether the inserted disc is malfunction-
ing or not.

EL-531

Malfunctioning of error correction
for CD-ROM

Erroneous data is read from the CD-
ROM. The errors cannot be corrected.

CD-ROM focus error

CD-ROM data reading beam is out of
focus.

Rough road driving might create CD
skipping like music CD audio unit.

—

CD-ROM malfunction

—

Perform self-diagnosis to confirm
whether the inserted disc is malfunction-
ing or not.

EL-531

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-537

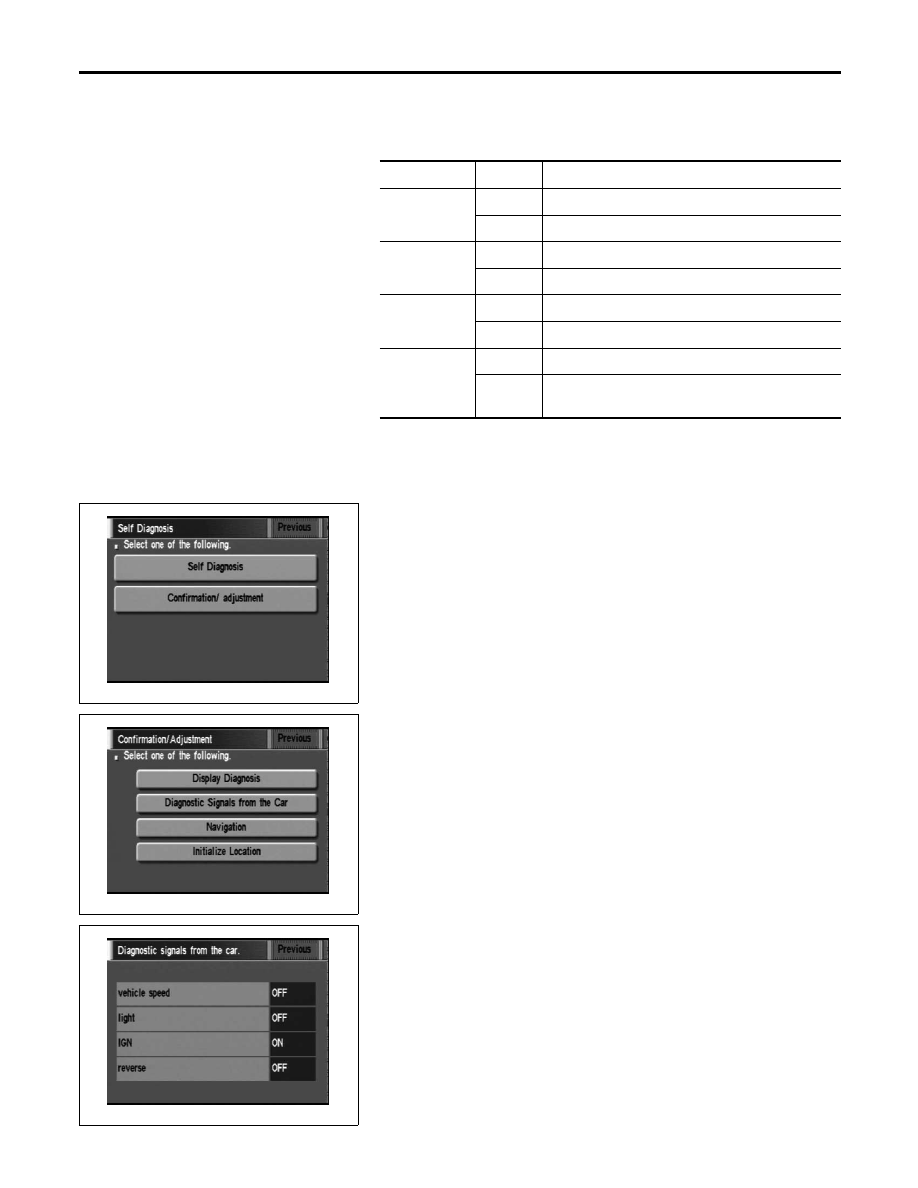

“DIAGNOSTIC SIGNALS FROM THE CAR” MODE

=NBEL0425S03

Description

NBEL0425S0301

In “Diagnostic Signals From the Car” mode, following input signals
to the display & NAVI control unit can be checked on the display.

Item

Indication

Vehicle condition

Vehicle
Speed*

Vehicle speed is greater than 0 km/h (0 MPH).

OFF

Vehicle speed is 0 km/h (0 MPH).

Light

Lighting switch is in 1st or 2nd position.

OFF

Lighting switch is in “OFF” position.

IGN

Ignition switch is in “ON” position.

OFF

Ignition switch is in “ACC” position.

REVERSE*

Selector/shift lever is in “Reverse” position.

OFF

Selector/shift lever is in other than “Reverse” posi-
tion.

*: When ignition switch is in “ACC” position, indication will be changed to “-”.

SEL584X

How to Perform

NBEL0425S0302

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Diagnostic Signals from the Car”.

SEL591X

Then “Diagnostic Signals from the Car” mode is performed.

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-538

SEL584X

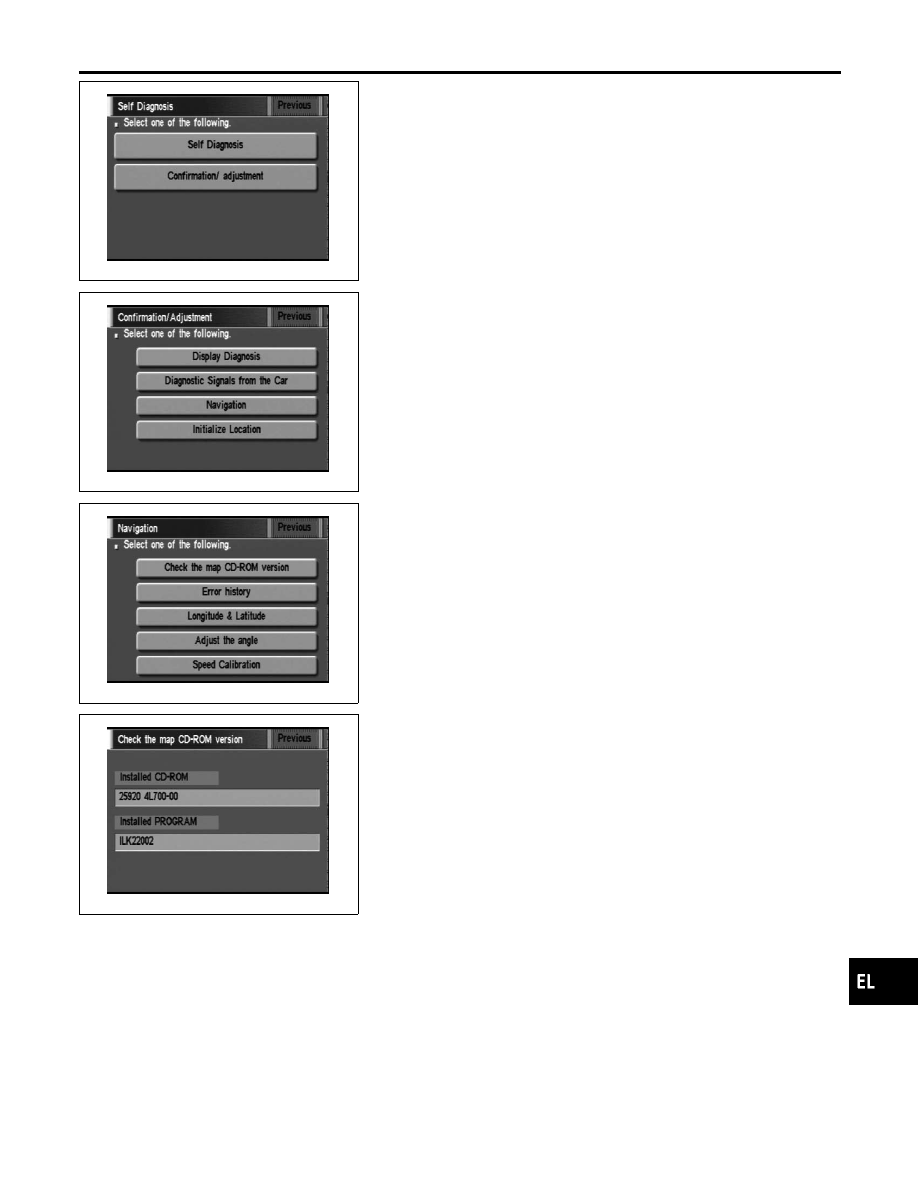

“CHECK THE MAP CD-ROM VERSION” MODE

=NBEL0425S04

How to Perform

NBEL0425S0401

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Navigation”.

SEL589X

Touch “Check the map CD-ROM version”.

SEL592X

The version (parts number) of CD-ROM loaded to the display
and NAVI control unit will be displayed.

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-539

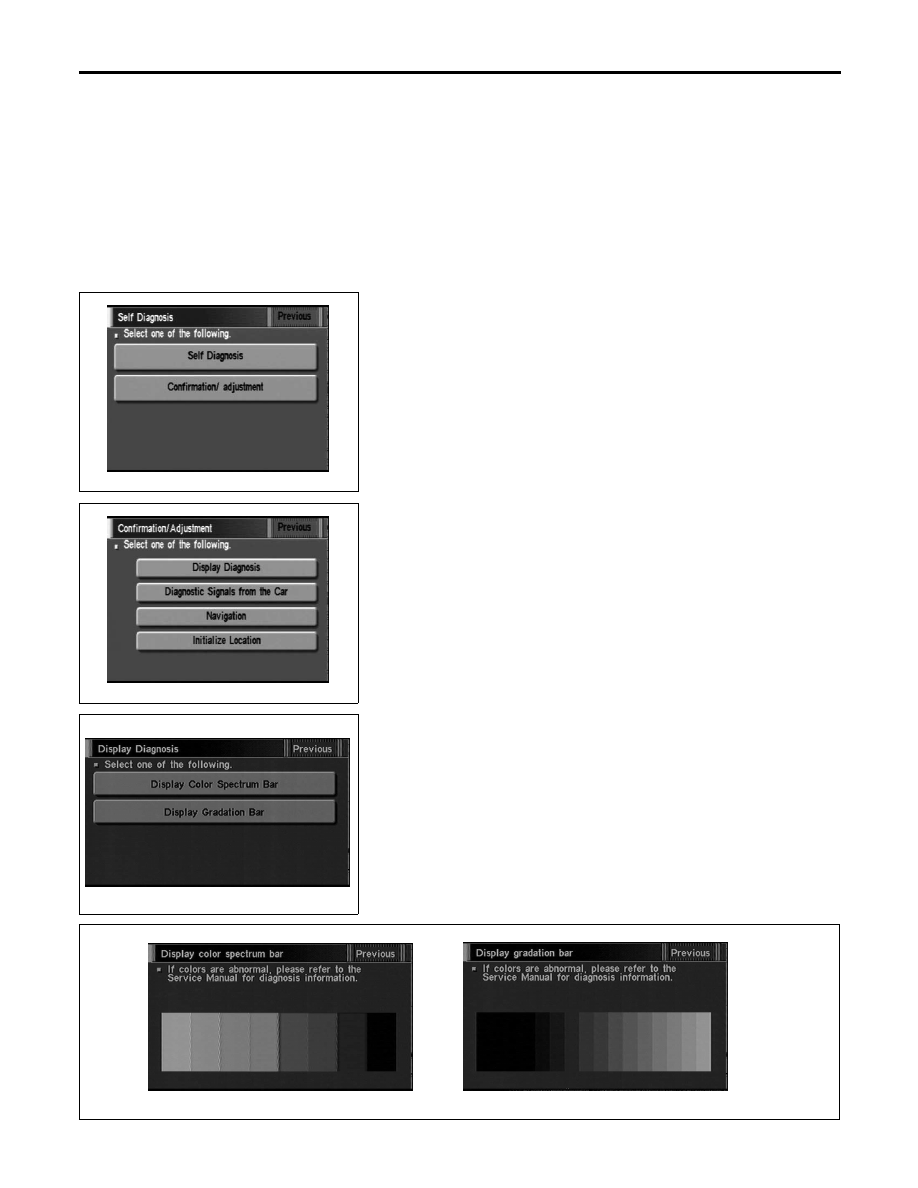

“DISPLAY DIAGNOSIS” MODE

=NBEL0425S05

Description

NBEL0425S0501

Use the “Diagnosis Display” mode to check the display color bright-
ness and shading. The display & NAVI control unit must be
replaced if the color brightness and shading are abnormal.

SEL584X

How to Perform

NBEL0425S0502

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Display Diagnosis”.

SEL454Y

Touch “Display color spectrum bar” or “Display gradation bar”.

Then color bar/gray scale will be displayed.

SEL455Y

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-540

“LONGITUDE & LATITUDE” MODE

NBEL0425S06

Description

NBEL0425S0601

The “Longitude & Latitude” is used to confirm the longitude and
latitude of some optional area point.

SEL584X

How to Perform

NBEL0425S0602

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Navigation”.

SEL589X

Touch “Longitude & Latitude”.

SEL595X

Adjust the pointer with using the joystick and touch “Set”.

The longitude and latitude are displayed.

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-541

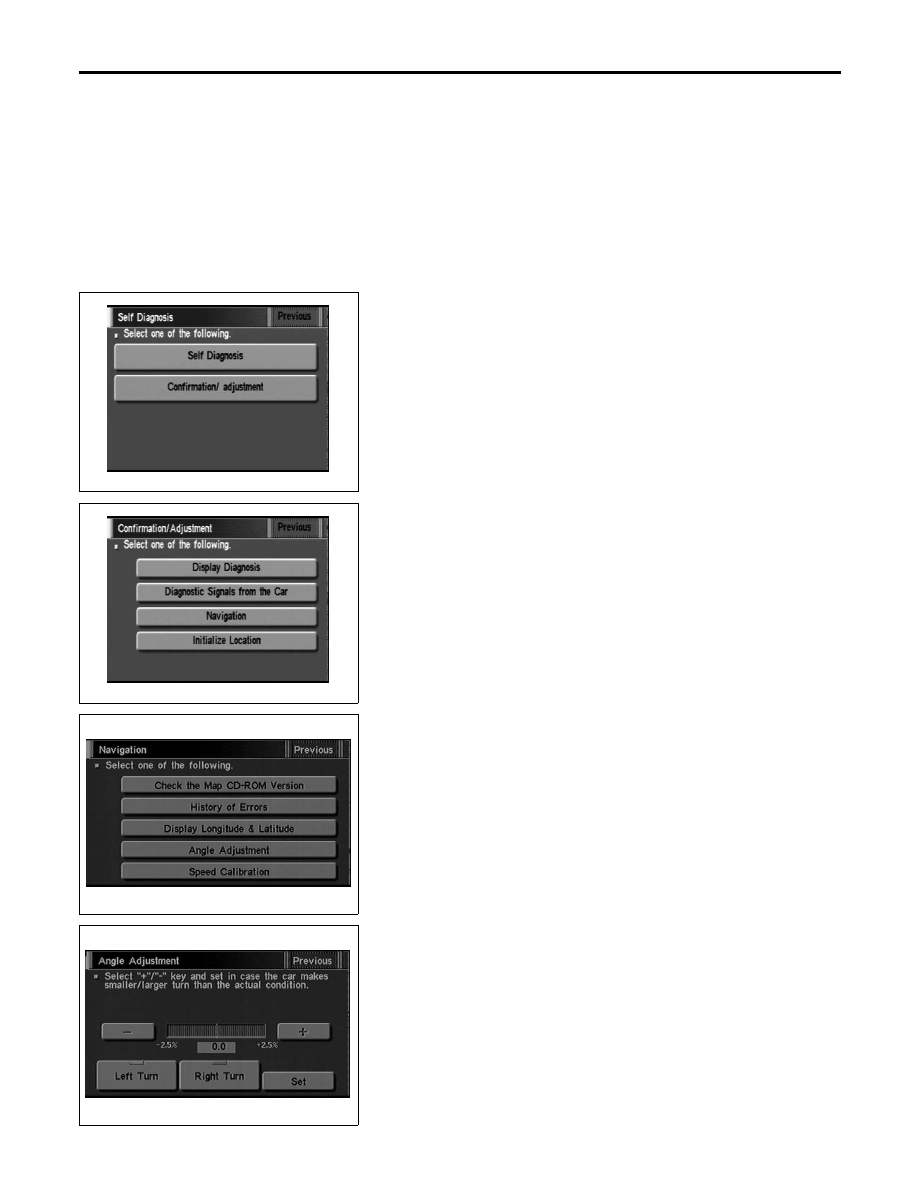

“ADJUST THE ANGLE” MODE

=NBEL0425S07

Description

NBEL0425S0701

If the display indicates a larger or smaller turning angle than the
actual turning angle, the gyro (angular speed sensor) sensing val-
ues must be checked.
In case that the vehicle on the display makes larger angle turn than
reality, touch “−”. In case that the vehicle on the display makes
smaller angle turn than reality, touch “+”.

SEL584X

How to Perform

NBEL0425S0702

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

SEL588X

Touch “Navigation”.

SEL453Y

Touch “Adjust the angle”.

SEL456Y

Touch “Left Turn” to adjust the angle to the left. Touch “Right
Turn” to adjust the angle to the right.

Touch “+” to increase the angle change coefficient or “−” to
reduce the angle change coefficient.

Touch “Set” to save the changed values in memory.

Then the vehicle turning angle on the display has adjusted.

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-542

SEL584X

SPEED CALIBRATION

=NBEL0425S08

Start the engine.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

Touch “Confirmation/ adjustment”.

Touch “Navigation”.

SEL453Y

Touch “Speed Calibration”.

SEL457Y

Touch “+” or “−” to adjust the distance change coefficient.

쐌

To make the distance change coefficient smaller, touch “−”.

쐌

To make the distance change coefficient larger, touch “+”.

Touch “Set”.

IDX

NAVIGATION SYSTEM

Confirmation/Adjustment Mode (Cont’d)

EL-543

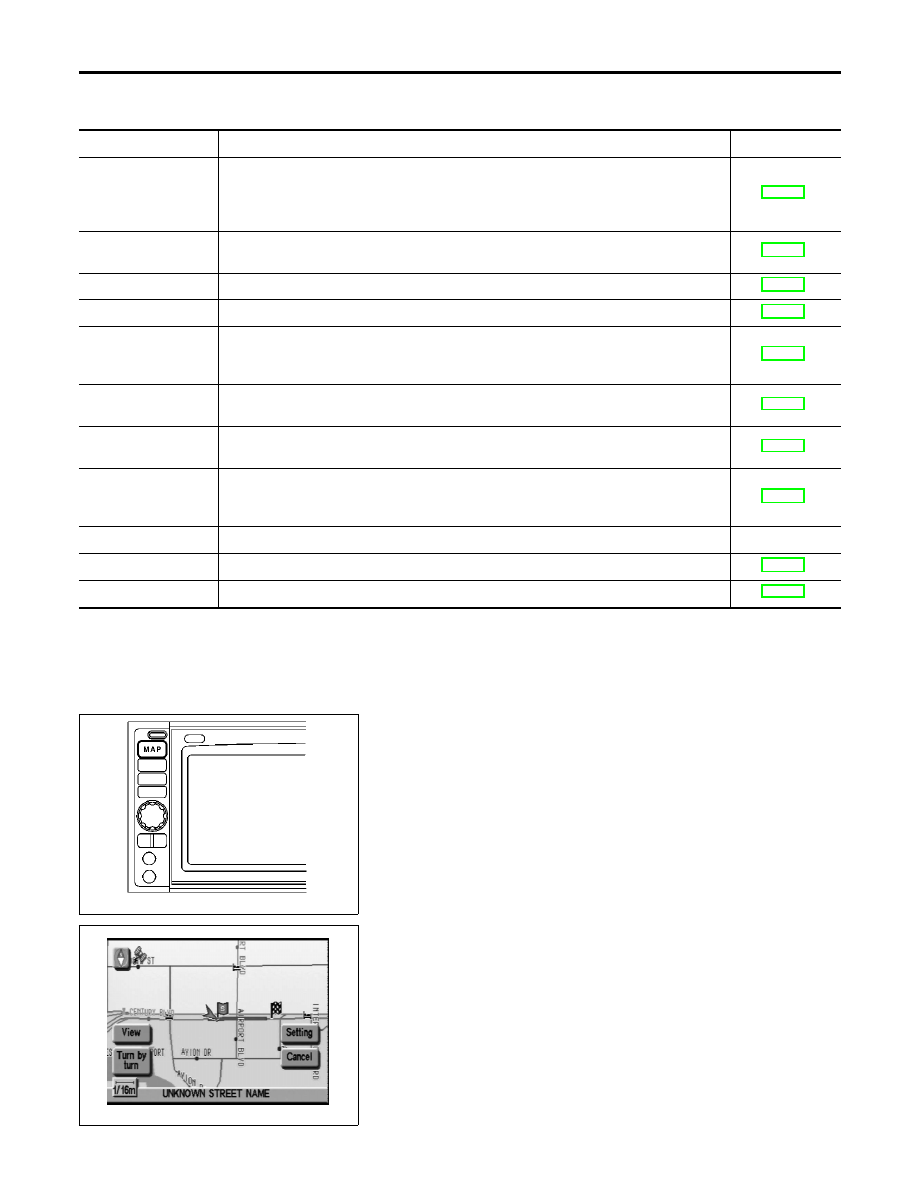

Setting Mode

=NBEL0426

APPLICATION ITEMS

NBEL0426S01

Mode

Description

Reference page

GPS Information

The GPS includes longtitude, latitude and altitude (distance above sea level) of the
present vehicle position, and current date and time for the area in which the vehicle is
being driven.
Also indicated are the GPS reception conditions and the GPS satellite position.

EL-544

Quick Stop Customer
Setting

One facility of your selection can be added to your Quick Stop.

EL-547

Route Priorities

Priorities of search request and automatic re-searching can be set for route search.

EL-548

Tracking

Tracking to the present vehicle position can be displayed.

EL-549

Display Setting

The following display settings can be customized.

쐌

Display color (Day mode or Night mode)

쐌

Brightness of display

EL-546

Heading

Heading of the map display can be customized for either north heading or the actual
driving direction of the vehicle.

EL-549

Nearby Display Icons

Icons of facilities can be displayed.
Facilities to be displayed can be selected from the variety of selections.

EL-550

Adjust Current Loca-
tion

Current location of position marker can be adjusted. Direction of position marker also
can be calibrated when heading direction of the vehicle on the display is not matched
with the actual direction.

EL-545

Avoid Area Setting

Particular area can be avoided when routing.

—

Beep On/Off

Beep sounds which correspond to the system operation can be activated/deactivated.

EL-546

Clear Memory

Address book, Previous destination or Avoid area can be deleted.

EL-550

SEL597X

HOW TO PERFORM CONTROL PANEL MODE

NBEL0426S02

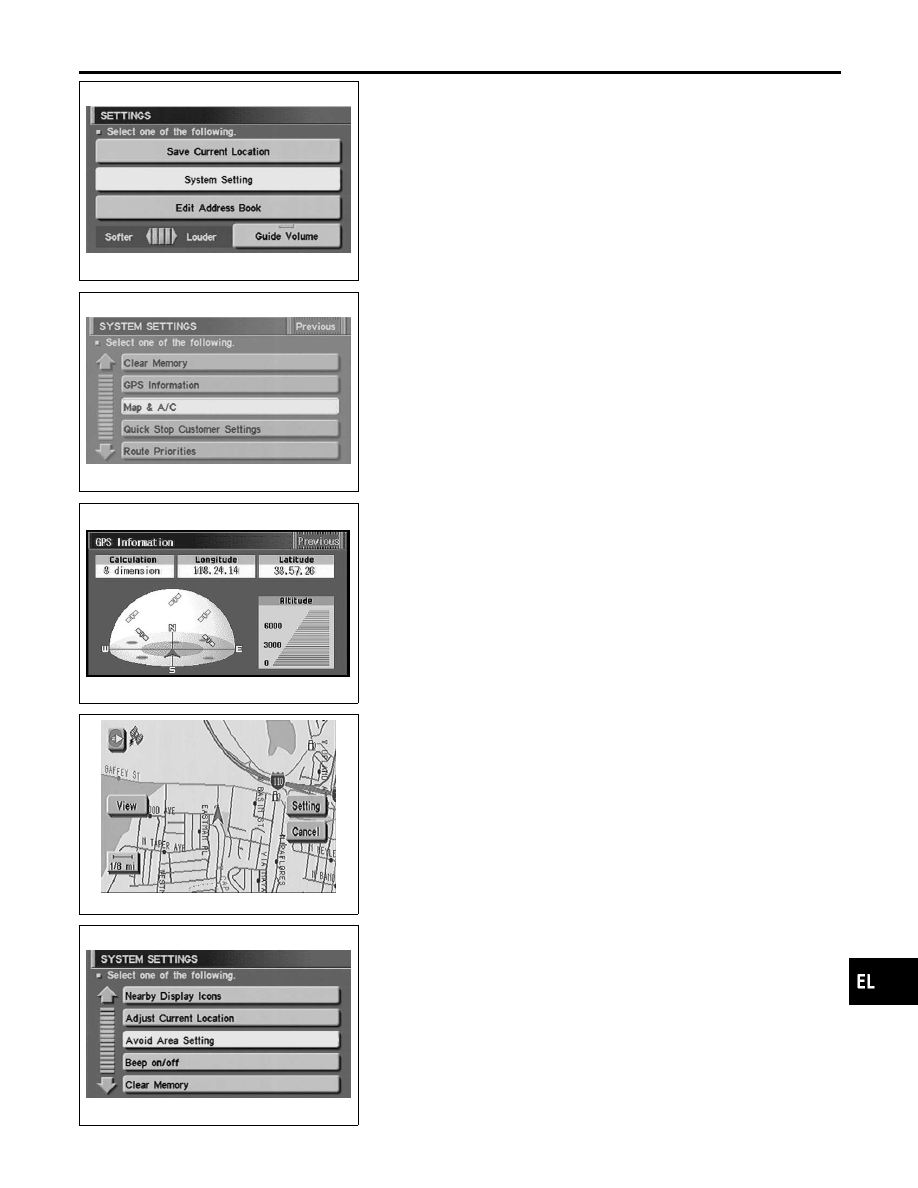

Start the engine.

Push “MAP” switch.

쐌

For further procedures, refer to the following pages which
describe each application item of the control panel mode.

SEL598X

“GPS INFORMATION” SETTING

NBEL0426S03

Start the engine.

Push “MAP” switch.

Touch “Setting”.

NAVIGATION SYSTEM

Setting Mode

EL-544

SEL461Y

Touch “System Setting”.

SEL462Y

Touch “GPS Information”.

SEL146W

Then GPS information will be displayed.

SEL460Y

“ADJUST CURRENT LOCATION” SETTING

NBEL0426S04

Start the engine.

Push “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL463Y

Touch “Adjust Current Location”.

IDX

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-545

SEL602X

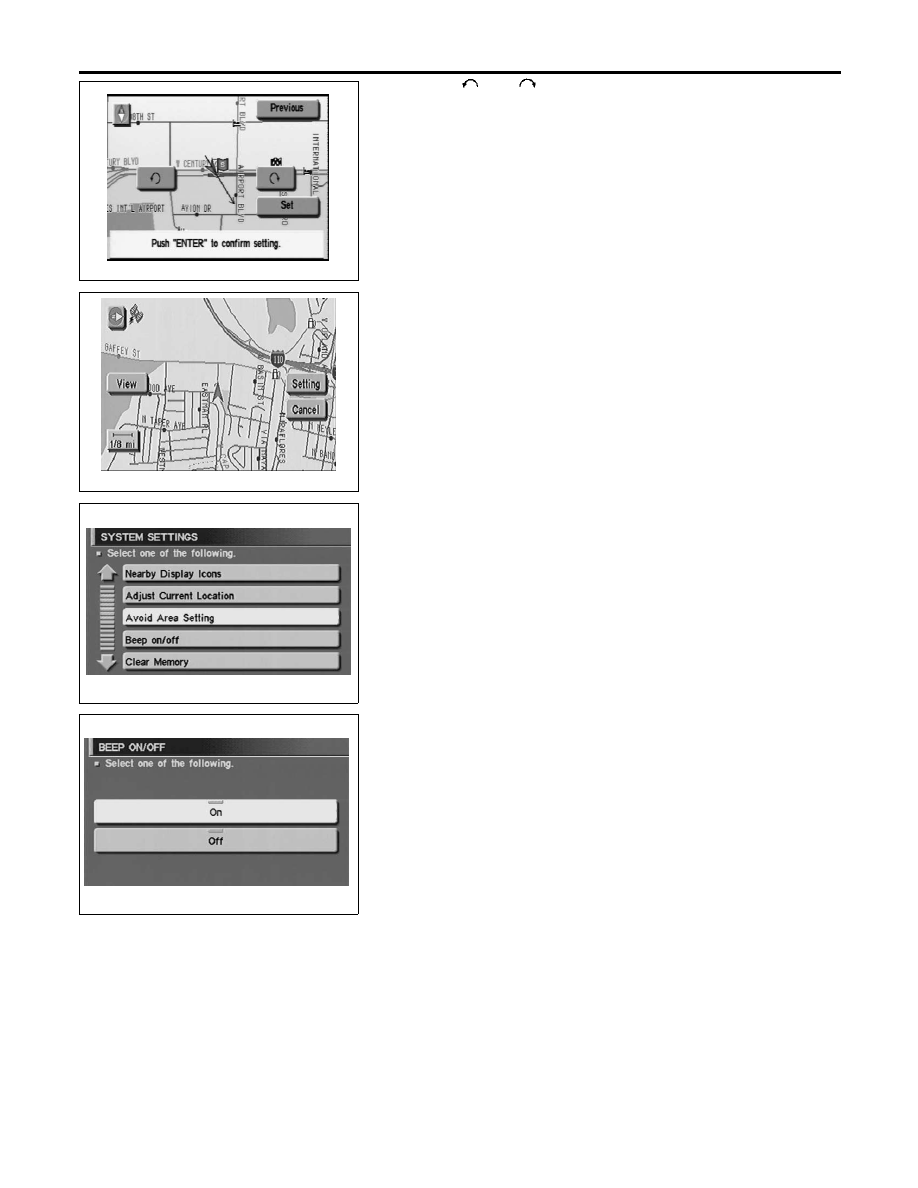

Touch “

” or “

” to calibrate the heading direction. (Arrow

marks will rotate corresponding to the calibration key.)

Touch “Set”. Then the vehicle mark will be matched to the
arrow mark.

Display will show “Heading direction has been calibrated” and
then go back to the current location map.

SEL460Y

BEEP ON/OFF SETTING

NBEL0426S05

Start the engine.

Push “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL463Y

Touch “Beep on/off”.

SEL464Y

Touch “On” or “Off” icon.

쐌

If you want the beep sound, select “ON”.

쐌

If you do not want the beep sound, select “OFF”.

Push “MAP” switch, then the display will go back to the current
location map.

DISPLAY SETTING

NBEL0426S06

Description

NBEL0426S0601

The following display setting can be changed in this mode.

쐌

Dimmer operation (when lighting switch is turned on.)

쐌

Display color (Day mode or Night mode)

쐌

Brightness of display

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-546

SEL465Y

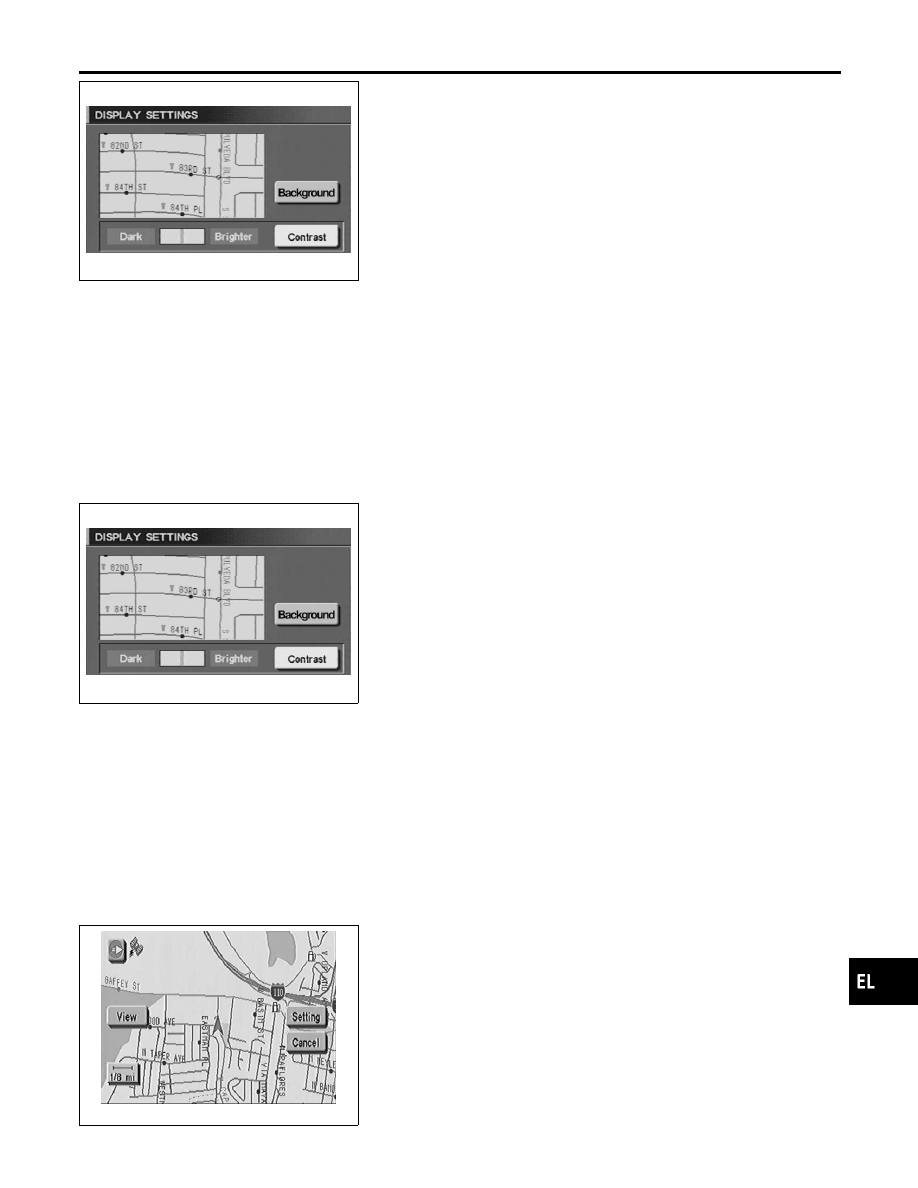

DISPLAY COLOR SETTING

NBEL0426S07

Start the engine.

Push “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

Touch “Color”. Display color will change to Day mode/Night
mode.

Touch “Previous”.

NOTE:

쐌

Display color can be changed independently when light-
ing switch is turned on and off.

쐌

Initial setting of the color is as follows:
When lighting switch is turned off: Day mode
When lighting switch is turned on: Night mode
Day mode: White background
Night mode: Black background

SEL465Y

BRIGHTNESS SETTING

NBEL0426S08

Start the engine.

Push “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

Touch “Display Setting”.

Touch “Bright” or “Dark” to adjust the brightness of display.

Touch “Previous”.

NOTE:
Display brightness can be adjusted independently when light-
ing switch is turned on and off.

SEL460Y

“QUICK STOP CUSTOMER SETTING” MODE

NBEL0426S09

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

IDX

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-547

SEL462Y

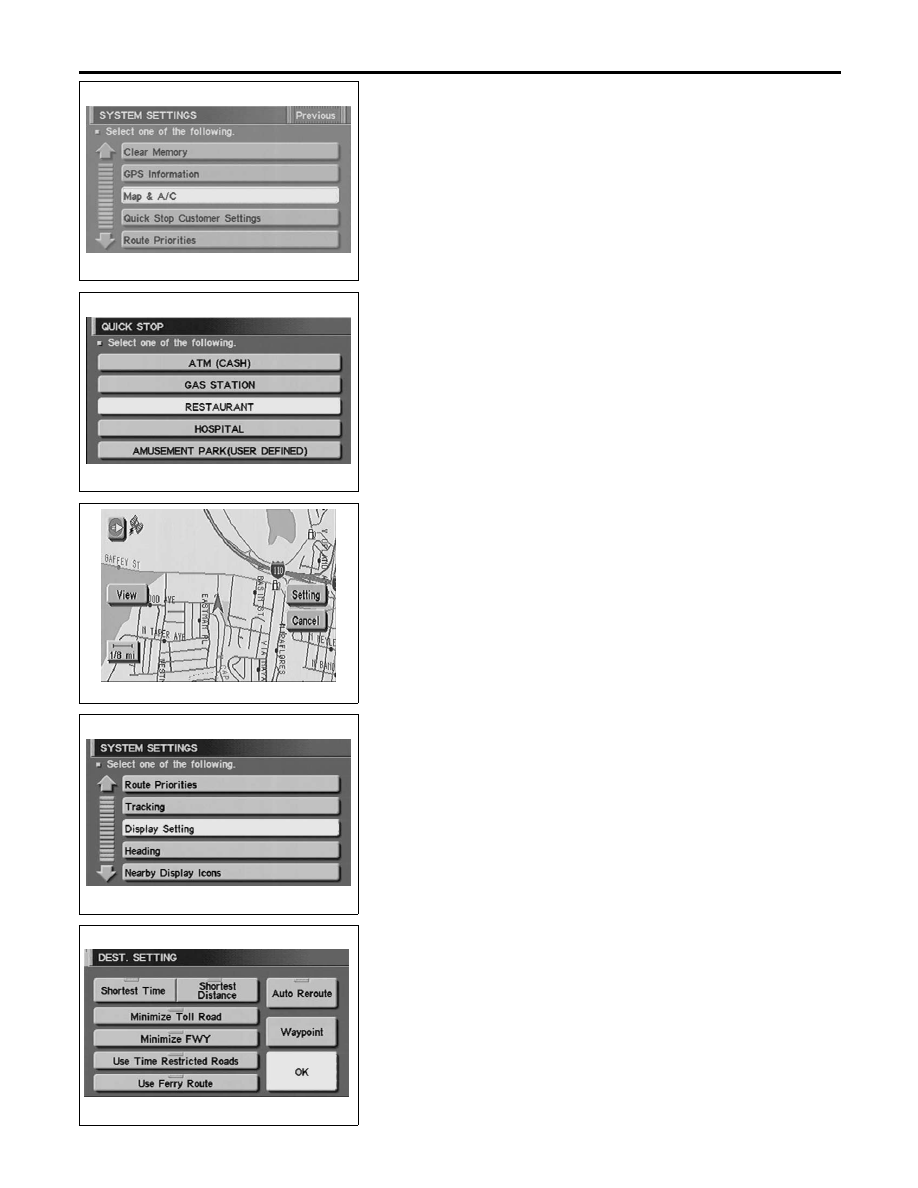

Touch “Quick Stop Customer Setting”.

SEL466Y

Select from the itemized list.

SEL460Y

“ROUTE PRIORITIES” MODE

NBEL0426S10

Start the engine.

Push the “MAP” switch.

Touch “Setting”.

Touch “System Setting”.

SEL467Y

Touch “Route Priorities”.

SEL468Y

Select from the itemized list.

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-548

Content .. 32 33 34 35 ..
