Infiniti M45 (Y34). Manual - part 107

ON-VEHICLE SERVICE

AT-313

D

E

F

G

H

I

J

K

L

M

A

B

AT

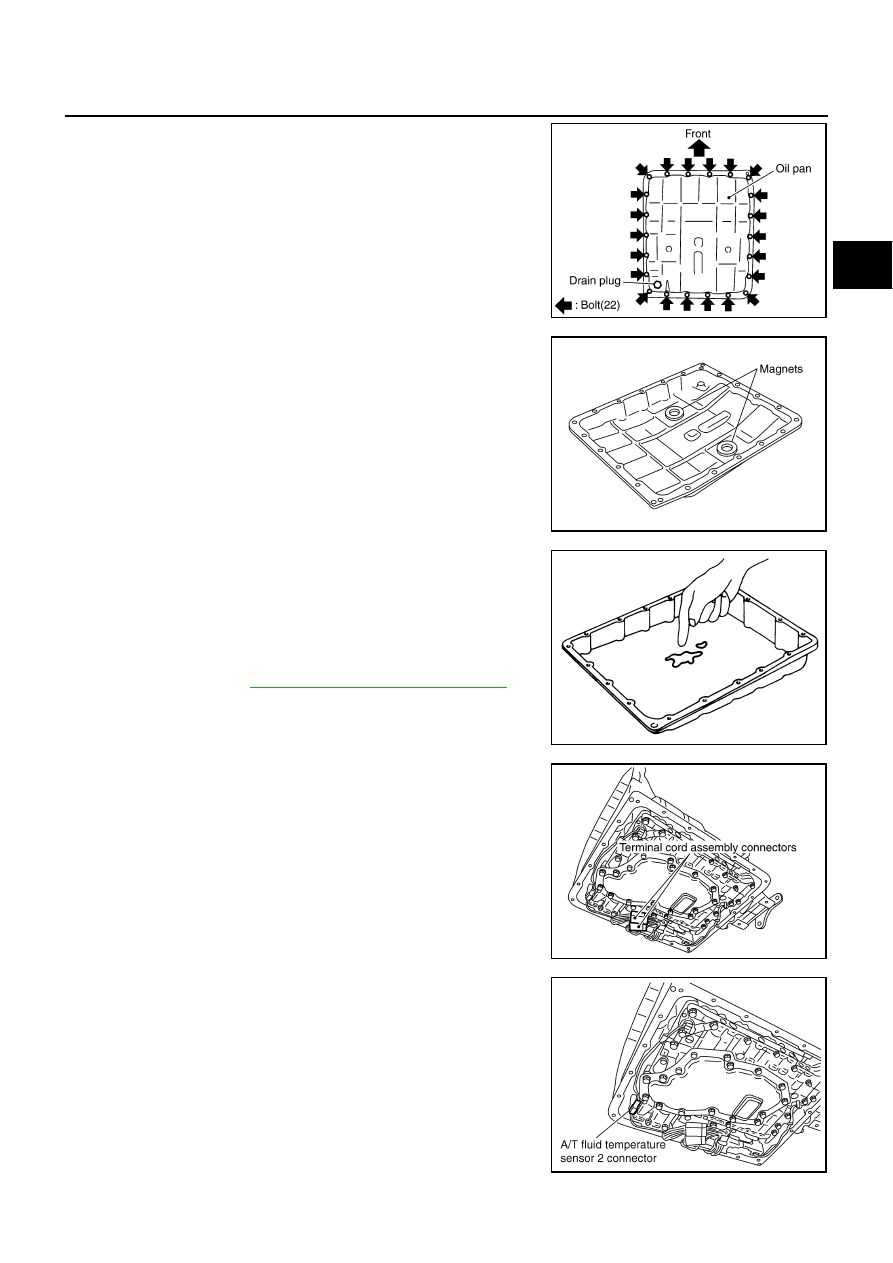

4.

Remove oil pan and oil pan gasket.

5.

Remove magnets from oil pan.

6.

Check foreign materials in oil pan to help determine causes of
malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.

●

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-16, "A/T Fluid Cooler Cleaning"

 .

7.

Disconnect terminal cord assembly connectors.

CAUTION:

Be careful not to damage connector.

8.

Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Be careful not to damage connector.

SCIA2308E

SCIA5200E

SCIA5199E

SCIA3976E

SCIA4967E

AT-314

ON-VEHICLE SERVICE

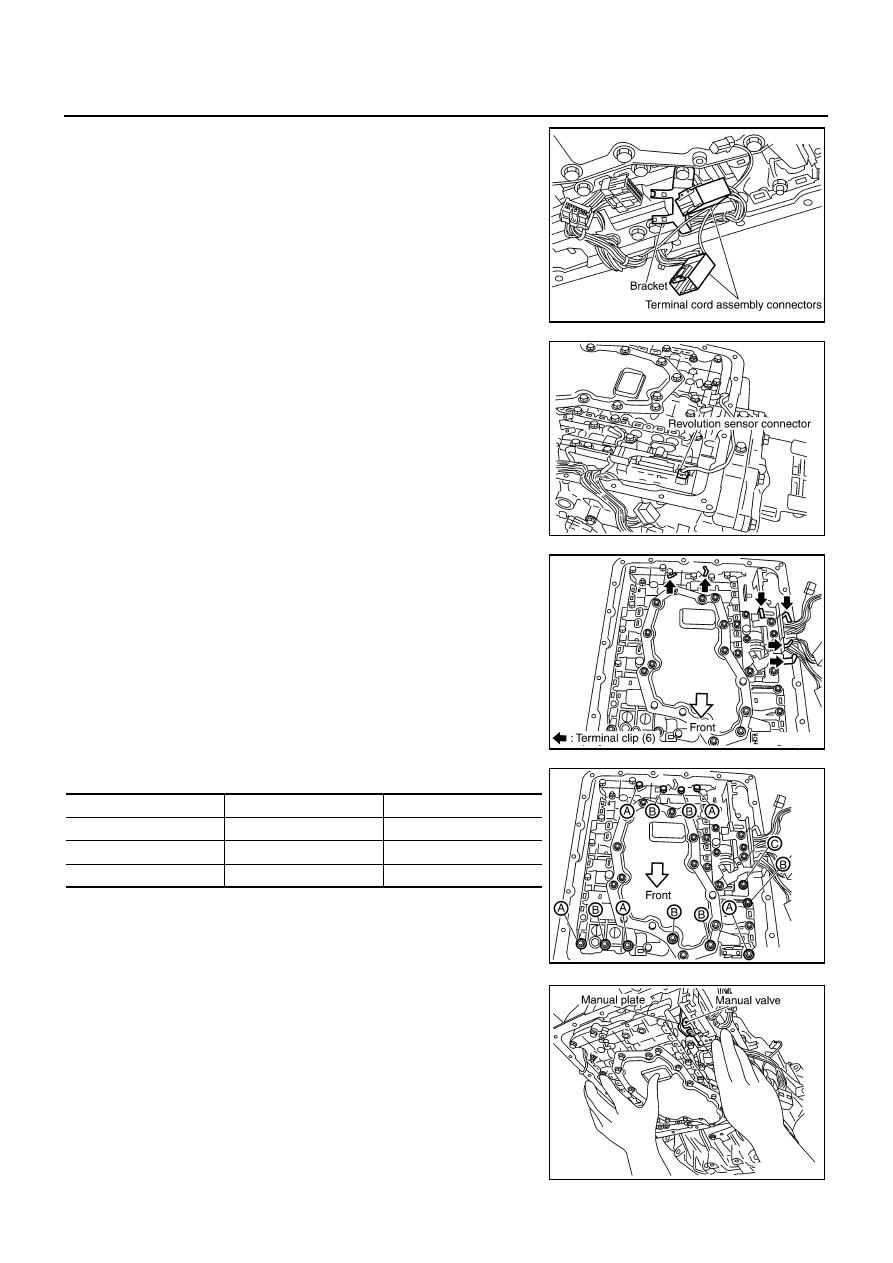

9.

Remove terminal cord assembly connectors from bracket.

CAUTION:

Be careful not to damage connector.

10. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

11. Straighten terminal clips to free terminal cord assembly and rev-

olution sensor harness then remove terminal clips.

CAUTION:

Hang down terminal cord assembly and revolution sensor
harness toward outside so as not to disturb removal of con-
trol valve assembly.

12. Remove bolts A, B and C from control valve assembly.

13. Remove control valve assembly from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

SCIA3977E

SCIA2313E

SCIA2314E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA2312E

SCIA3984E

ON-VEHICLE SERVICE

AT-315

D

E

F

G

H

I

J

K

L

M

A

B

AT

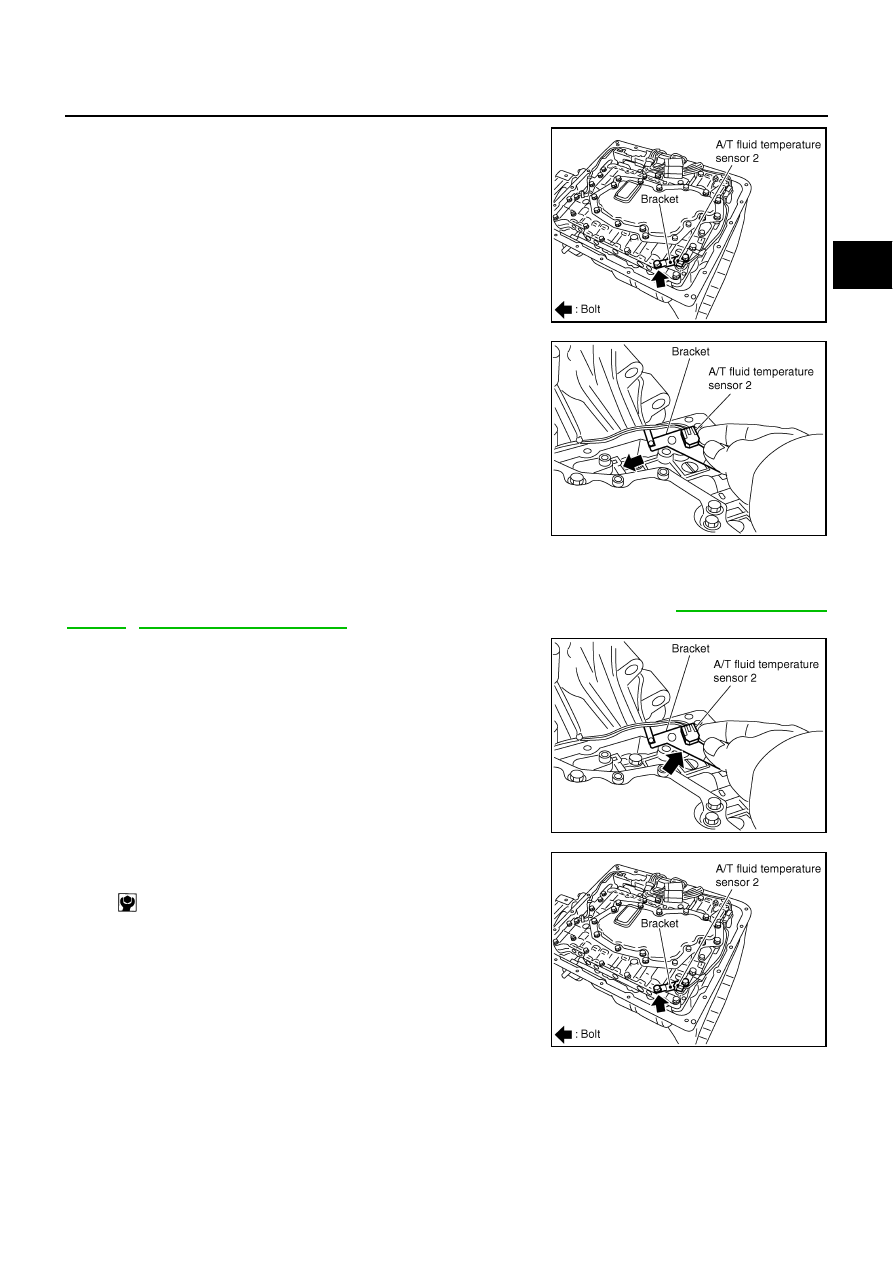

14. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve assembly.

15. Remove bracket from A/T fluid temperature sensor 2.

INSTALLATION

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-14, "Changing A/

T Fluid"

 ,

AT-14, "Checking A/T Fluid"

 .

1.

Install A/T fluid temperature sensor 2 in bracket.

2.

Install A/T fluid temperature sensor 2 in control valve assembly.
(With bracket.)

SCIA5126E

SCIA5127E

SCIA5128E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5126E

AT-316

ON-VEHICLE SERVICE

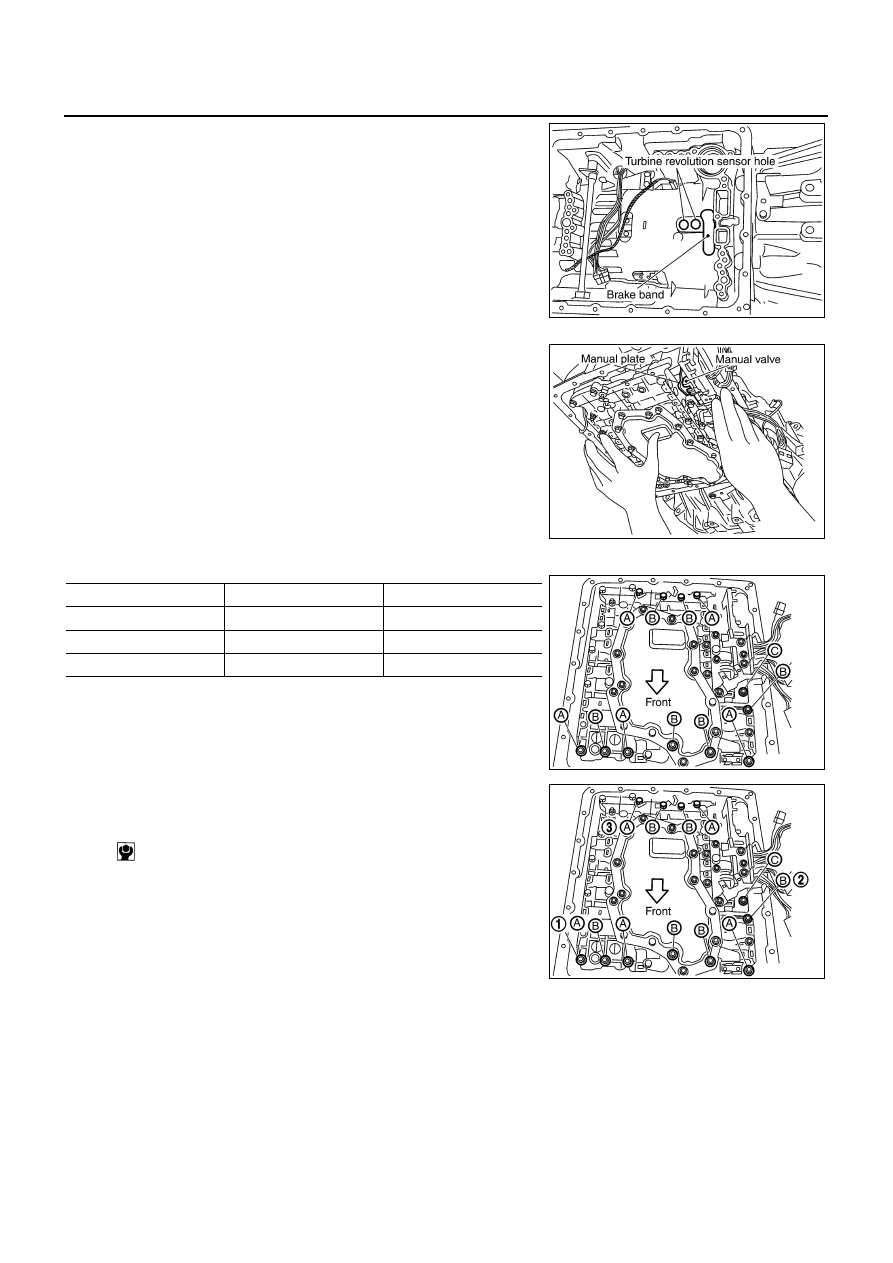

3.

Install control valve assembly.

a.

Install control valve assembly in transmission case.

CAUTION:

●

Make sure that turbine revolution sensor securely installs
turbine sensor hole.

●

Hang down terminal cord assembly and revolution sen-
sor harness toward outside so as not to disturb installa-
tion of control valve assembly.

●

Assemble it so that manual valve cutout is engaged with
manual plate projection.

b.

Install bolts A, B and C in control valve assembly.

c.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

→

 2

→

 3), and then tighten other

bolts.

SCIA2479E

SCIA3984E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA2312E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA3170E
